Downstream O2 sensor wiring diagram needed?

2004 CHRYSLER PACIFICA
173,000 MILES
Avatar
DANBLOMBURG
  • MEMBER
  • 2 POSTS
I am replacing the downstream O2 sensor. The wiring harness on the car is missing. I need a wiring diagram to know what wires to match the wires on the new sensor to.
Feb 5, 2023 at 6:46 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

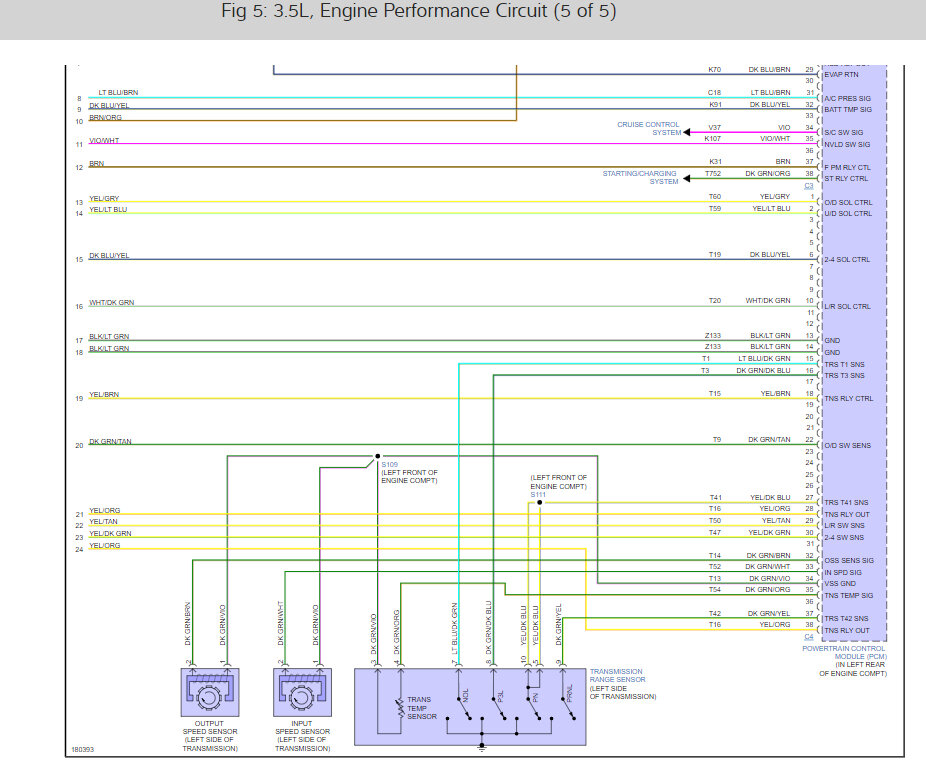

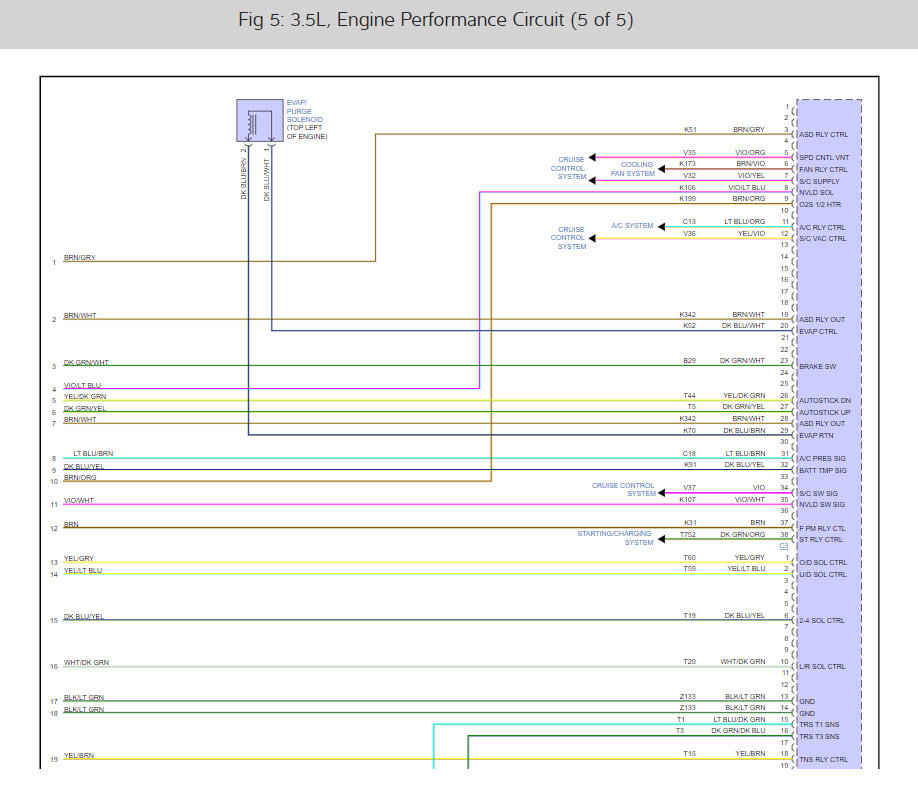

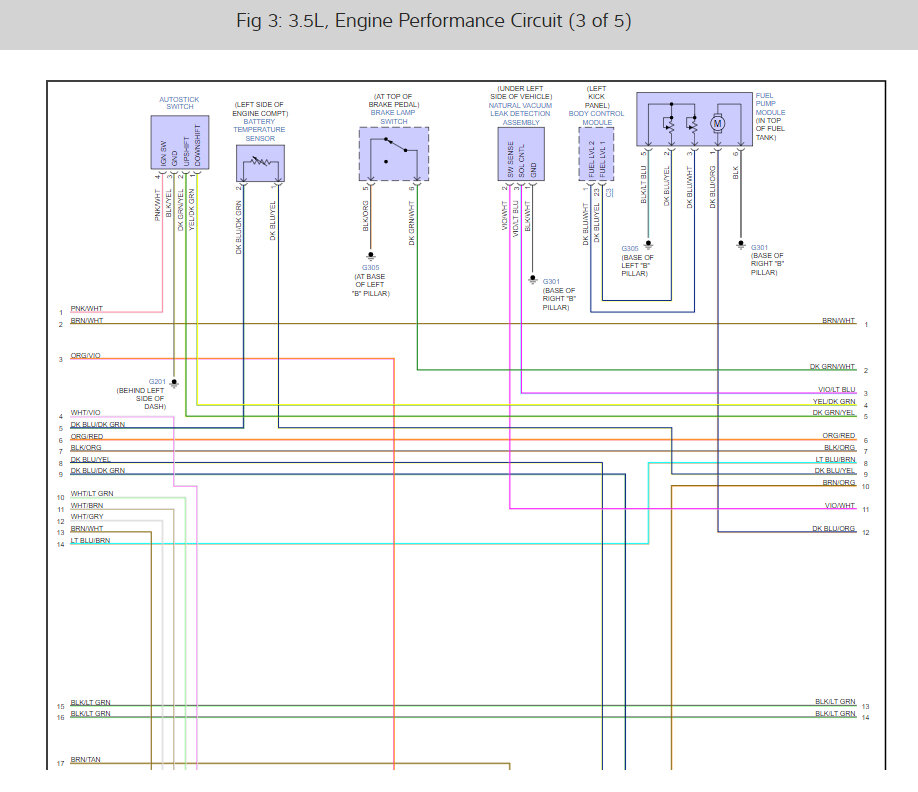

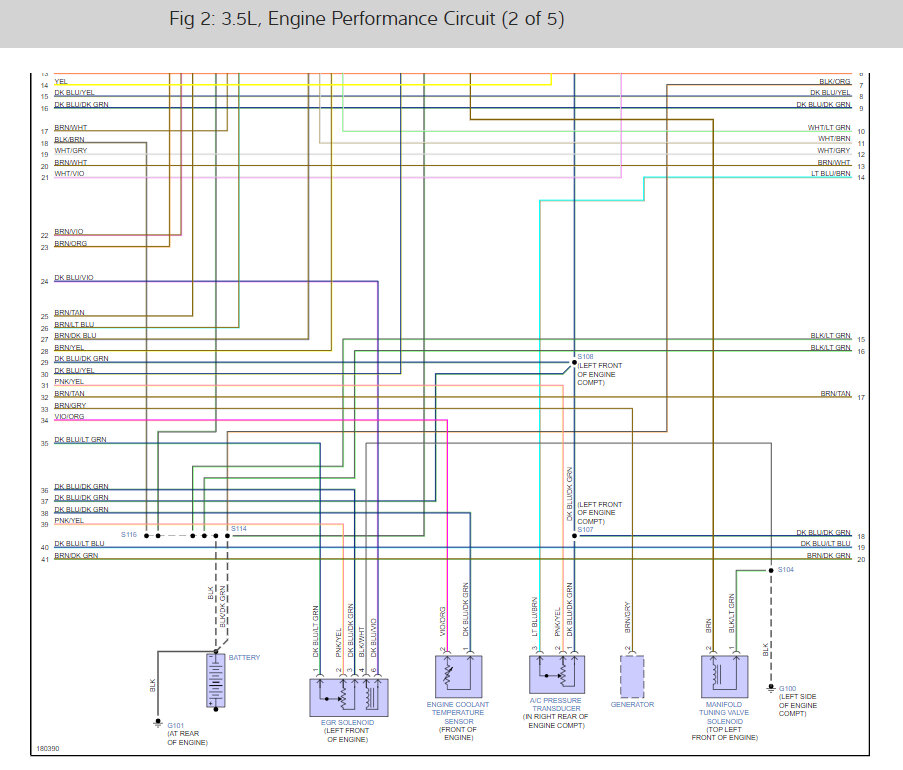

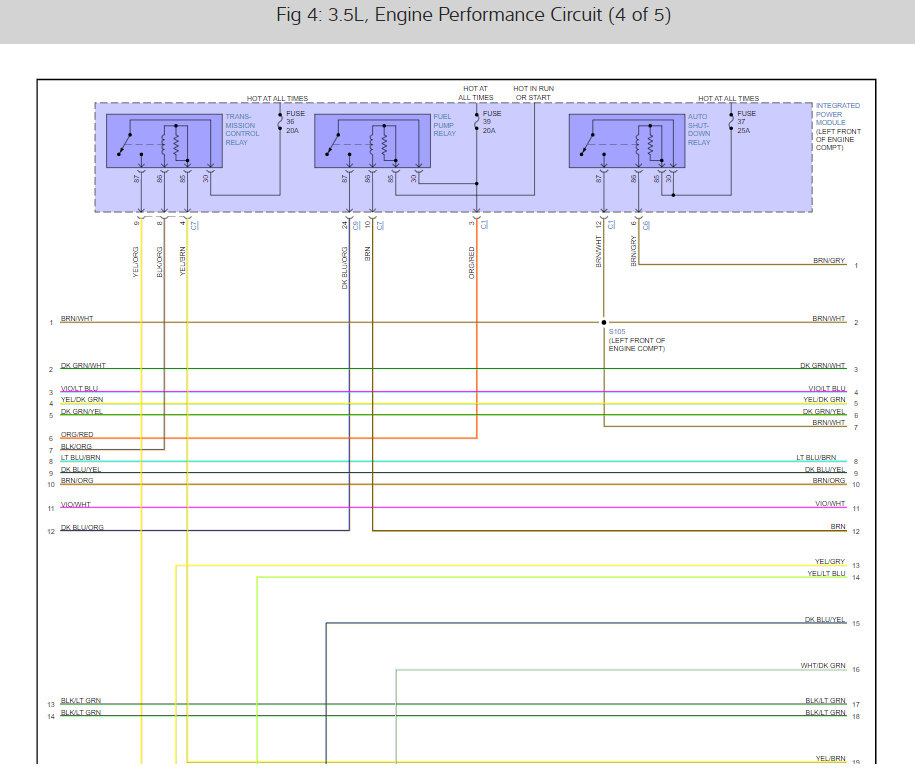

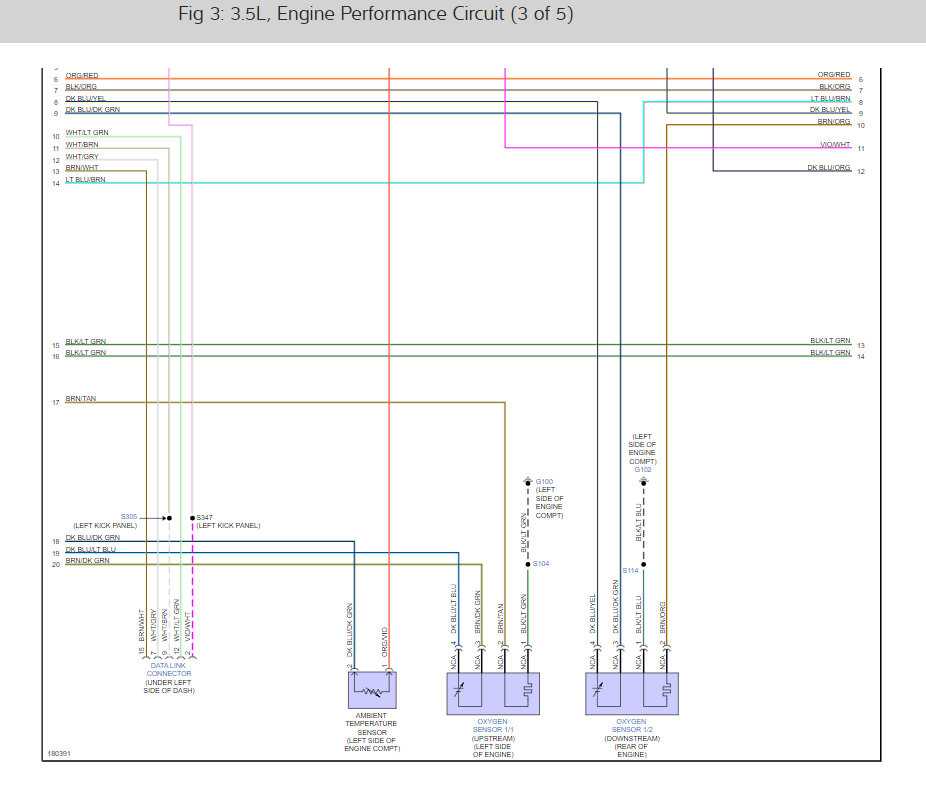

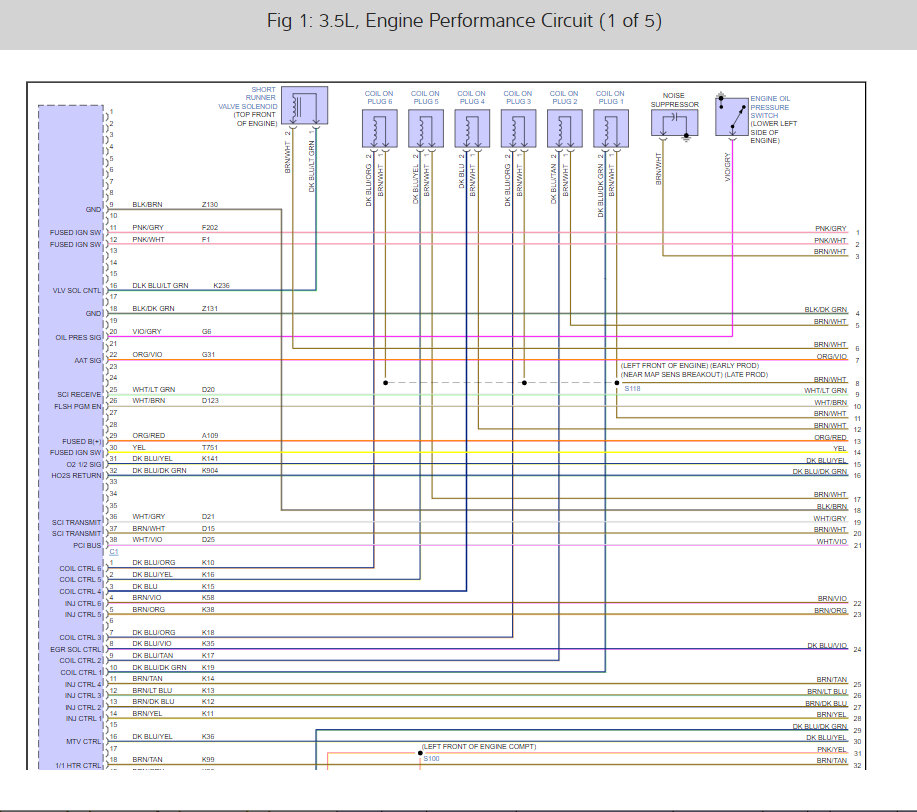

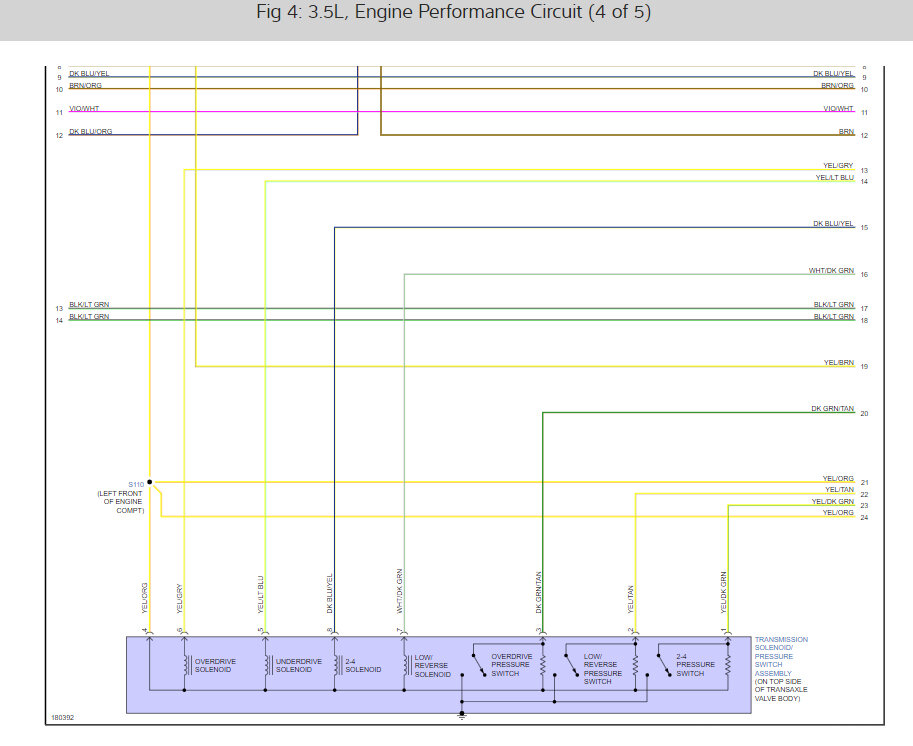

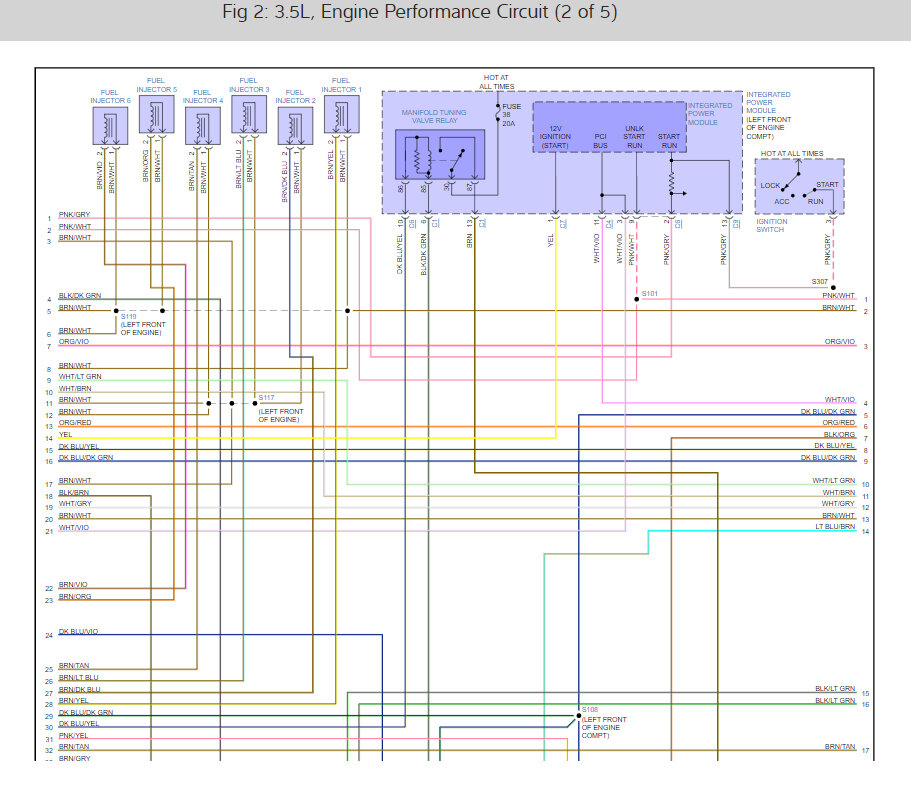

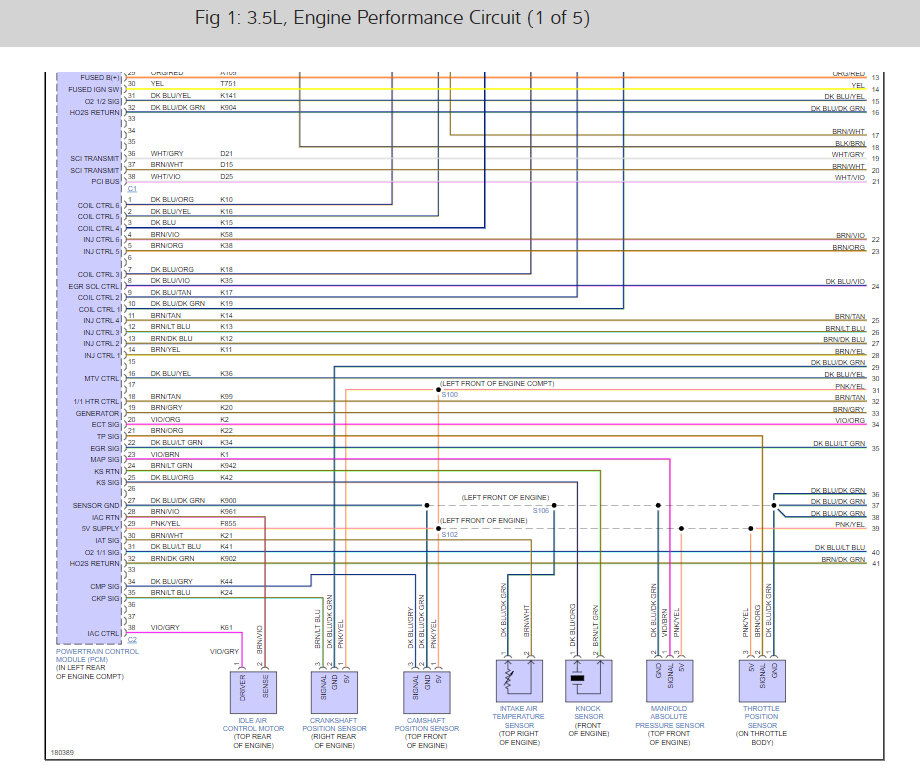

Sure, here are the engine wiring diagrams which include the oxygen sensor wiring. I have also included a guide to help you check the connection once the repair is complete.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
