1969 Dodge Van charging system

Tiny
J.MASON
  • MEMBER
  • 1969 DODGE VAN
  • V8
  • 2WD
  • AUTOMATIC
  • 150,000 MILES
Im looking for a wiring diagram for the charging system. Namely the alternator with an external regulator.
Wednesday, April 22nd, 2009 AT 1:02 AM

1 Reply

Tiny
BLUELIGHTNIN6
  • MECHANIC
  • 16,542 POSTS

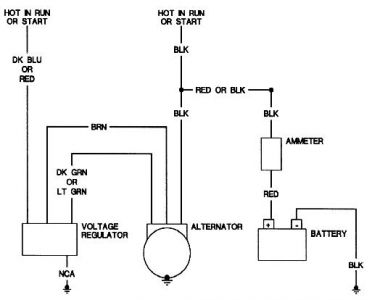

This what you need?


https://www.2carpros.com/forum/automotive_pictures/261618_Noname_478.jpg



Thanks for using 2CarPros.com!
