Fuse diagram

LETHANEAL

MEMBER
2006 DODGE STRATUS
6 CYL
2WD
AUTOMATIC
64,525 MILES

Where the fuses are and what do they power?

Friday, July 16th, 2010 AT 1:52 PM

1 Reply

KASEKENNY

MECHANIC
18,907 POSTS

I am attaching the info you requested below.

Here is a guide that will help with testing and replacing fuses if you need this as well:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

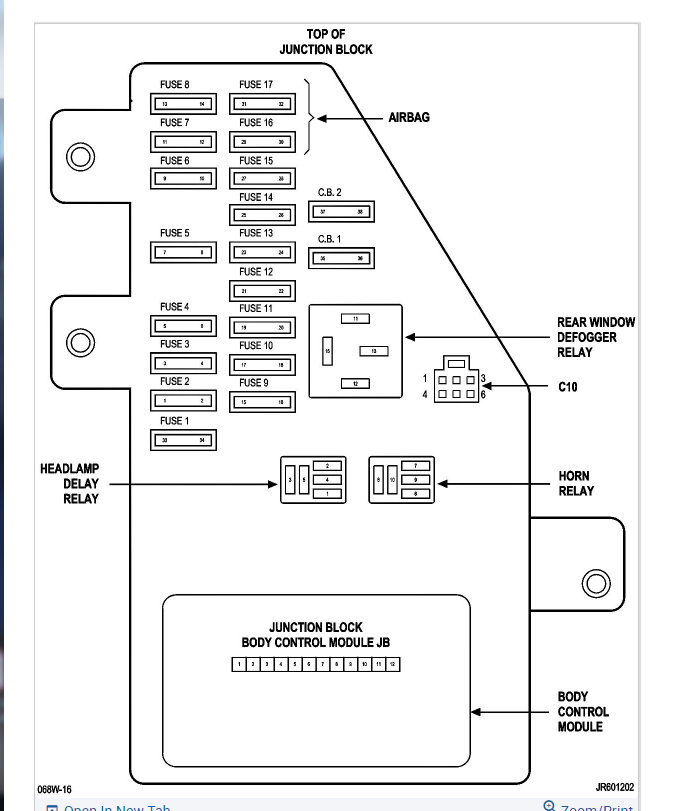

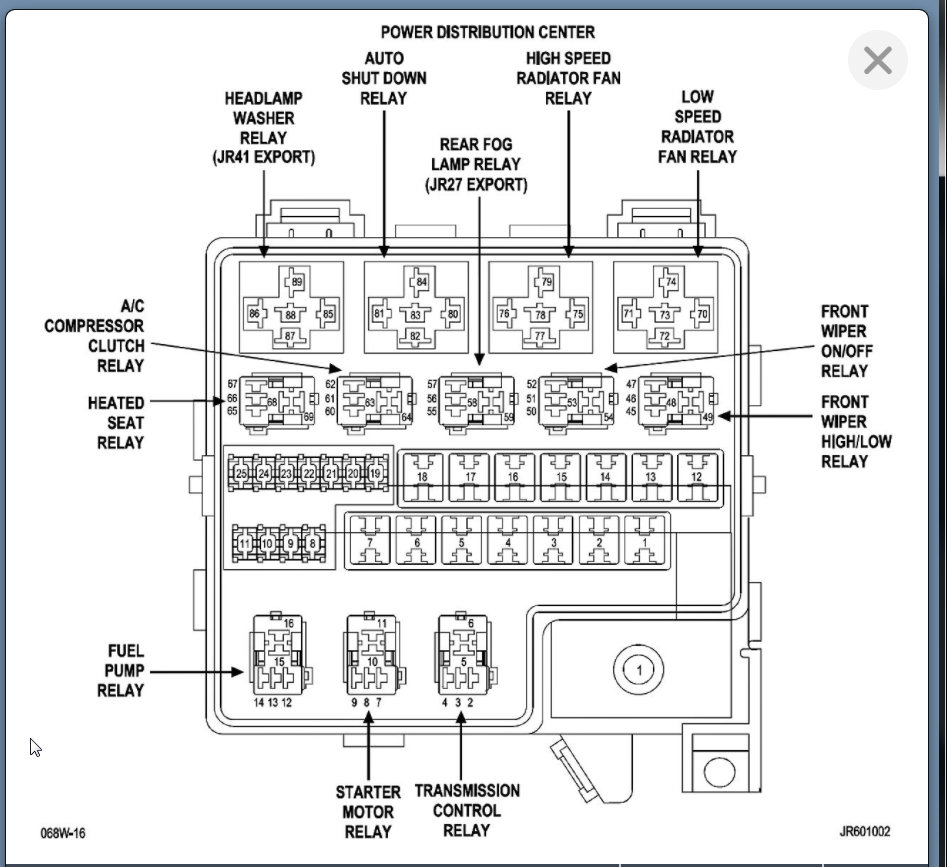

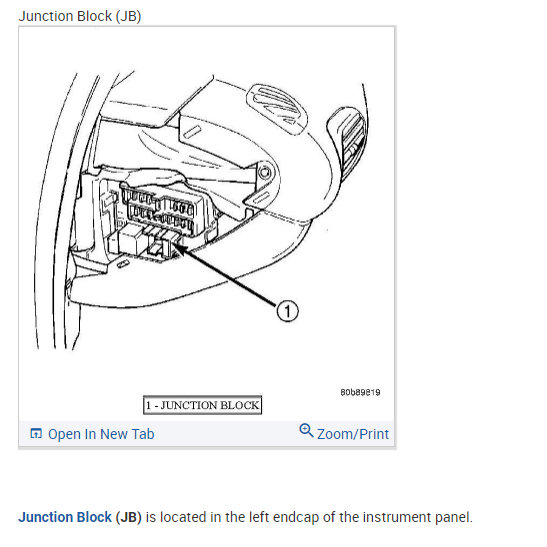

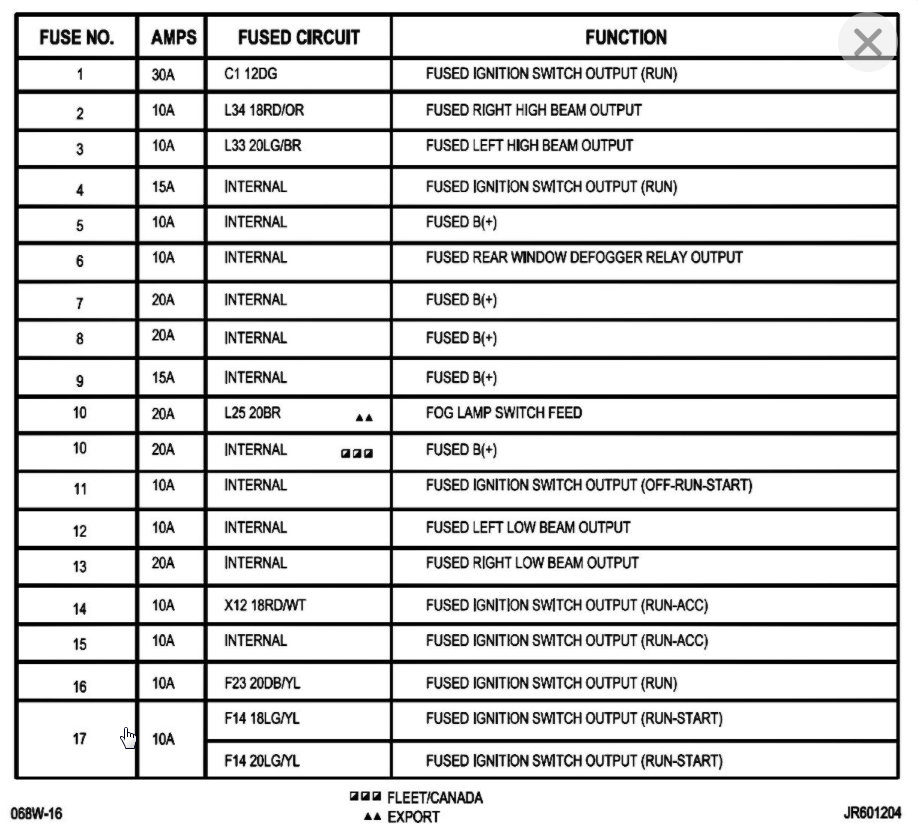

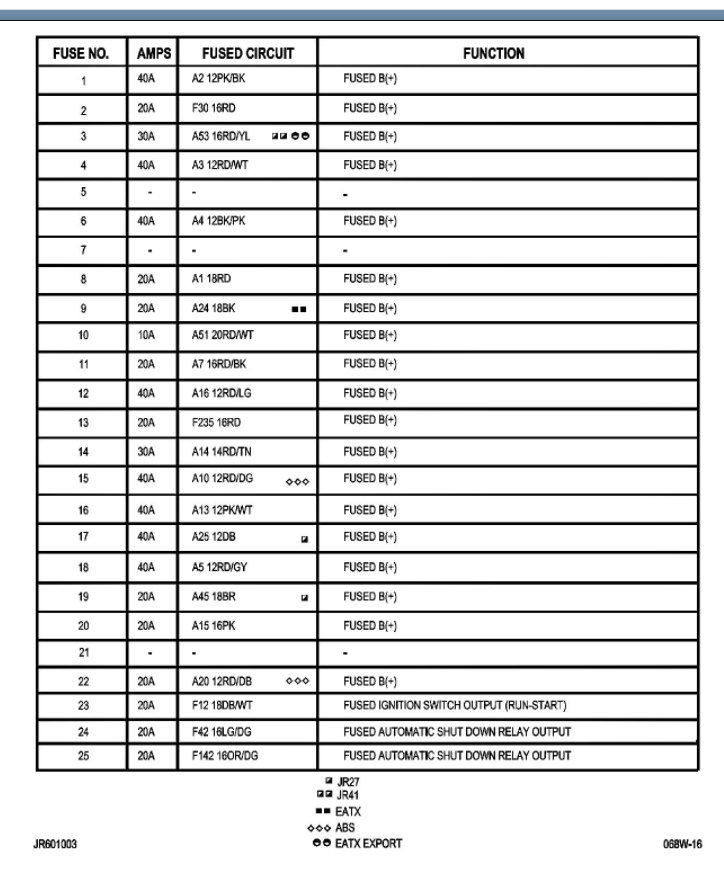

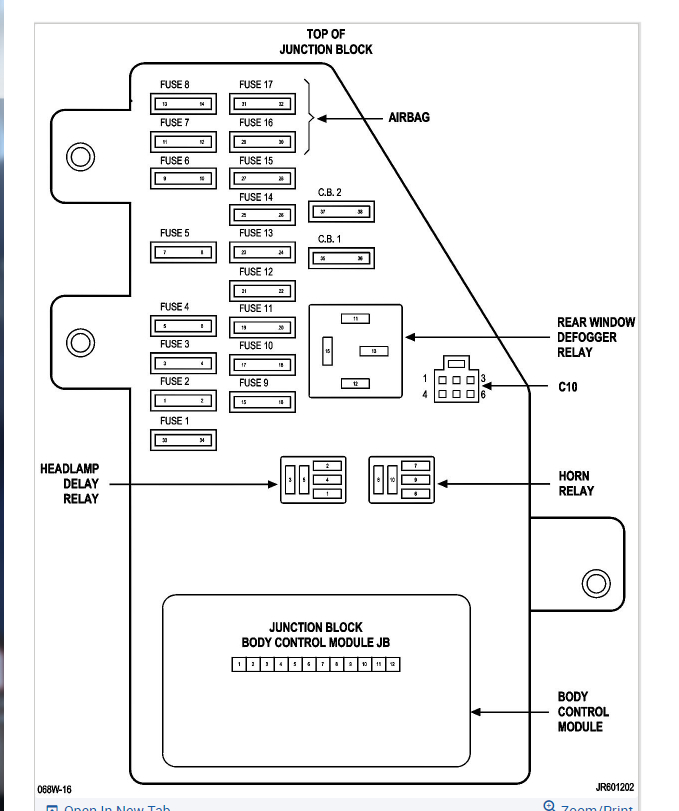

Below is the diagrams of the fuses boxes. Thanks

Images (Click to make bigger)
