Drivebelt routing on 5.7 HEMI

Tiny
DAVID CHAMPAGNE
  • MEMBER
  • 2007 DODGE CHARGER
  • V8
  • 2WD
  • AUTOMATIC
  • 36,765 MILES
There is no routing info on core support, or in the chilton manual. Can you help me please?
Monday, August 17th, 2009 AT 5:24 AM

1 Reply

Tiny
2CARPRO JACK
  • MECHANIC
  • 11,533 POSTS

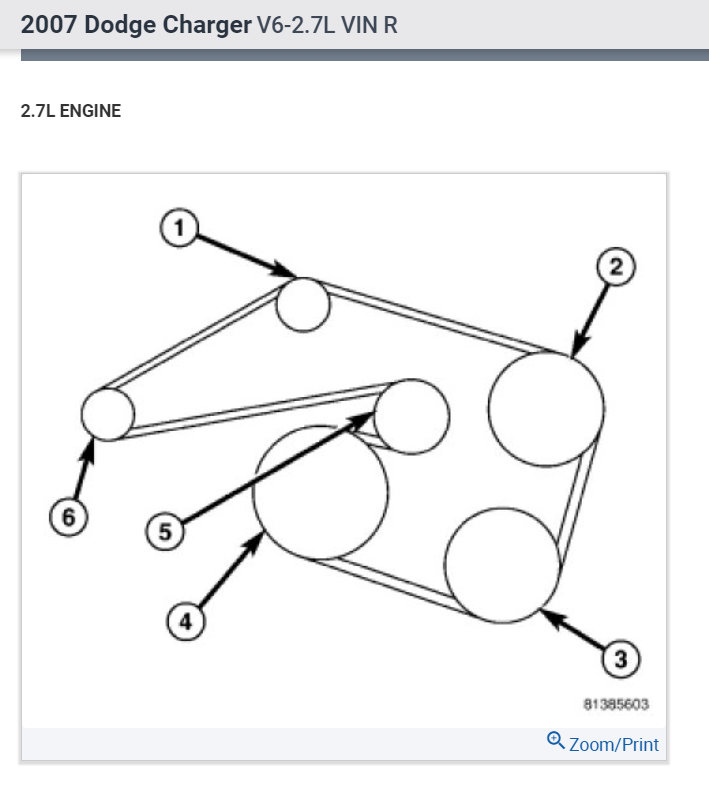

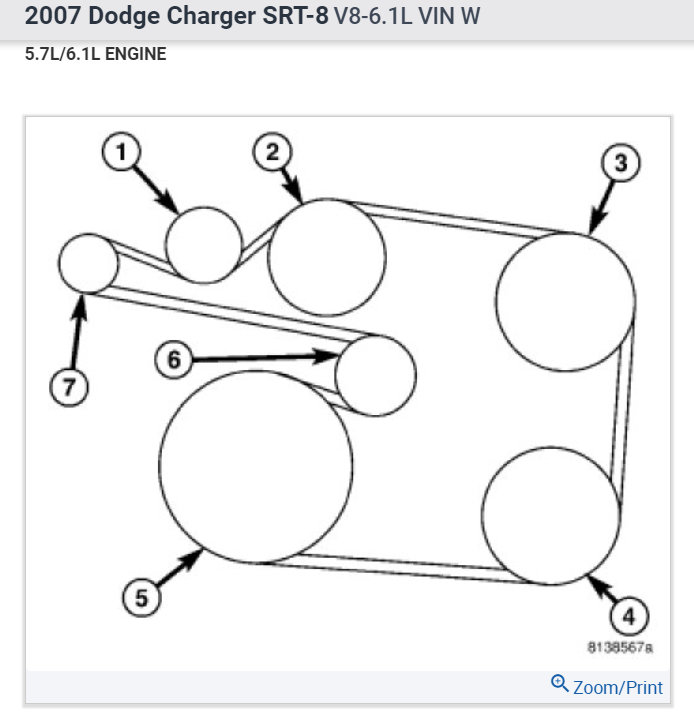

Here is a guide to show you what you are in for when doing the job and diagrams below to show you the serpentine belt routing.

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Images (Click to make bigger)
Thumb
Thumb
