Fuel Pump Wiring Please?

2001 DODGE CARAVAN
Avatar
COUNTRY-TV
  • MEMBER
  • 1 POST
Dear, i am interested on the right Color pin from the Fuel pump - Gasoline Fuel Pump off - I cant find any Information about this Pin (+12Volt) or you can send me a Electric-Plan for the Fuel Pump- location. I am very happy you can help me
Apr 11, 2009 at 1:26 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
MERLIN2021
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 17,250 POSTS
Here is a guide to help you check the wiring out to see what's going on. https://www.2carpros.com/articles/how-to-check-wiring If fuse is blown, check for short to ground in fuel pump relay output circuit. Repair as necessary and replace fuse. https://www.2carpros.com/articles/how-to-check-a-car-fuse


https://images.2carpros.com/forum/automotive_pictures/62217_Caravan_1.jpg


https://images.2carpros.com/forum/automotive_pictures/62217_IPM_1.jpg

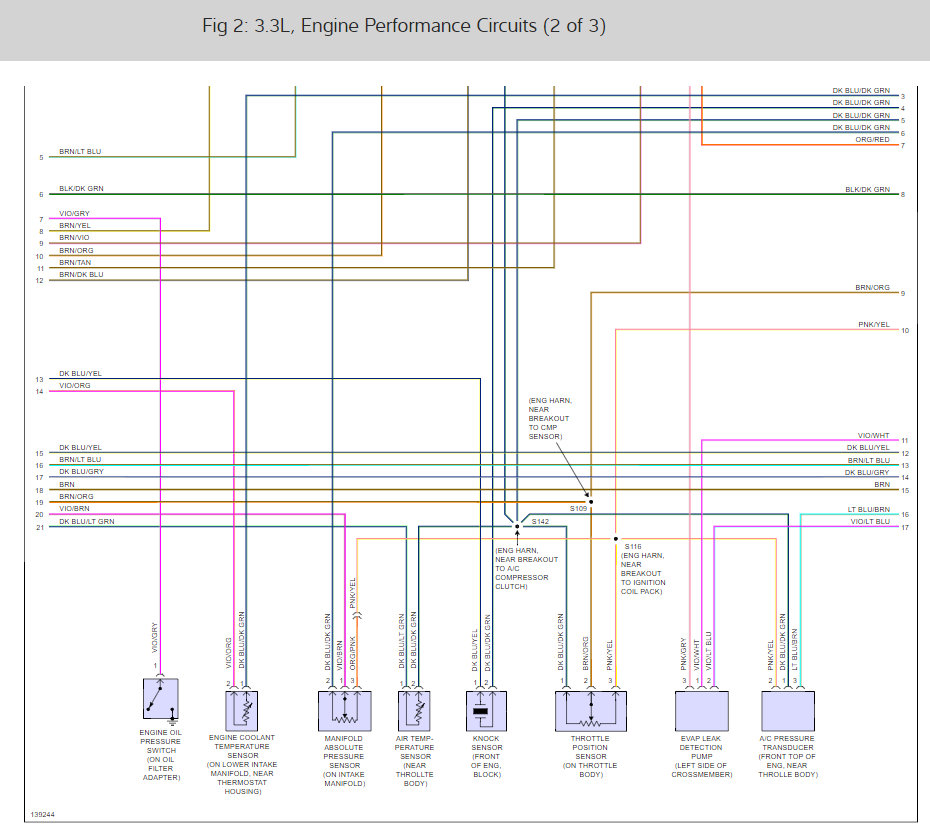

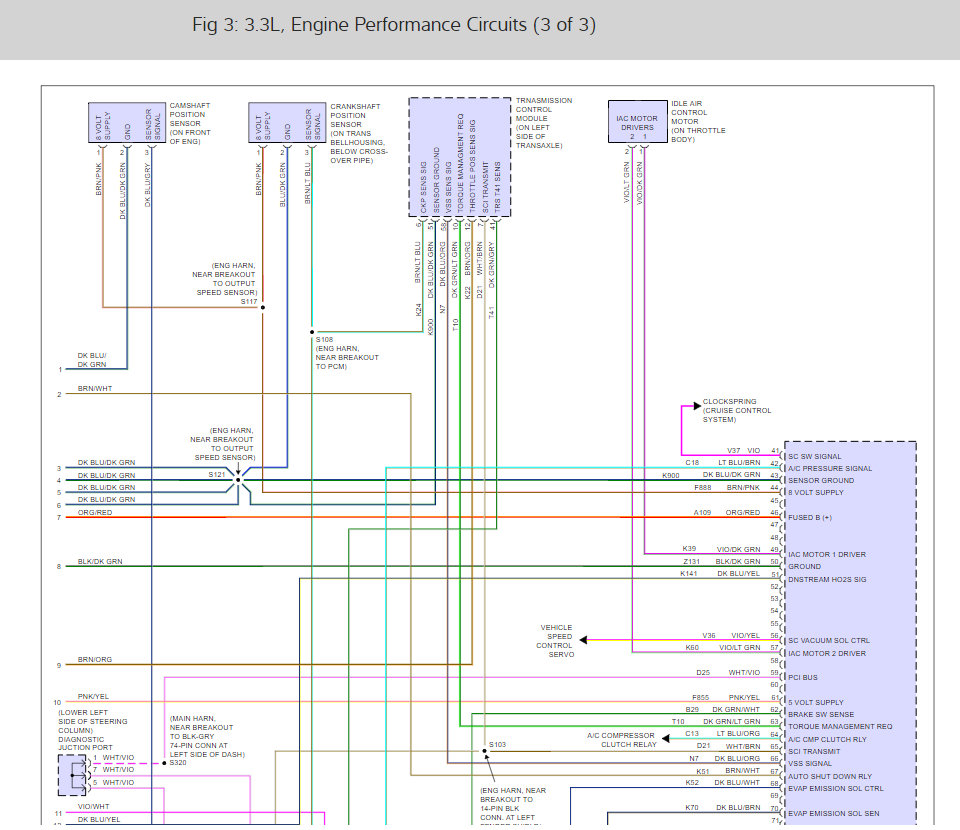

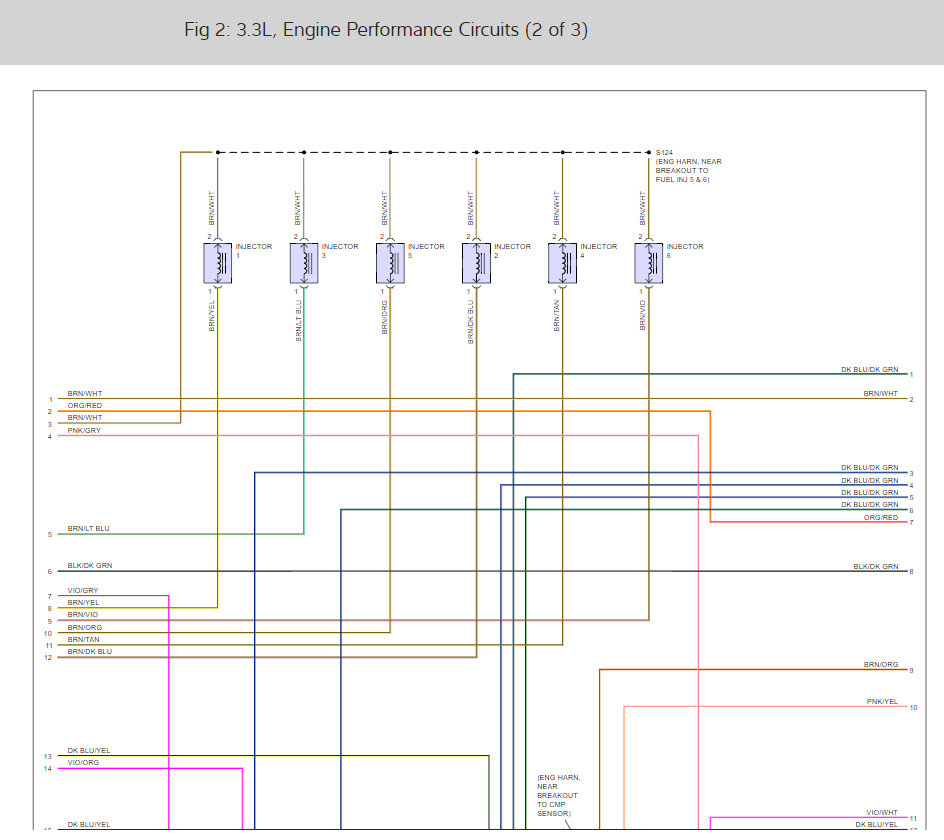

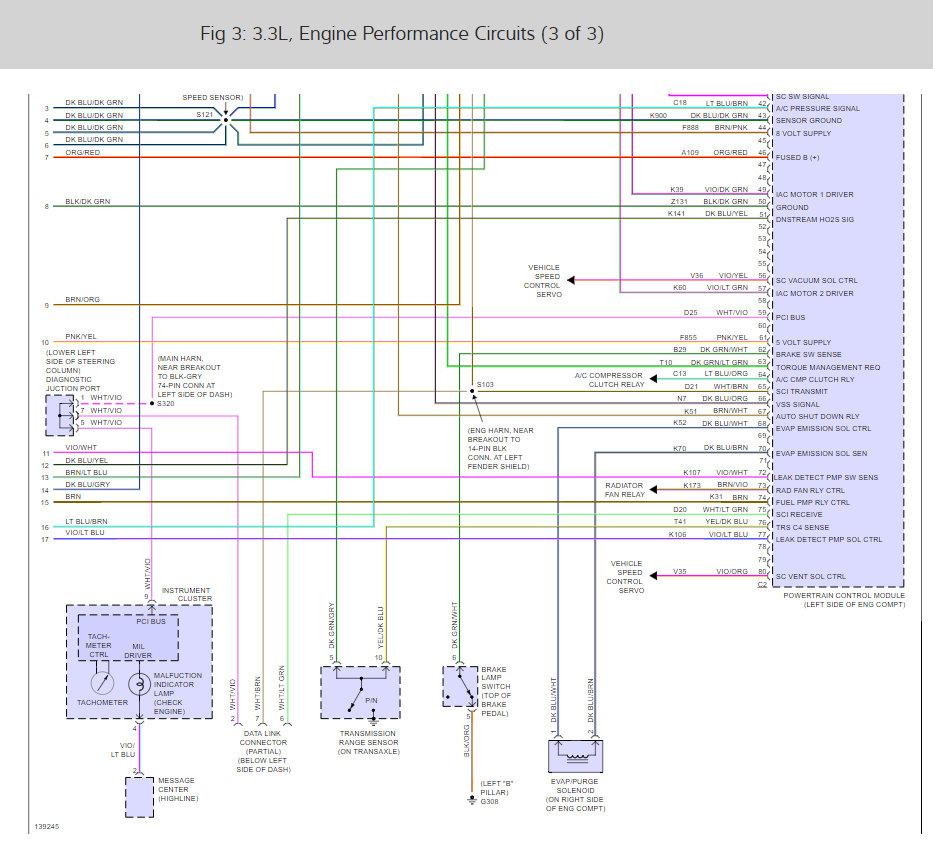

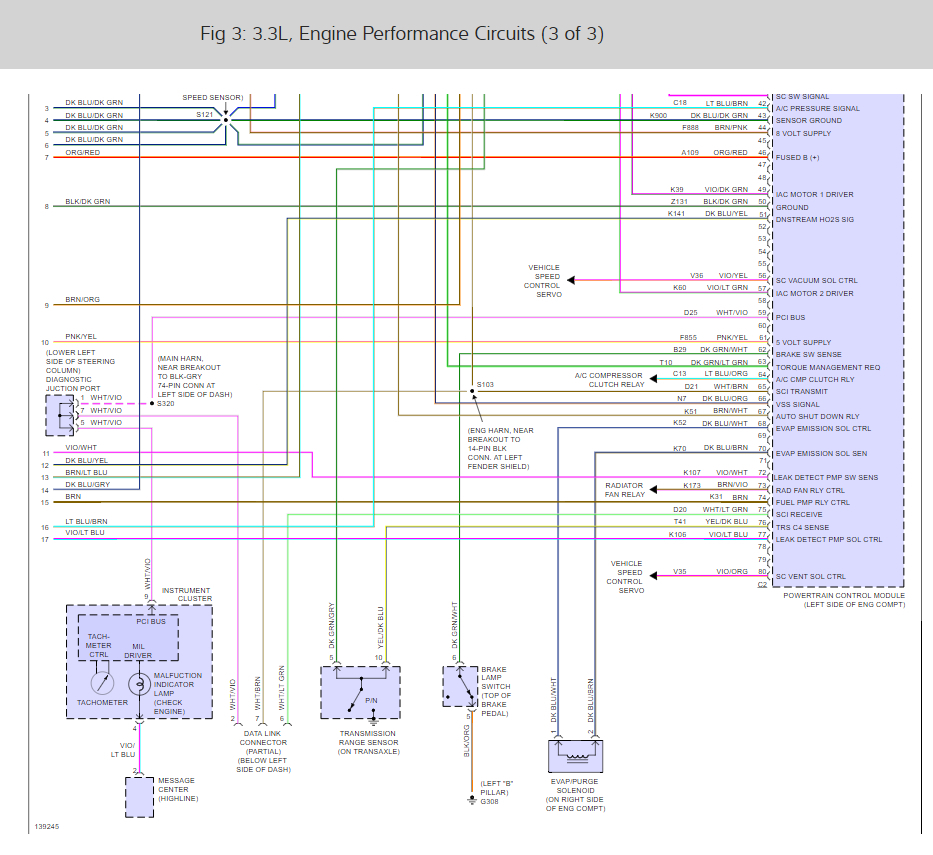

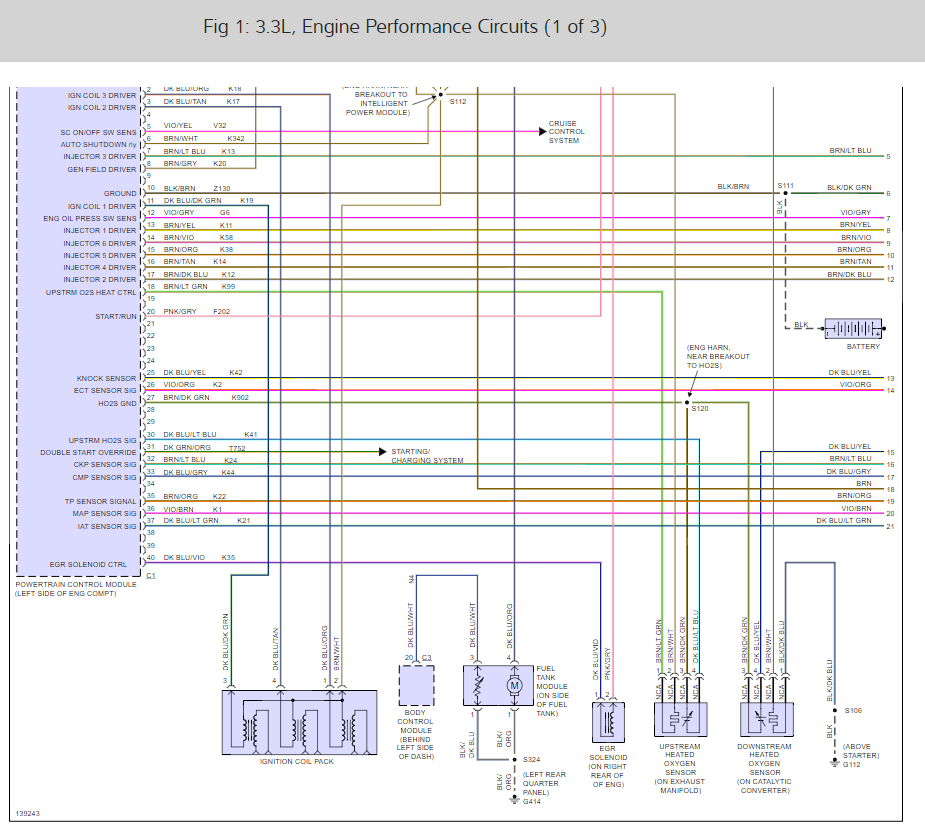

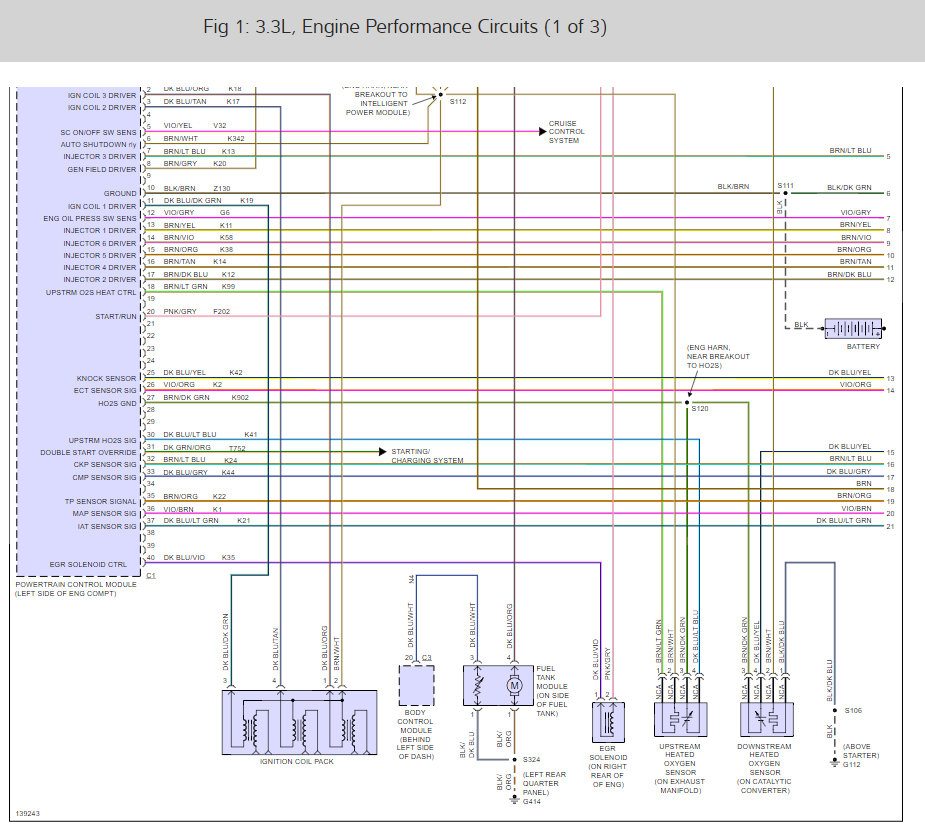

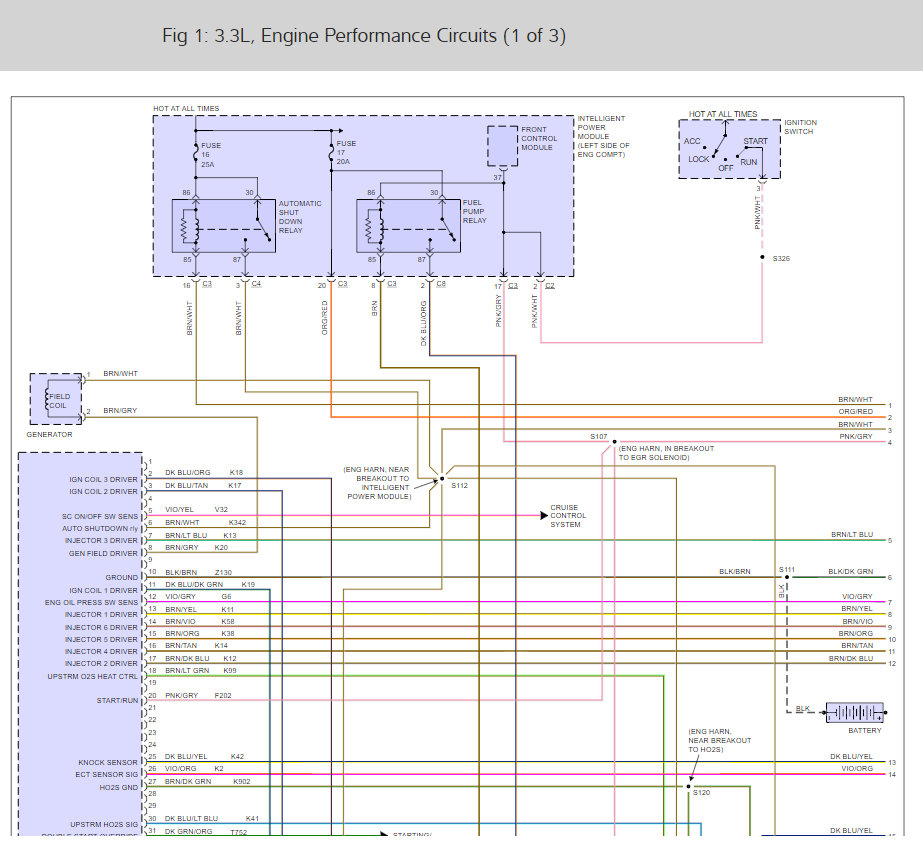

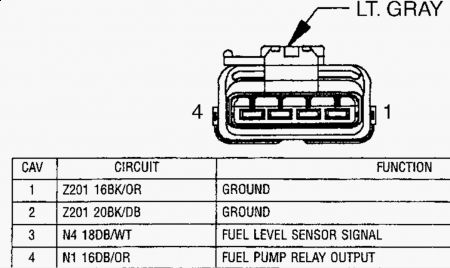

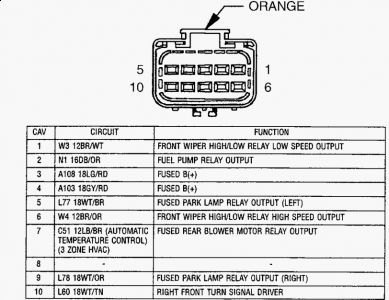

Check out the fuel pump wiring diagrams below! Please let us know what happens. Cheers
