I NEED A SERPINTINE BELT ROUTING MAP FOR A 1992 DODGE CARAVAN
Monday, August 11th, 2008 AT 3:49 PM

3 Replies

Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS
What liter engine?
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, August 11th, 2008 AT 3:53 PM
Tiny
GSWEEBLE
  • MEMBER
  • 2 POSTS
IDK? ITS A REGULAR TYPE LOL DO YOU HAVE A MAP DAT SHOWS ME HOW TO PUT DA BELT BACK ON?
Was this
answer
helpful?
Yes
No
+1
Monday, August 11th, 2008 AT 3:58 PM
Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS

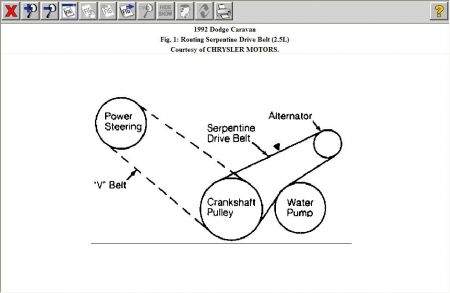

Okay Sir I see pick your engine


https://www.2carpros.com/forum/automotive_pictures/12900_belt125_1.jpg




https://www.2carpros.com/forum/automotive_pictures/12900_belt230_1.jpg




https://www.2carpros.com/forum/automotive_pictures/12900_belt3_1.jpg




https://www.2carpros.com/forum/automotive_pictures/12900_belt4_1.jpg

Was this
answer
helpful?
Yes
No
+2
Monday, August 11th, 2008 AT 4:06 PM
