Can I get the vacuum hose diagram?

Tiny
CLPH
  • MEMBER
  • 2002 JEEP GRAND CHEROKEE
  • 4.7L
  • V8
  • AUTOMATIC
  • 300,000 MILES
I'm in desperate need for the vacuum hose diagram for my 2002 4.7L. Can't find one online anywhere.
Wednesday, September 25th, 2024 AT 9:06 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,602 POSTS

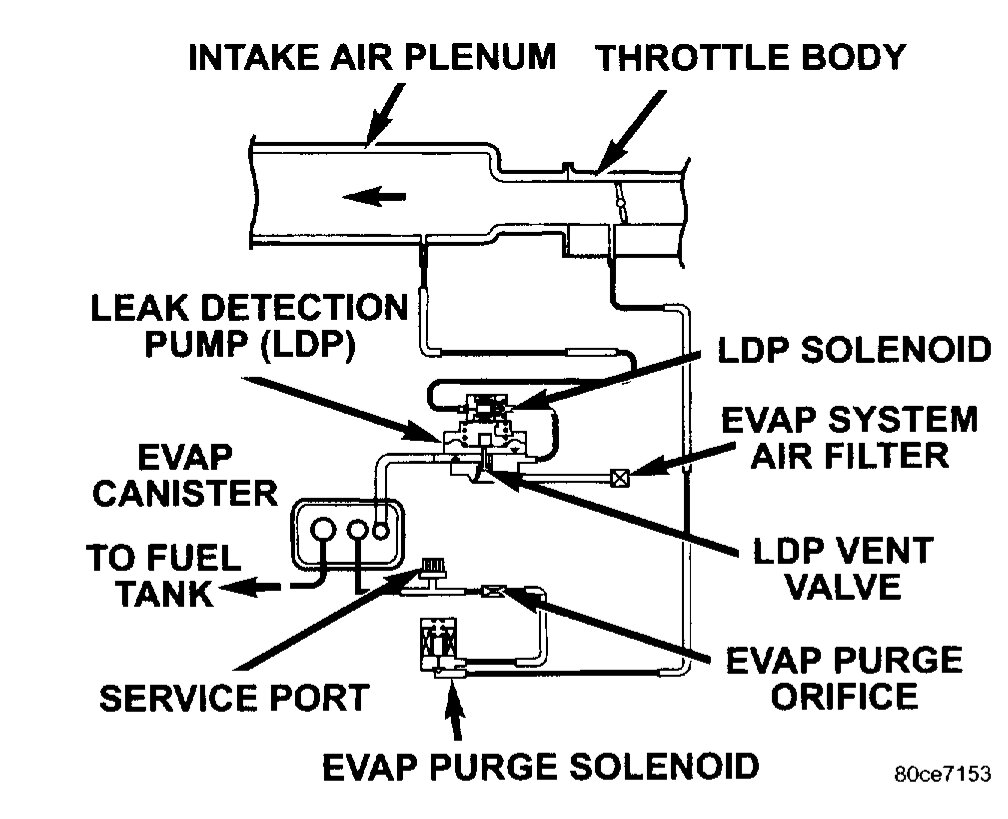

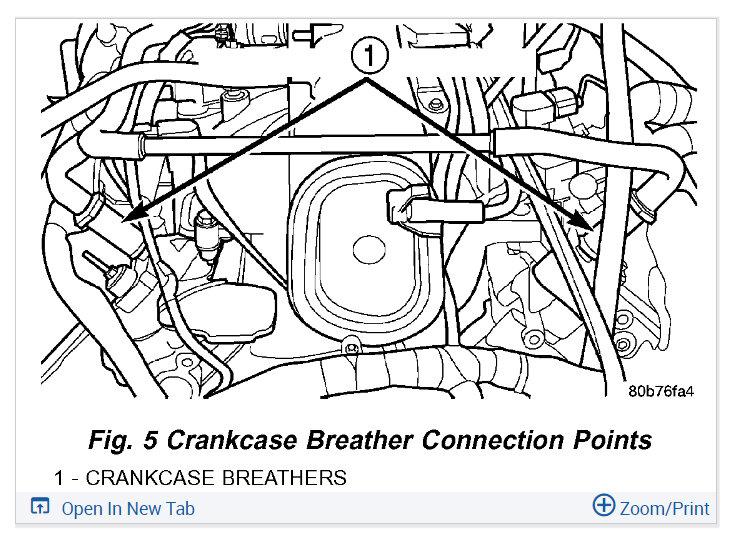

Yep, they are hard to come by the dealer does not release useful information on this, here is what we have. Sorry we were not more help. Check out the images (below). Let us know if you need anything else.
Images (Click to make bigger)
Thumb
Thumb
