I need a fuse diagram for the engine compartment fuse box and the Interior under dash fuse box. Where can I find a copy so I will know what fuse is what.
Saturday, July 28th, 2018 AT 10:35 AM

2 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,239 POSTS

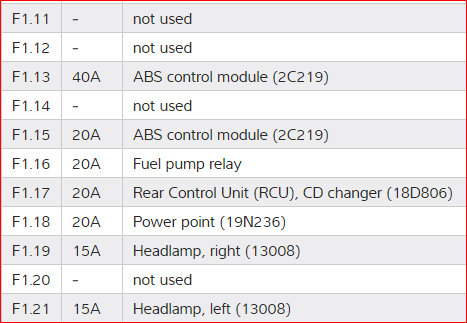

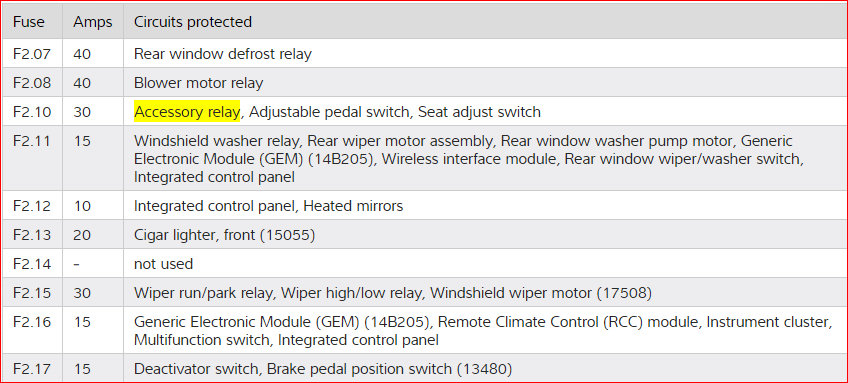

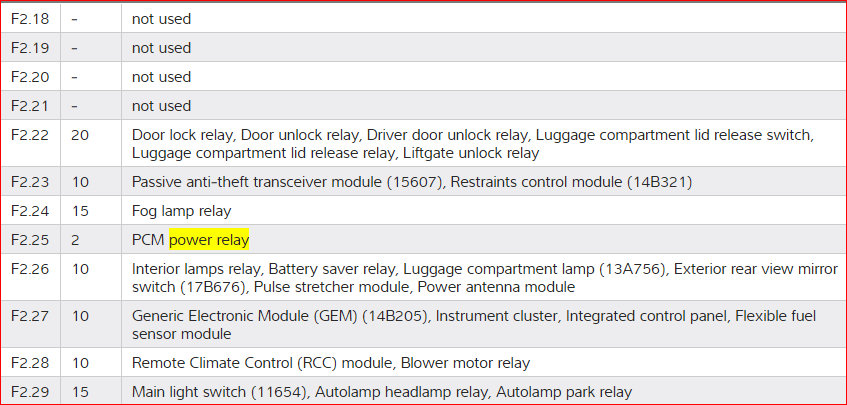

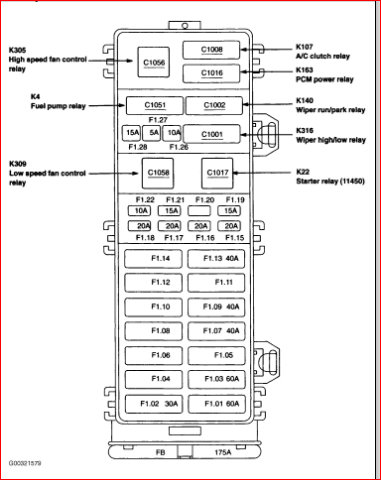

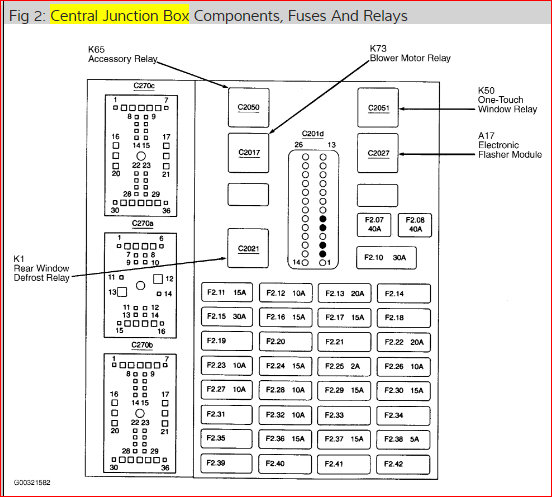

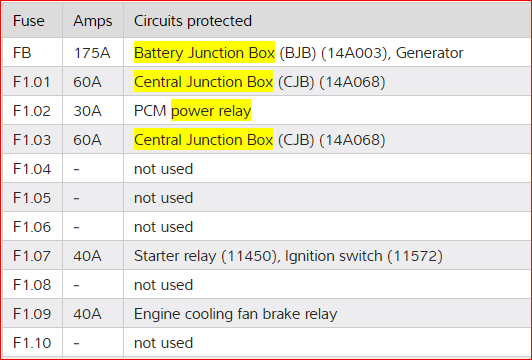

Sure we got you covered. Here is a guide to help you test the fuse and the fuse panel diagrams below:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

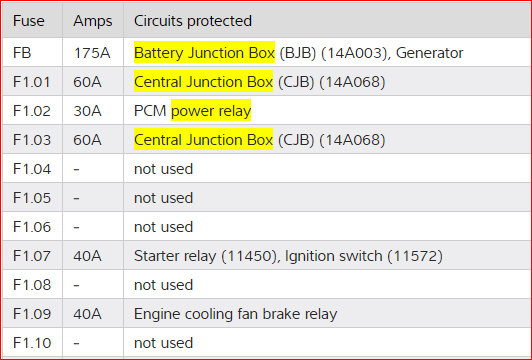

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Sunday, July 29th, 2018 AT 3:51 PM
Tiny
DANNY L
  • MECHANIC
  • 5,648 POSTS
Hello, I am Danny.

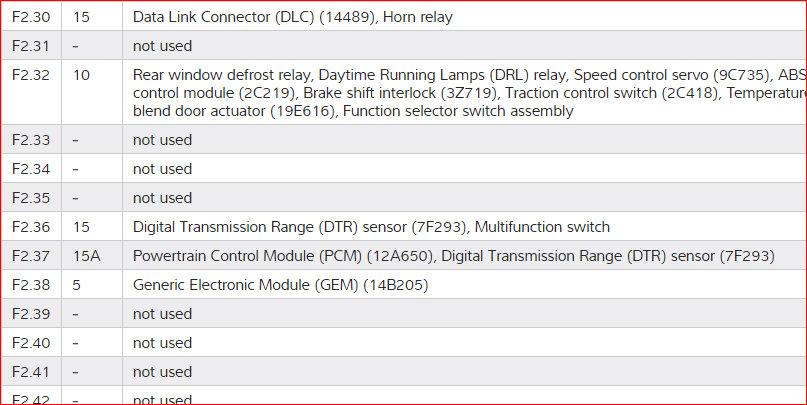

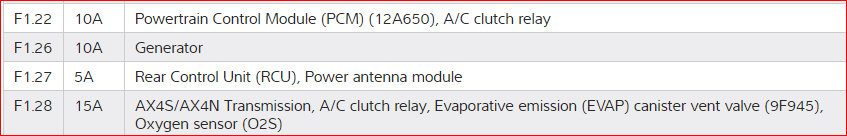

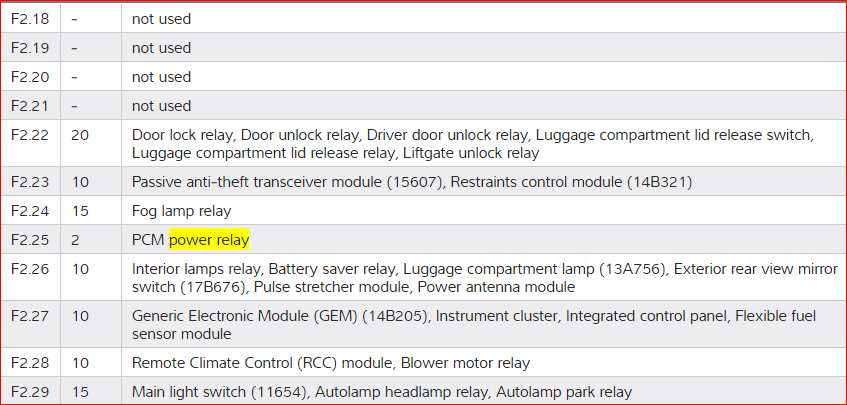

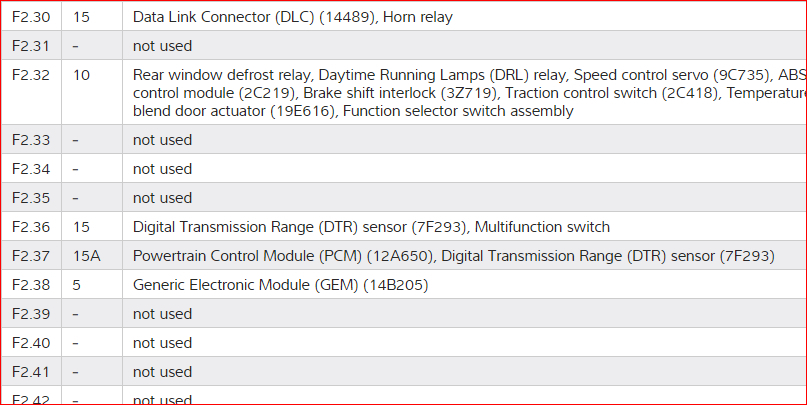

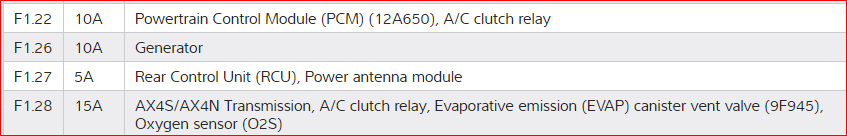

Here are the diagrams you asked for. They are attached below. Hope this helps and feel free to ask any other questions if needed. Thanks for using 2CarPros.
