Diagrams of all of my vacuum hose routings needed?

Tiny
LEYNA07830
  • MEMBER
  • 2007 CADILLAC CTS
  • 2.8L
  • V6
  • 2WD
  • AUTOMATIC
  • 200,000 MILES
Okay, so, I figured out what I need help with I'm needing a diagram that shows me all of my vacuum hose routings and also one showing how intake goes.
Monday, June 12th, 2023 AT 10:11 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,256 POSTS

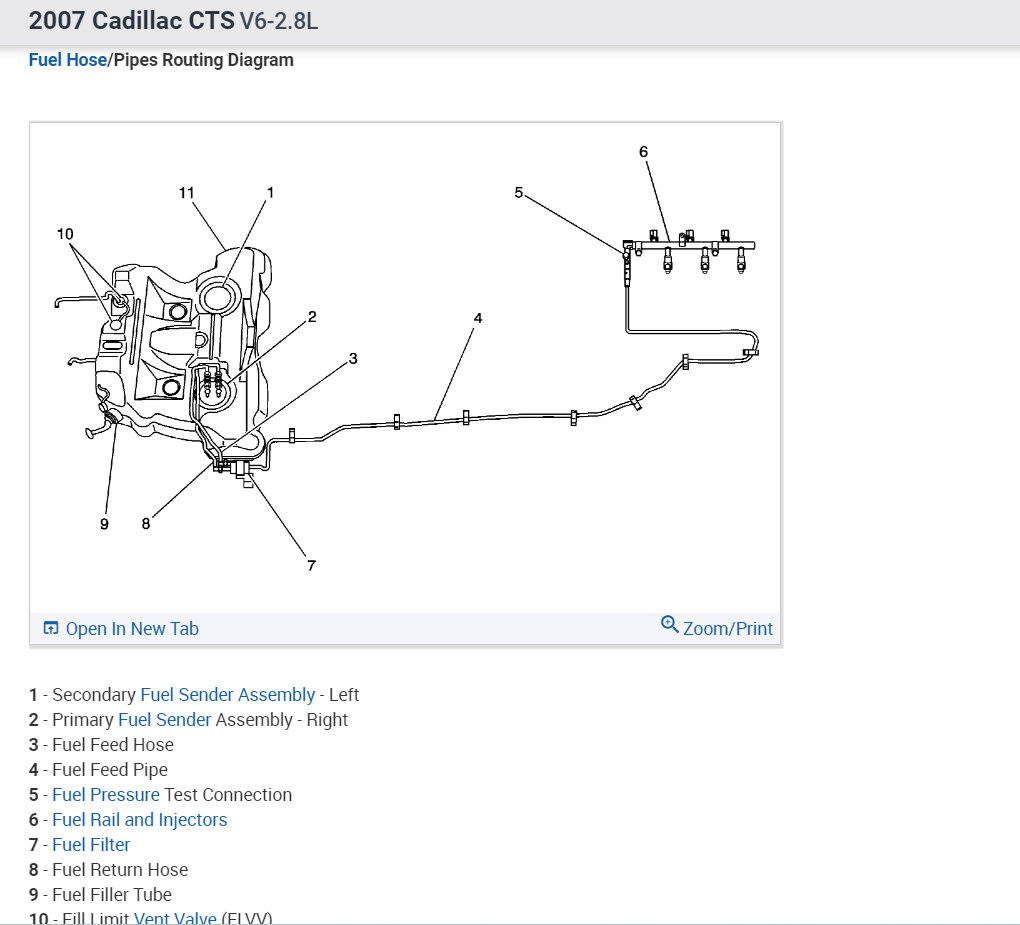

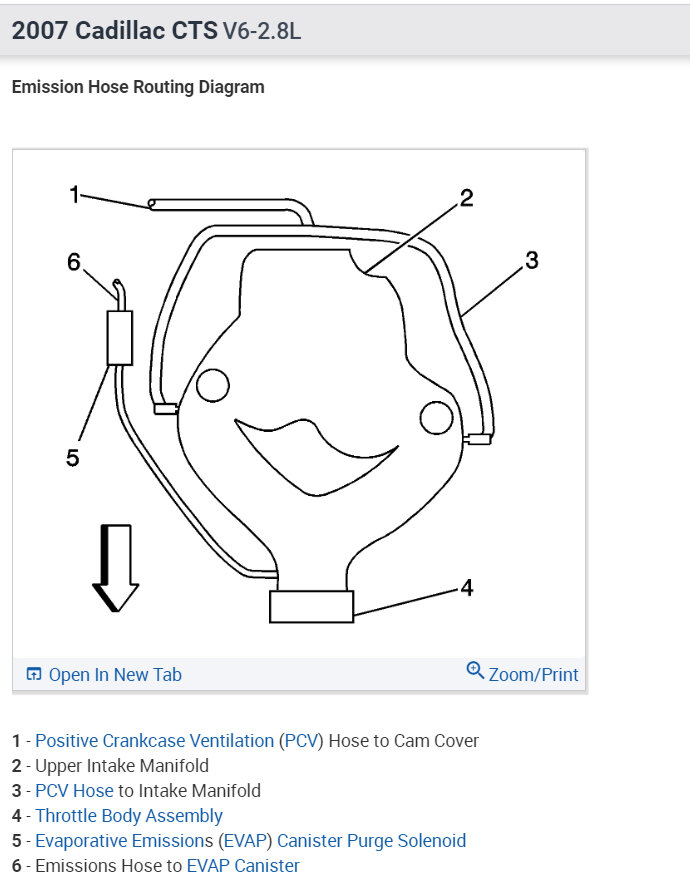

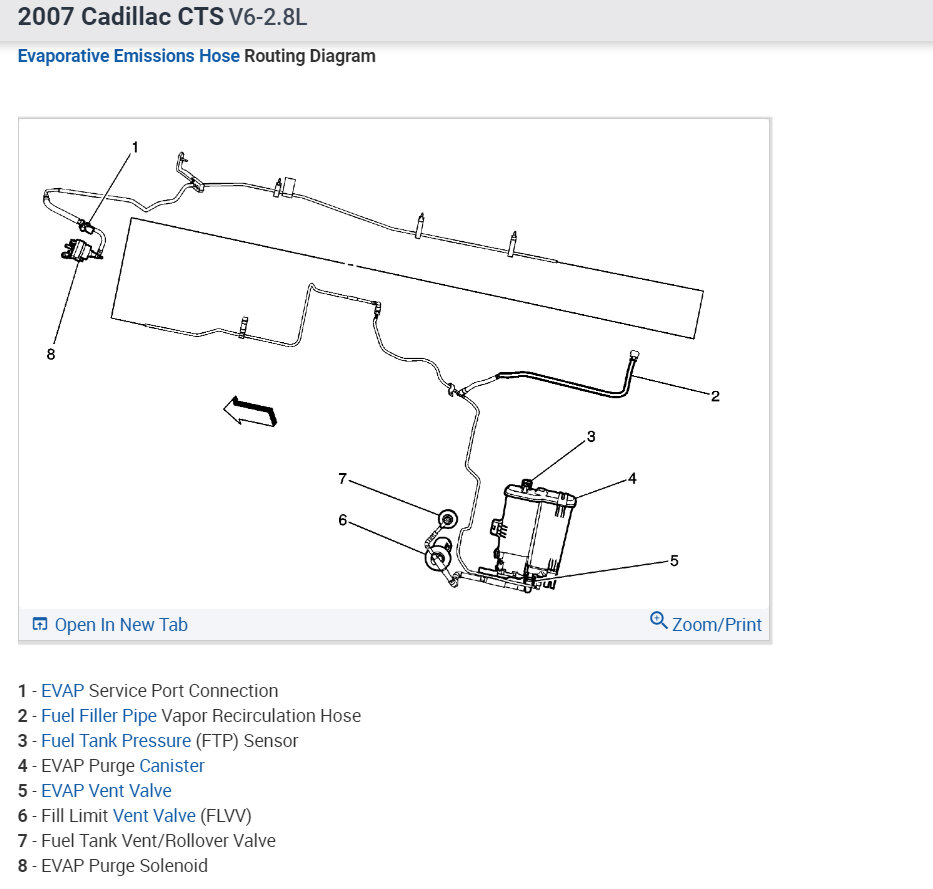

Sure, here are all vacuum and emissions vacuum line routing diagrams. Check out the images (below). Let us know what happens and please upload pictures or videos of the problem so we can see what's going on.
Images (Click to make bigger)
Thumb
Thumb
Thumb
