Serpentine belt installation diagram needed

Tiny
KENC22
  • MEMBER
  • 1983 GMC VANDURA
  • 300,000 MILES
Don't know how the serpatine belt goes on.
Monday, May 10th, 2021 AT 2:03 AM

1 Reply

Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS

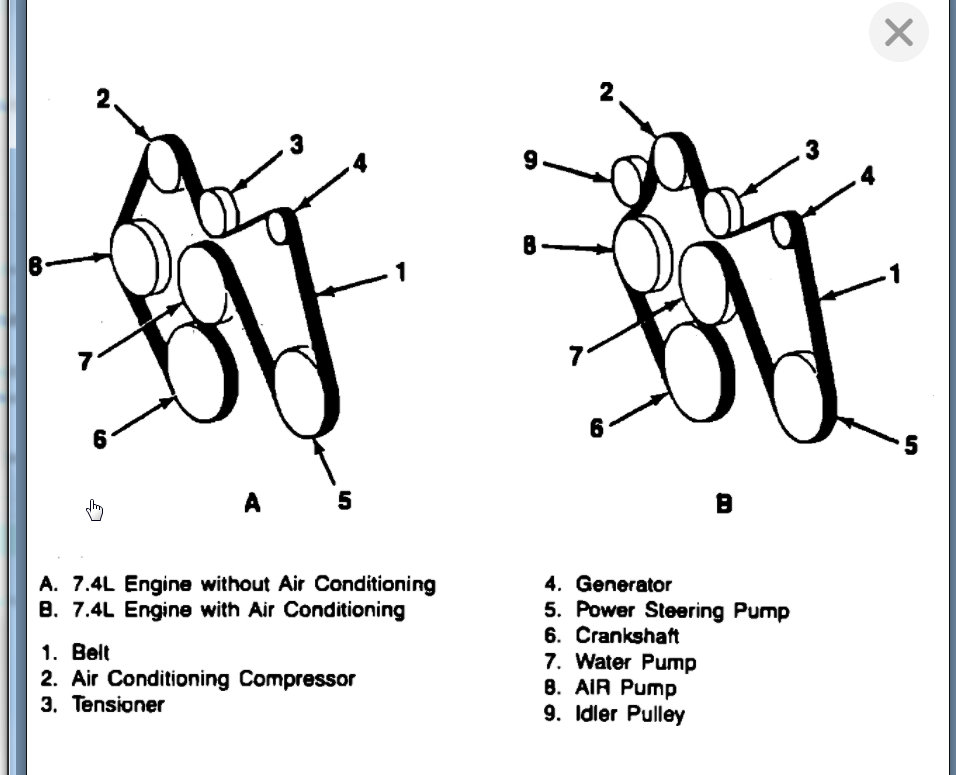

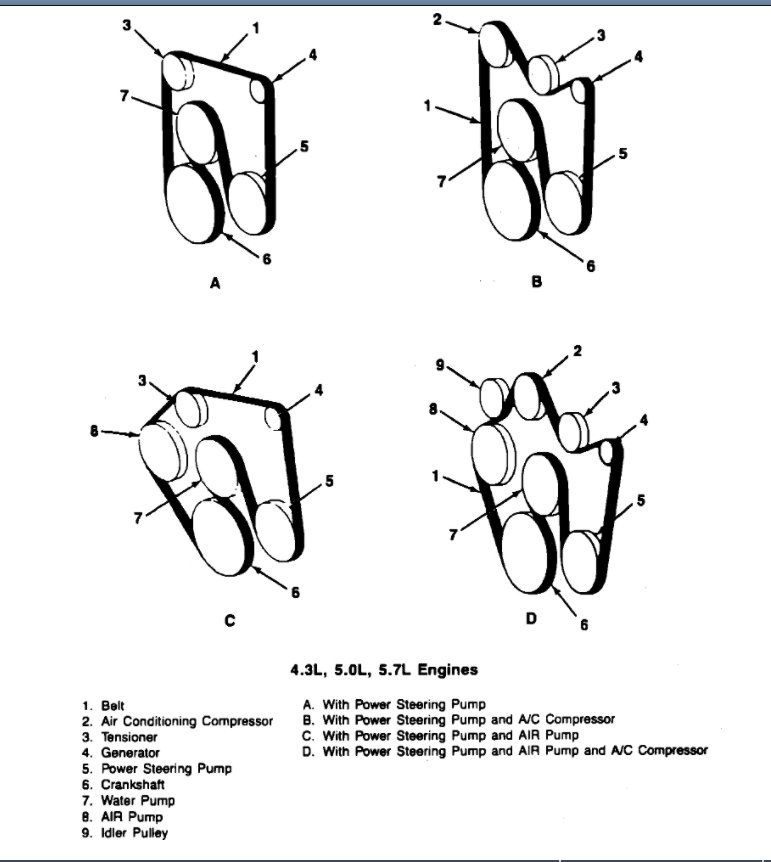

Here are the collection of all the engine serpentine belt routing diagrams:

https://www.2carpros.com/articles/replace-serpentine-belt

Please run through this and let us know if you have other questions. Thanks
