I have seen in this site about diagram for the 86120-0R130 OEM radio which fit the model RAV 4 2012.
Could you send to me, in high resolution, please?
Thank you so much.

Ricardo
Monday, September 16th, 2019 AT 9:21 AM

2 Replies

Tiny
SCGRANTURISMO
  • MECHANIC
  • 4,897 POSTS
Hello,

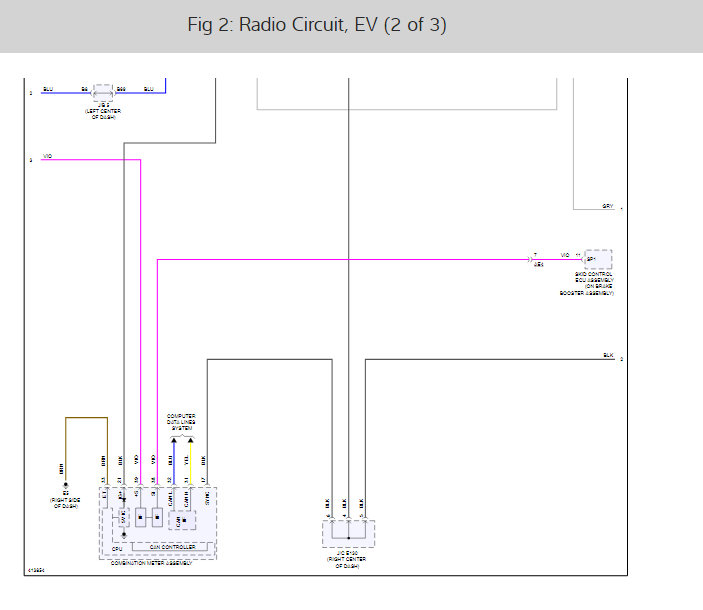

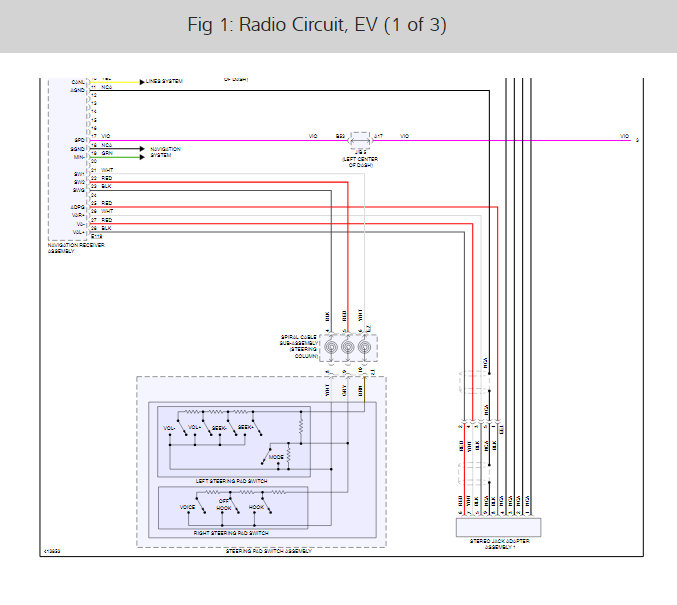

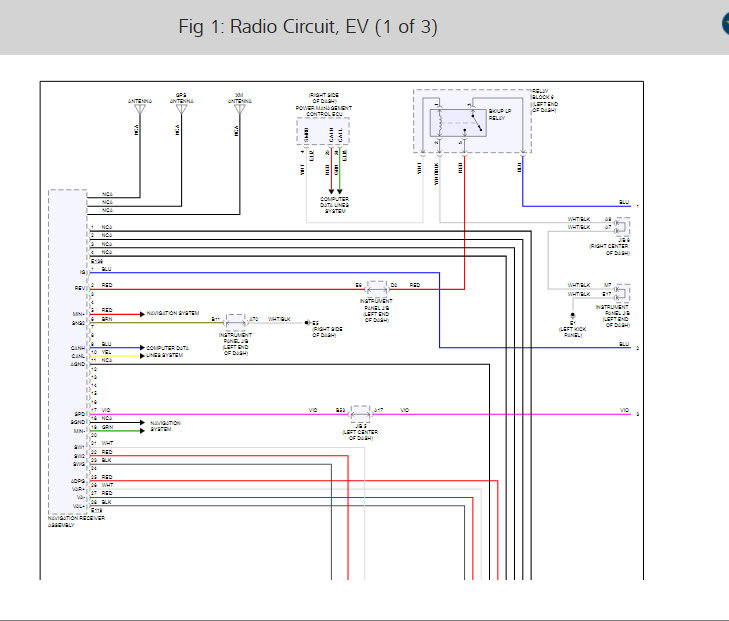

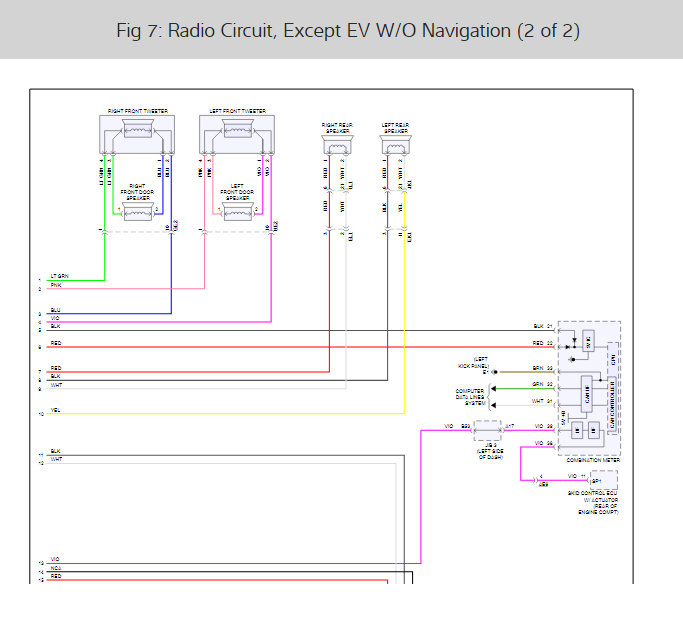

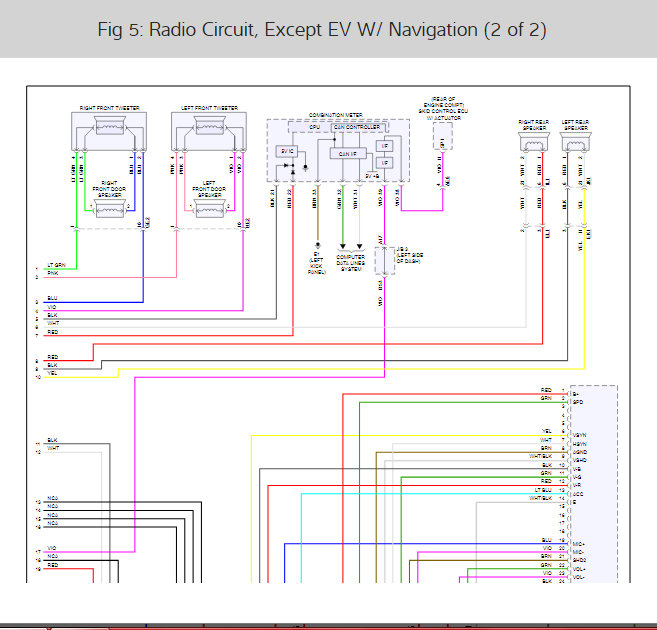

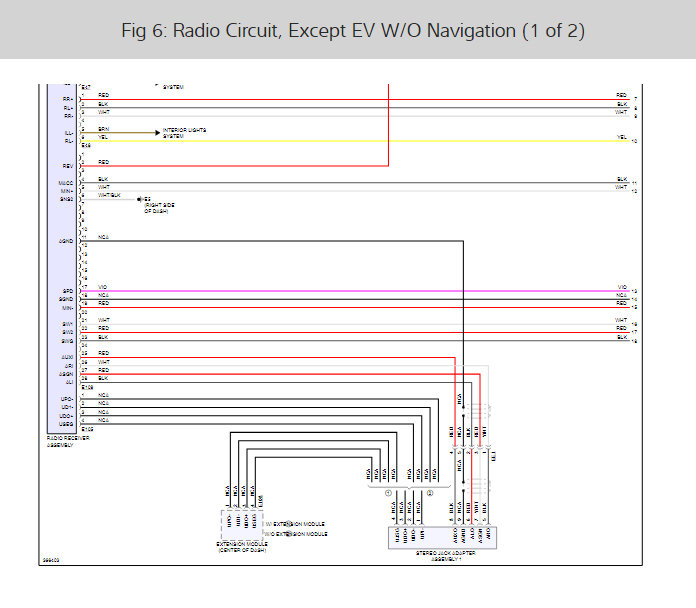

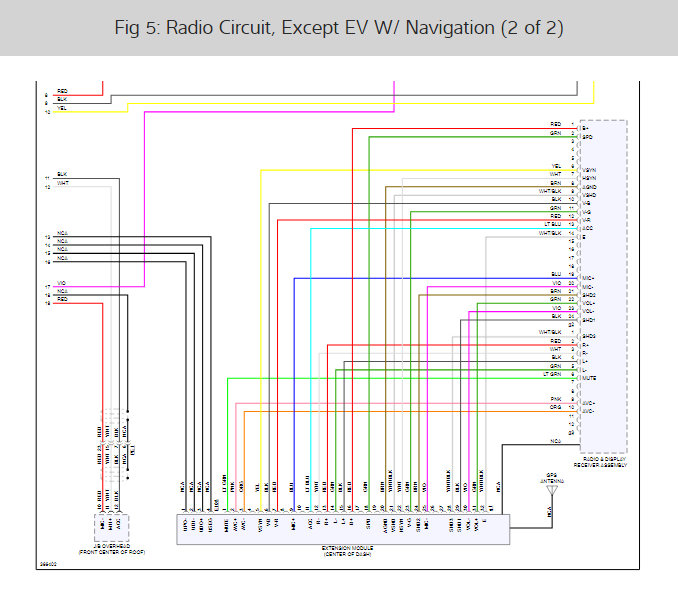

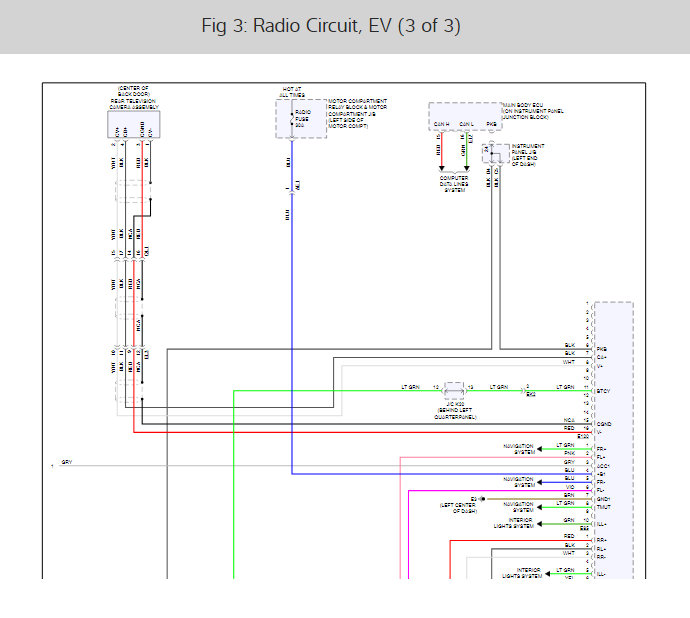

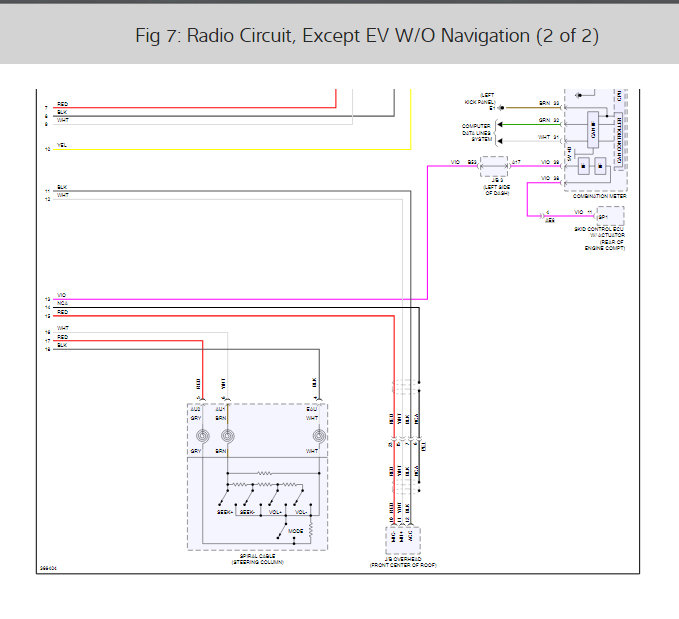

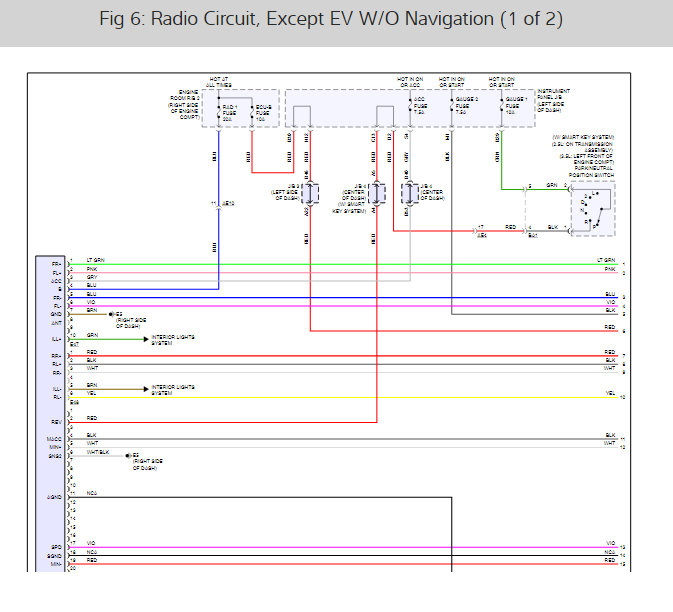

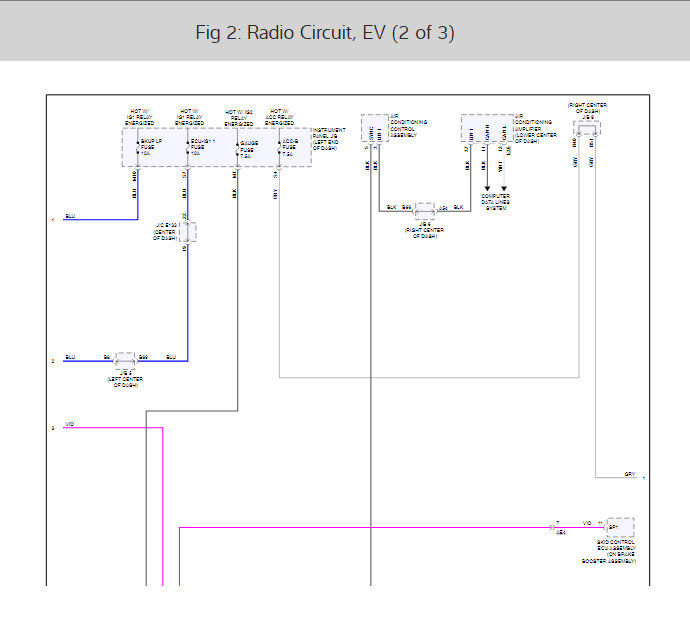

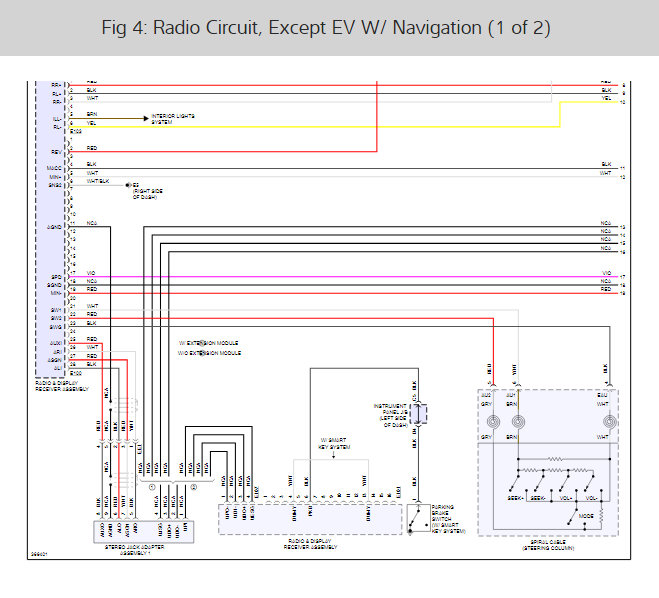

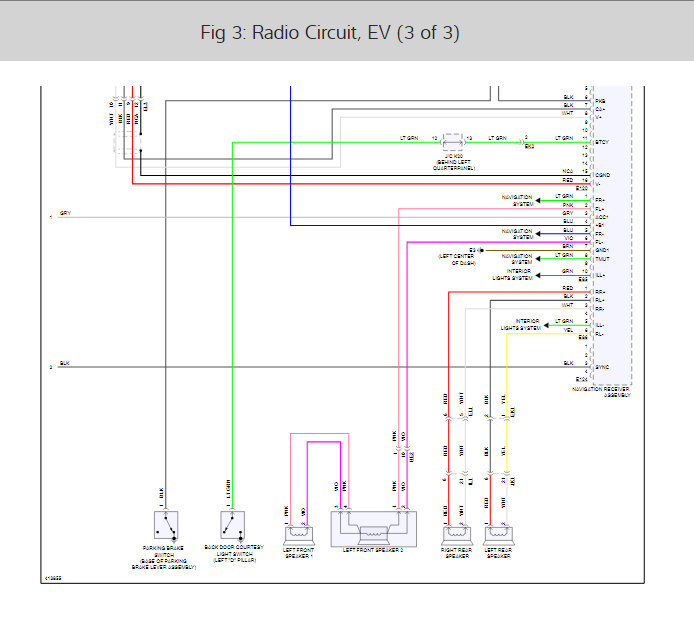

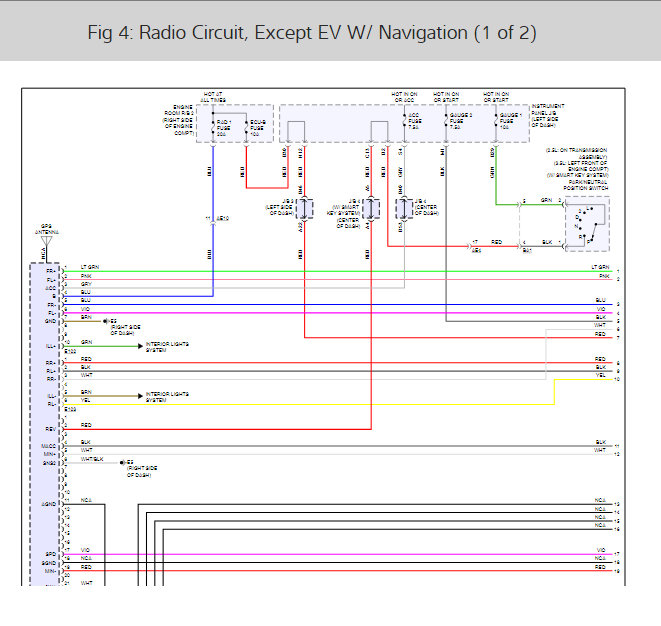

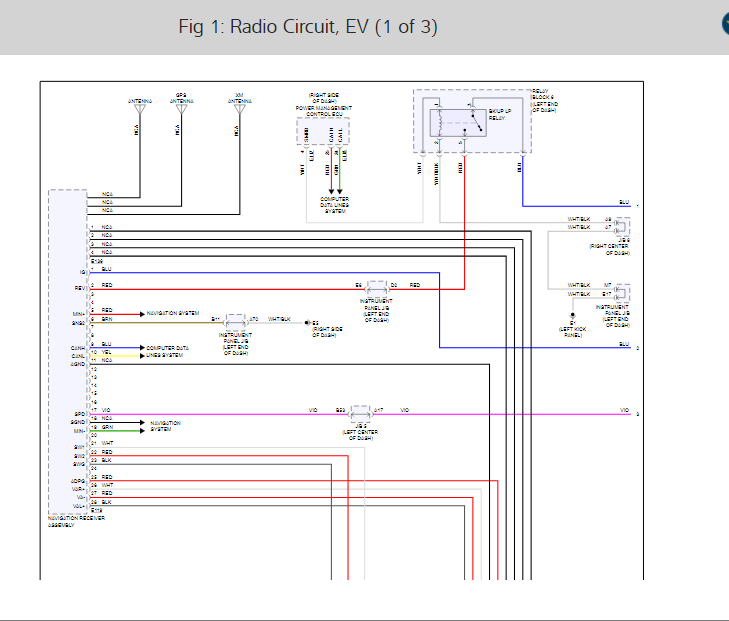

There are three different stereo options in the 2012 Rav4, so I have included all three in the diagrams down below. If the diagrams are two small, right click your mouse and open the diagram in a new page and it will become bigger and legilable. Please get back to us with how everything turns out, or if you have more questions.

Thanks,
Alex
2CarPros
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, September 16th, 2019 AT 10:09 AM
Tiny
RVO
  • MEMBER
  • 2 POSTS
Thank you so much Alex I'm from Brazil. Feel free if you need something from here.
