Need key ignition wiring diagram?

1998 DODGE DAKOTA
5.2L • 4WD • AUTOMATIC
Avatar
DSNUTZ420
  • MEMBER
  • 1 POST
Need key ignition wiring diagram
Oct 14, 2026 at 7:17 PM
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,511 POSTS

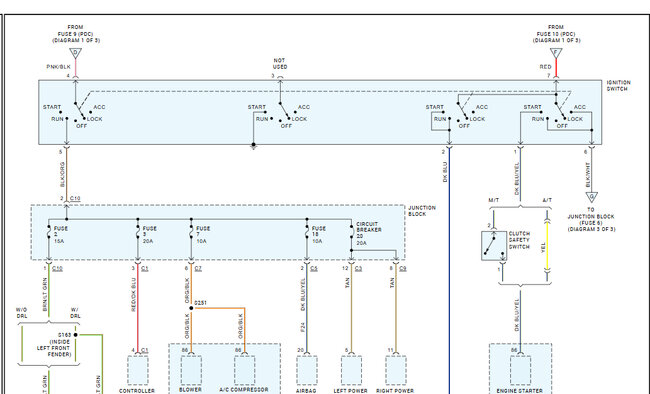

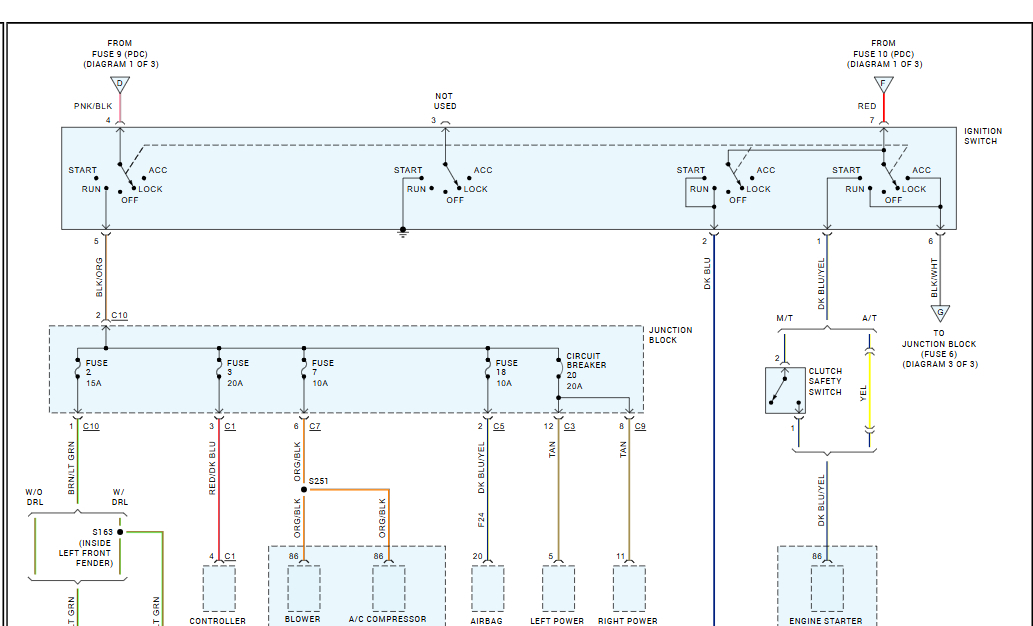

Yep, here are the wiring diagrams for the ignition switch.
Image (Click to enlarge)
Attached Media
Oct 15, 2026 at 8:46 AM
