Dash cluster?

2009 TOYOTA AVENSIS
2,000,000 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
CHAINA MOTORS
  • MEMBER
  • 1 POST
457952-8682-1 A pin out connection
Feb 8, 2026 at 10:16 PM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,065 POSTS

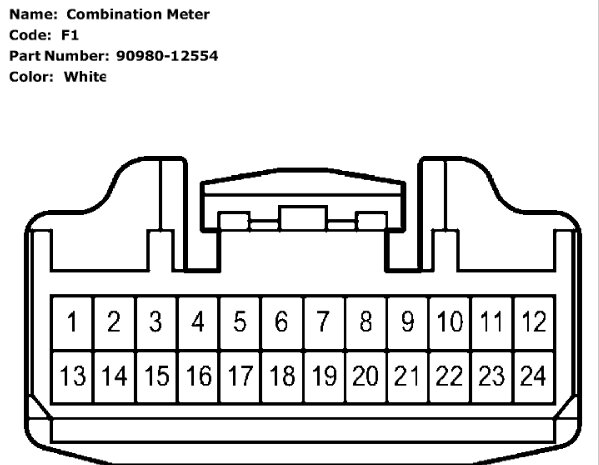

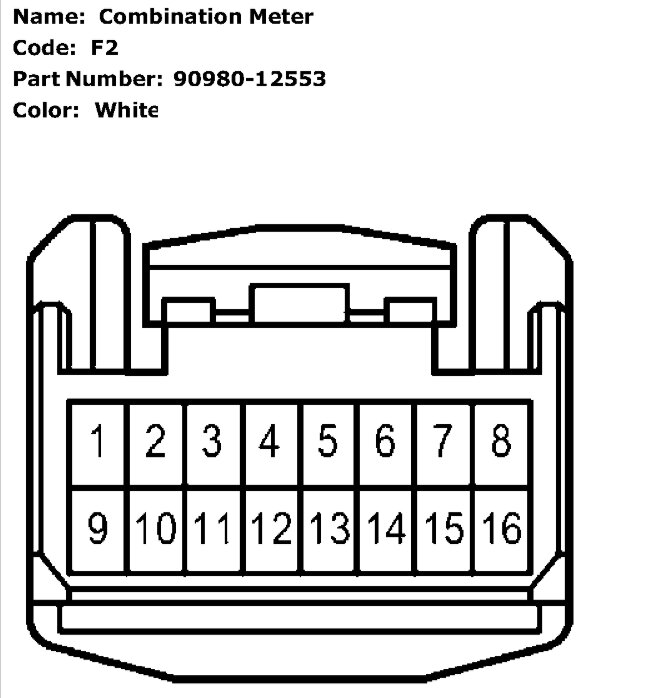

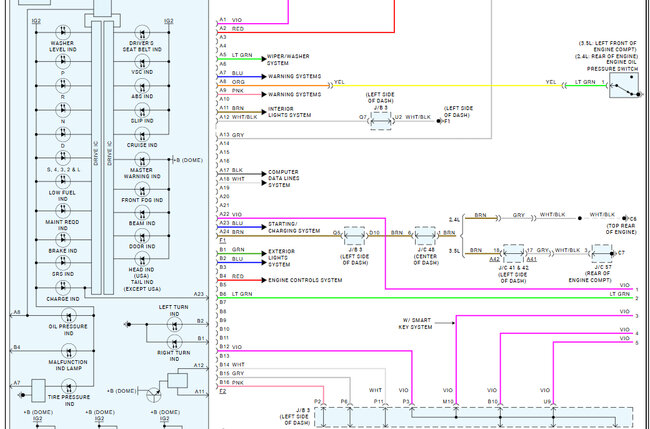

Sure, here is the pin out for the dashboard cluster. Let me know if you need anything else. Check out the images (below) Ken
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
