Color code wiring digram

1999 GMC SIERRA
778,000 MILES • 5.3L • V8 • 4WD • AUTOMATIC
Avatar
JOSHUA 101
  • MEMBER
  • 7 POSTS
In need a color code wiring diagram for transmission and transfer case for a 1999 GMC Serria 5.3 motor 4L60e transmission what color wires go to what sensors on the outside of transmission and transfer case please in laymen terms.
Jun 16, 2017 at 6:59 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
Hello,

I have found these guides and diagrams for you to help you get the problem fixed.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

and

https://www.2carpros.com/articles/how-to-check-wiring

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken

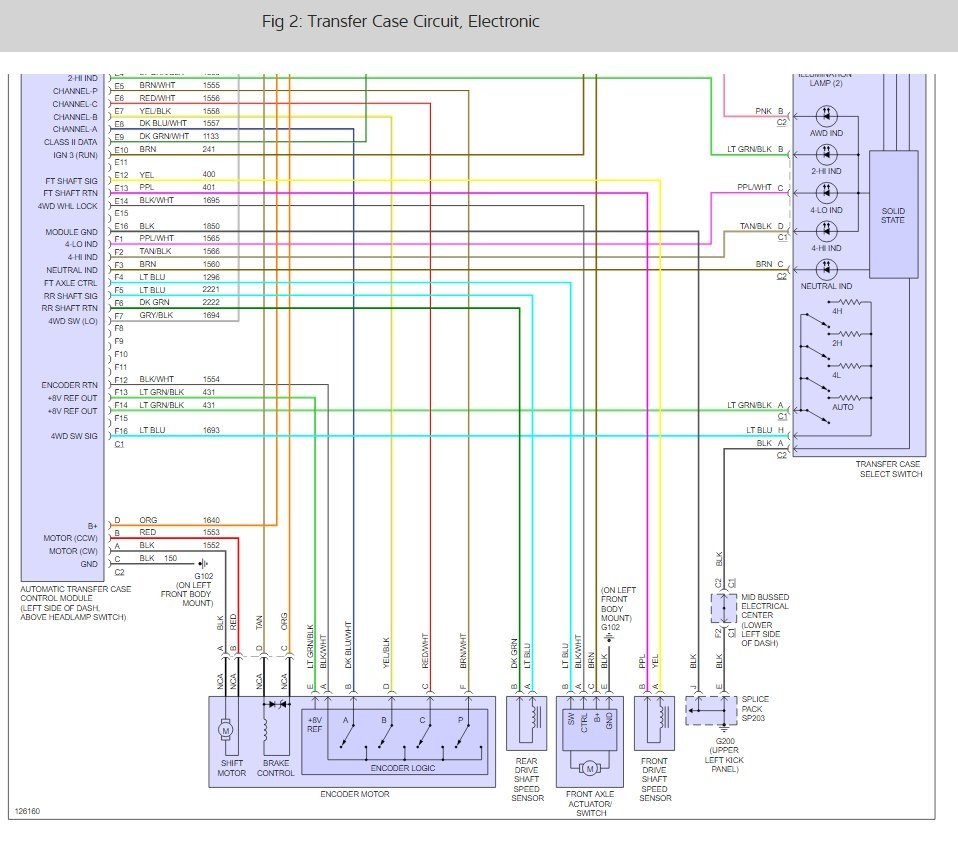

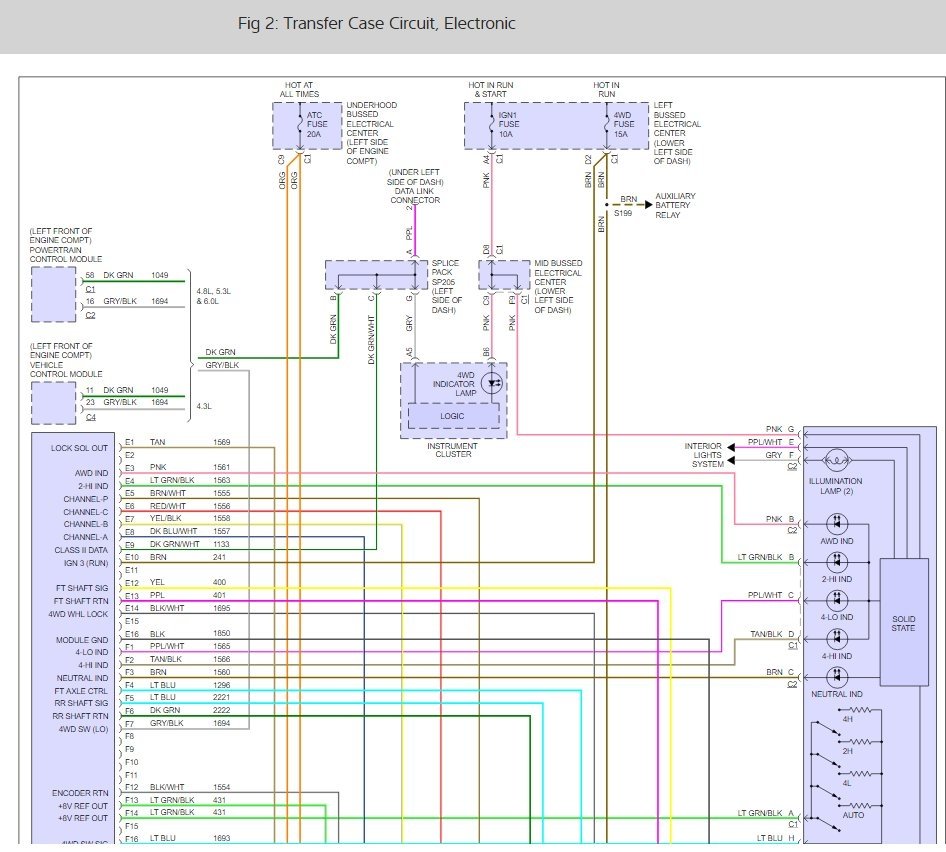

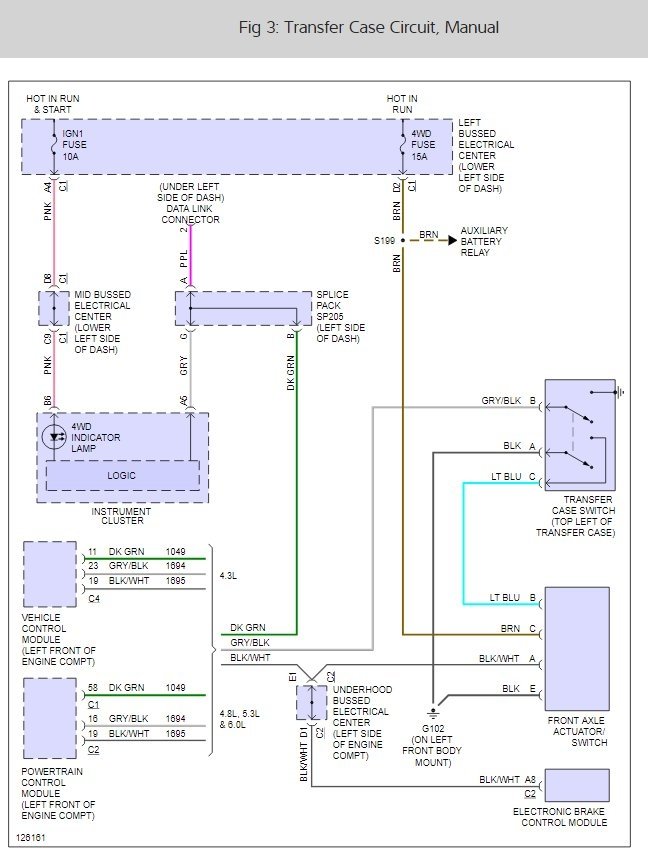

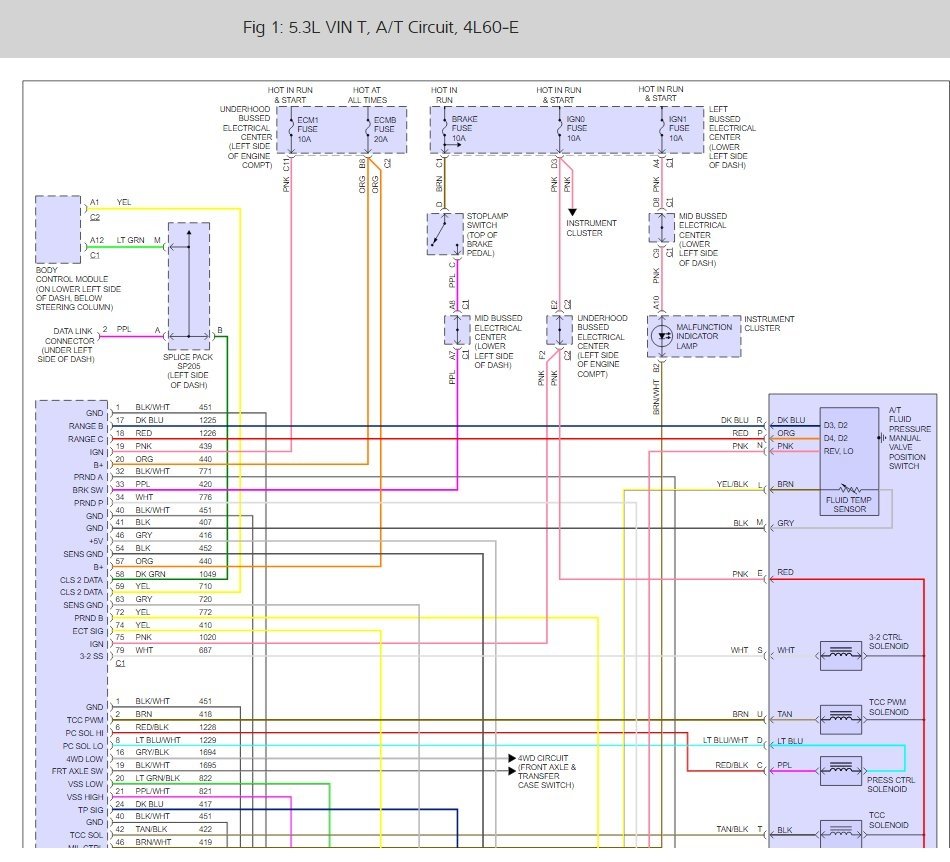

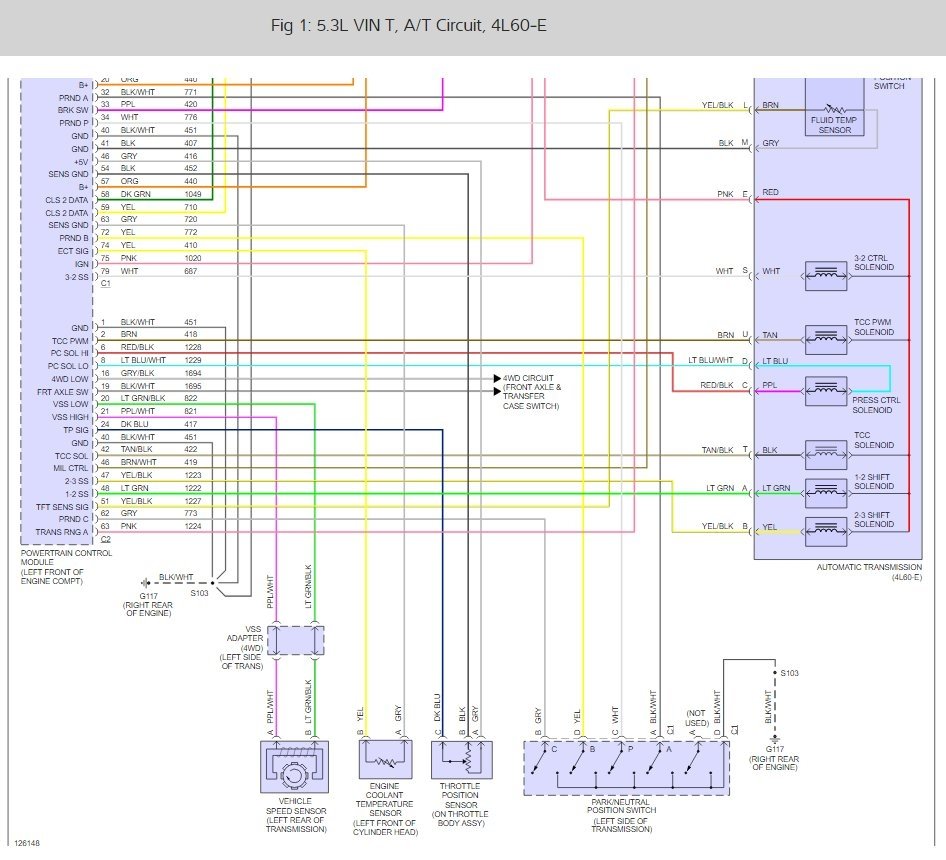

Images (Click to enlarge)
