Can I get the coil connector pin out diagram for electrical wiring harness?

2016 CHEVROLET TAHOE
140,000 MILES • 5.3L • V8 • 2WD • AUTOMATIC
Avatar
CW3
  • MEMBER
  • 1 POST
coil wiring diagrams? Can I get the coil connector pin out diagram for electrical wiring harness?
Mar 22, 2023 at 8:55 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

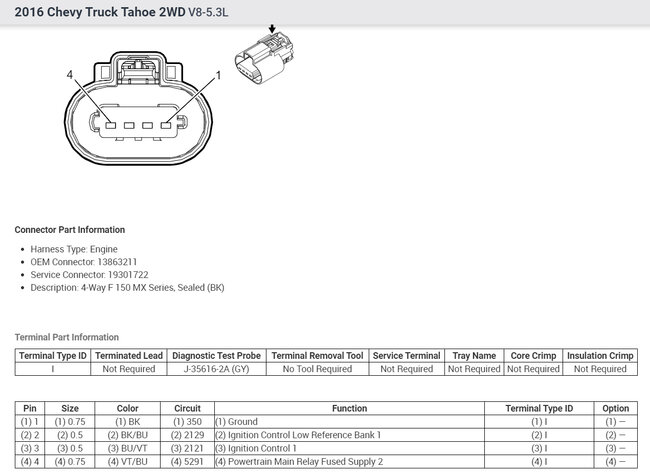

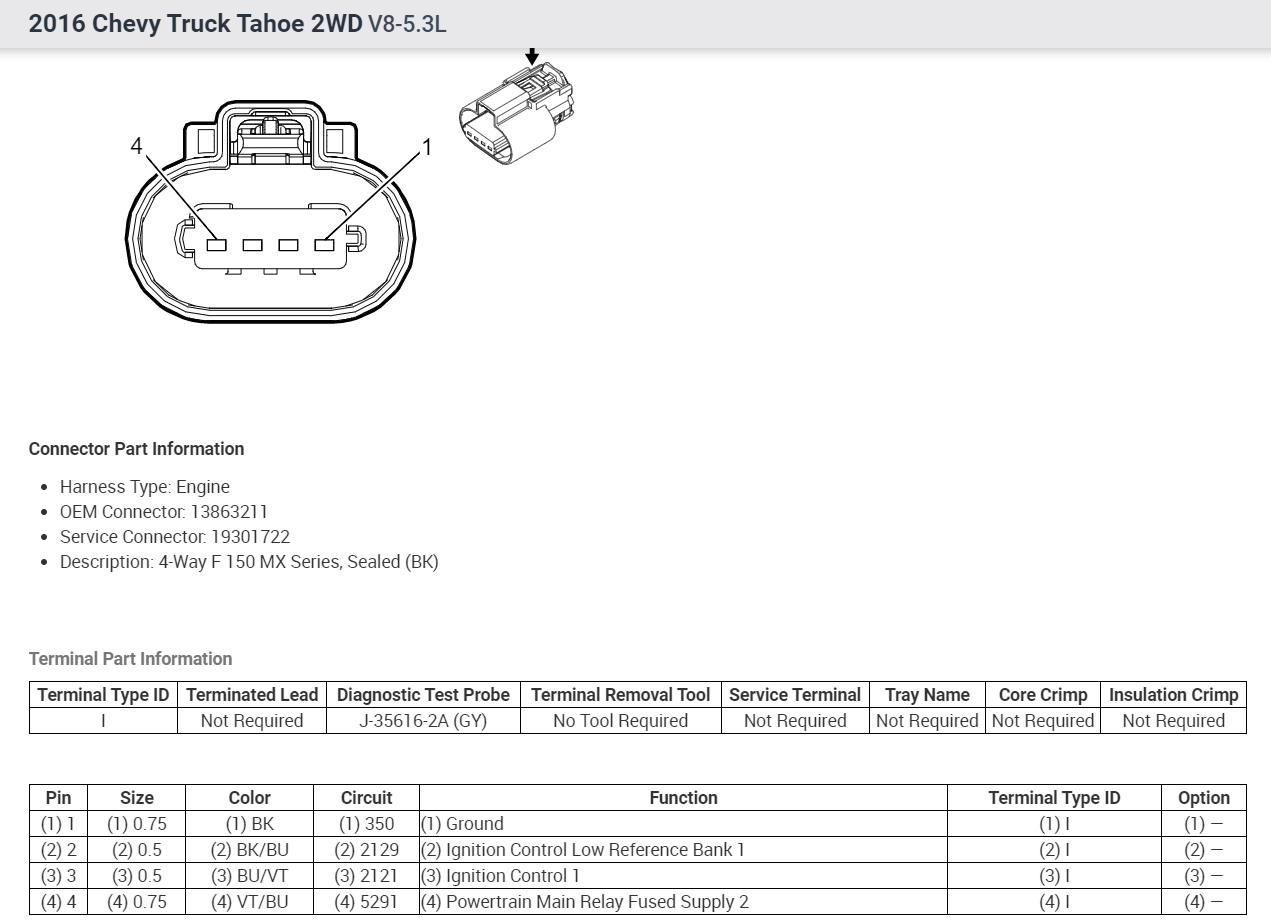

Sure, but each one is different what cylinder do you need, here is the #1 cylinder to see what you will be getting. Check out the images (below). Please let us know.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
