Coil packs how to wire the replacement ones?

2004 KIA OPTIMA
154,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
CREWCHF2
  • MEMBER
  • 1 POST
My coil packs wire connector broke ordered new packs and connectors, but the new connector all the wires are black. I don't know how to wire the new ones.
Jul 30, 2024 at 10:55 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

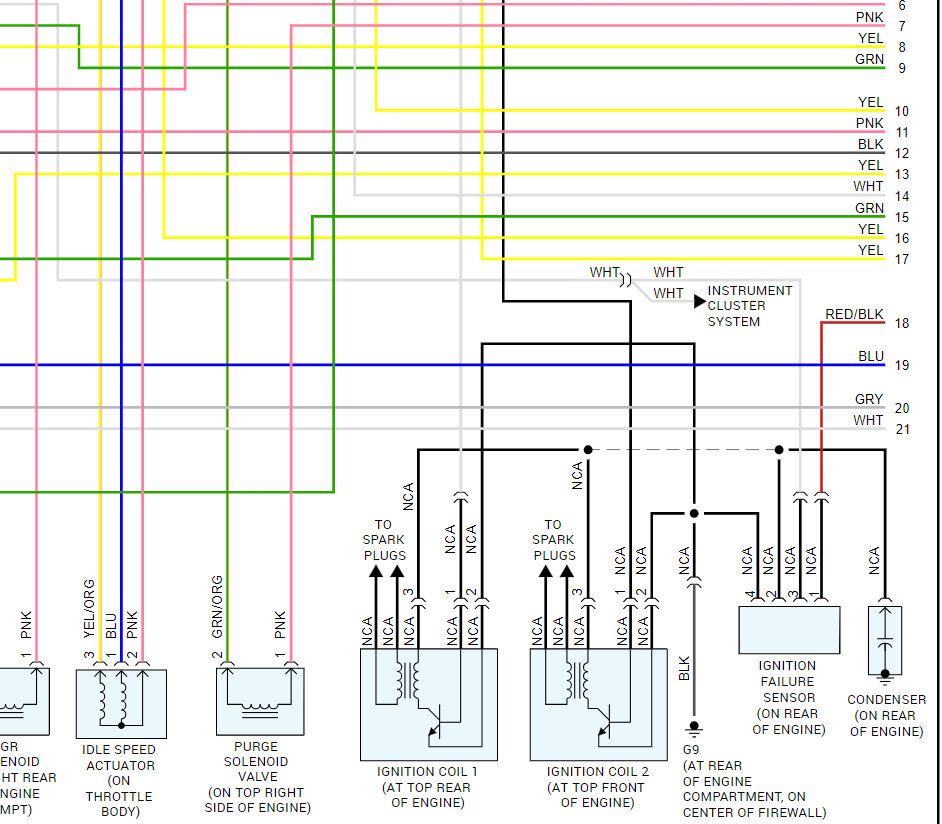

I would swap the wires one at a time because it looks like the old wires are all black as well unfortunately. Here is what the ignition coil wiring diagrams look like. I don't have a connector view which would have helped, sorry. Check out the images (below). Let us know how it goes.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
