The wires going to my CMP are blue/orange, green/orange, and green. I need to know (facing the front of the car) what order the three wires go on the plug-in? Thanks.
Monday, February 12th, 2018 AT 8:02 AM

3 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,256 POSTS

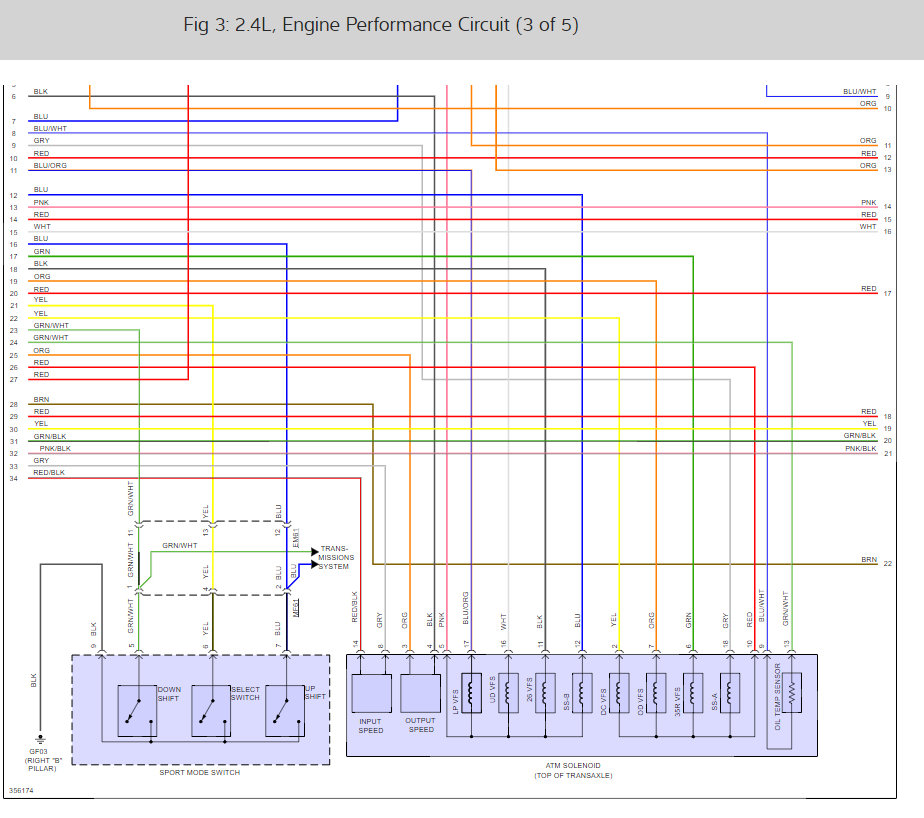

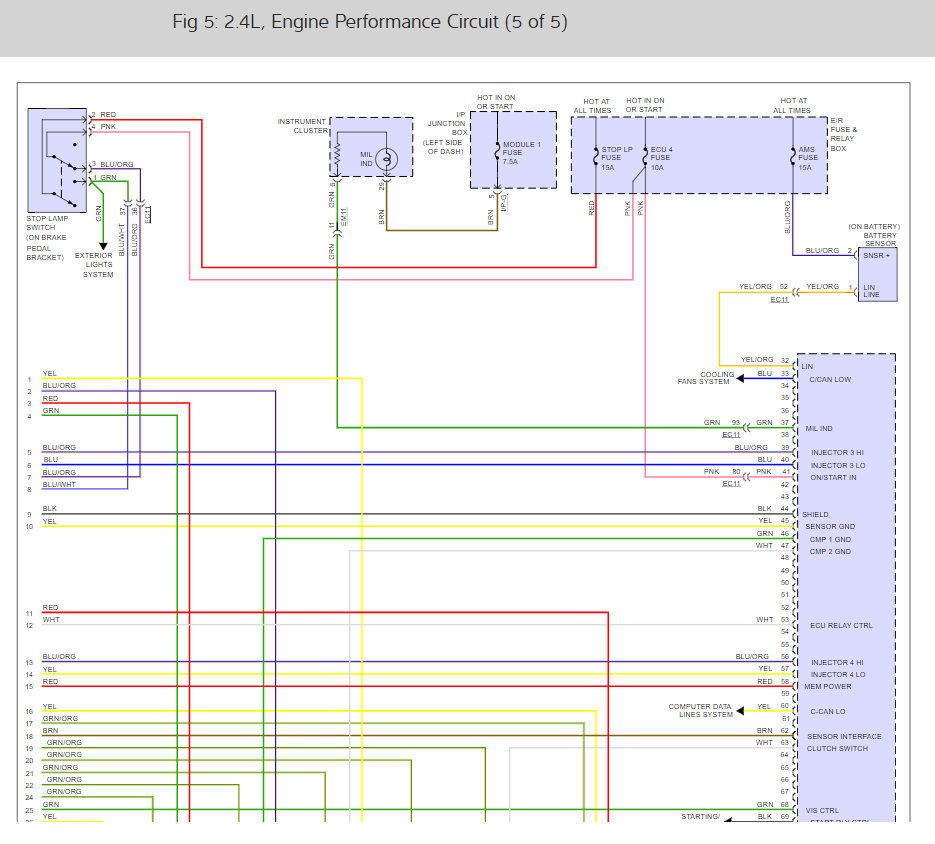

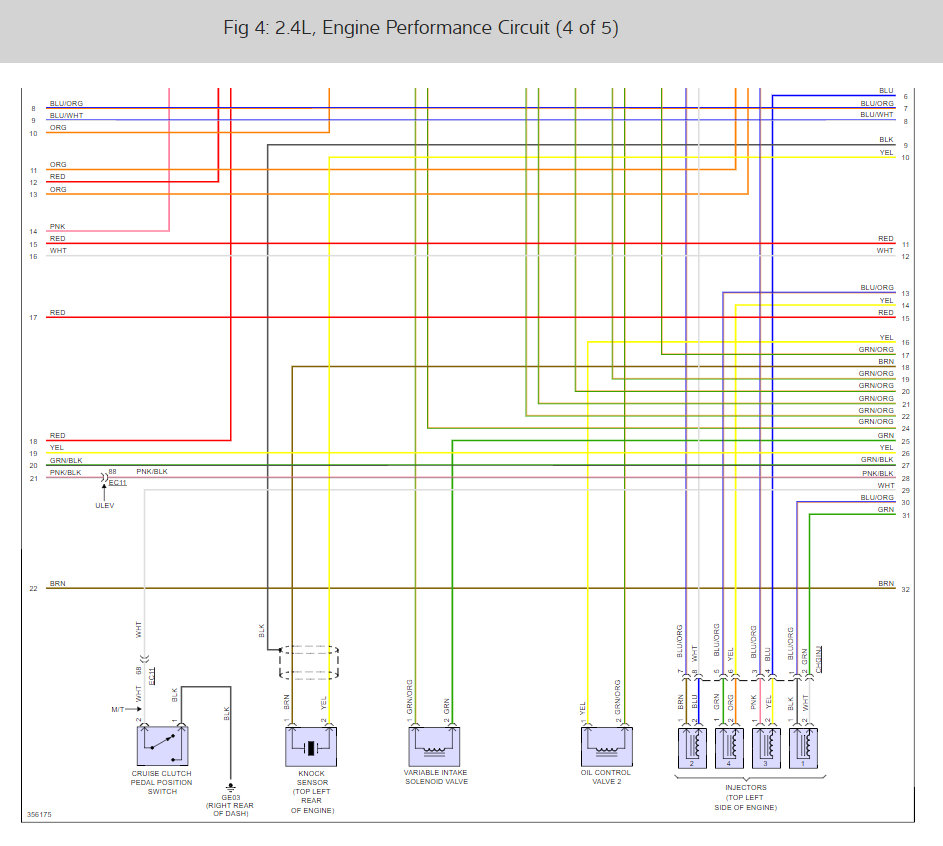

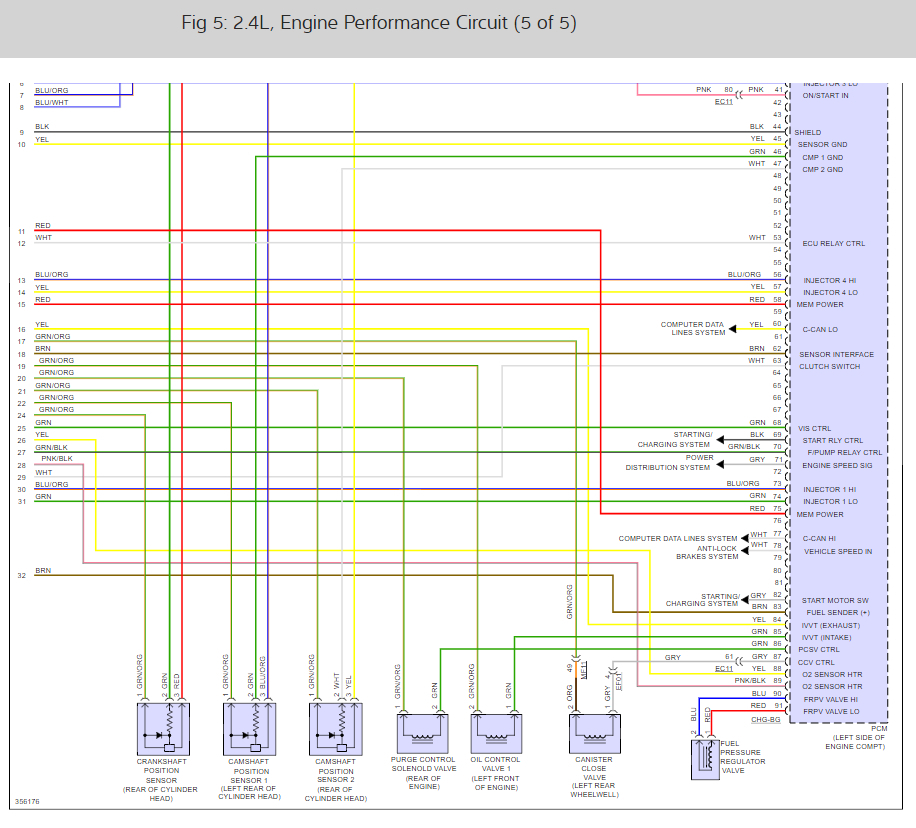

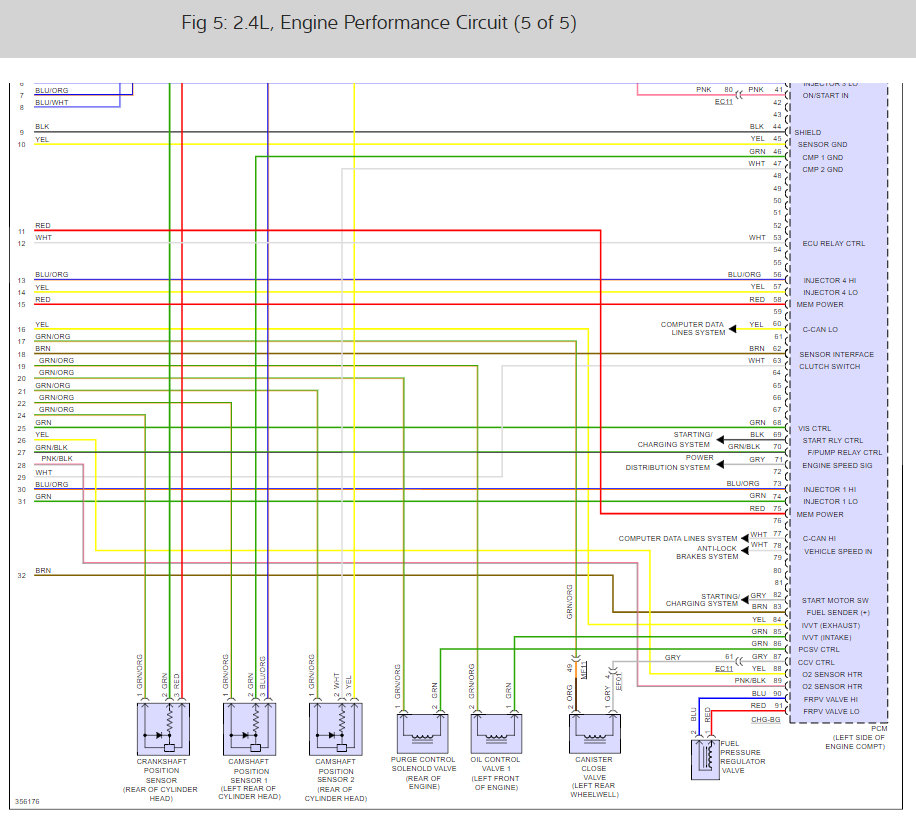

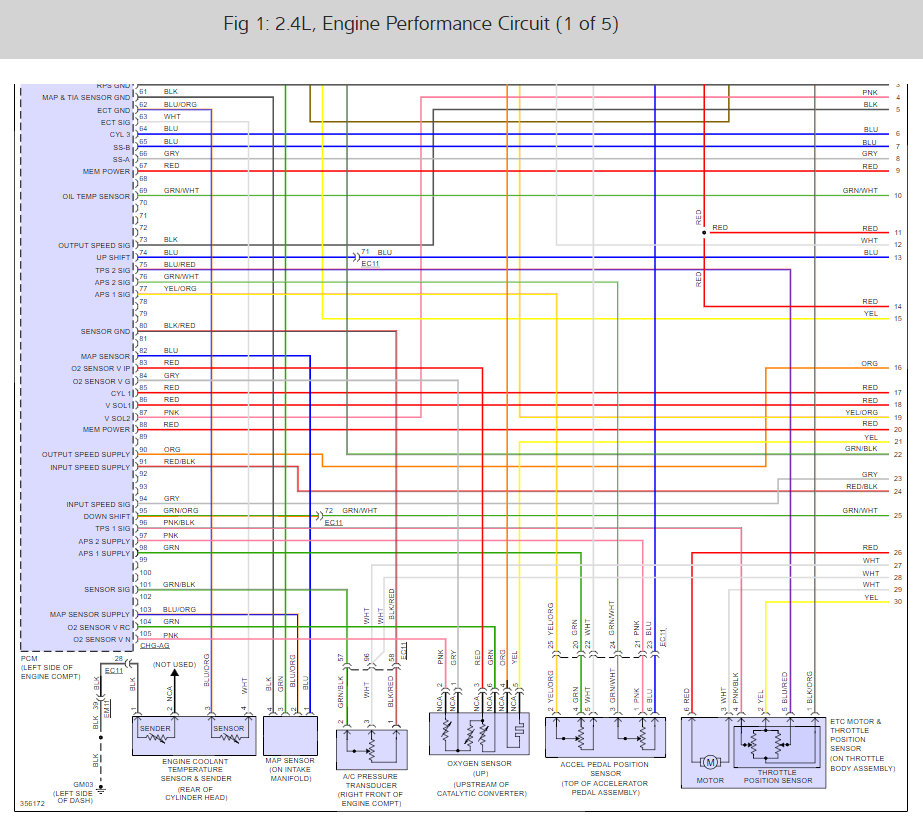

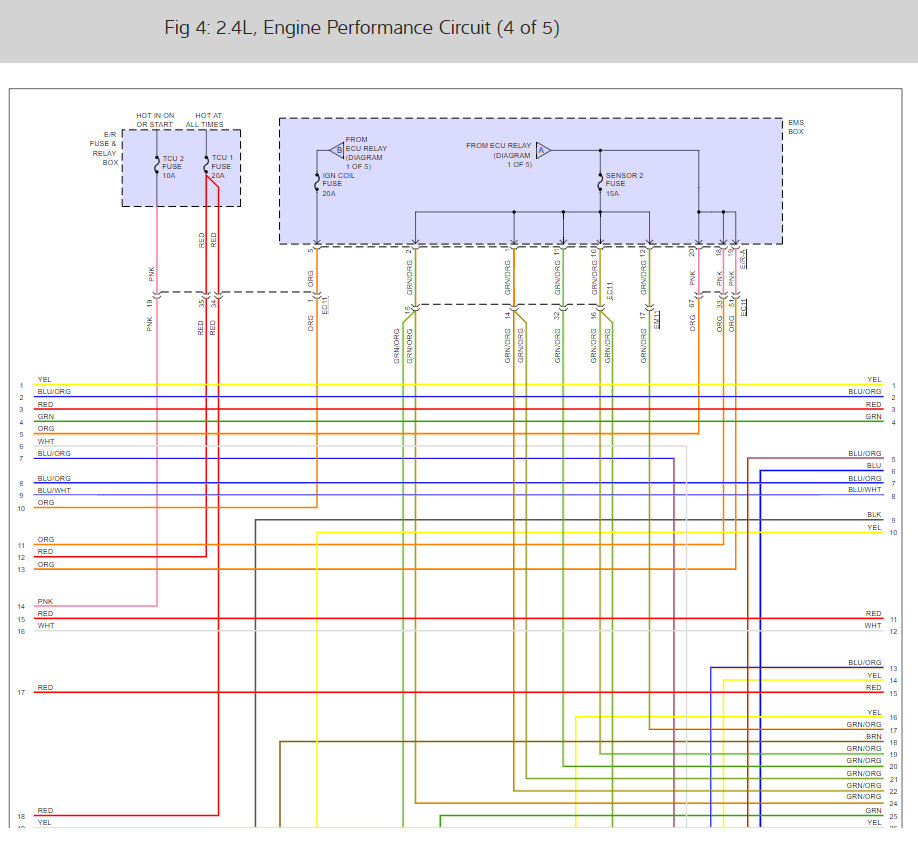

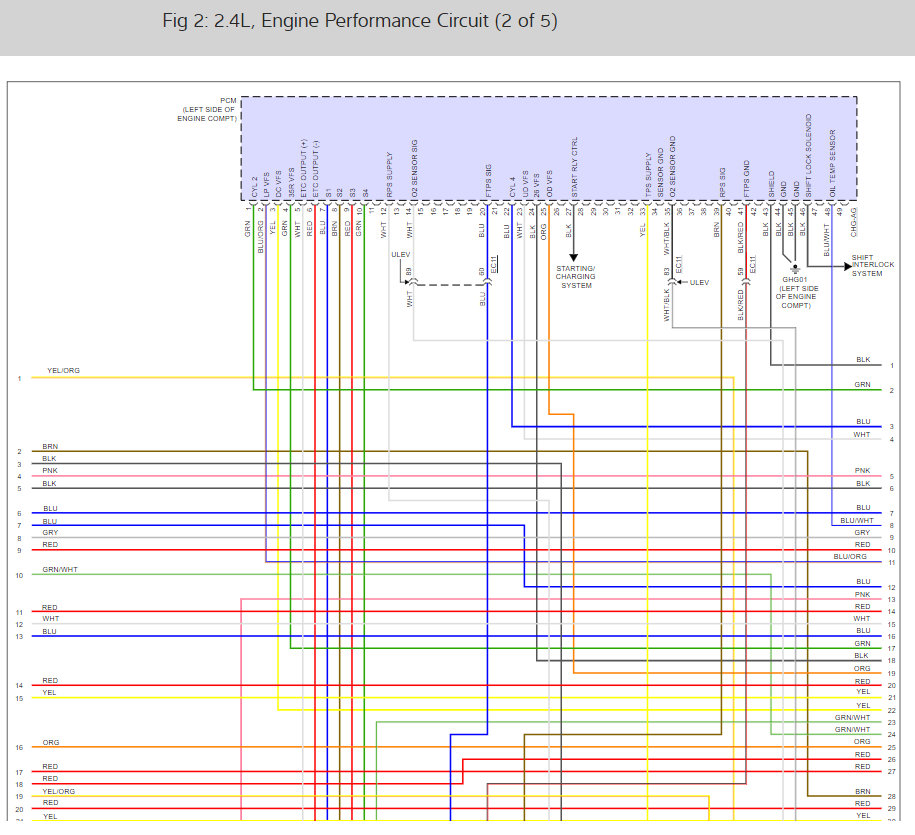

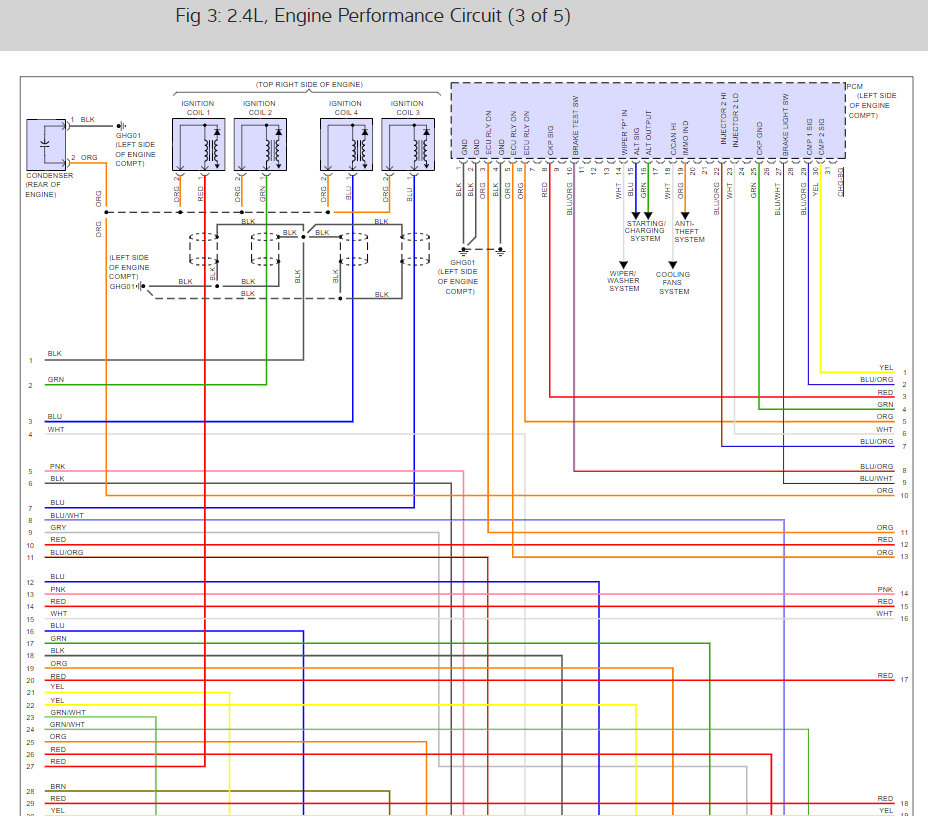

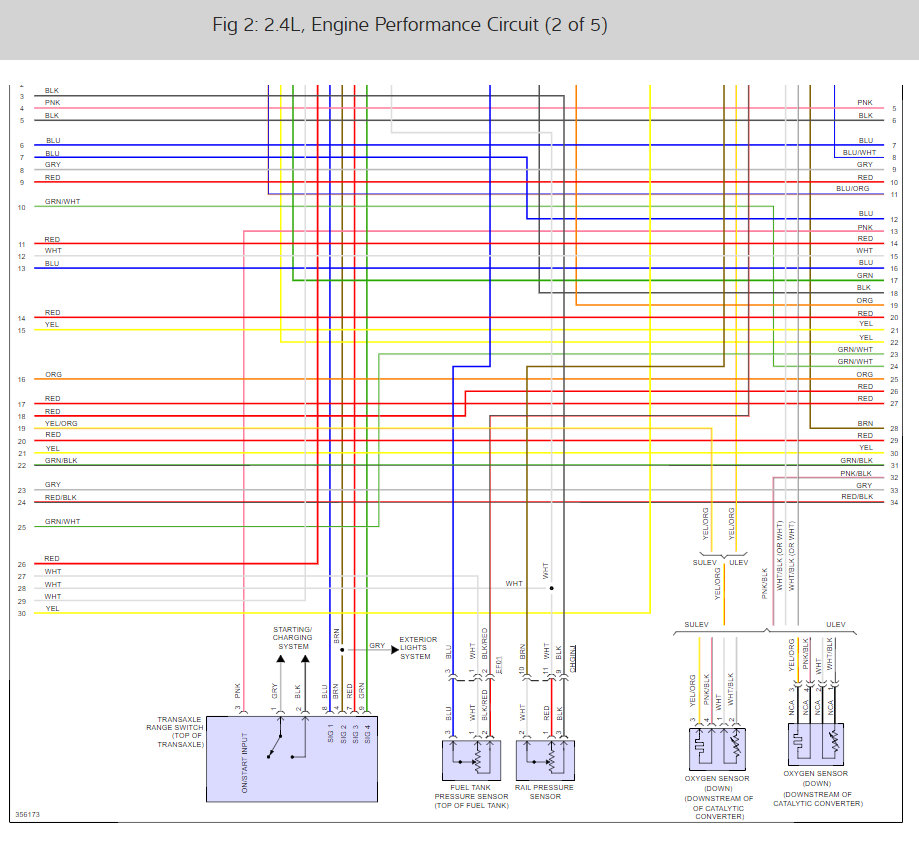

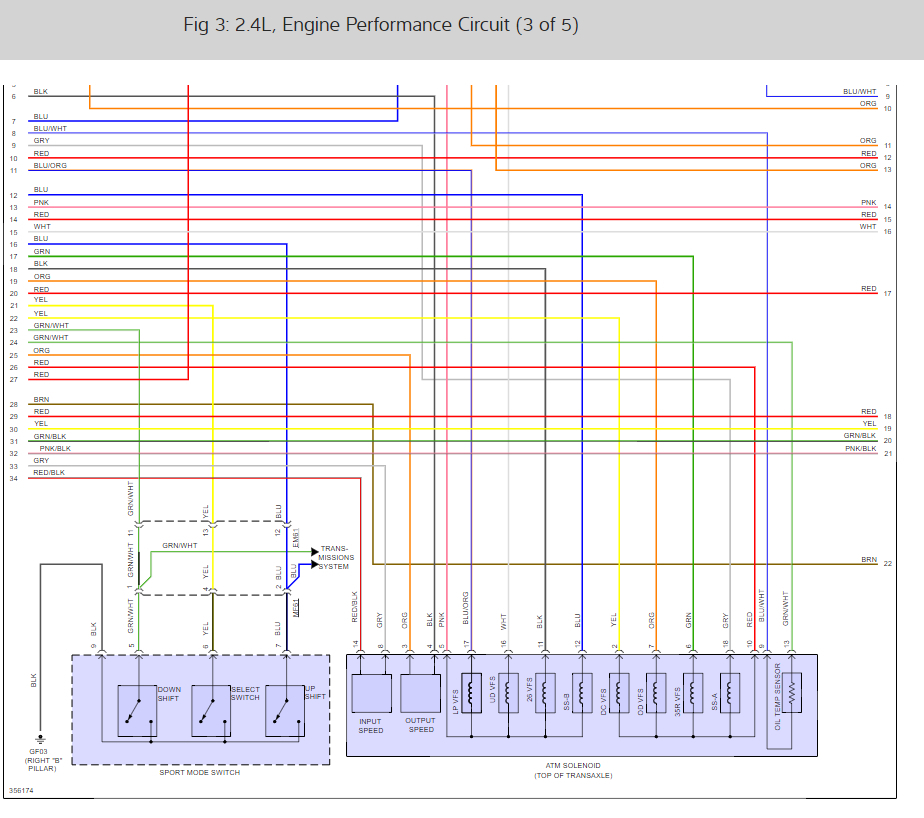

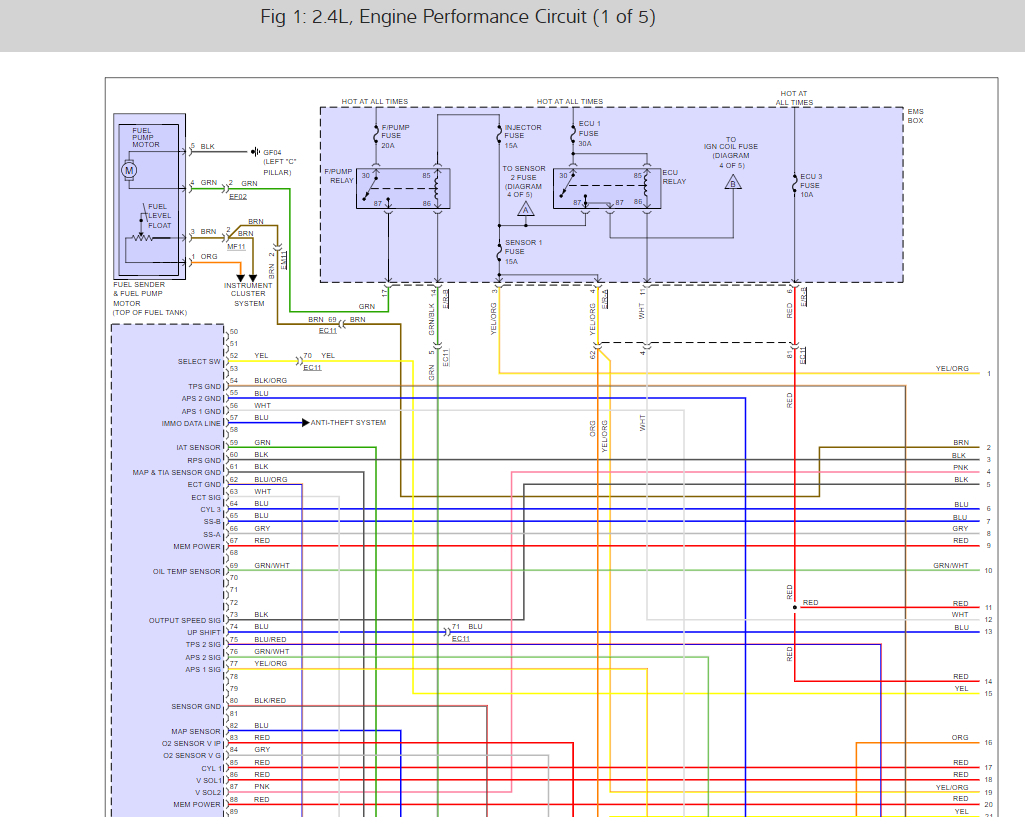

No problem hope all is going well. Here are the wiring diagrams for the engine so you can see exactly how everything is connected. There are two sensors, by the way you should save this page which has the complete engine wiring diagrams on it. Check out the camshaft sensors in the diagrams I think it is at the bottom of #10.

Check out the diagrams (below).

Let us know what happens and please upload pictures or videos of the problem.

Cheers, Ken
