Looking to remove cluster display and a diagram for removal.
Dec 2, 2024 at 1:21 AM
How to remove cluster display?
2023 LINCOLN NAVIGATOR
COOKEE
- MEMBER
- 20 POSTS
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

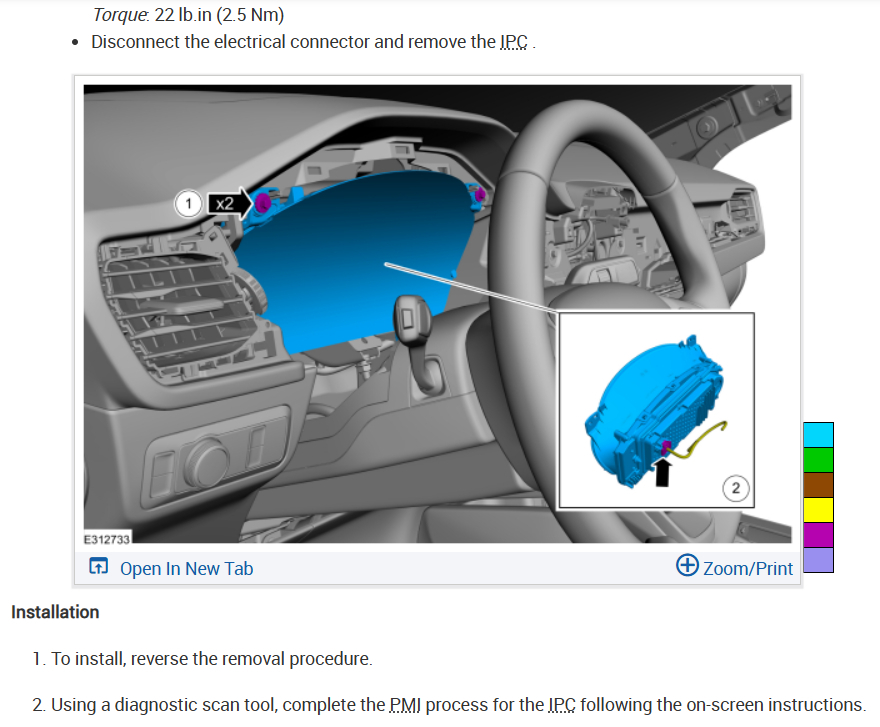

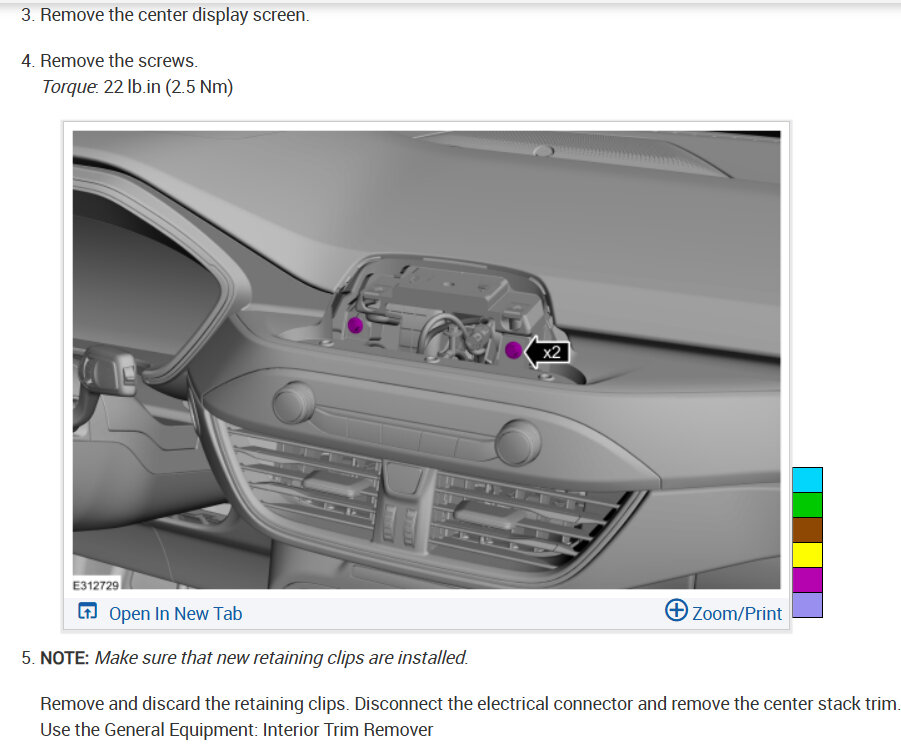

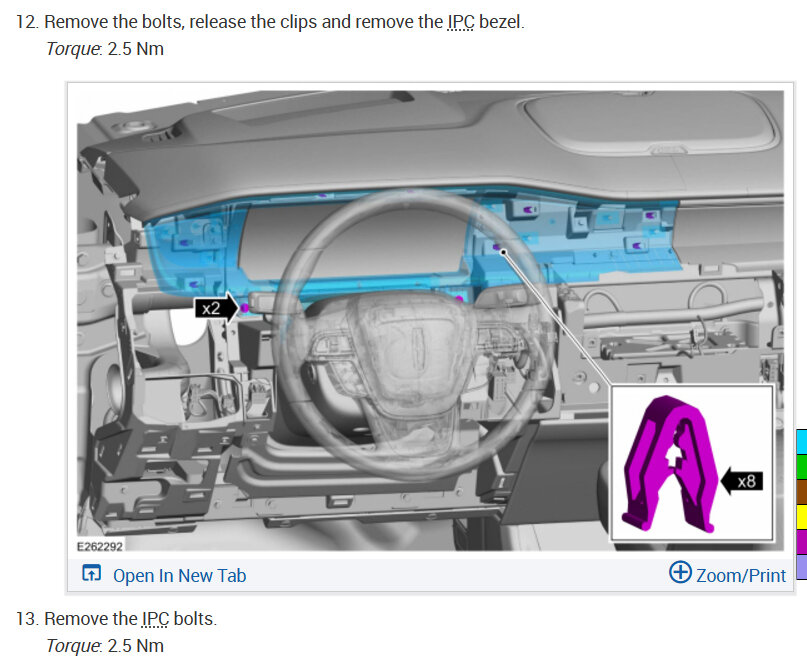

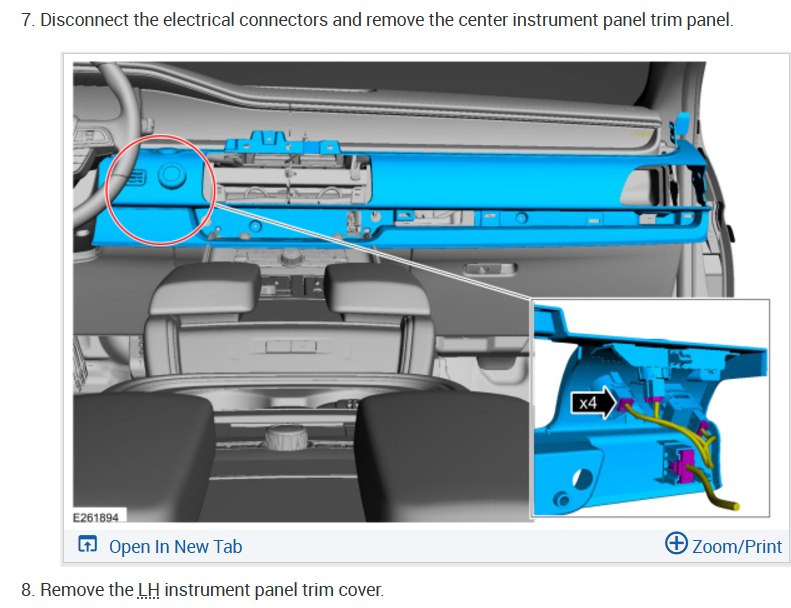

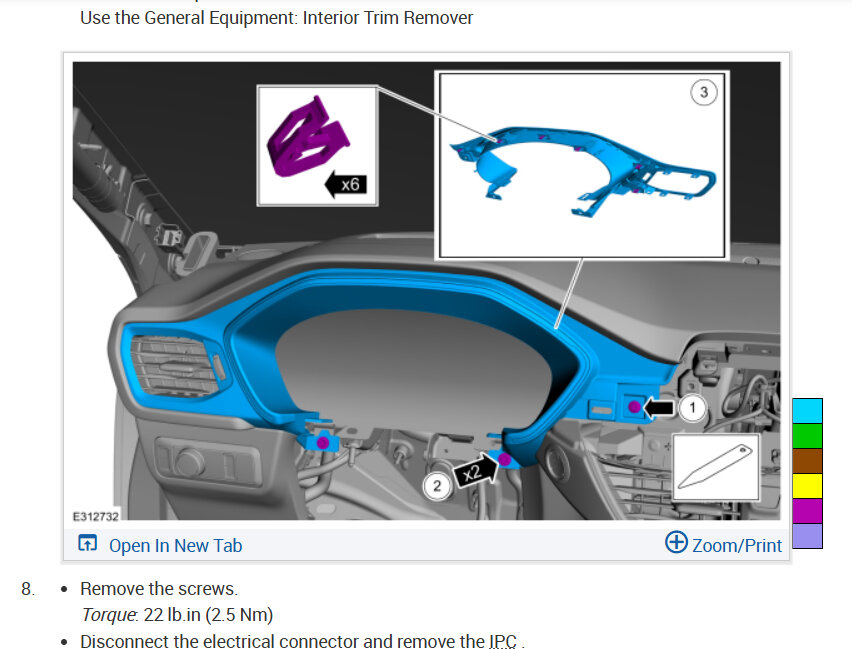

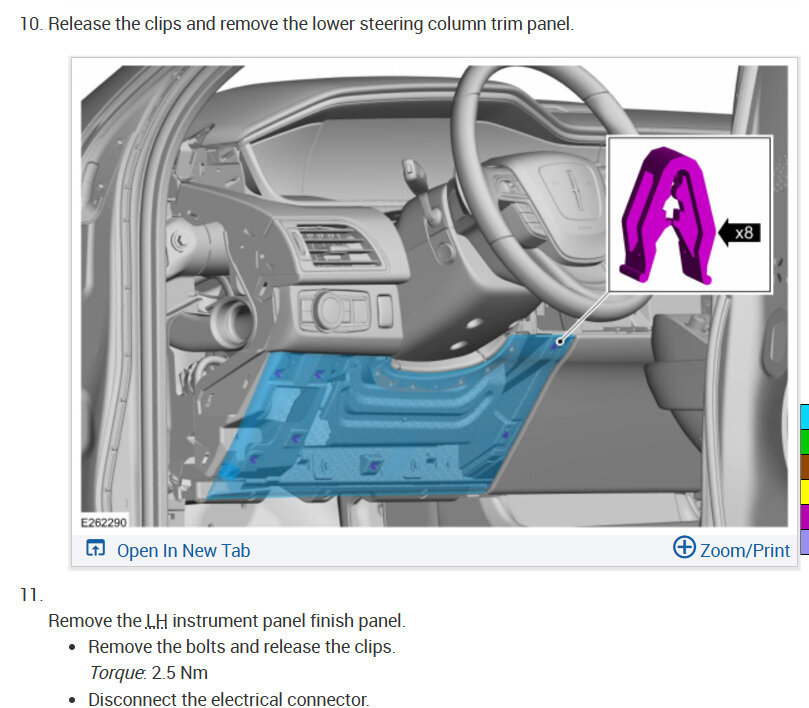

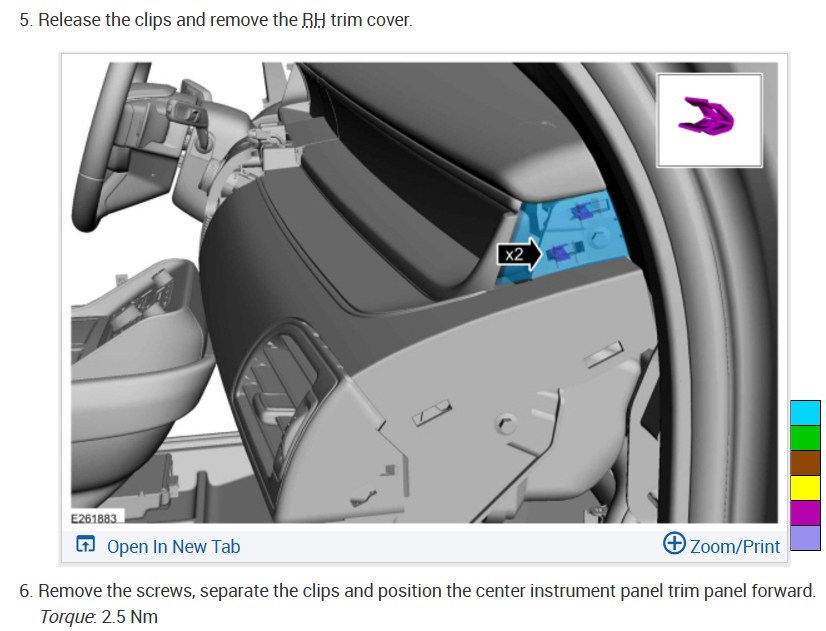

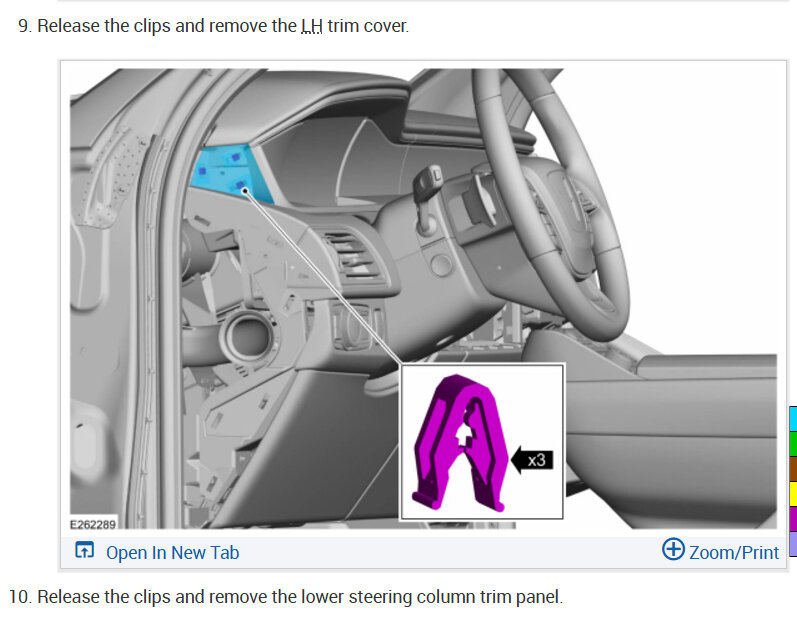

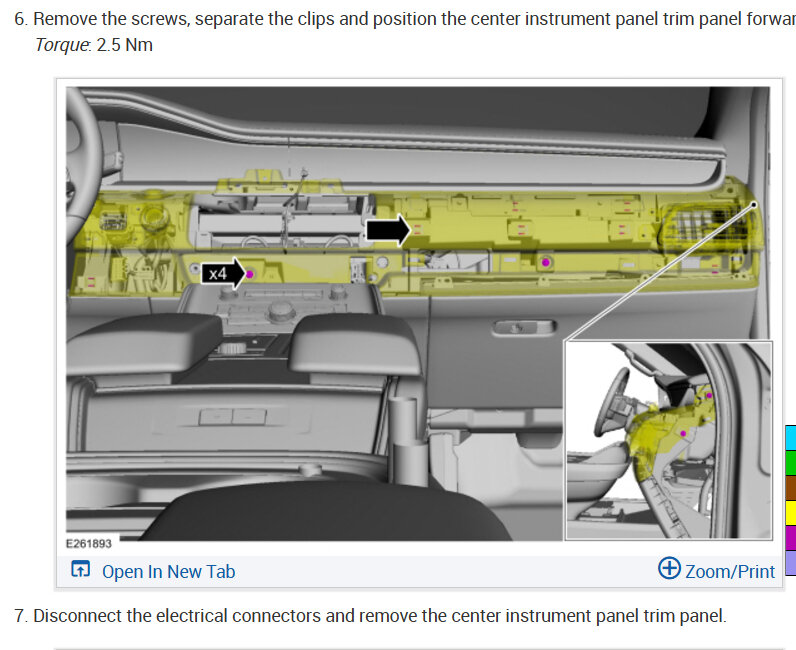

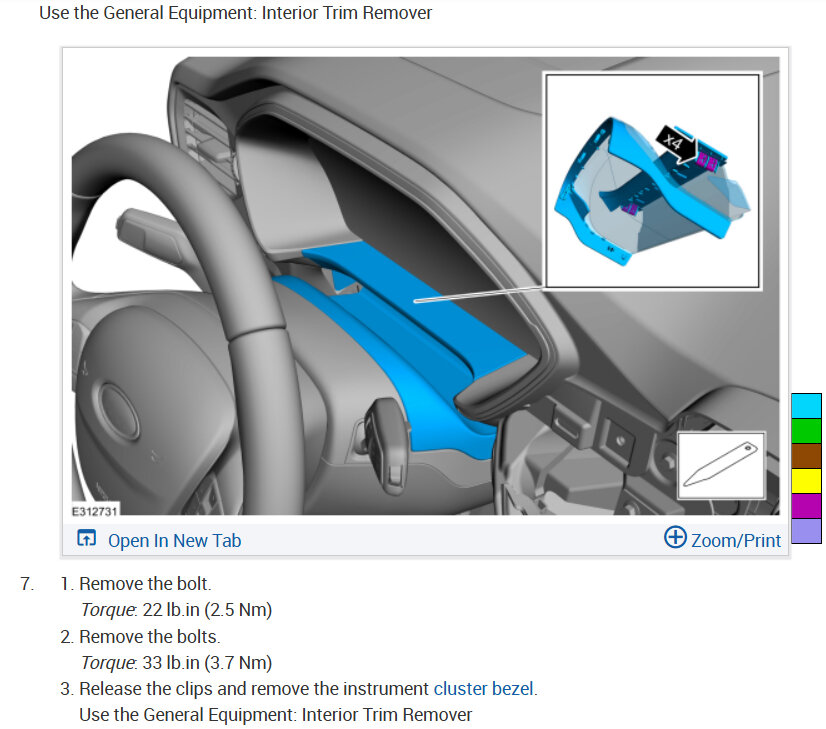

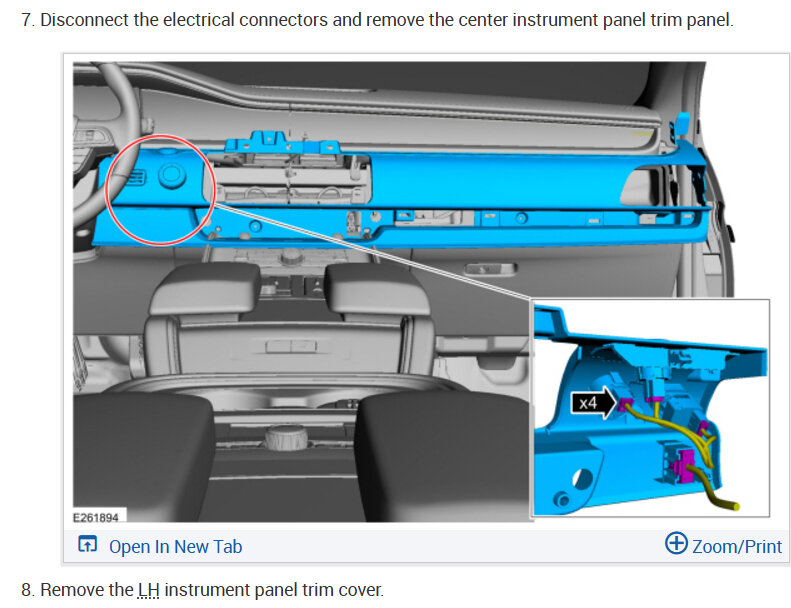

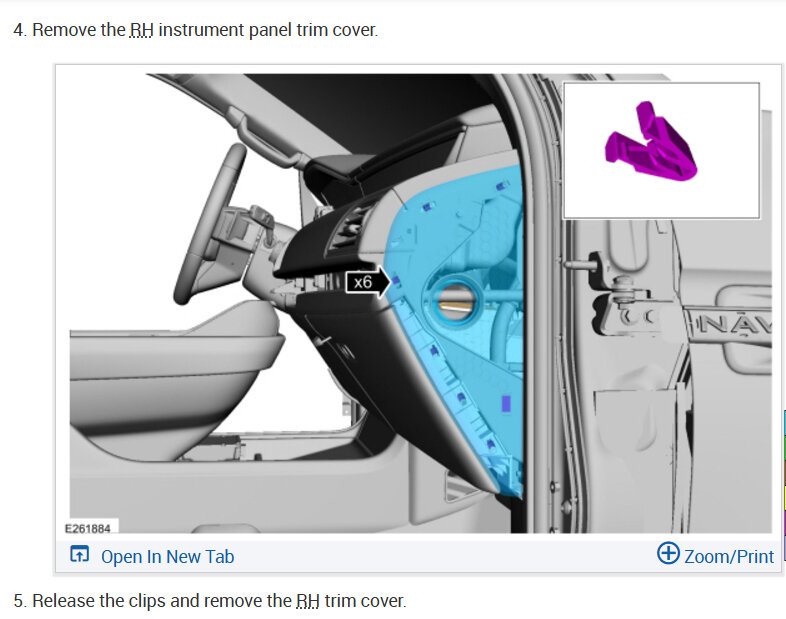

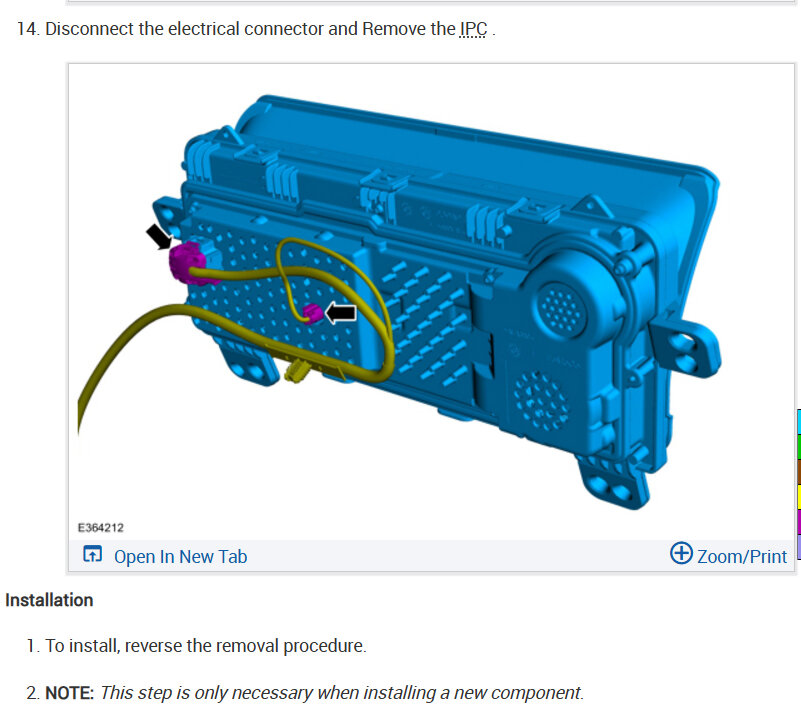

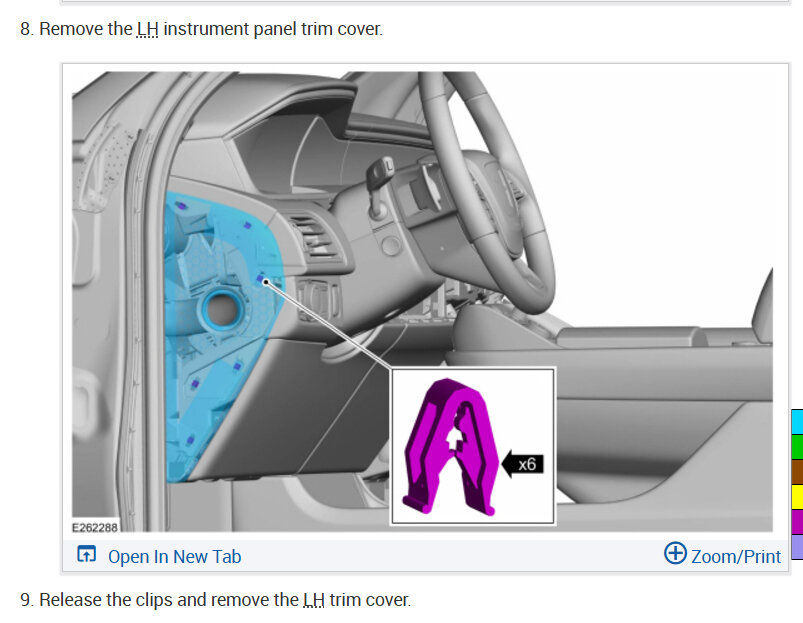

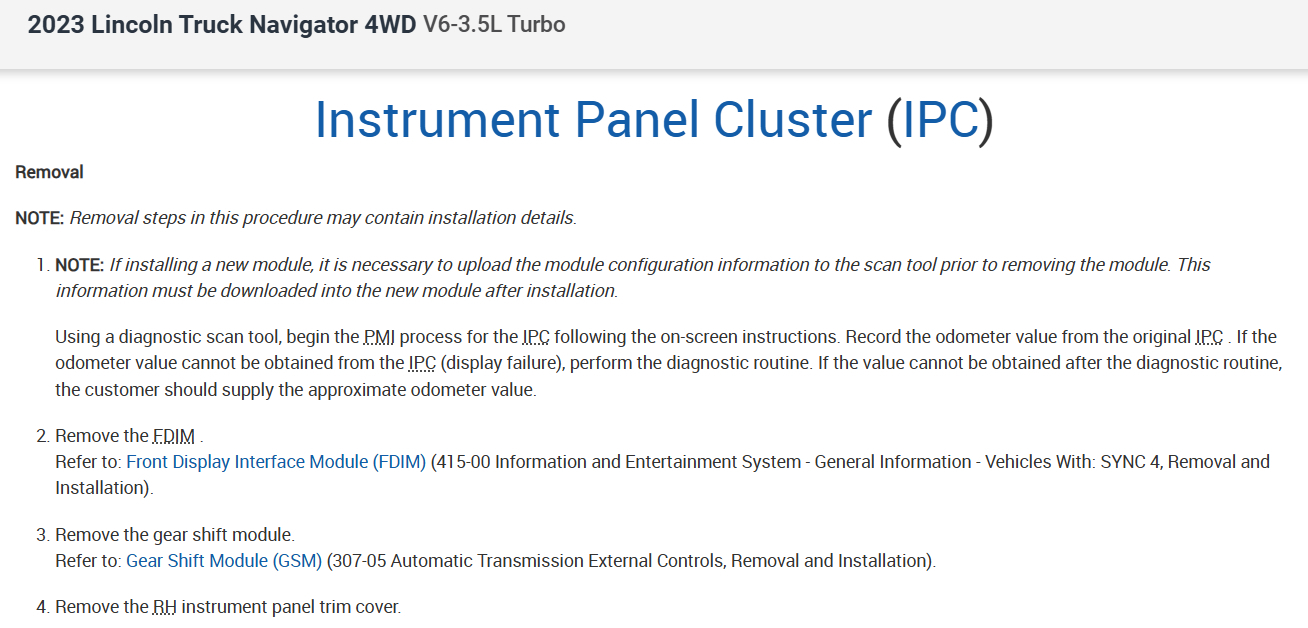

Here are the instructions on how to remove the instrument cluster, it looks like you will need to remove the trim panels from under the steering column and along the middle of the dash. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Dec 2, 2024 at 10:48 AM
I want to upgrade cluster display and would like to know how to remove the speedometer cluster display.
Thanks
Thanks
Jan 14, 2025 at 11:44 AM
(Merged)
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

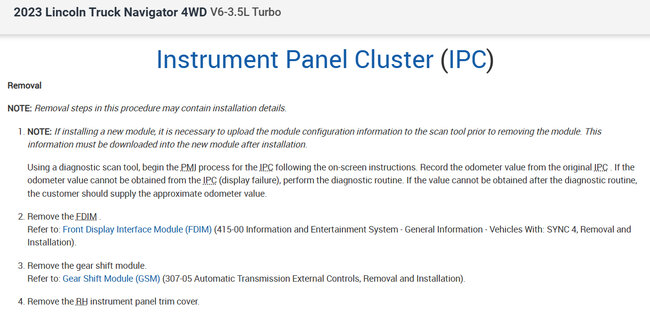

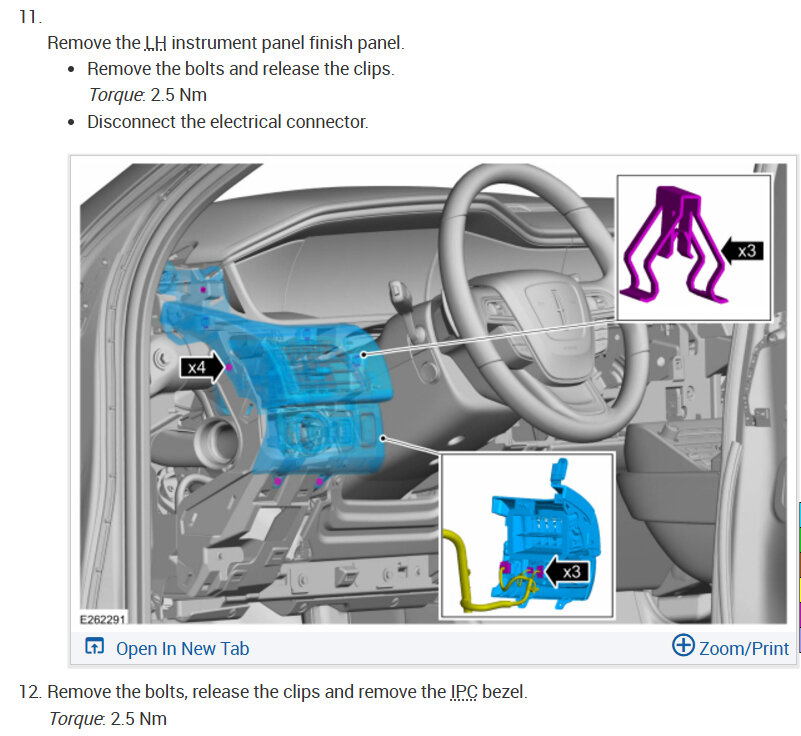

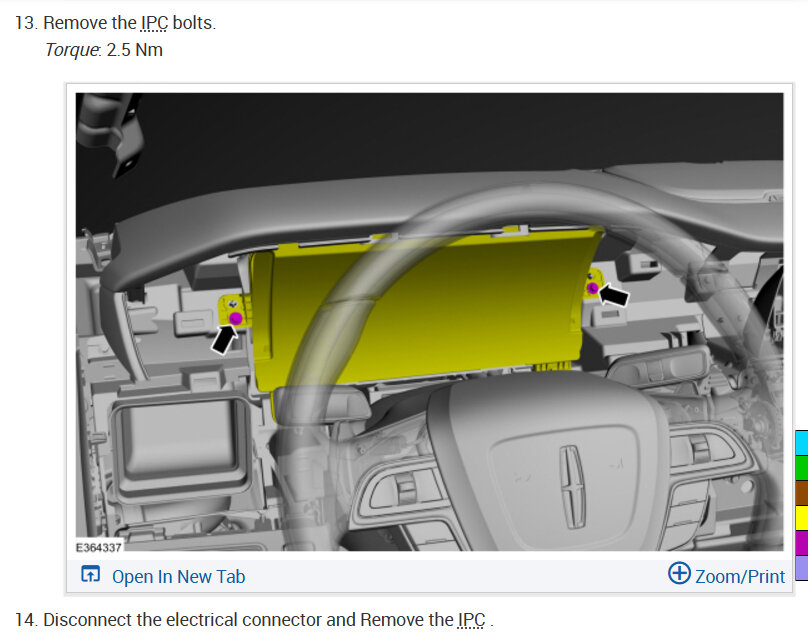

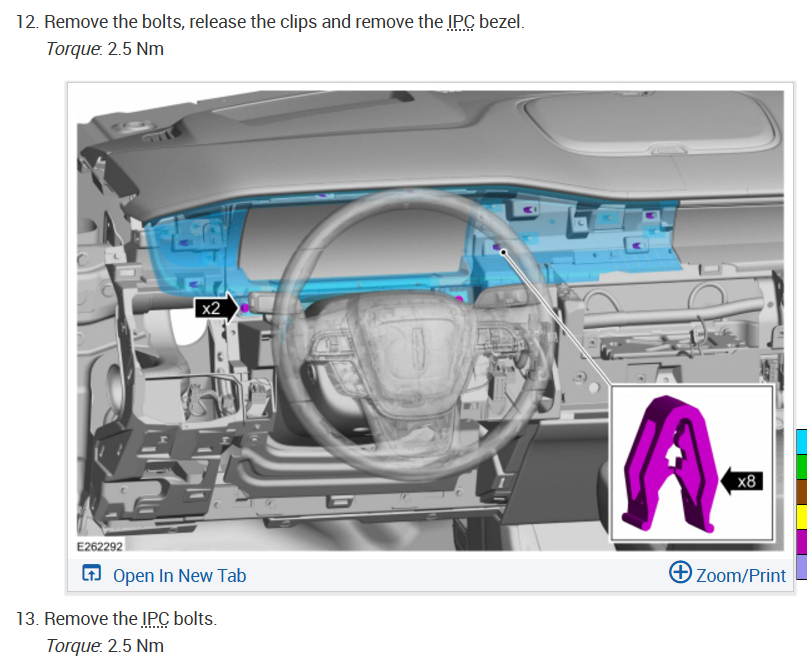

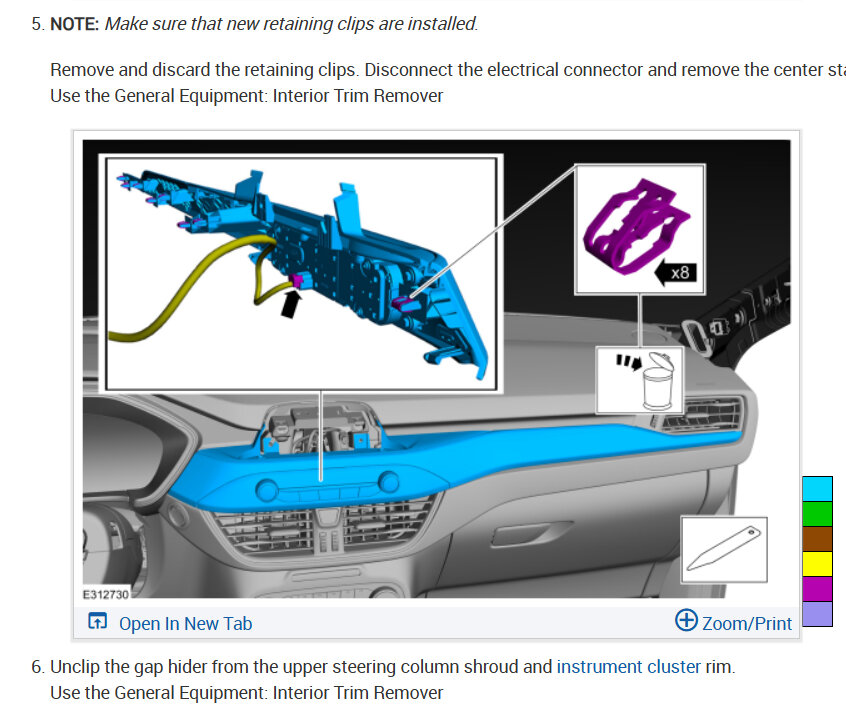

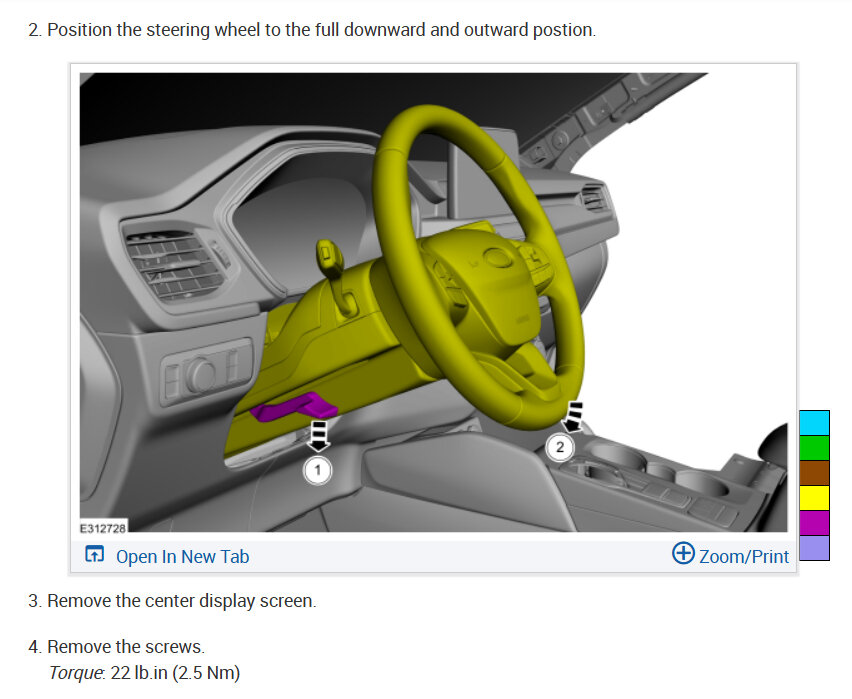

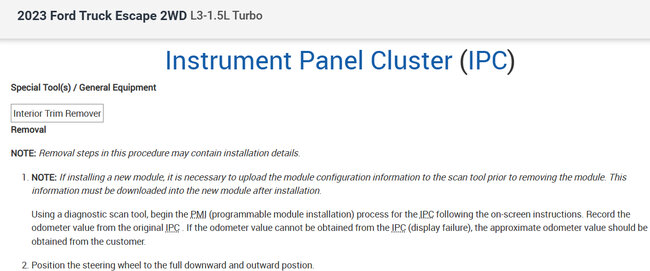

Sure, here is how to remove the instrument cluster panel. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Jan 14, 2025 at 11:44 AM
(Merged)
Looking the removal of the cluster display on a 2023 LINCOIN CORSAR i know i entered the Avatar but they are similar in display size & cockpit. But if you have the diagram for the CORSAR i glad appreciate it thank you..
Jan 14, 2025 at 11:44 AM
(Merged)
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS
Here are your other questions did we miss something?
Jan 14, 2025 at 11:44 AM
Need diagram to remove digital cluster display in 2023 ford navigator
Thanks
Thanks
Jun 6, 2025 at 2:34 PM
(Merged)
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS
???
Jun 6, 2025 at 2:35 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
