Can I get the climate control wiring diagrams?

Tiny
MECANICO3
  • MEMBER
  • 2007 FORD EXPEDITION
  • 5.4L
  • V8
  • 2WD
  • AUTOMATIC
  • 150,000 MILES
Need help in obtaining Automatic climate control wiring diagrams. Like 3 pages, I think. Thanks
Saturday, January 6th, 2024 AT 9:48 AM

3 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi,

You are correct. It is three pages long. That is if it doesn't have an auxiliary climate control (rear heating/AC).

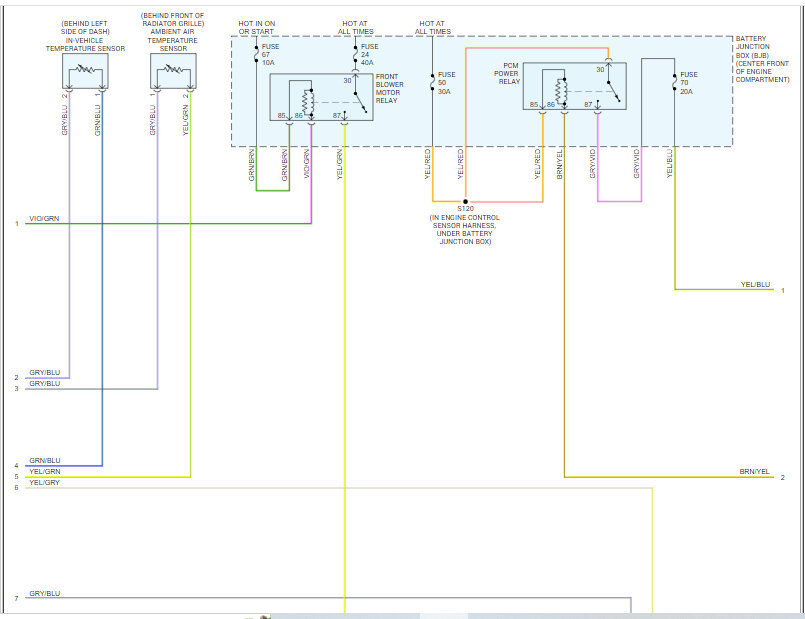

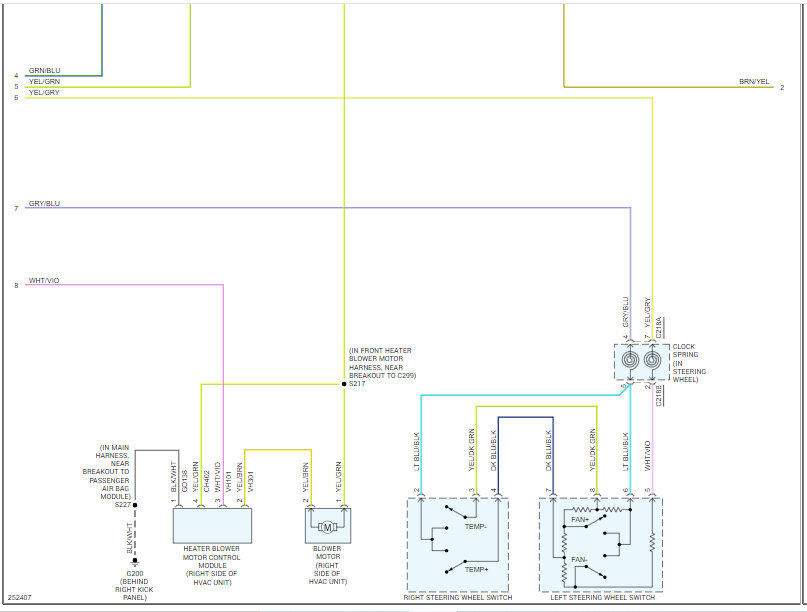

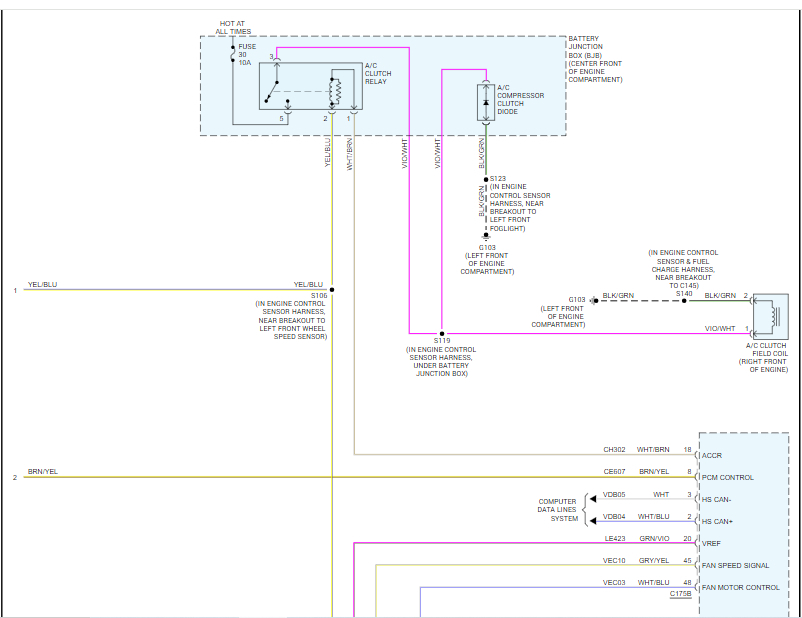

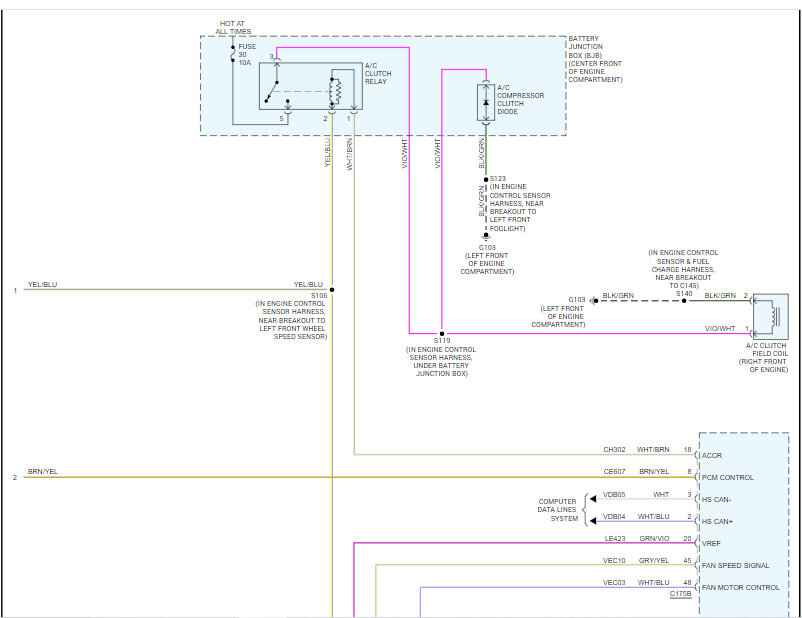

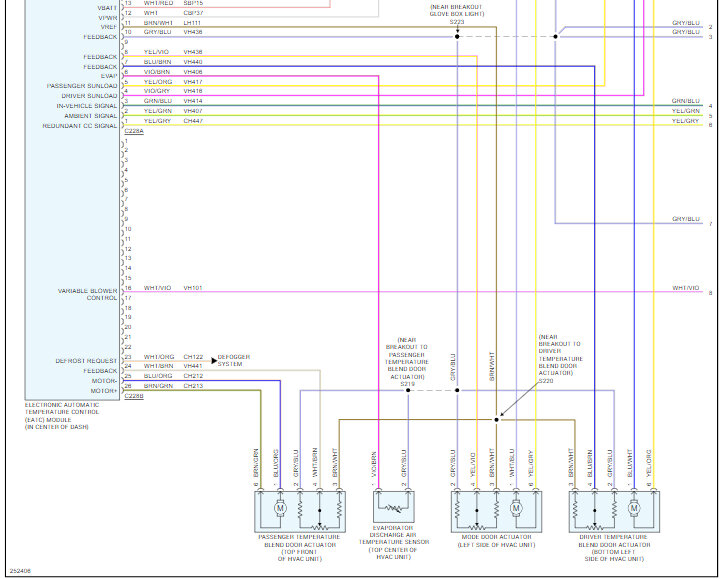

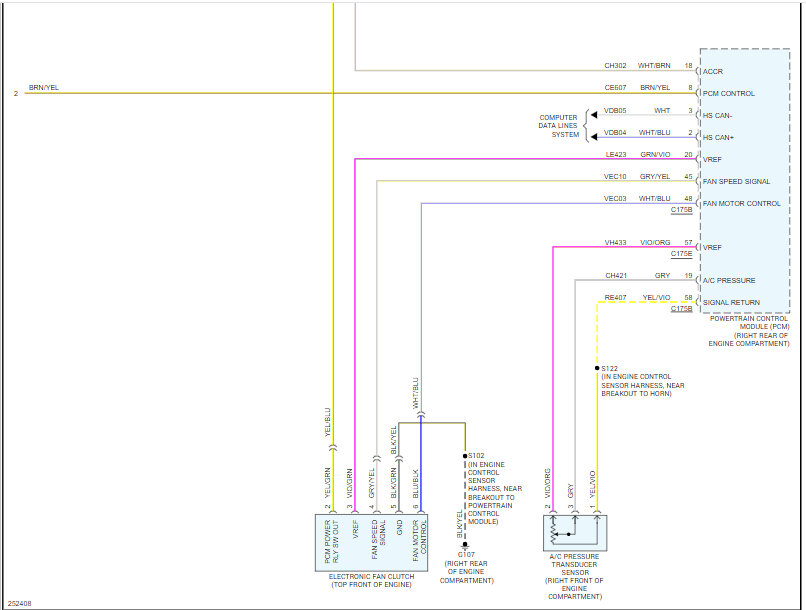

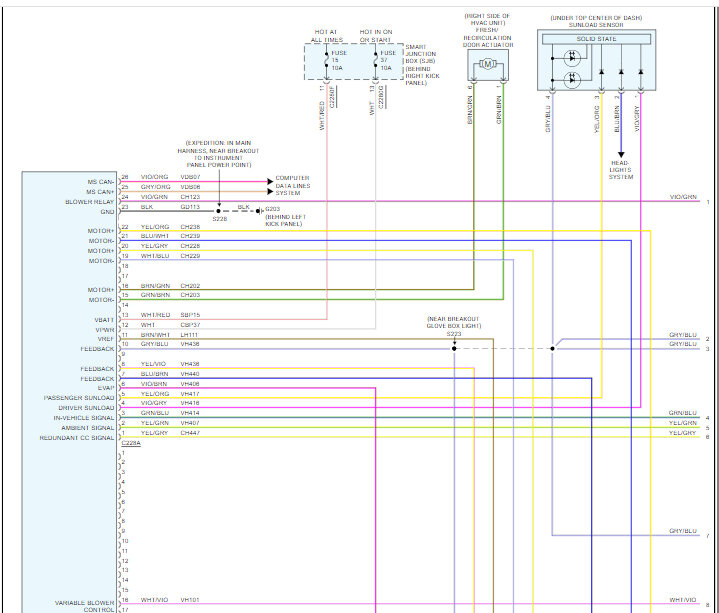

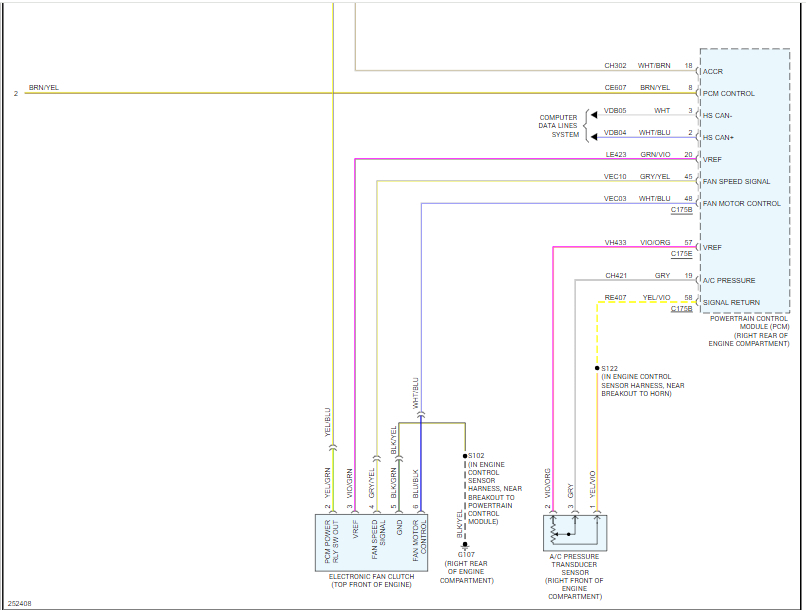

To make the schematics readable, I had to cut each page in half. I did overlap them so you can follow from one to the next. Take a look through them and let me know if you have questions.

Let me know if this helps.

Take care,

joe

See pics below.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Sunday, January 7th, 2024 AT 12:02 AM
Tiny
MECANICO3
  • MEMBER
  • 32 POSTS
Thanks very much. It's very hard to find something on the internet.
Was this
answer
helpful?
Yes
No
Sunday, January 7th, 2024 AT 3:30 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi,

No problem whatsoever. I'm glad it helped.

Let me know if you have other questions or if I can help in any way.

Take care,

Joe
Was this
answer
helpful?
Yes
No
Sunday, January 7th, 2024 AT 4:14 PM
