Radio wiring diagrams

Tiny
MATT09
  • MEMBER
  • 2001 CHEVROLET TRUCK
  • V8
  • 4WD
  • AUTOMATIC
  • 120,000 MILES
I took my factory radio out and I wanted to put it back in and when I tried it wouldn't turn back on and half of my lights on the dashboard wouldn't work I need a wiring diagram for it.
Thursday, January 29th, 2009 AT 10:35 AM

1 Reply

Tiny
JDL
  • MECHANIC
  • 16,098 POSTS

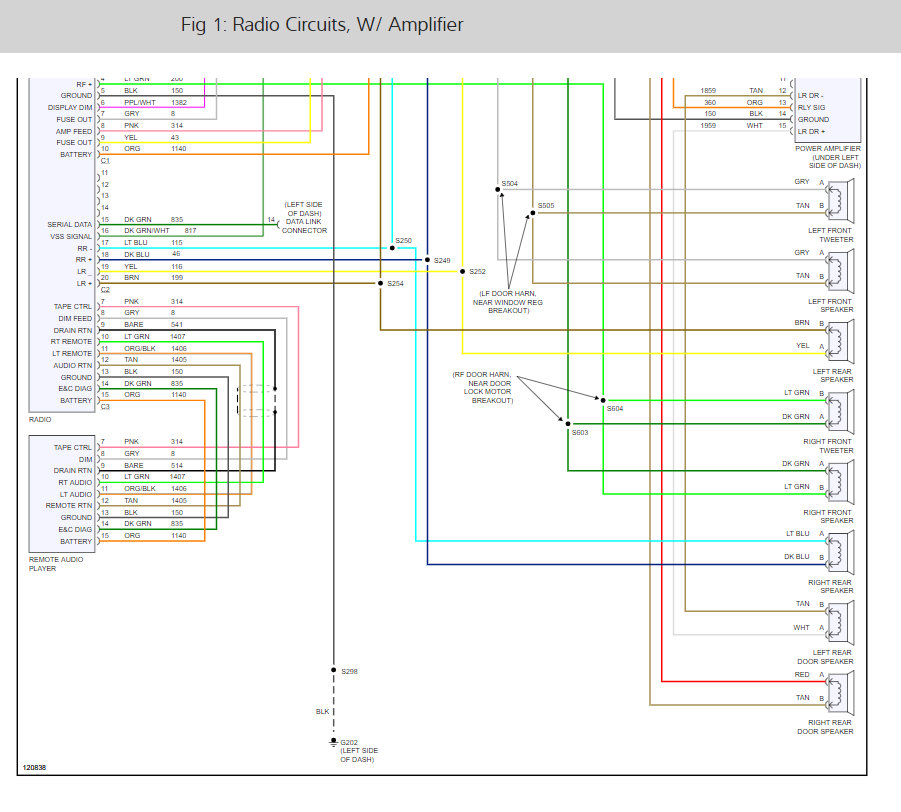

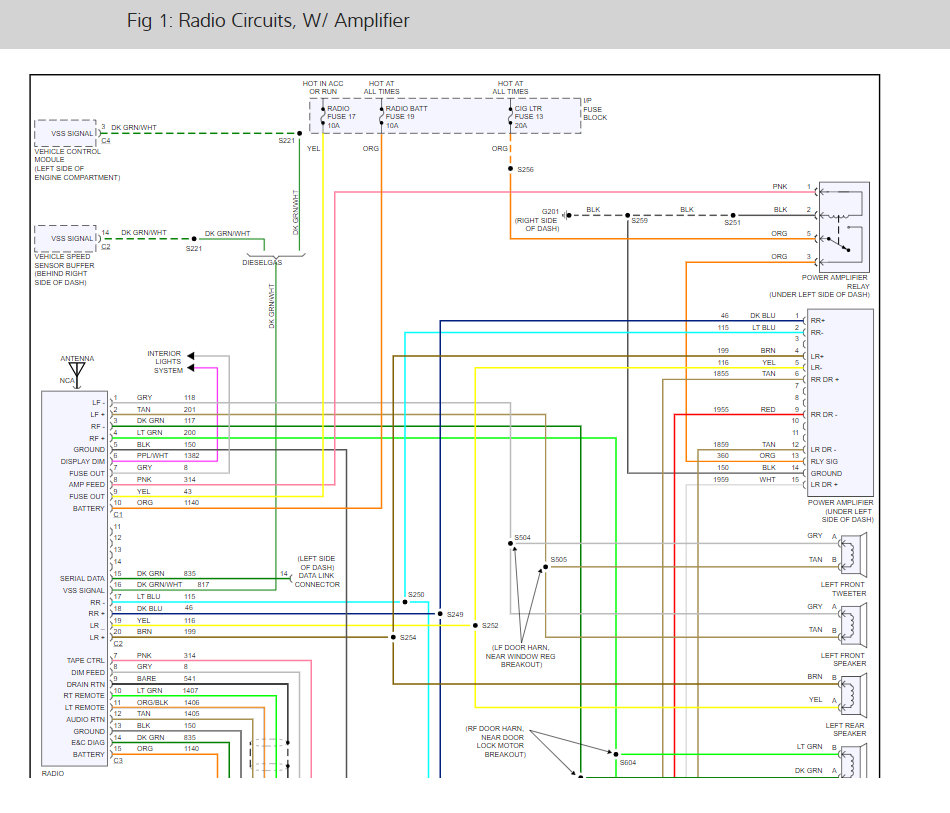

The picture. You can see some of the voltage circuits with this guide. (diagrams below)

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Images (Click to make bigger)
Thumb
Thumb
