1993 Chevy Silverado Diagram of motor belt
CVG102490
MEMBER
1993 CHEVROLET SILVERADO
1993 Chevy Silverado V8 Two Wheel Drive Automatic

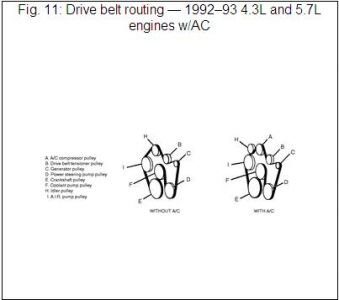

I am having trouble putting back the motor belt. Do you have a diagram to show me how to put it back on?
Saturday, May 16th, 2009 AT 1:06 PM
1 Reply
JDL
MECHANIC
16,098 POSTS
I wasn't sure about the litre size of your engine, if the picture isn't readable, I'll try to make larger.
