setting timing chain marks

2005 CHEVROLET MALIBU
Avatar
CARSKRAZY
  • MEMBER
  • 1 POST
4 cyl Wheel Drive Type unknown Automatic 63000 miles
----------------------------------------------------------------
I need to set the timing chain marks. it is a 2.2L 4cyl, '05 Chevy Malibu. Can someone please help! It would also be very helpful if I can you find a diagram or schematic for the timing chain set-up (setting the marks) online or something. Anything will help. Thanks in advance!
Jan 9, 2008 at 11:53 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
BMRFIXIT
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 19,053 POSTS
Hello,

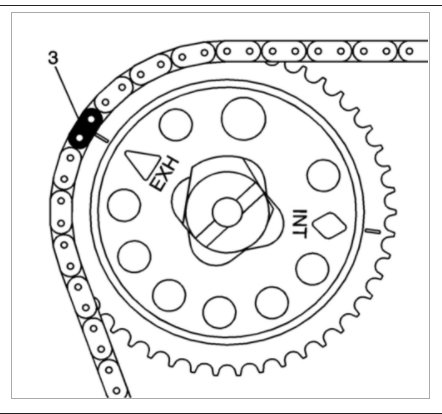

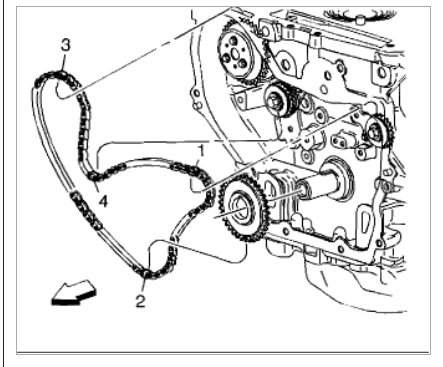

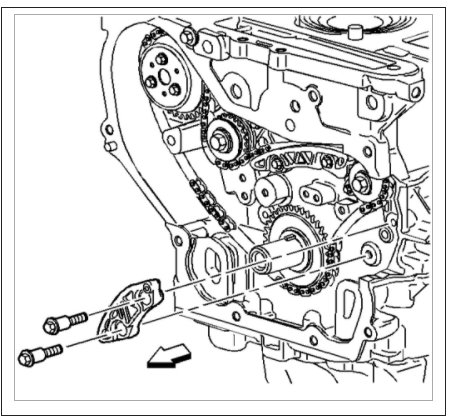

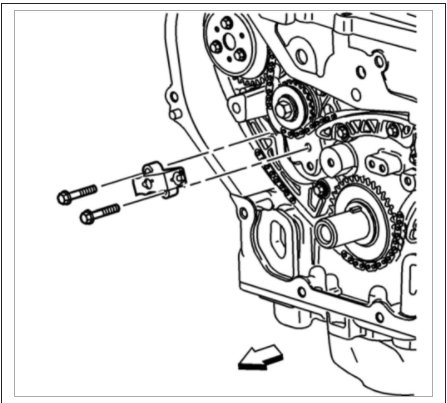

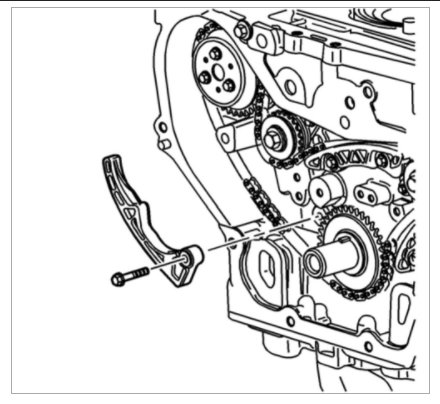

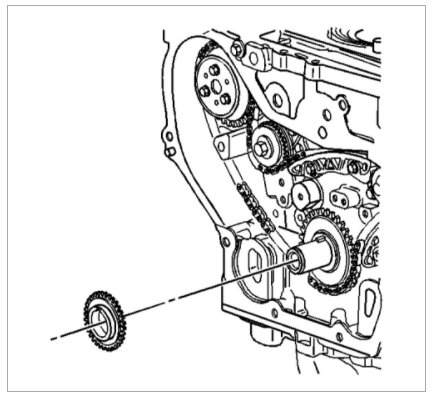

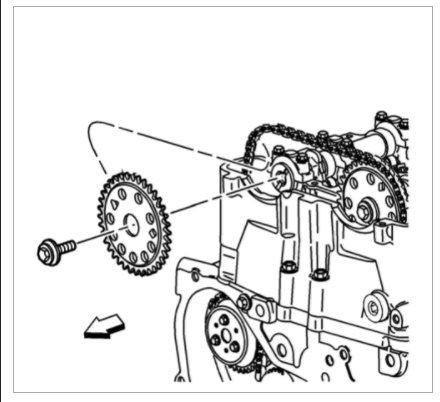

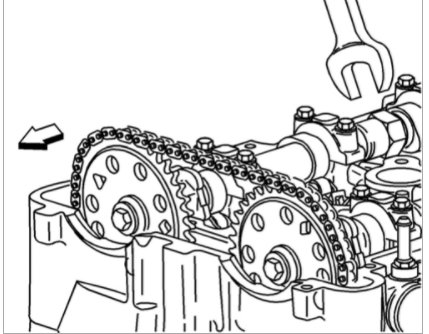

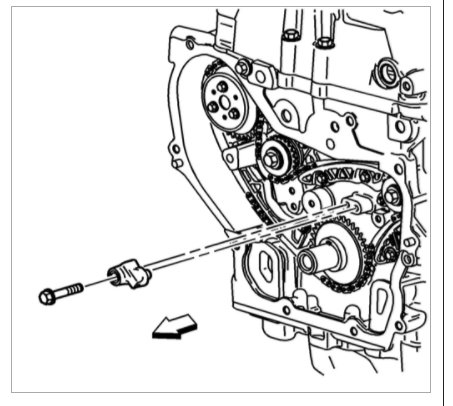

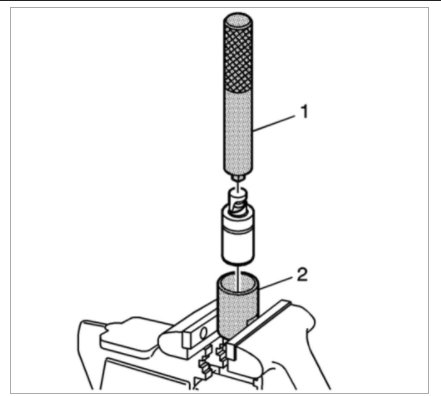

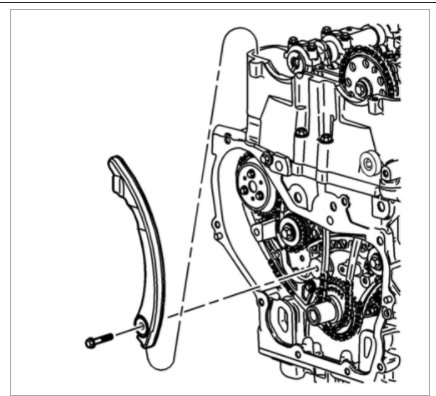

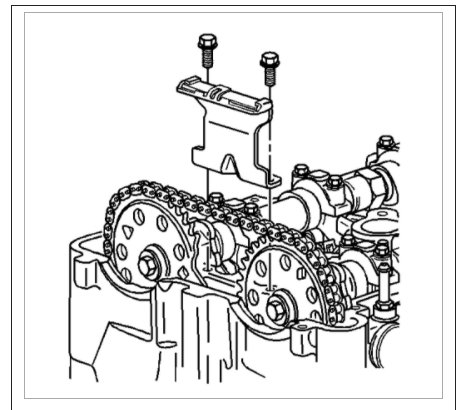

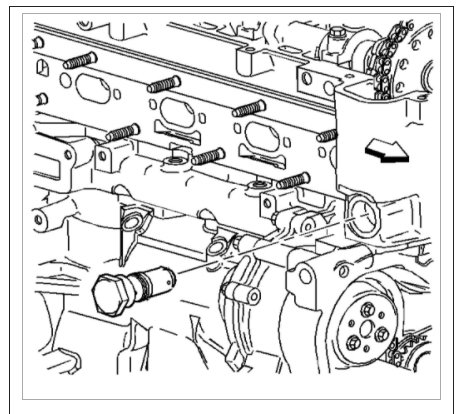

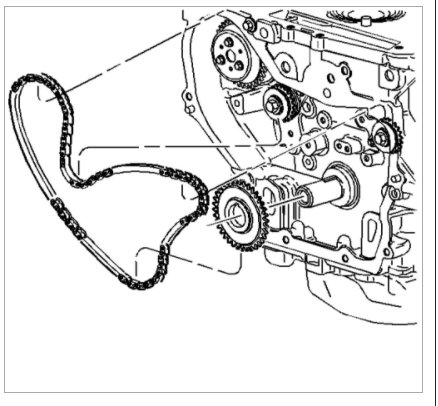

You will need to start by disconnecting the battery and removing the timing cover here are all of the timing chain replacement diagrams the marks to get everything lined up (below)

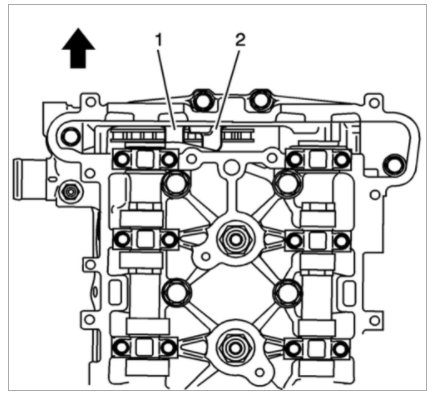

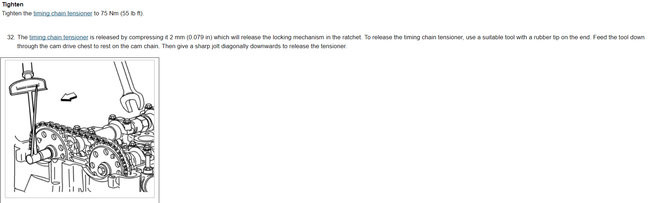

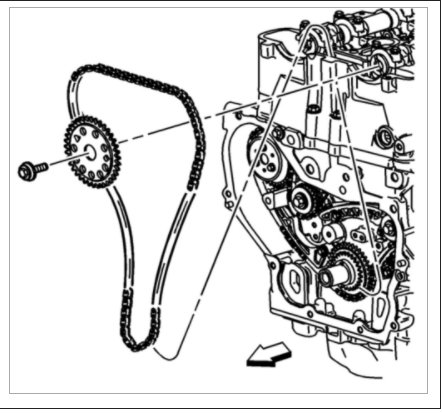

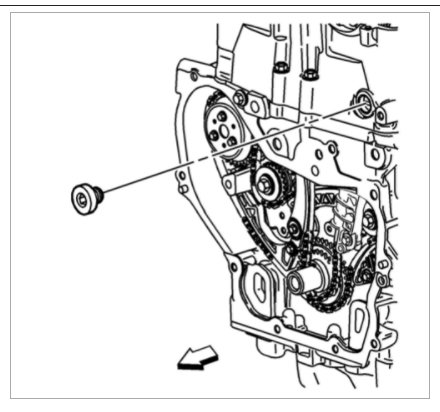

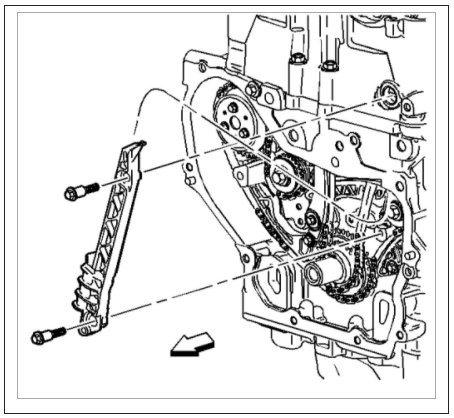

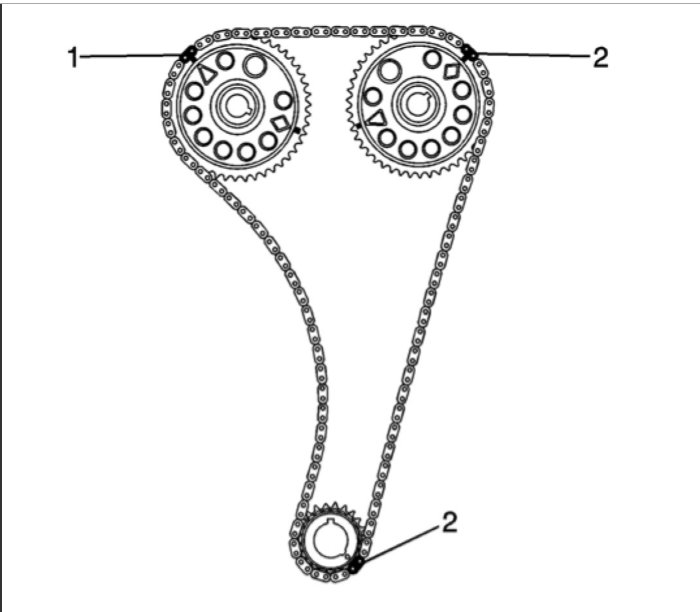

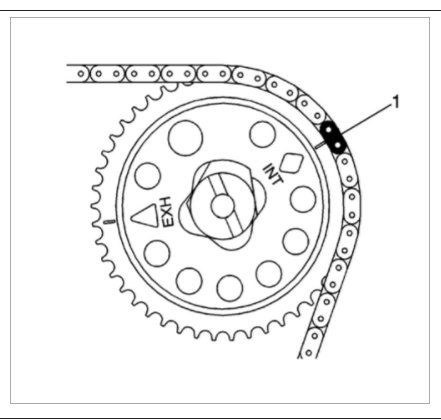

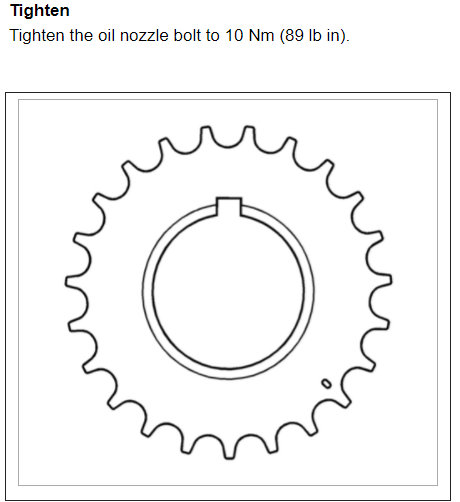

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jan 9, 2008 at 1:58 PM
