1994 Chevy Blazer Drive Belt Routing Diagrams

Tiny
DANTHEMAN79
  • MEMBER
  • 1994 CHEVROLET BLAZER
Drive Train Axles Bearings problem
1994 Chevy Blazer 4 cyl Four Wheel Drive Automatic

Drive Belt Routing Diagrams
Thursday, October 9th, 2008 AT 7:18 PM

1 Reply

Tiny
BMRFIXIT
  • MECHANIC
  • 19,053 POSTS
PICK YOUR ENGINE

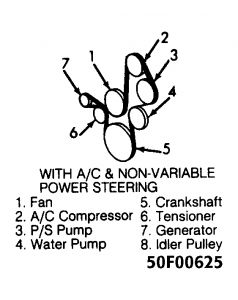

https://www.2carpros.com/forum/automotive_pictures/99387_Graphic_16.jpg

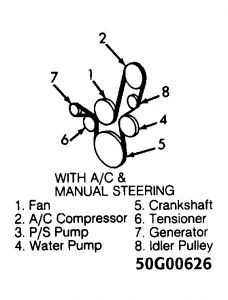

https://www.2carpros.com/forum/automotive_pictures/99387_Graphic1_5.jpg

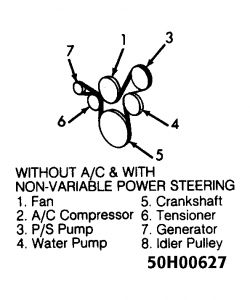

https://www.2carpros.com/forum/automotive_pictures/99387_Graphic2_3.jpg

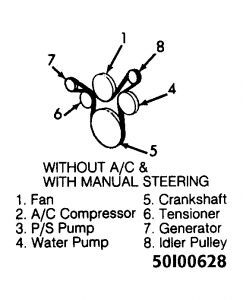

https://www.2carpros.com/forum/automotive_pictures/99387_Graphic3_4.jpg
