vacuum hose diagram

2003 CHEVROLET ASTRO
Avatar
JIPJOKER
  • MEMBER
  • 1 POST
I am in need of a vacuum line diagram if at all possible I have some lines I can't find where they hook up.
Jul 25, 2010 at 9:37 PM
Advertisement
Avatar
SATURNTECH9
  • ✓ASE Certified Mechanic
  • 30,869 POSTS
  • ASE Certified Mechanic

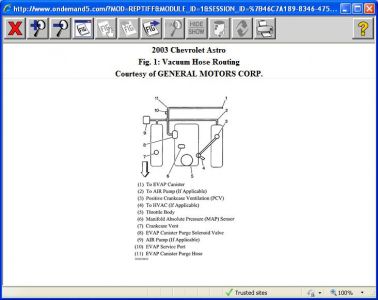

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.


https://images.2carpros.com/forum/automotive_pictures/416332_2003_chevy_astro_vacuum_diagrams_1.jpg

There you go.
Jul 25, 2010 at 10:59 PM
Avatar
JORN STANGE
  • MEMBER
  • 1 POST
Vents in cabin cannot be regulated. No cold air comes out except to floor.
Dec 25, 2020 at 9:42 AM (Merged)
Avatar
ASEMASTER6371
  • ✓ASE Certified Mechanic
  • 52,796 POSTS
  • ASE Certified Mechanic
Good afternoon.

If you have floor vent, then you have vacuum to the control head.

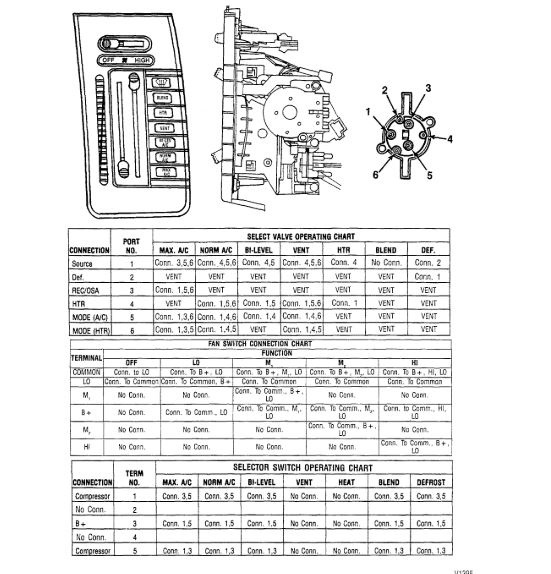

The vacuum rotary valve behind the dash at the control panel directs vacuum to the different mode doors.

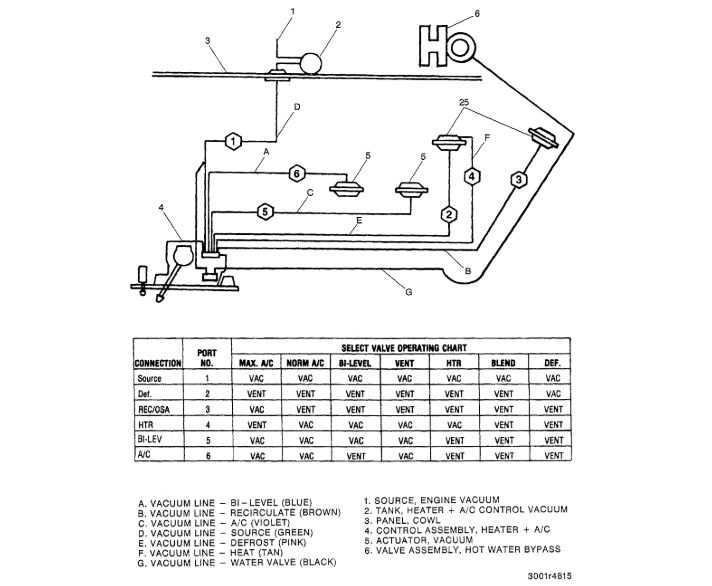

I attached diagrams for you to follow.

Roy
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Dec 25, 2020 at 9:42 AM (Merged)
Avatar
JORN STANGE
  • MEMBER
  • 1 POST
Where is the vacuum-line from the vac-reservoir connected to the intake manifold? This line is missing at the reservoir.
Dec 25, 2020 at 9:42 AM (Merged)
