Lines information connection to cannister on drivers side frame location
Aug 20, 2026 at 4:08 PM
Carbon cannister line?
2001 FORD F-150
SLKSHOE1700
- MEMBER
- 1 POST
Advertisement
Hi:
It sounds like you have your hands full. As far as the canister, I don't have any specifics on just it, but I was able to find two pics that should be helpful.

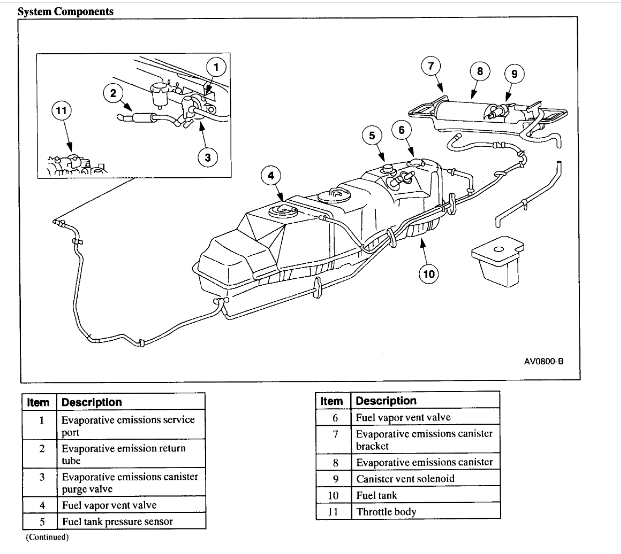

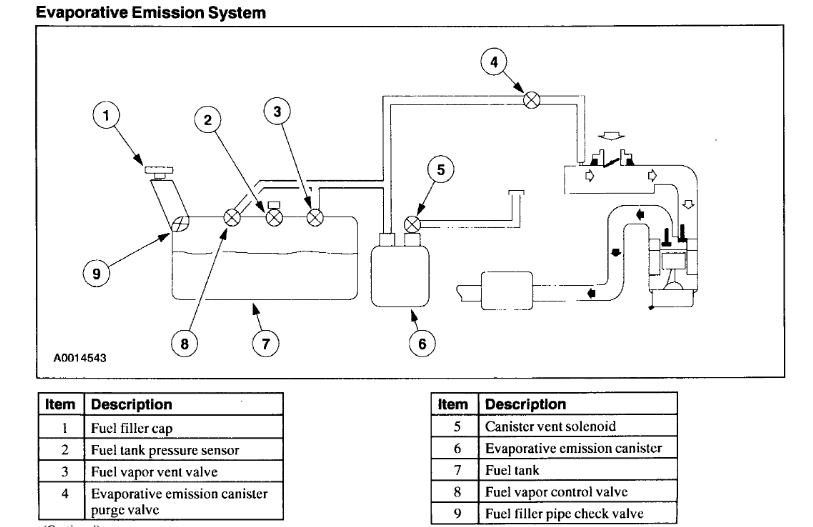

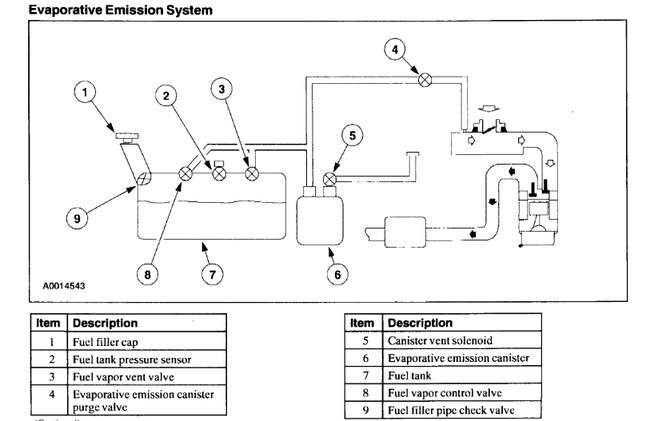

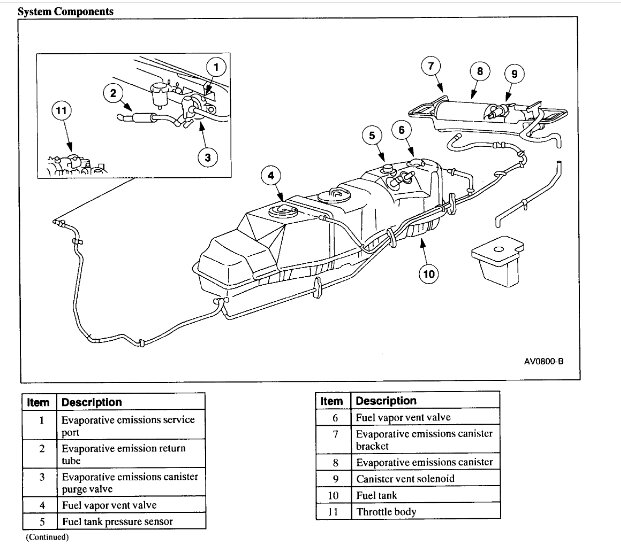

If you look below, I attached pics of the EVAP system. The pics show where and to what each line goes.
Take a look and let me know if it helps.
Joe
See pics below
It sounds like you have your hands full. As far as the canister, I don't have any specifics on just it, but I was able to find two pics that should be helpful.
If you look below, I attached pics of the EVAP system. The pics show where and to what each line goes.
Take a look and let me know if it helps.
Joe
See pics below
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
