Can i get ECM pinout value for this ECM?

2002 TOYOTA CAMRY
1,234,567 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
MALLYBOY
  • MEMBER
  • 329 POSTS
This vehicle does not communicate when you plug in the SCANNER, the tachometer and speedometer are not working so I need the ecu pin out diagram to trace the fault.

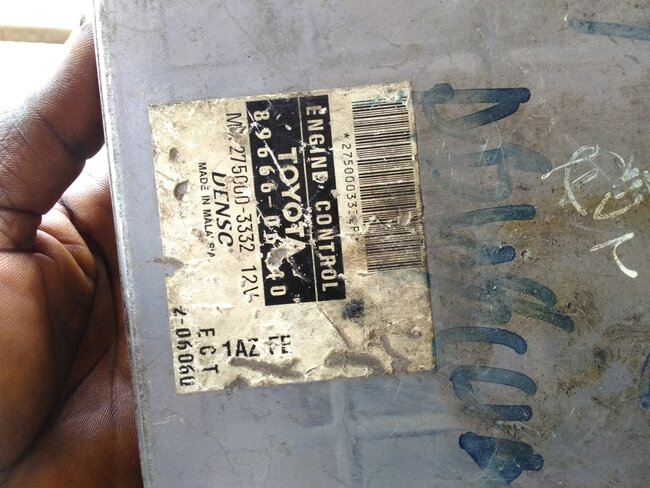

Edmonton no:89666-06340
Engine type:1AZ-FE
Image (Click to enlarge)
Attached Media
Sep 19, 2024 at 2:56 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic

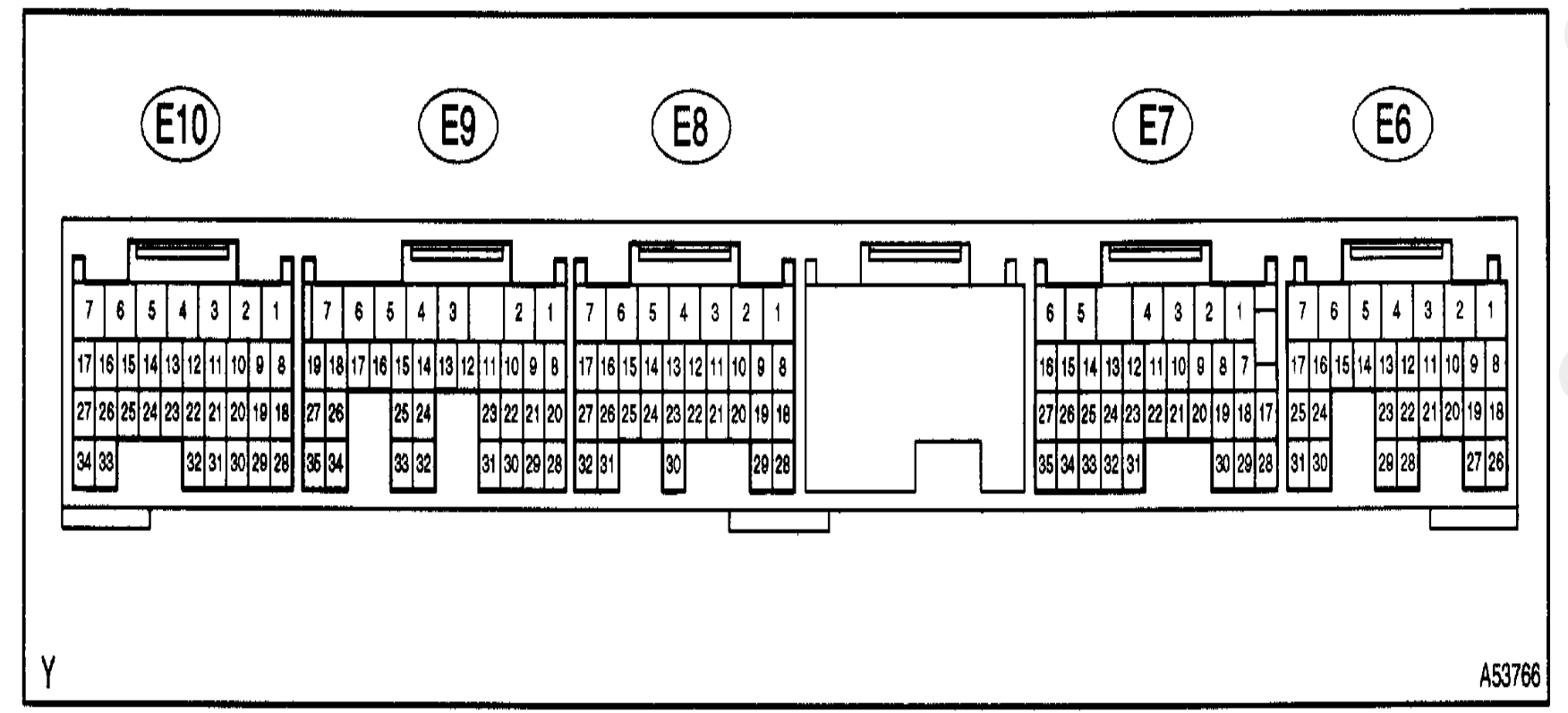

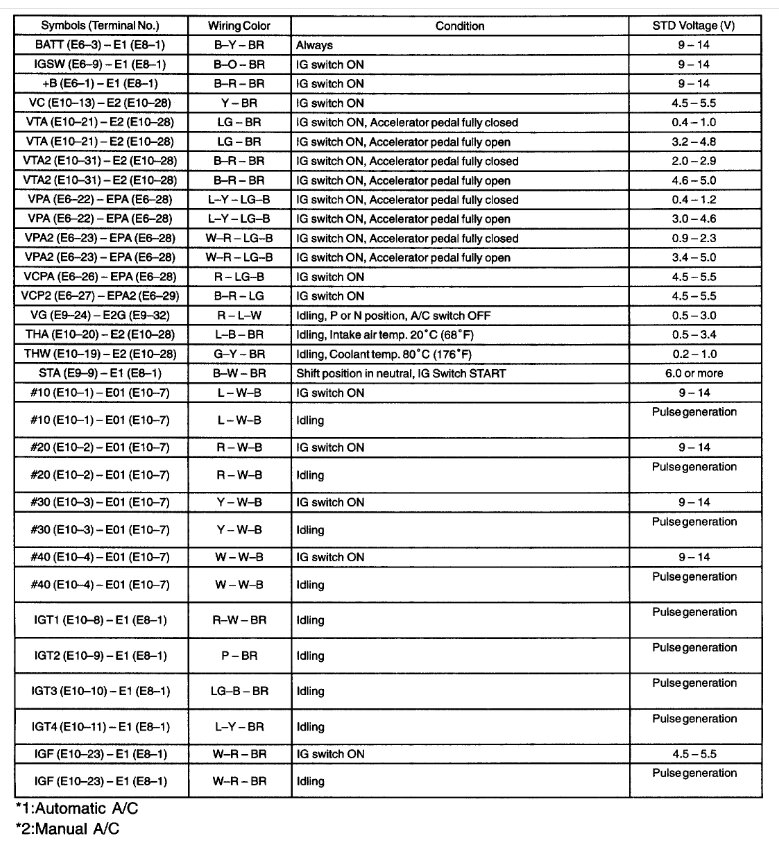

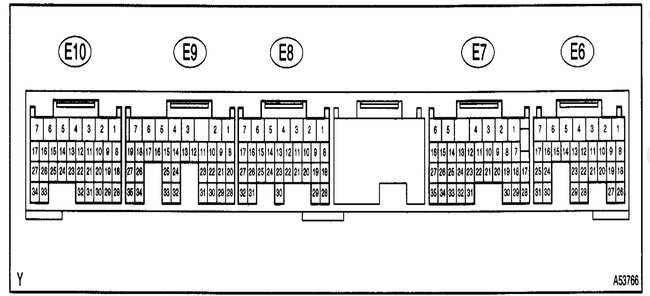

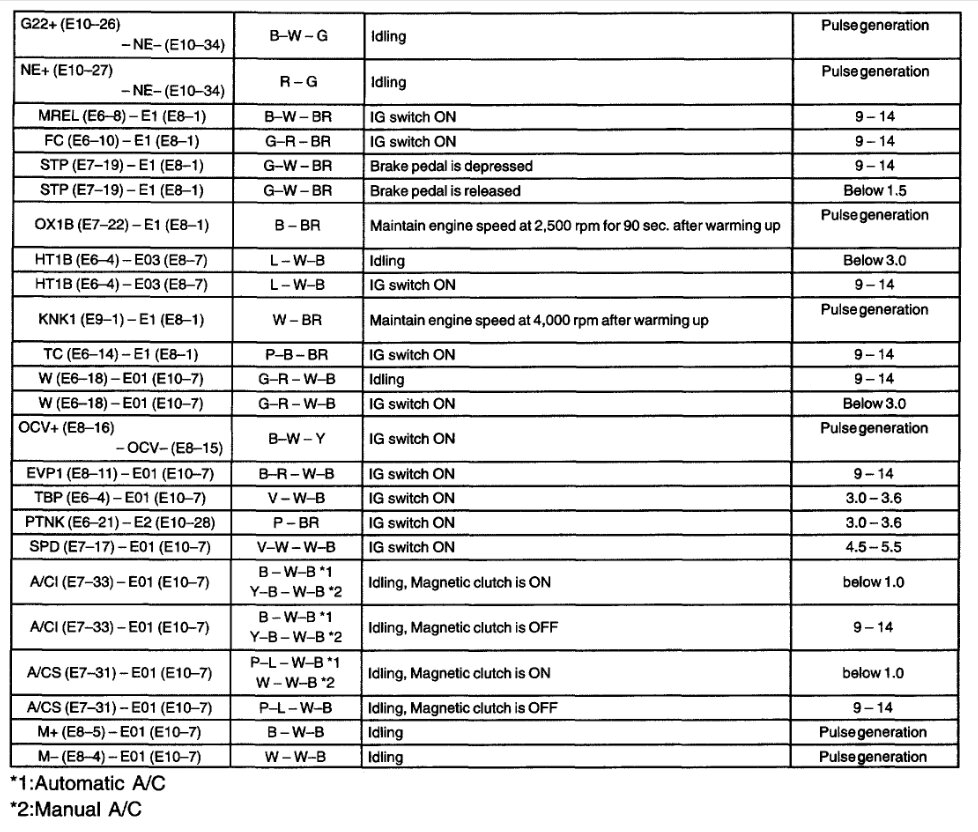

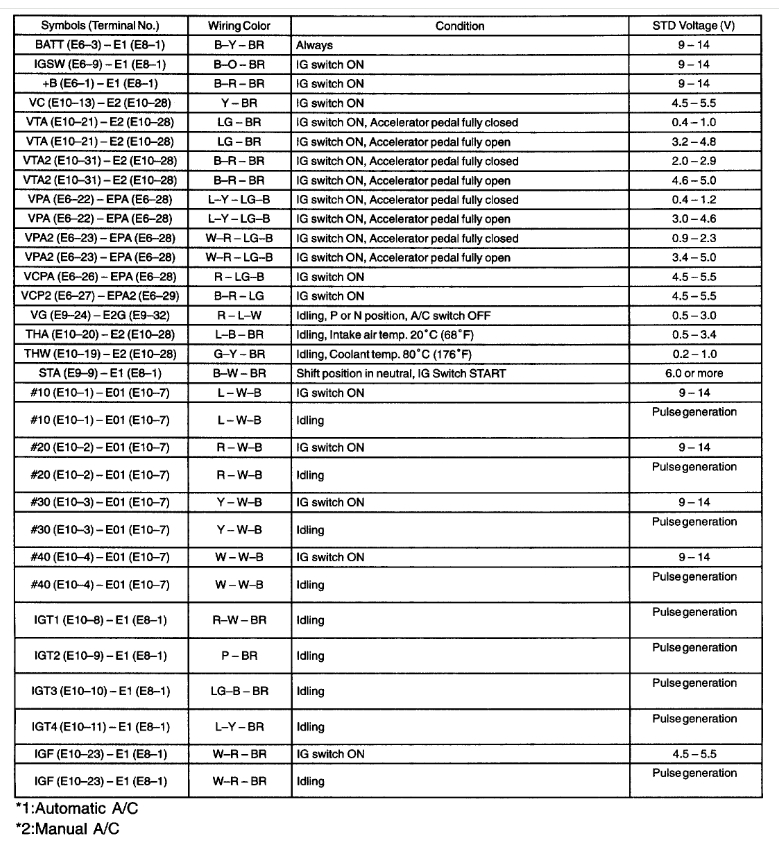

Sure, here are the ECU pinouts for the electrical connectors. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Sep 19, 2024 at 10:44 AM
Avatar
MALLYBOY
  • MEMBER
  • 329 POSTS

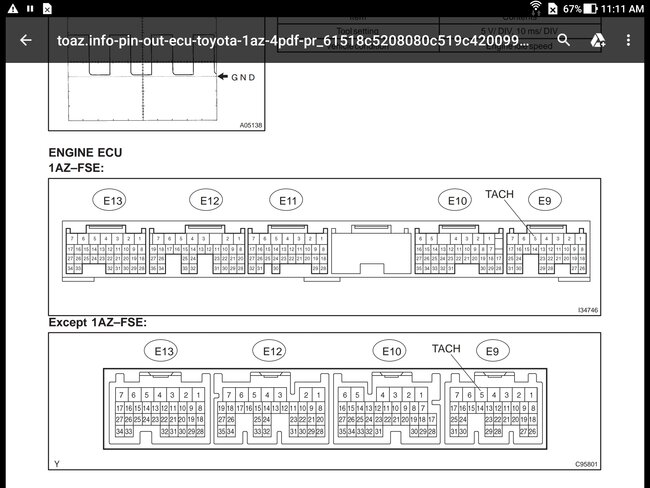

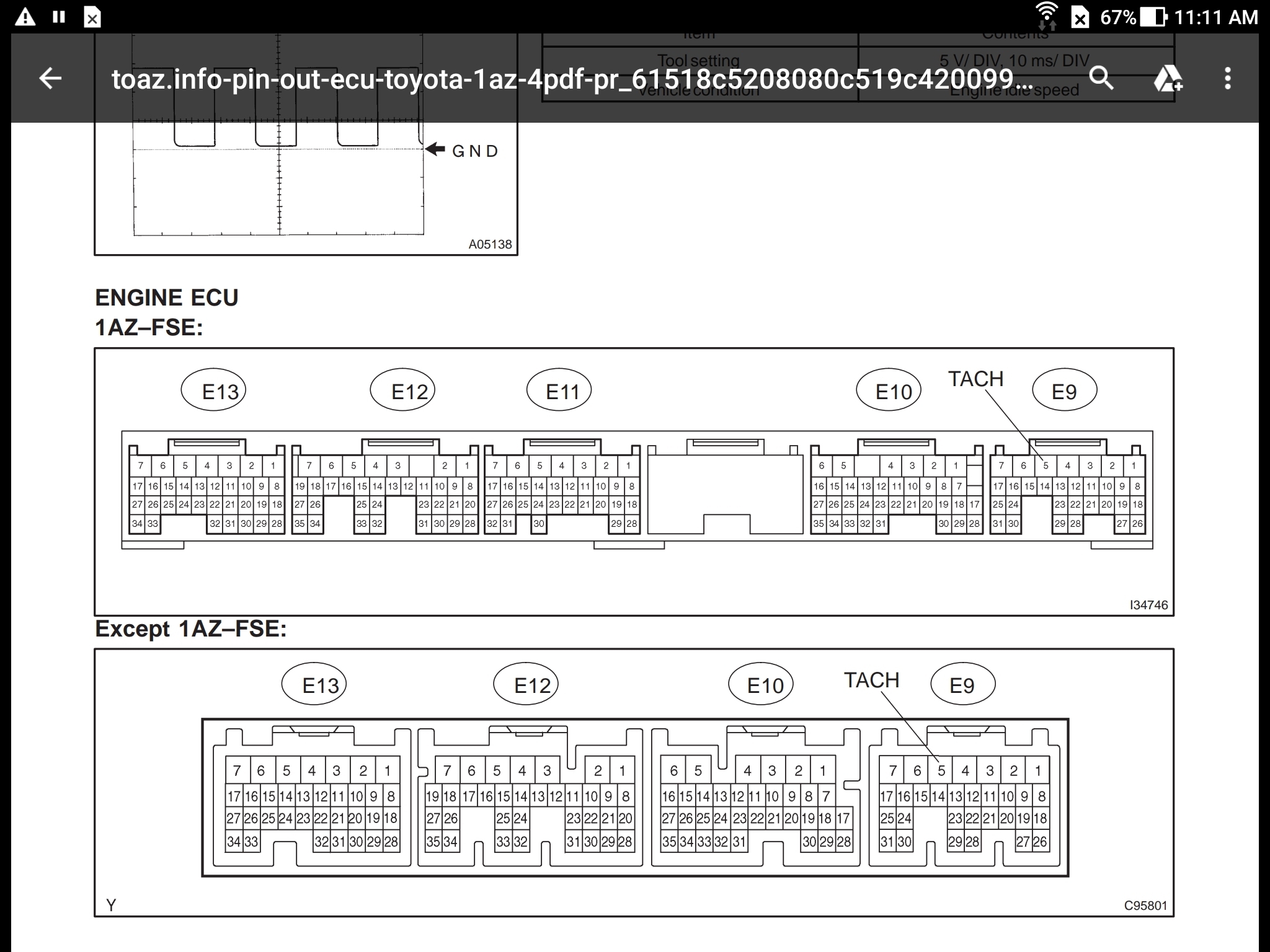

This is not the end I sent to you. The one I sent to you has 4-end connectors while the one you sent has 5-connectors, look at the image below.
Image (Click to enlarge)
Attached Media
Sep 20, 2024 at 3:17 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic
I can only look up the engine control module for a 2002 TOYOTA CAMRY. I don't have a part number reference. Do you have another car you want me to try?
Sep 20, 2024 at 10:28 AM
