Can I get a fuel filter and hose system diagram?

2015 HOLDEN BARINA
16,600 MILES • 1.6L • 4 CYL • 4WD • AUTOMATIC
Avatar
MICHAEL MCCOLL
  • MEMBER
  • 17 POSTS
Hi,

I am in need of a diagram for my fuel system of my 2015 Holden Barina tm hatch 1.6 please?
Feb 5, 2025 at 10:15 PM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,214 POSTS

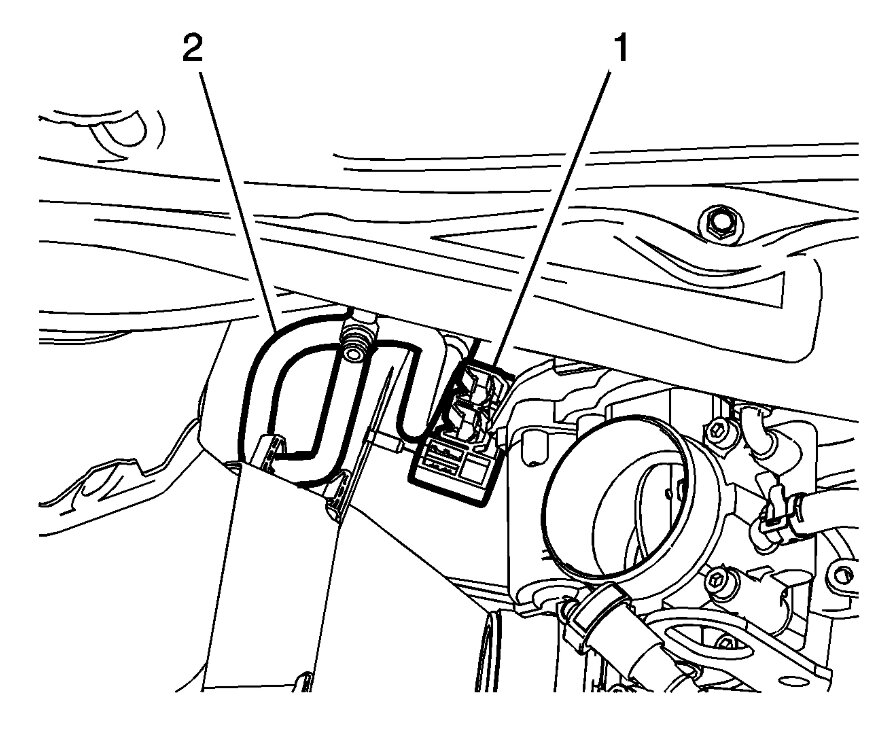

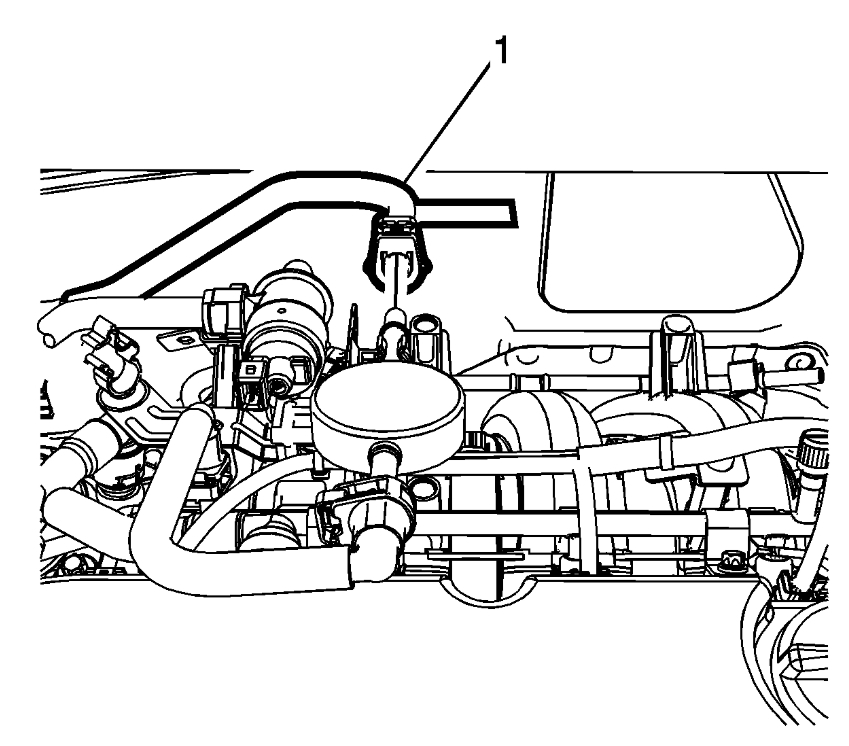

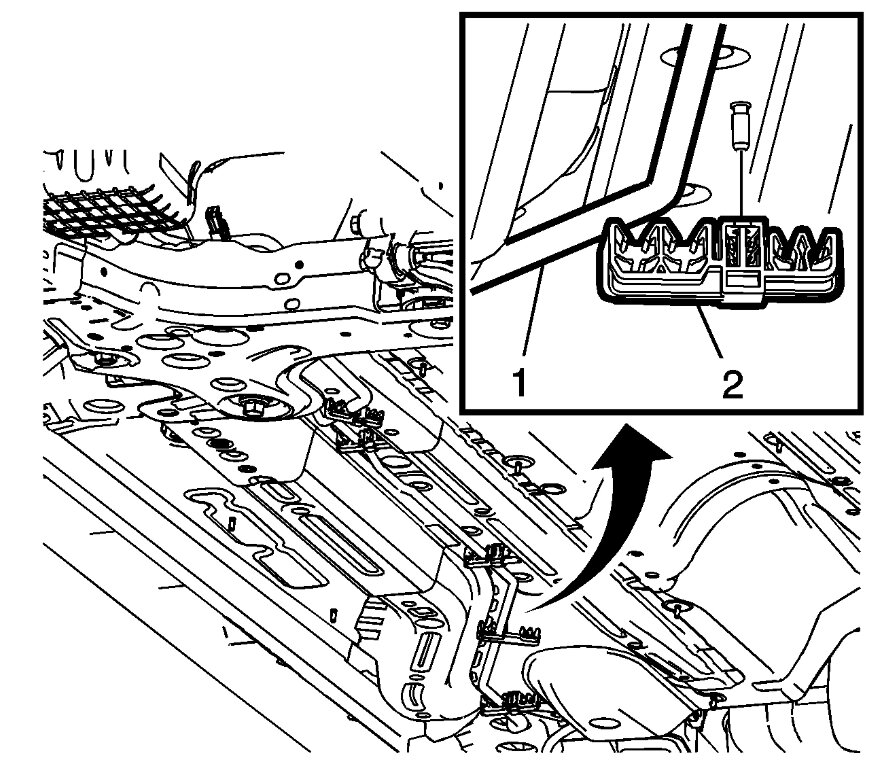

There is no fuel filter, just a fuel strainer at the front of the fuel pump in the gas tank. It looks like there is just one fuel line going up to the engine from the tank, if your is different please let me know and upload images so I can see what's going on. Check out the images (below). Let us know how it goes.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 6, 2025 at 3:01 AM
Avatar
MICHAEL MCCOLL
  • MEMBER
  • 17 POSTS
Thank you most kindly. Big help :)
Feb 7, 2025 at 6:57 PM
Avatar
MICHAEL MCCOLL
  • MEMBER
  • 17 POSTS
Not too much trouble, would it be possible to get diagram of the air systems hoses and intake also a diagram of the front steering set up / sway bar, CV joint etc?

Thanks
Feb 7, 2025 at 7:00 PM
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,214 POSTS
No problem, but can you start a new question for each subject? We only handle one problem at a time. Please post your new question here, you must be logged in.

https://www.2carpros.com/questions/new

Cheers, Ken
Feb 8, 2025 at 1:58 AM
