Camshaft timing marks in the wrong place?

Tiny
DAVID TODD
  • MEMBER
  • 2003 KIA SORENTO
  • 200,000 MILES
Put number 1 cylinder at TDC and the dow pins are in the wrong place. How do I fix? This will be on the right bank.
Wednesday, August 3rd, 2022 AT 10:04 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,323 POSTS

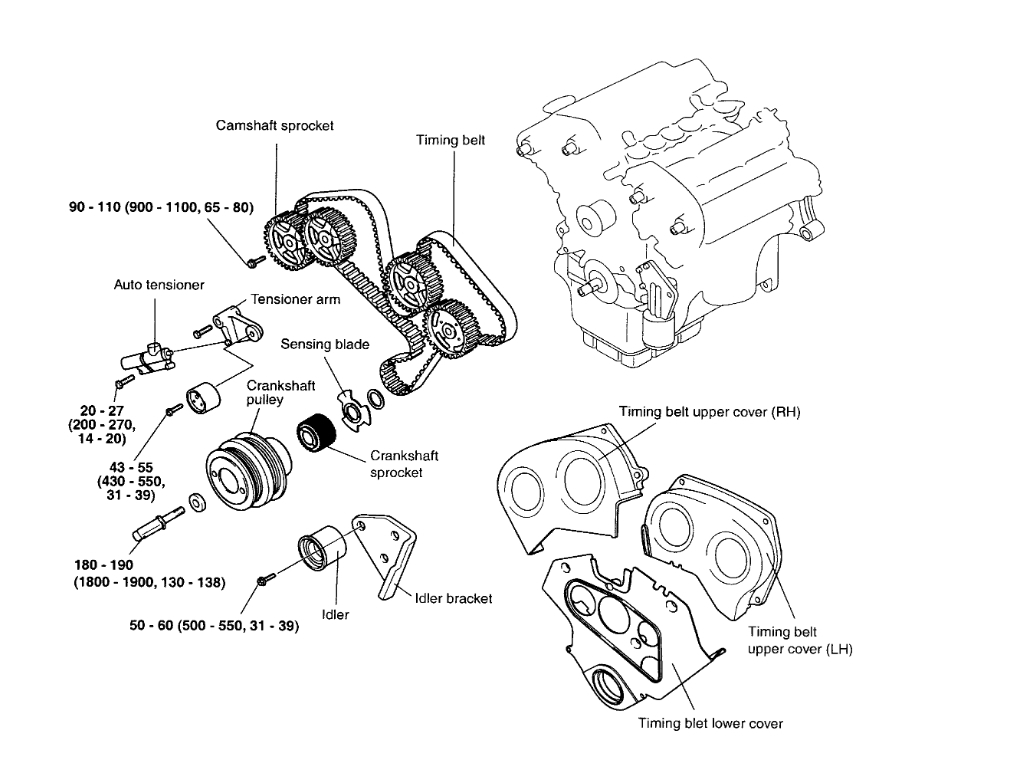

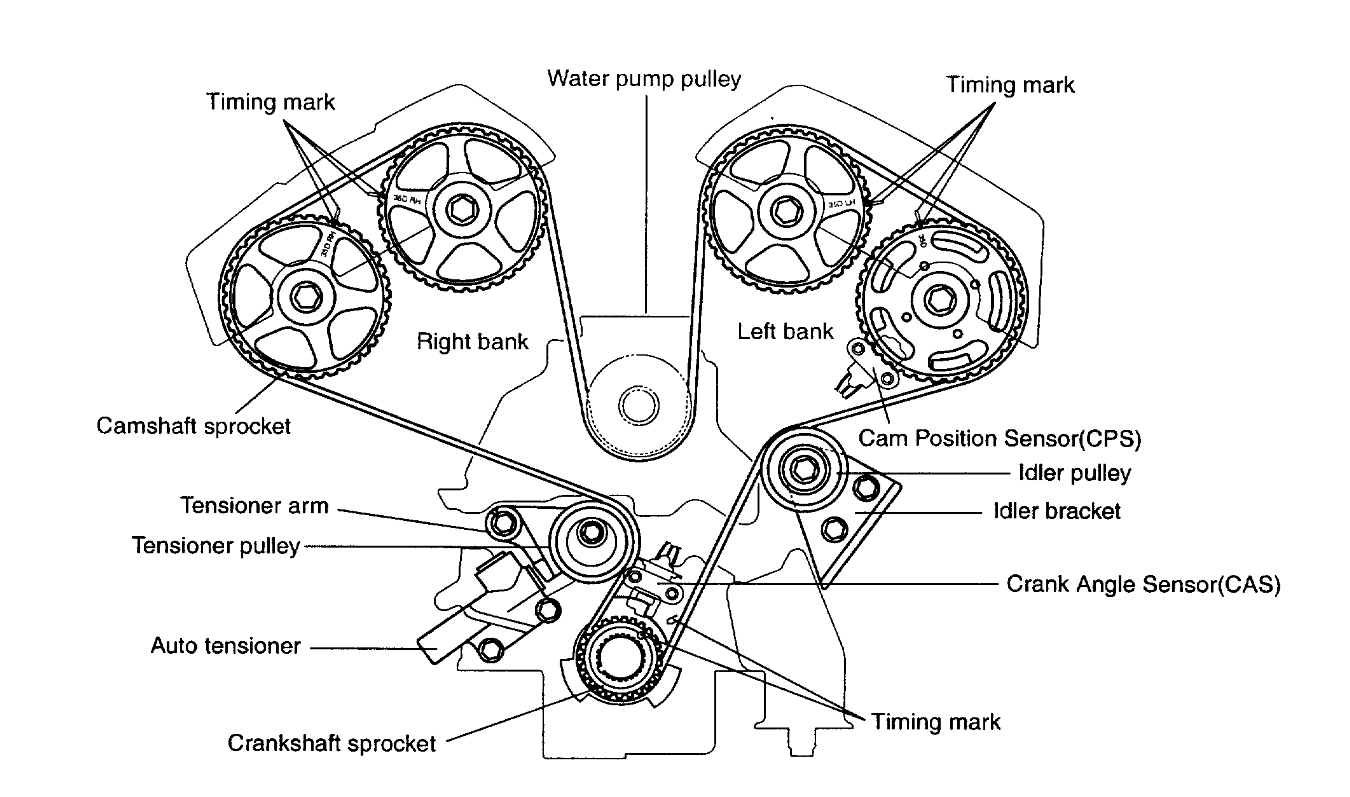

Are they 180 out? you turn the crankshaft one time, and they should line up. If this is not the case, I have found the camshaft and crankshaft timing marks in the diagrams below, also check out the link:

https://www.2carpros.com/diagrams/kia/sorento/2003

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

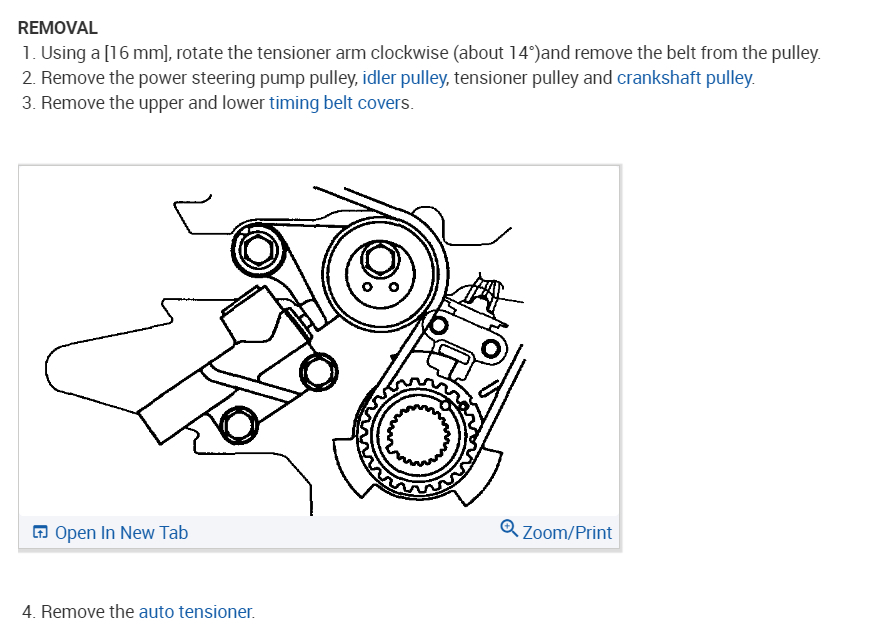

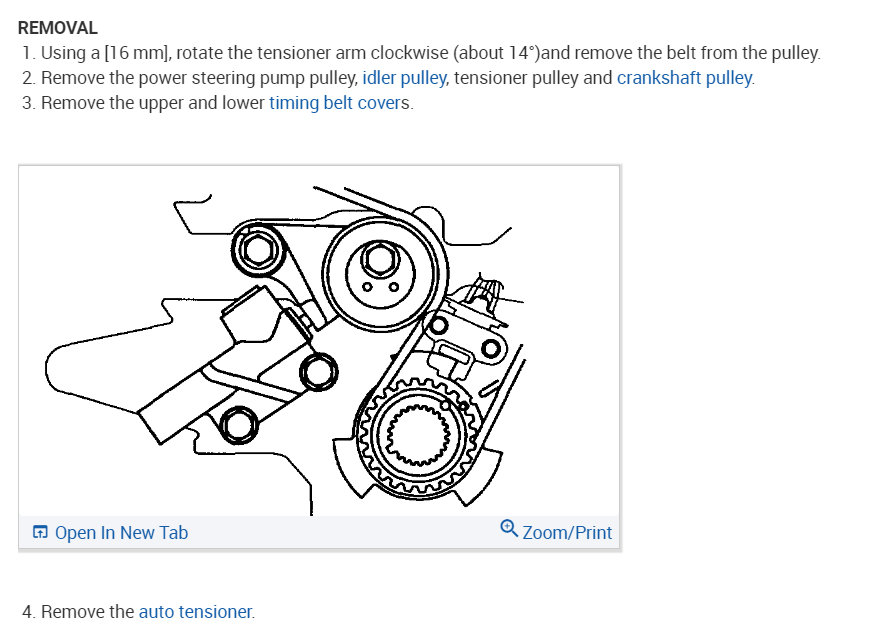

Images (Click to make bigger)
