Can I get the Camshaft position sensor wiring diagram, please?

Tiny
TOBEYCOMEAU
  • MEMBER
  • 1999 FORD F-350
  • 6.8L
  • V10
  • 2WD
  • AUTOMATIC
  • 169,660 MILES
Which wire wires go to each; I have two wires off vehicle and a black and white on the pigtail I just bought can I get them backwards.
Sunday, February 5th, 2023 AT 7:05 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,643 POSTS

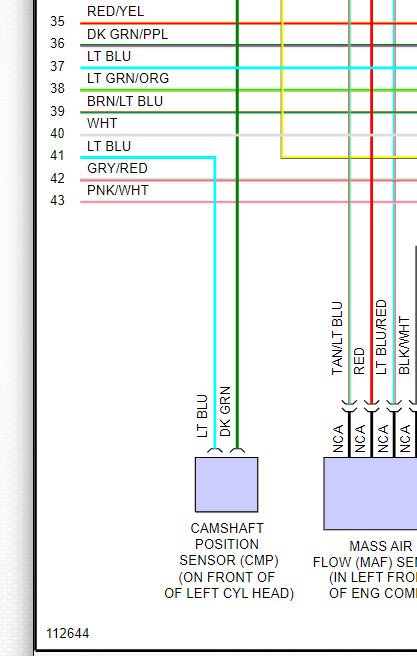

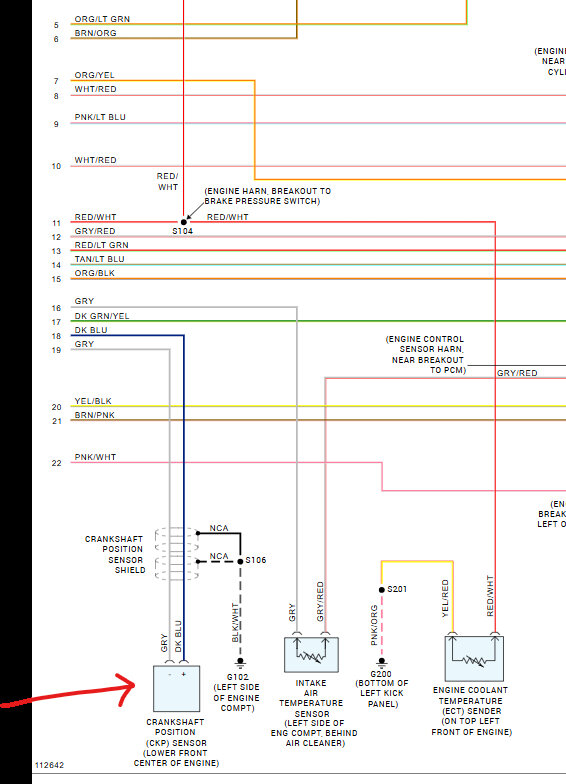

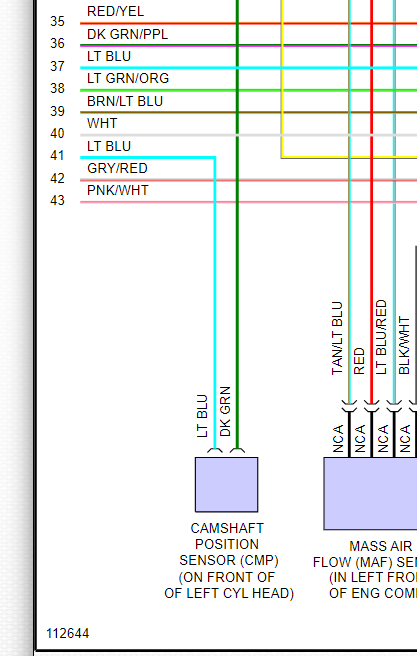

Yes, I believe it does matter which wire goes to wear. Here are how the wires go in the diagrams below. Check out the images (below). Let us know if you need anything else.
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Sunday, February 5th, 2023 AT 12:32 PM

Please login or register to post a reply.
