What orientation does each cam shaft need to be in when installing them into the head?
Jun 15, 2022 at 1:03 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
SQM
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 6,383 POSTS
Hello,

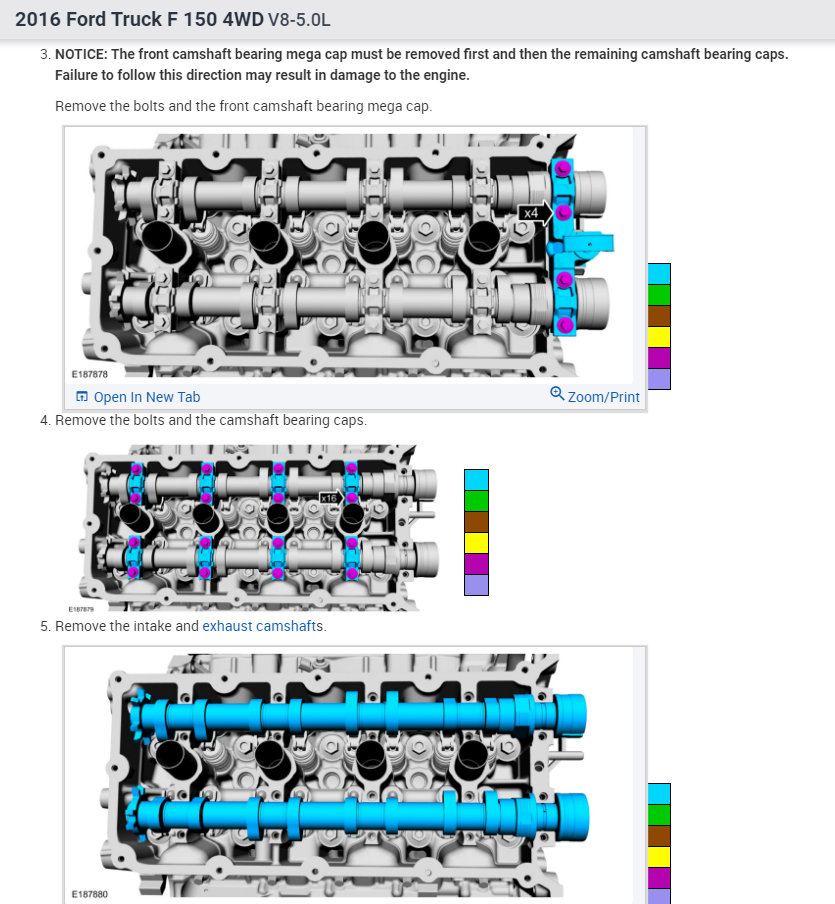

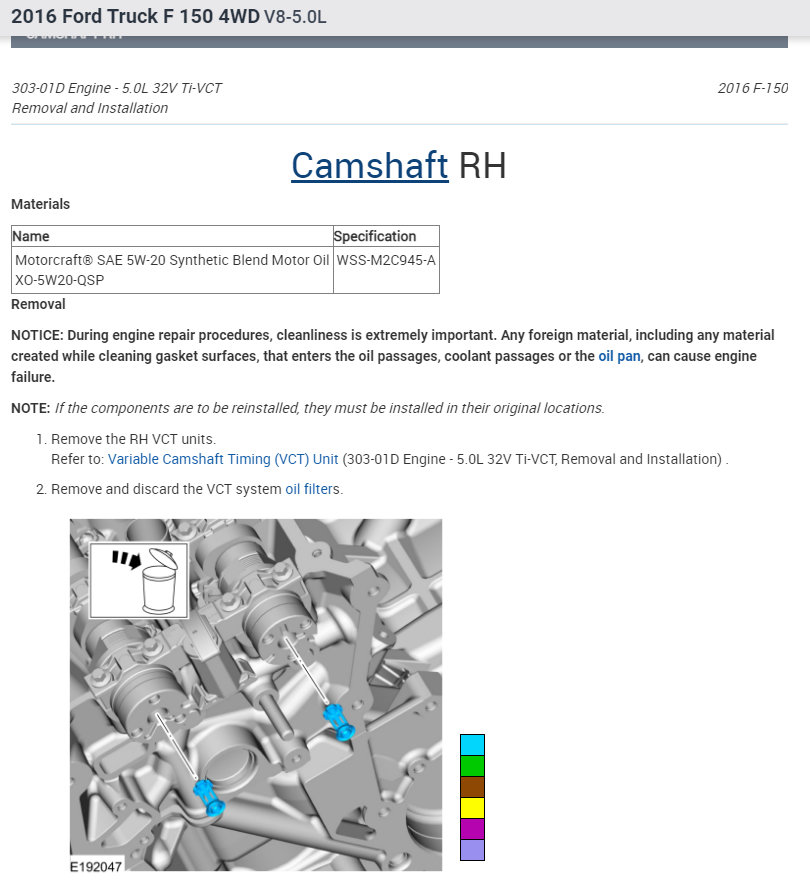

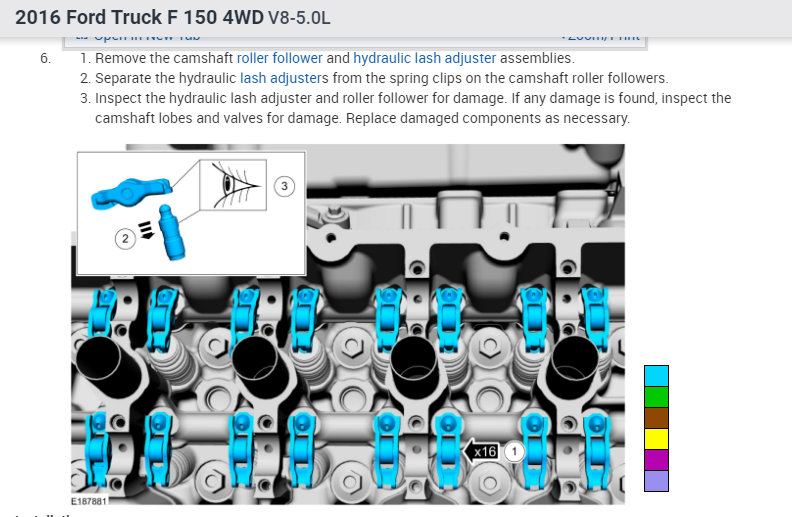

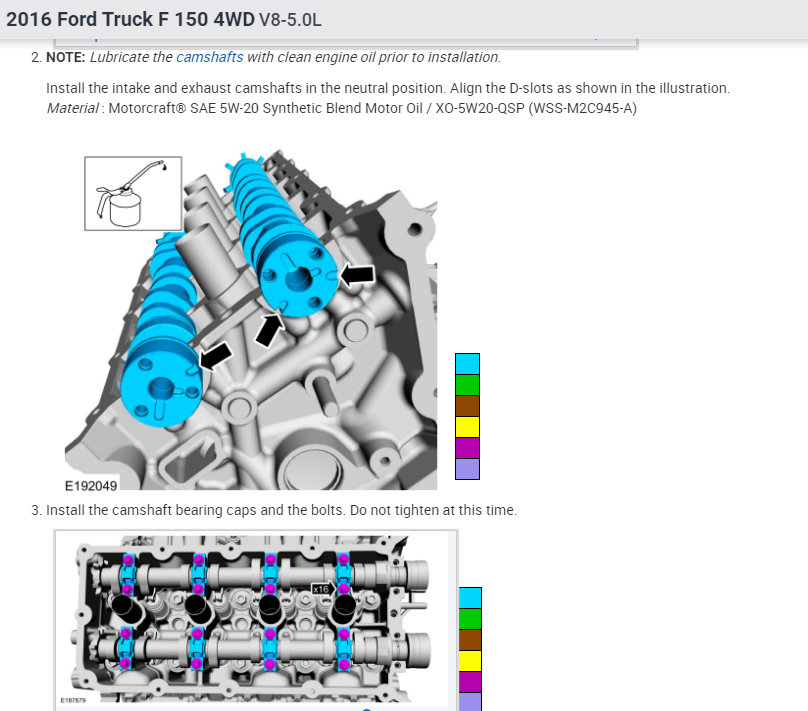

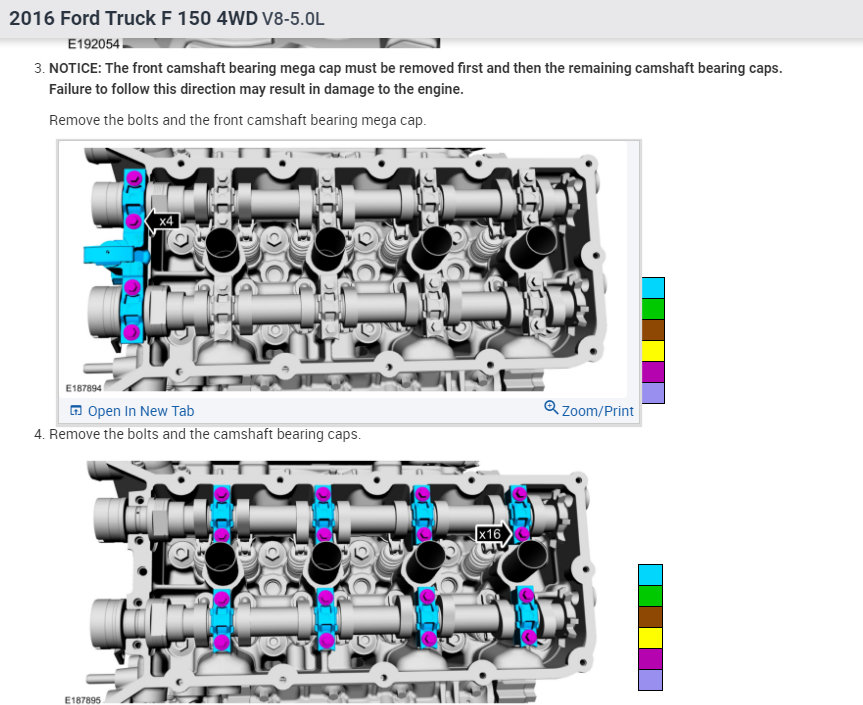

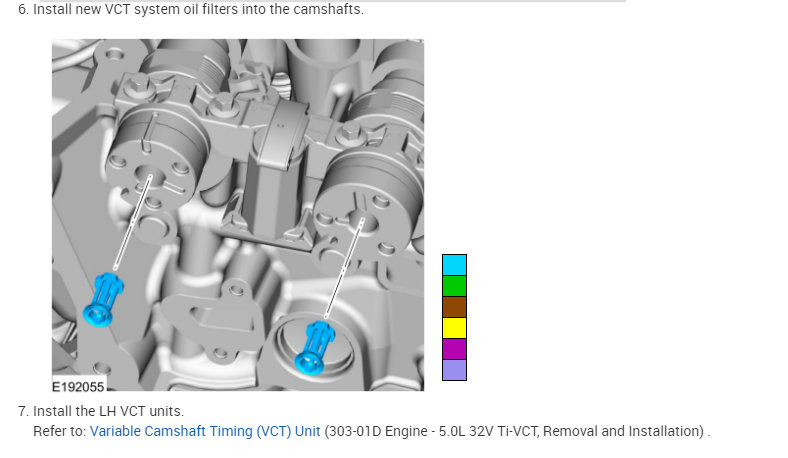

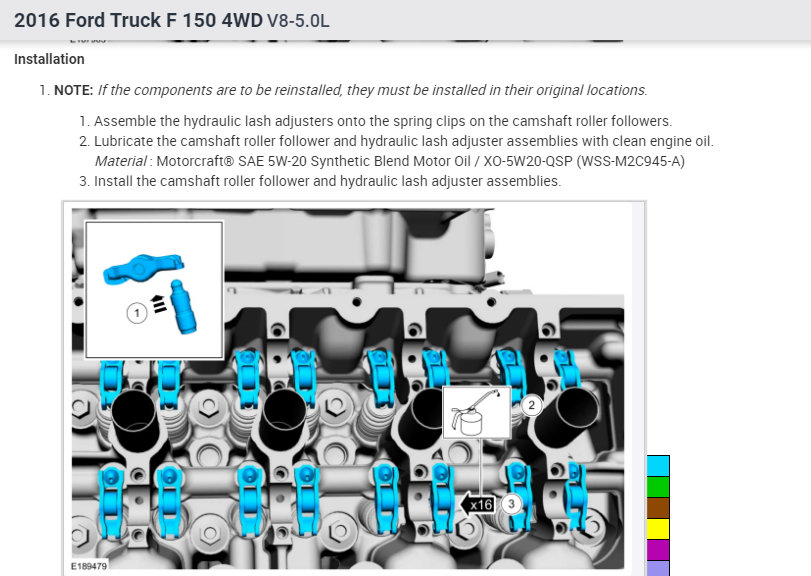

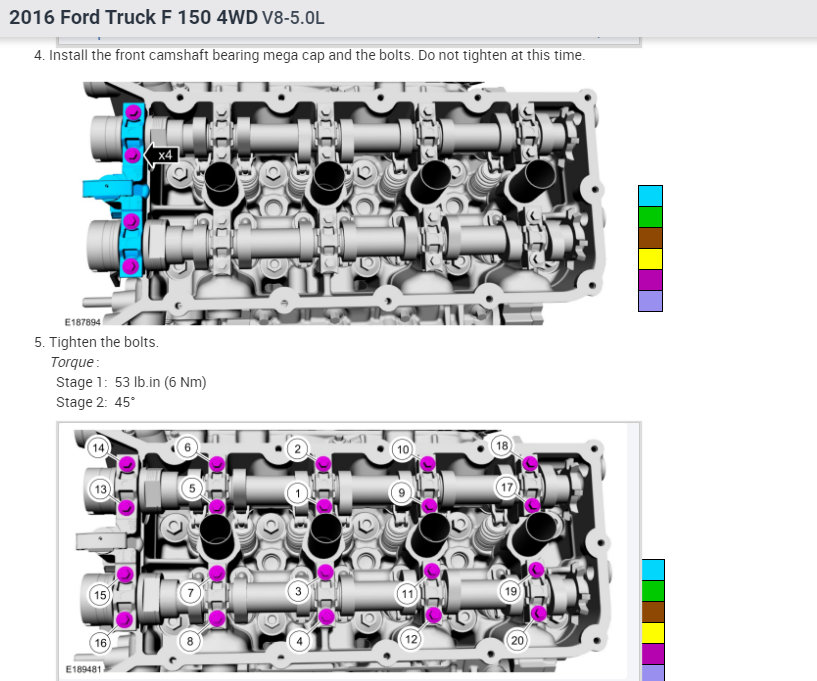

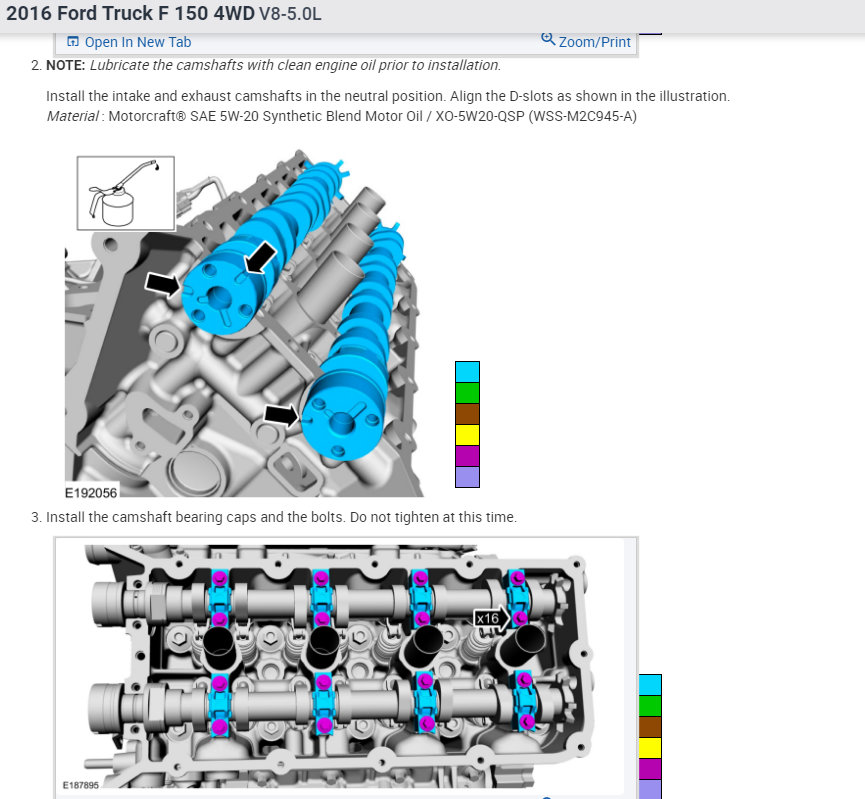

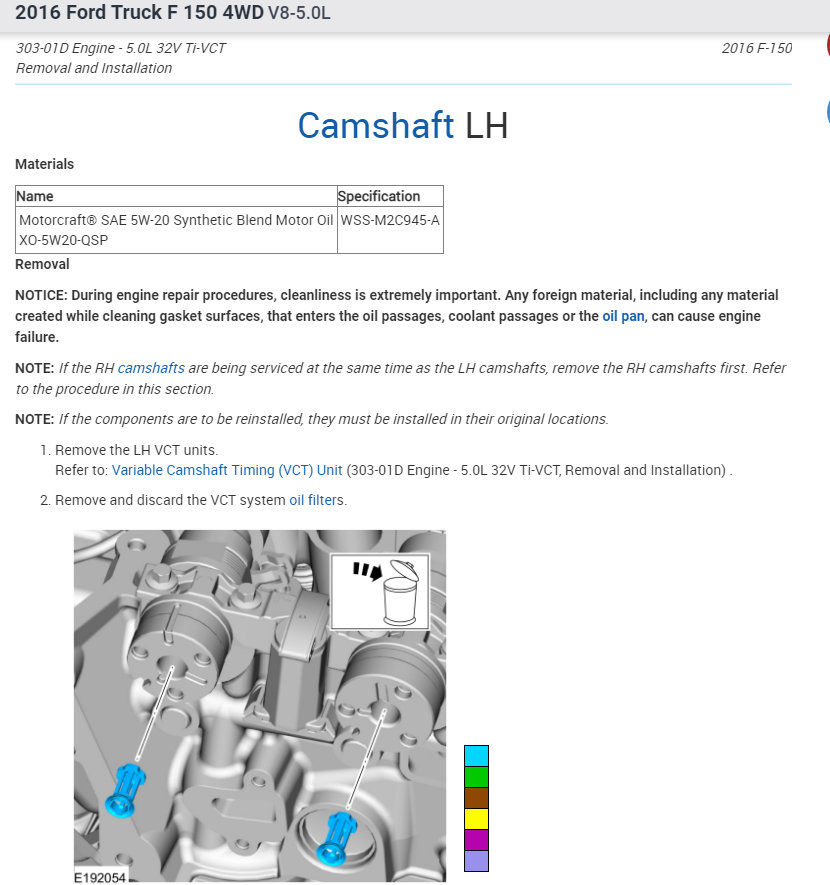

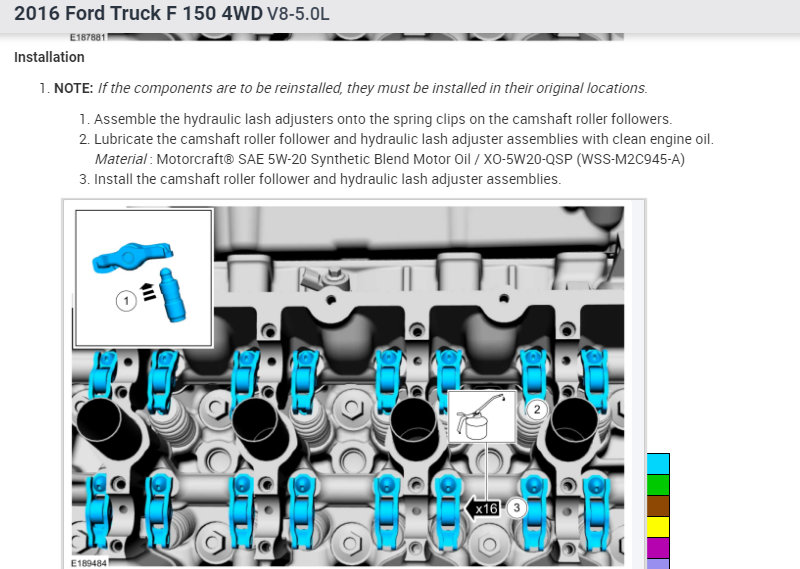

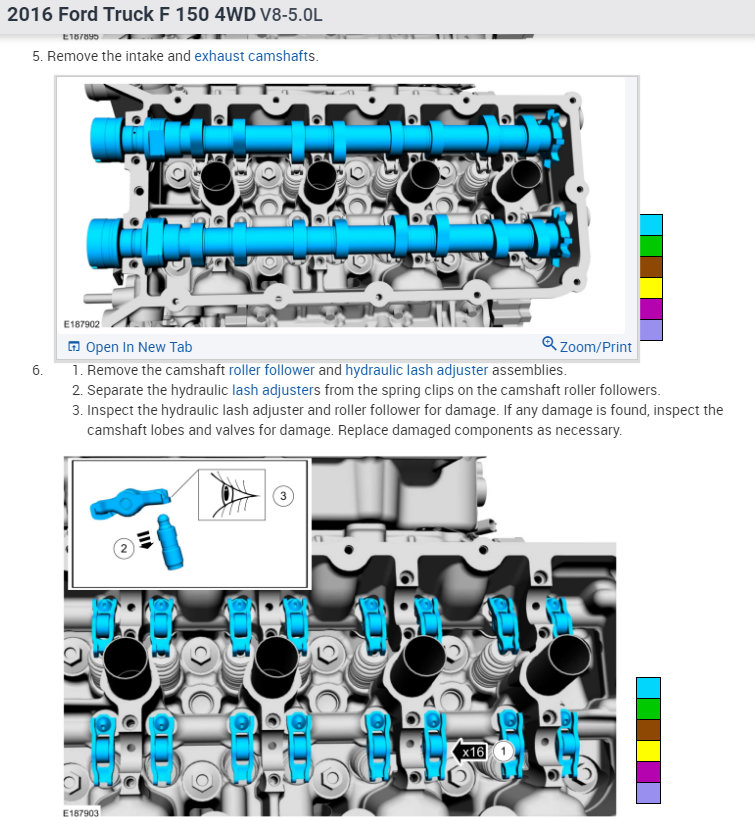

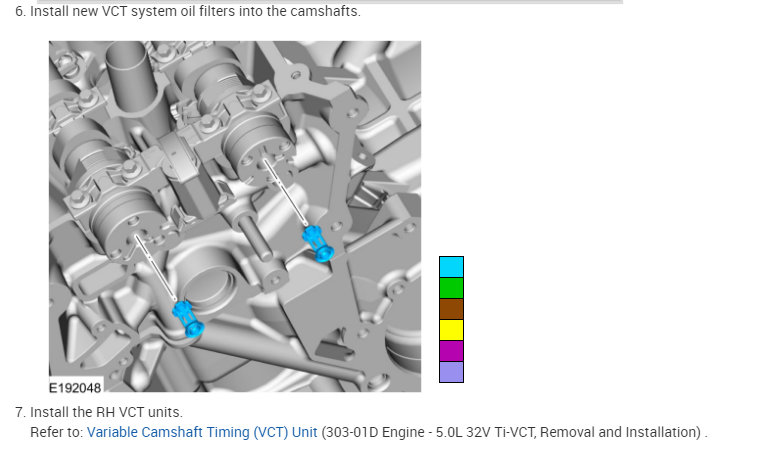

Look below for the camshaft replacement procedures.

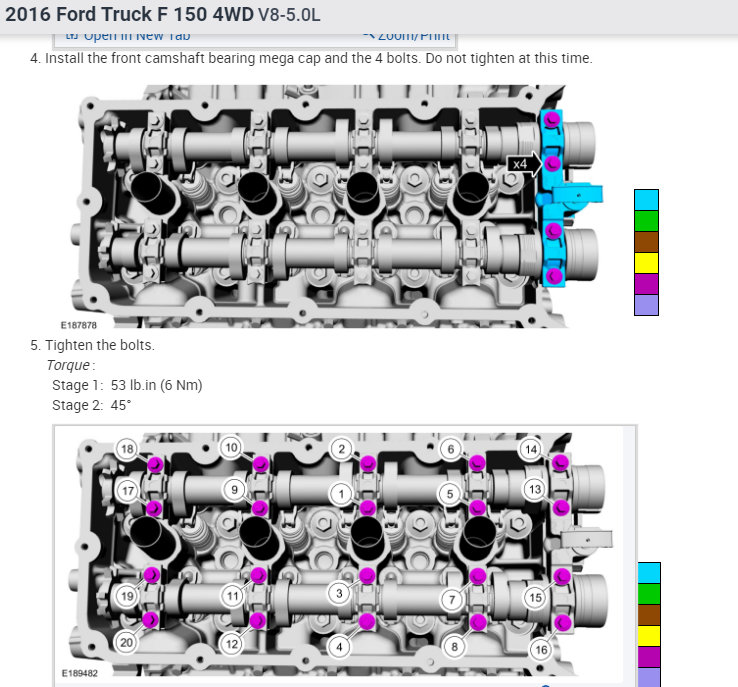

It shows the position as well as the torque specifications.

Let me know of any questions.
Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 15, 2022 at 2:21 PM
Advertisement
Avatar
MATT522006
  • MEMBER
  • 2 POSTS
This is perfect. Thank you!
Jun 16, 2022 at 5:22 AM
Avatar
SQM
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 6,383 POSTS
You are welcome. Let me know how it goes.
