Brake diagram from Master cylinder to booster to lines

Tiny
JUSTIN OSLEY
  • MEMBER
  • 2002 PONTIAC GRAND AM
  • 2.2L
  • 4 CYL
  • 2WD
  • MANUAL
  • 150,000 MILES
New booster old one was out. So don't know what line goes where and size bolt goes in the booster or cylinder.
Monday, July 15th, 2019 AT 5:41 AM

1 Reply

Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS
Hi Justin,

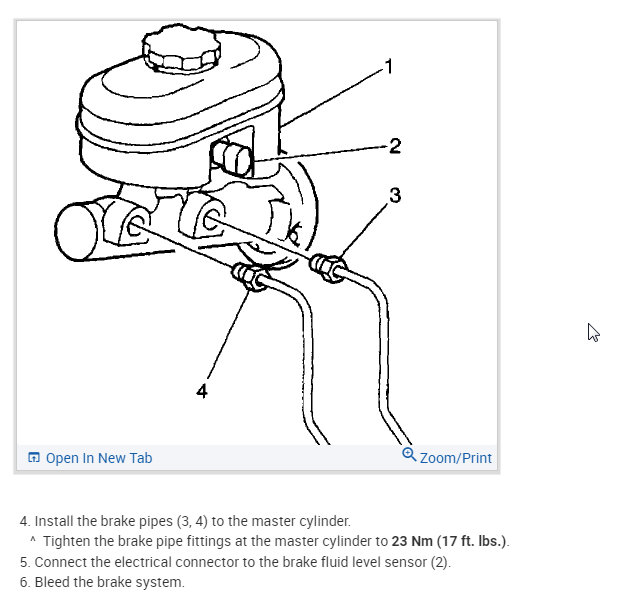

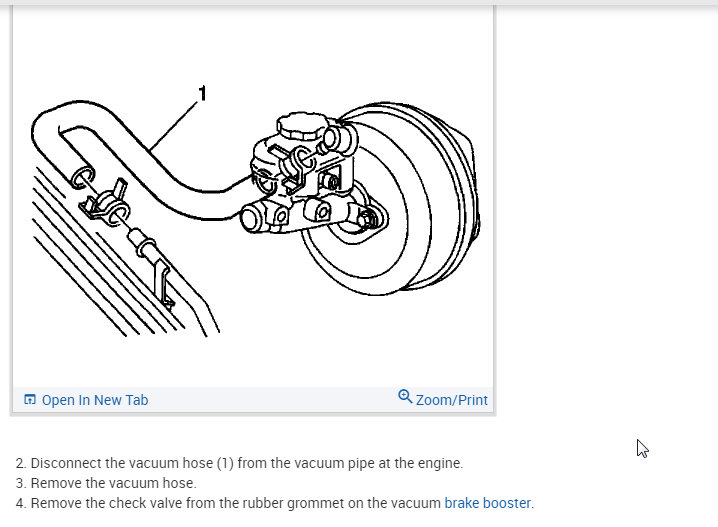

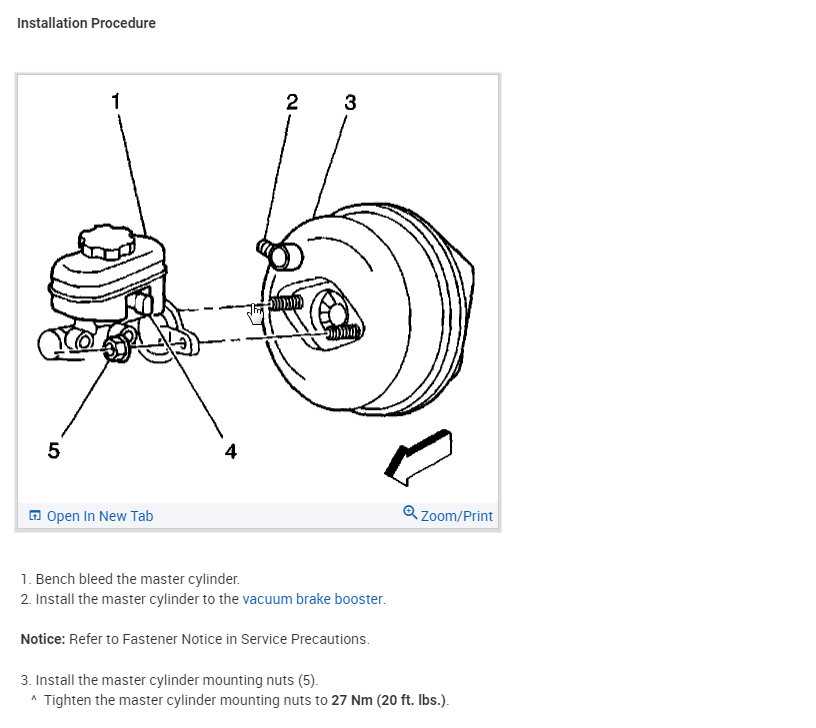

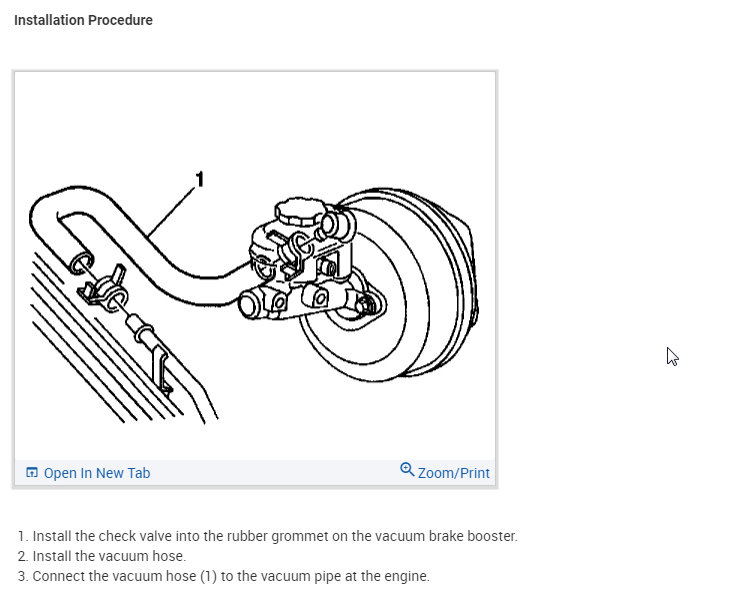

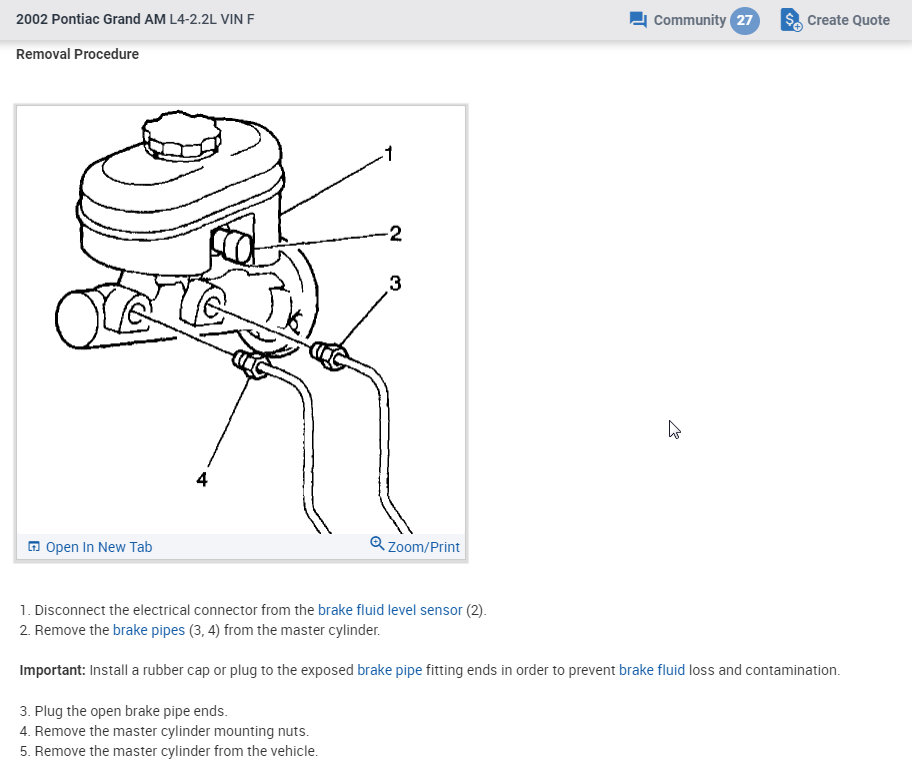

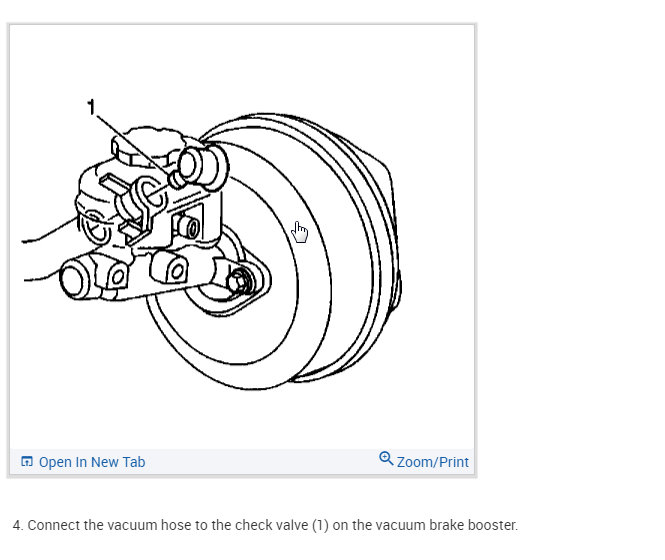

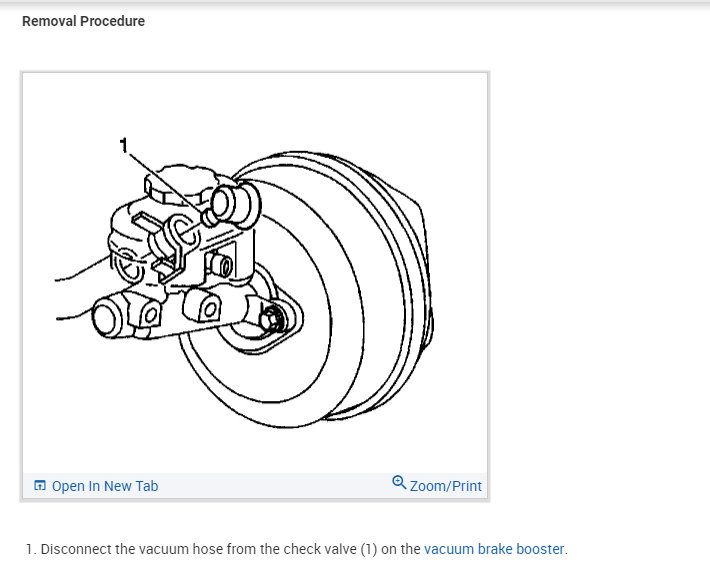

Here are the procedures for the master cylinder and booster. Unfortunately, I am not sure which lines you are referring to in order to better assist. Maybe taking pictures of what you are dealing with will be able to decipher what line is what.

Let me know if you need more information and we can go from there. Thanks
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
-3
Monday, July 15th, 2019 AT 4:34 PM
