Wiring diagram for the Body Control Module pin needed?

2015 GMC YUKON

130,000 MILES • V8

ALA

MEMBER
2 POSTS

I need a wire diagram for the body control module pin out as well. Please and thank you.

Oct 30, 2022 at 9:56 AM

JACOBANDNICKOLAS

✓ASE Certified Mechanic
110,194 POSTS

Hi,

I hope I got the right one. I went with a 5.3L 4wd. If that is wrong, let me know.

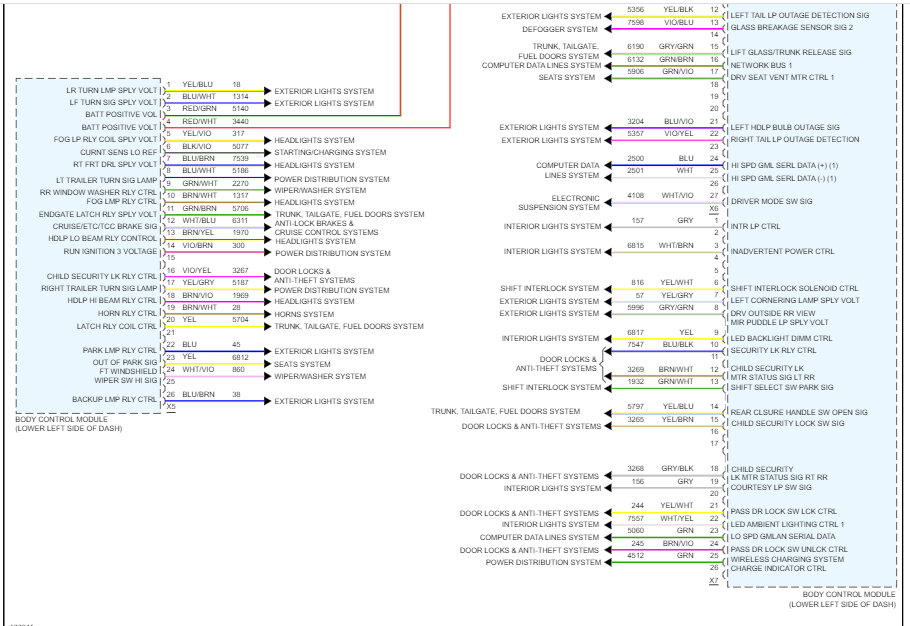

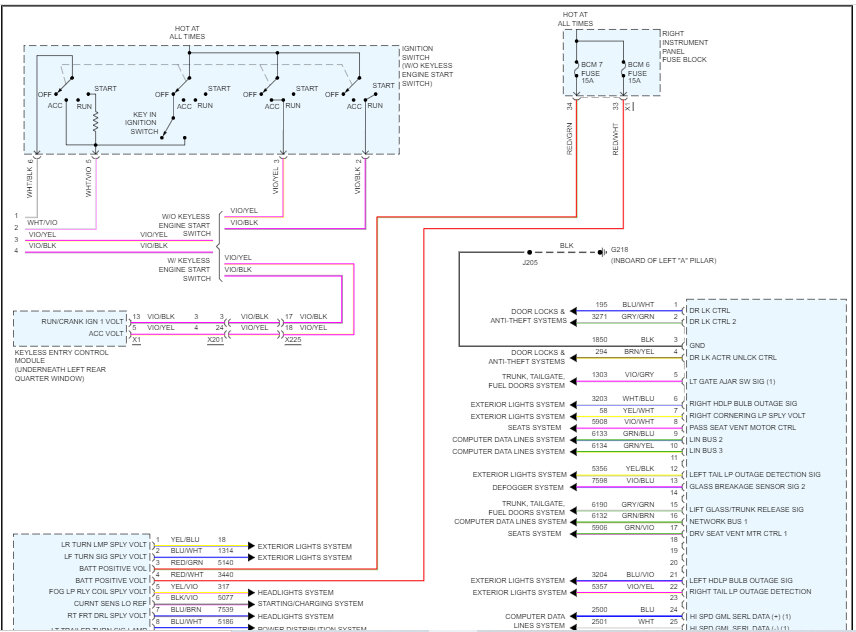

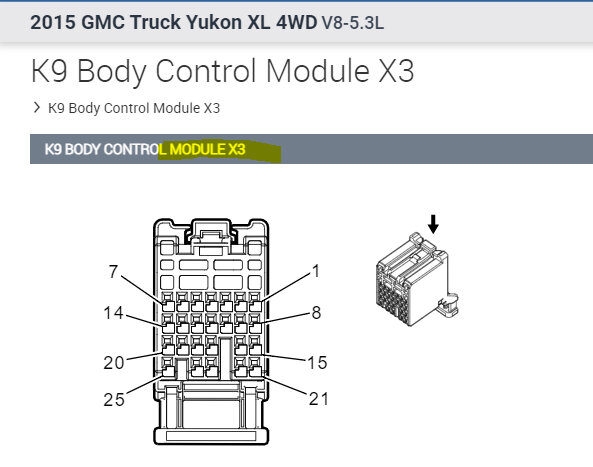

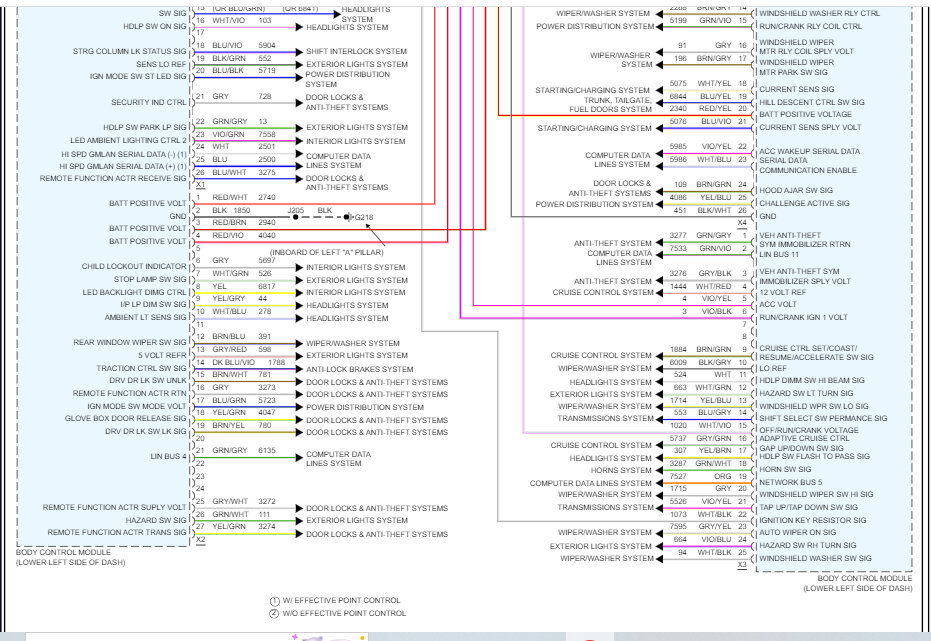

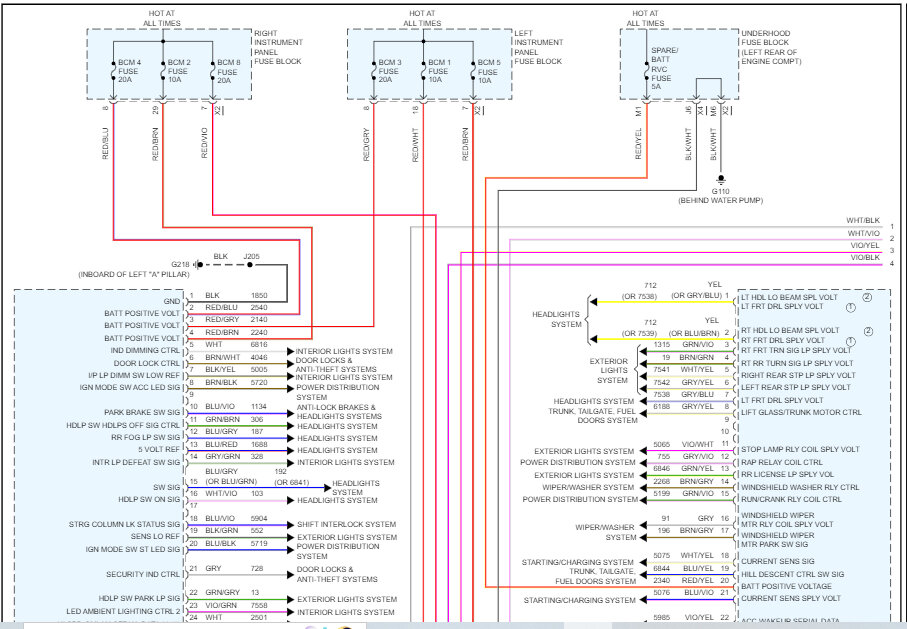

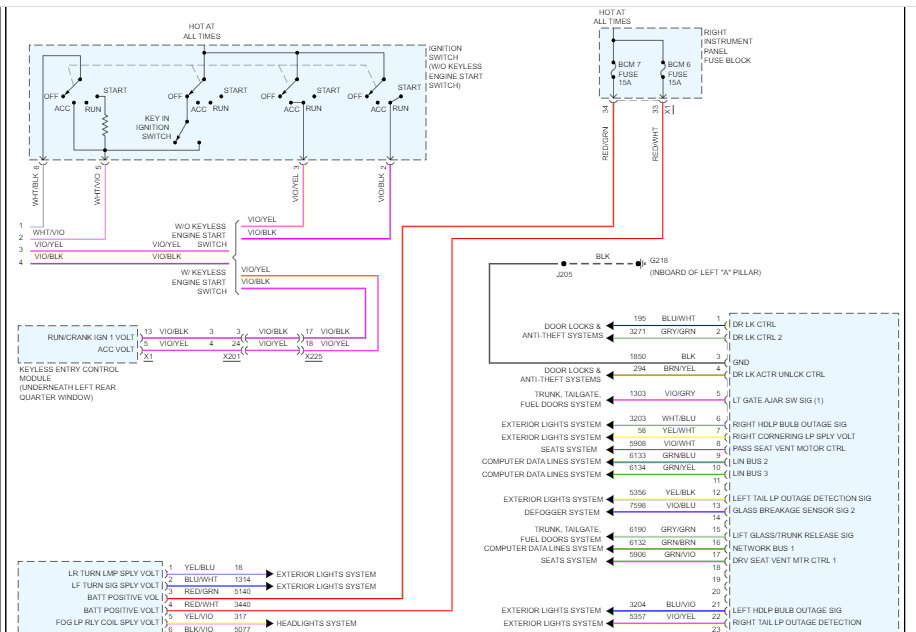

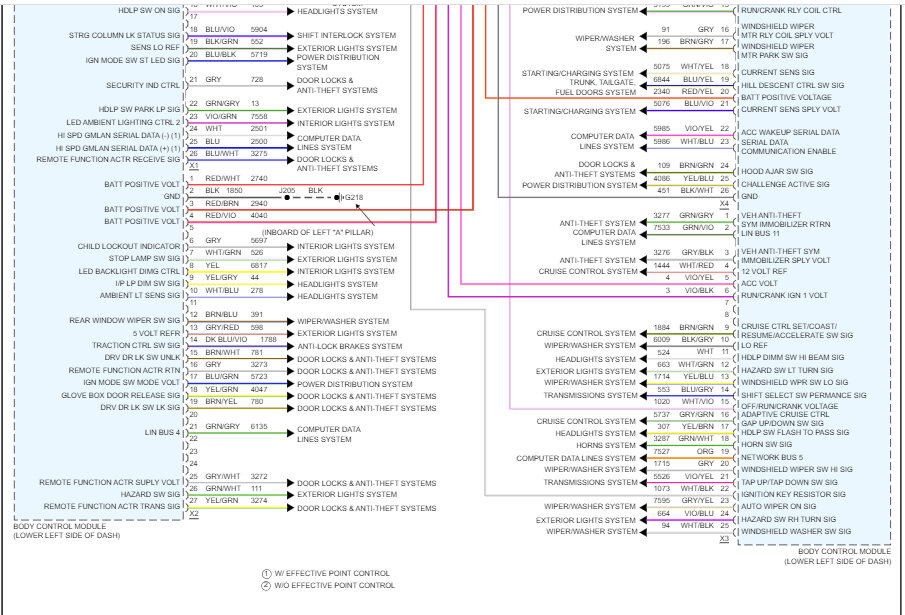

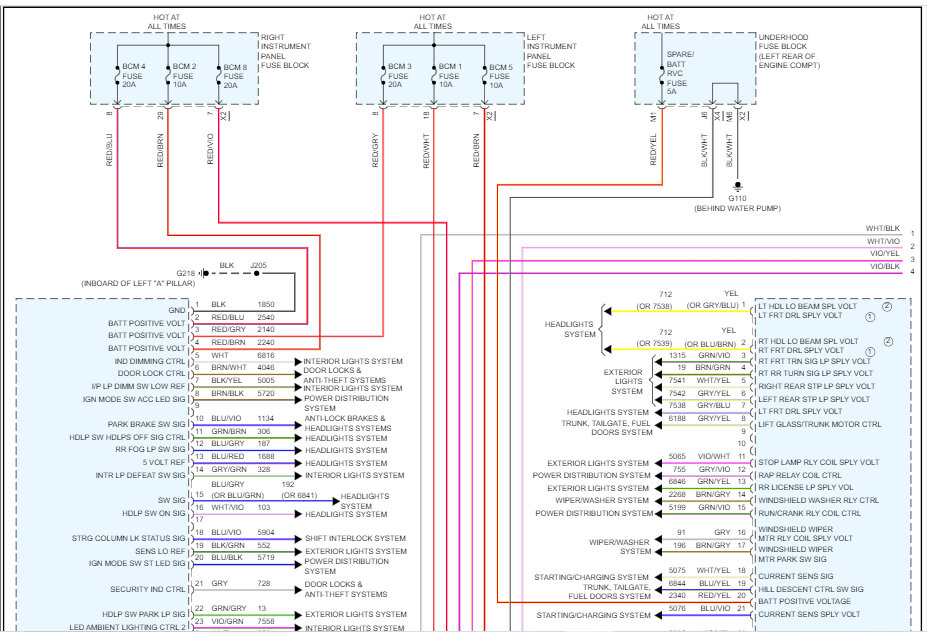

As far as the information, the first pics are the wiring schematics. I had to cut each pin in half to make them readable.

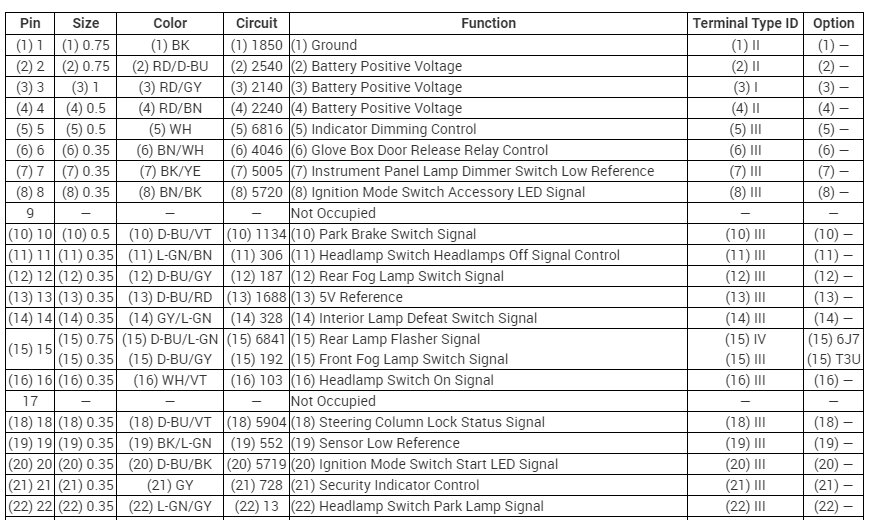

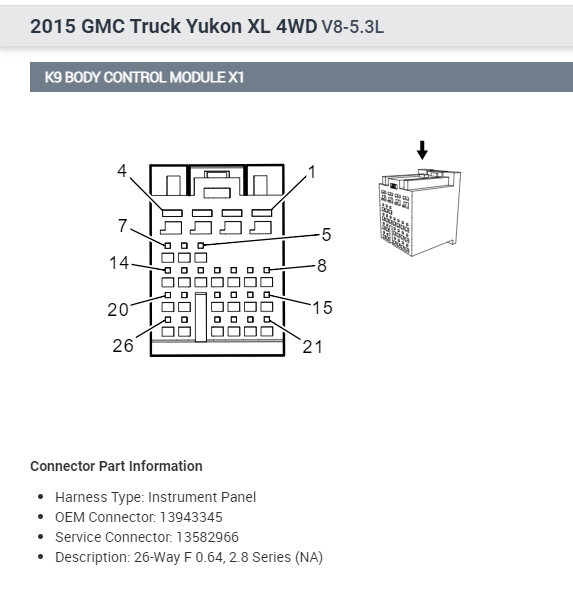

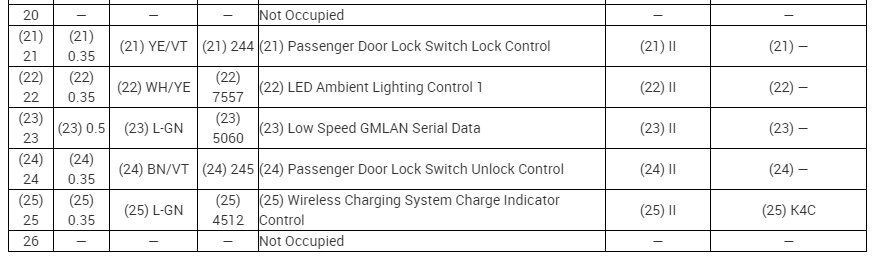

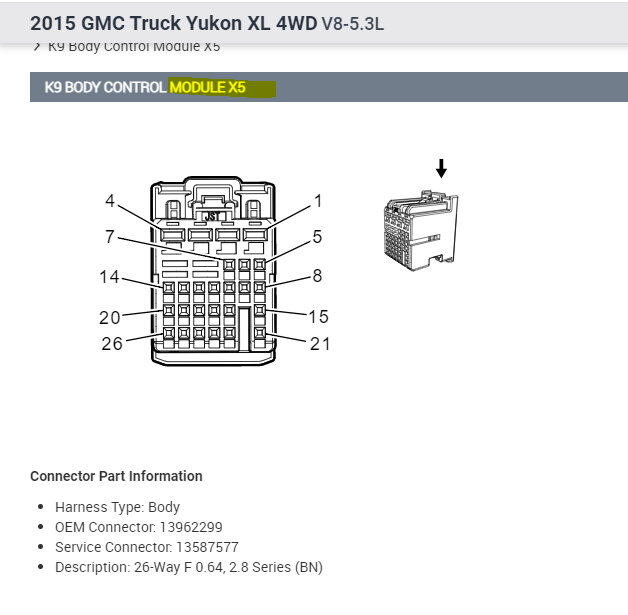

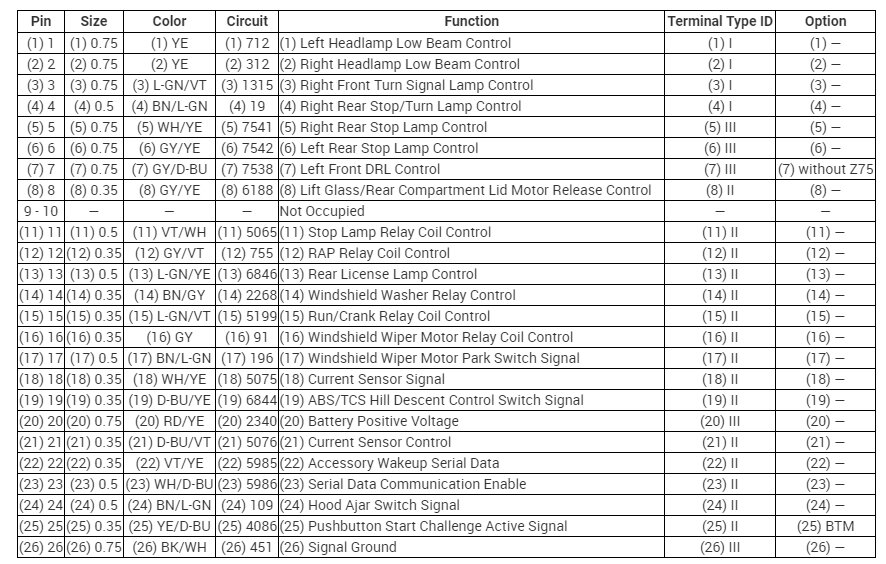

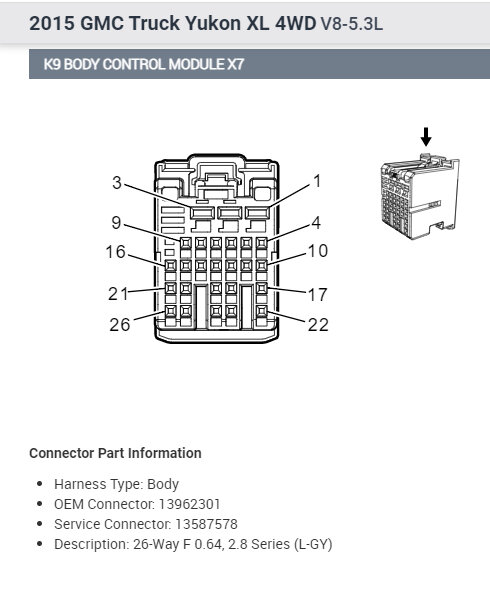

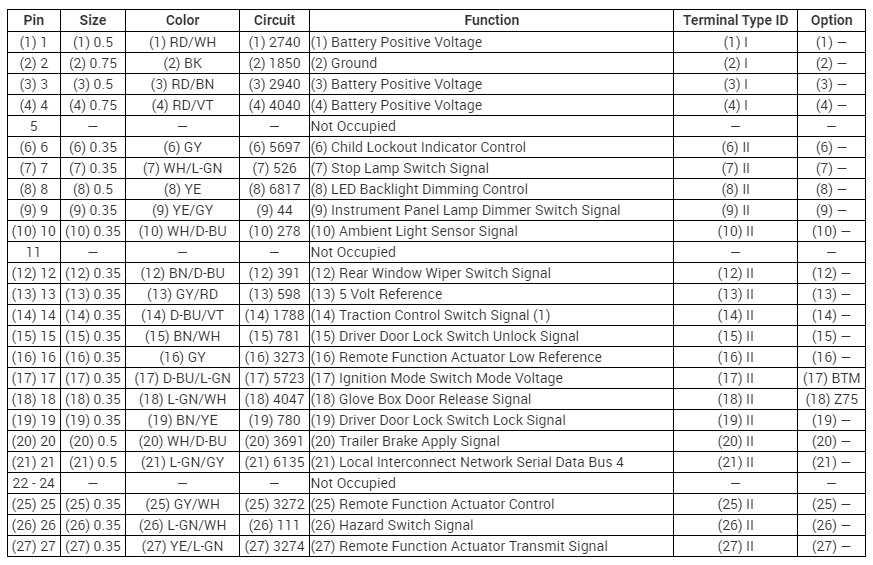

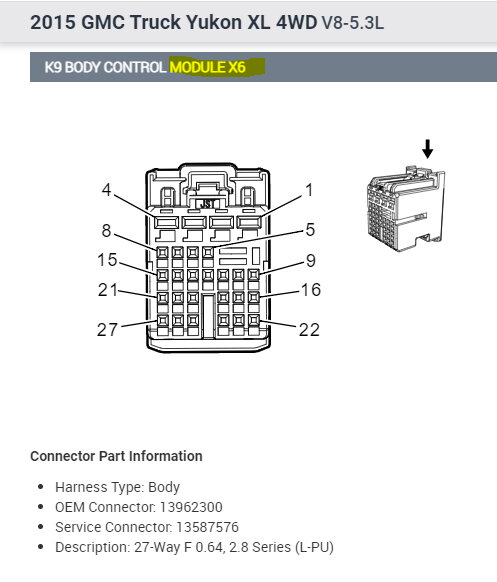

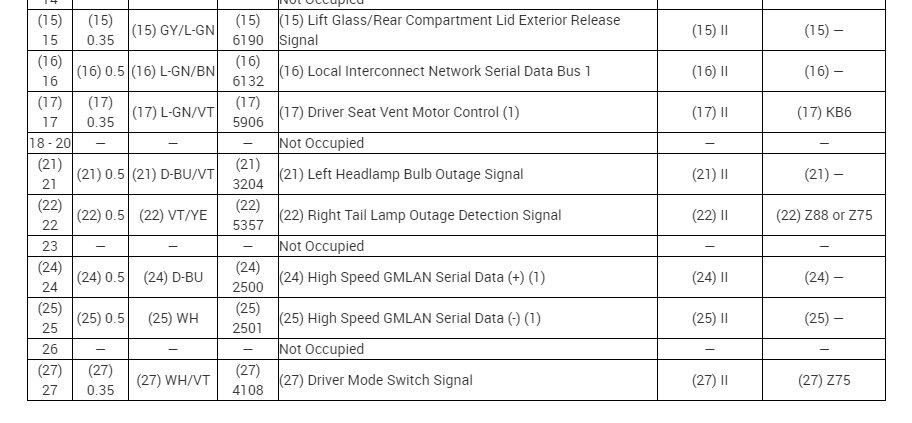

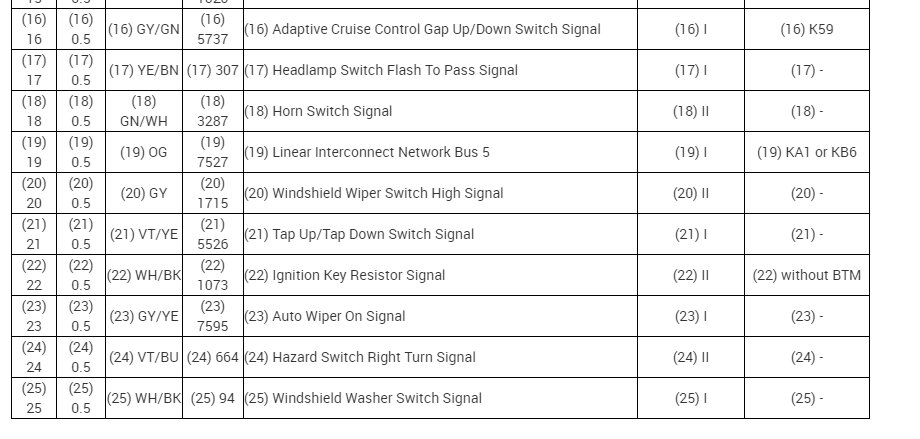

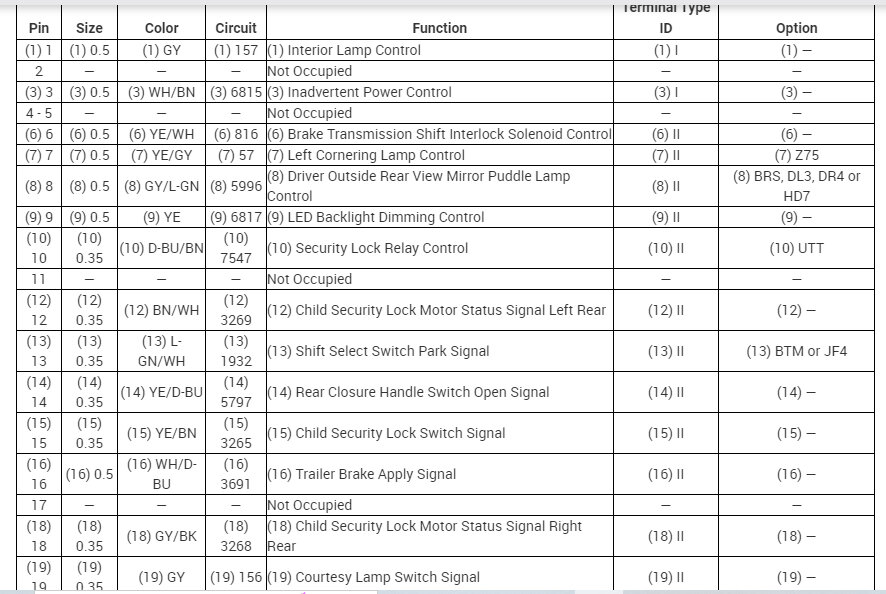

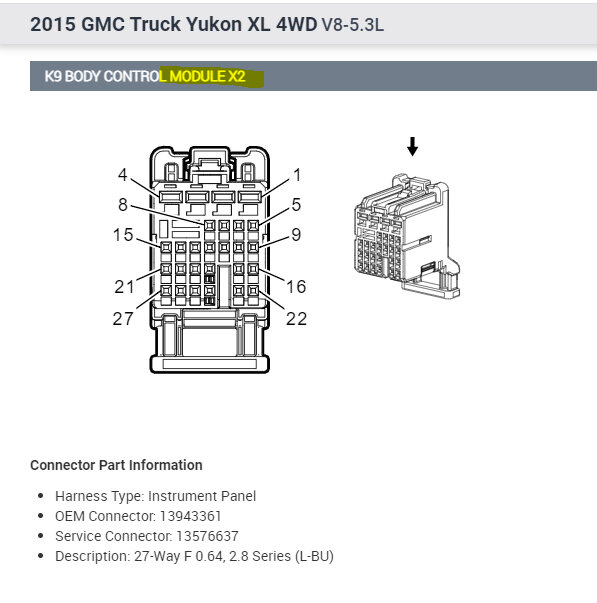

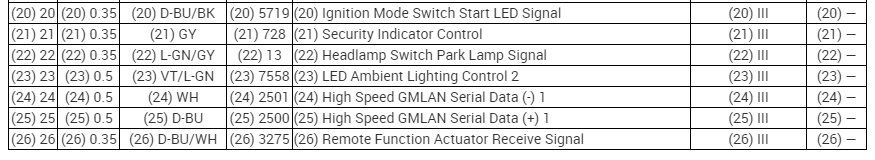

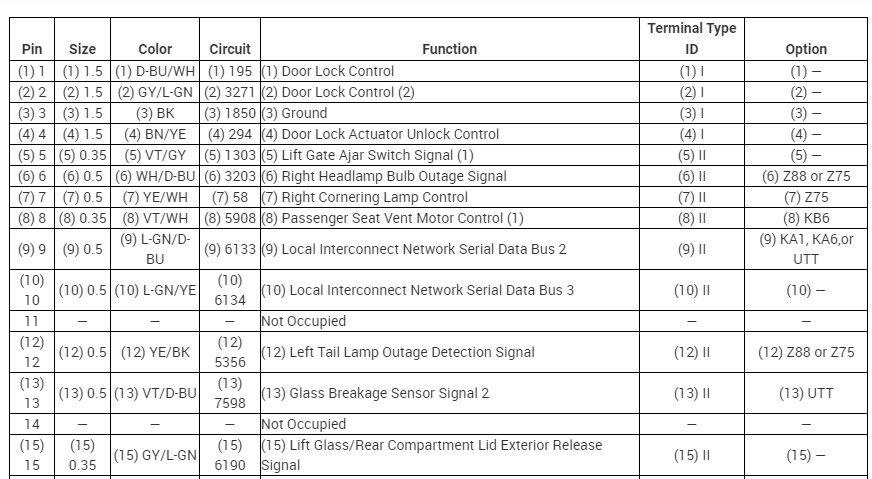

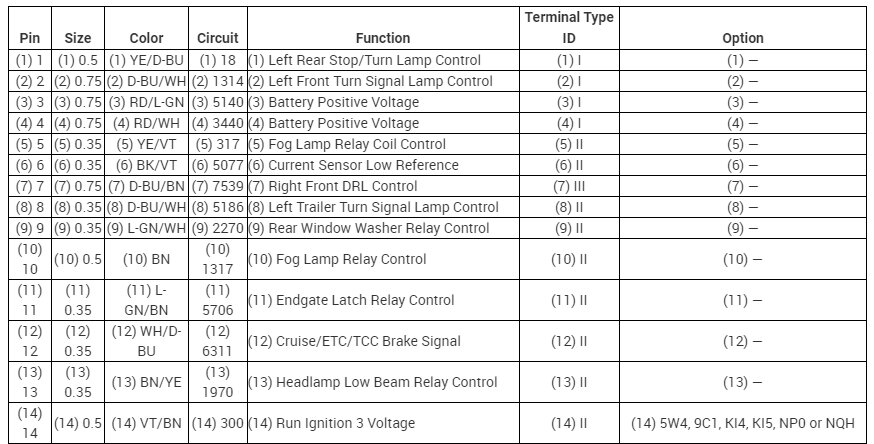

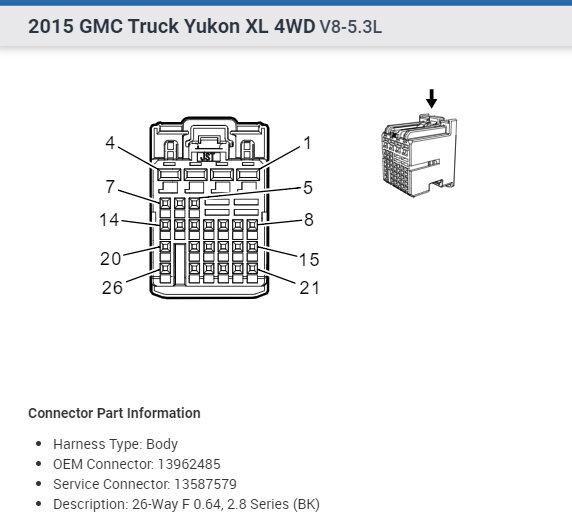

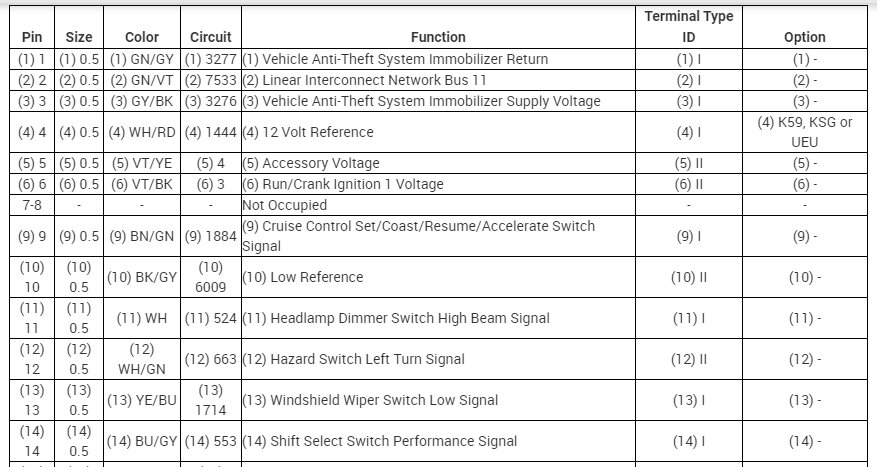

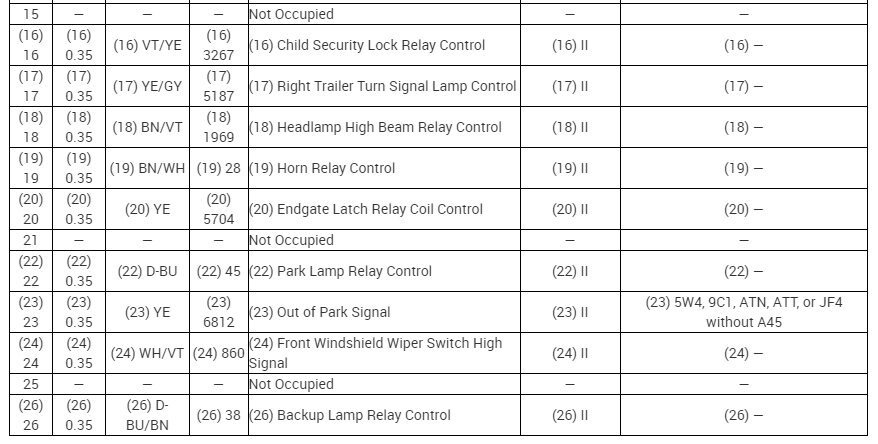

The remaining pics are the connector views and what each pin is used for. Note: There are several.

Let me know if this helps.

Take care,

Joe

See pics below.

Images (Click to enlarge)

Professional Diagram for 2CarPros Members
Click here to log in and view diagram.

Oct 30, 2022 at 9:34 PM

ALA

MEMBER
2 POSTS

Joe, I’m sorry sir. my SUV is a 2015 GMC Yukon Denali non 4x4.. it didn’t give me the option at first.. thanks

Oct 31, 2022 at 3:58 PM

JACOBANDNICKOLAS

✓ASE Certified Mechanic
110,194 POSTS

Hi,

No problem whatsoever. The only thing is this. I only have the wiring schematic for the BCM for this model and not the pinouts. The pin numbers are indicated in the schematic but not the actual connector layout.

Let me know if this helps or if you have other questions.

Take care,

Joe

See pics below.

Images (Click to enlarge)

Professional Diagram for 2CarPros Members
Click here to log in and view diagram.

Oct 31, 2022 at 6:15 PM
