Body Control Module wiring diagram needed?

2003 SATURN VUE
228,080 MILES • 3.0L • V6 • 4WD • AUTOMATIC
Avatar
JKSPOK509
  • MEMBER
  • 1 POST
I need a detailed picture guide connecting the wiring harness back into the BCM.
Sep 14, 2023 at 2:06 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS

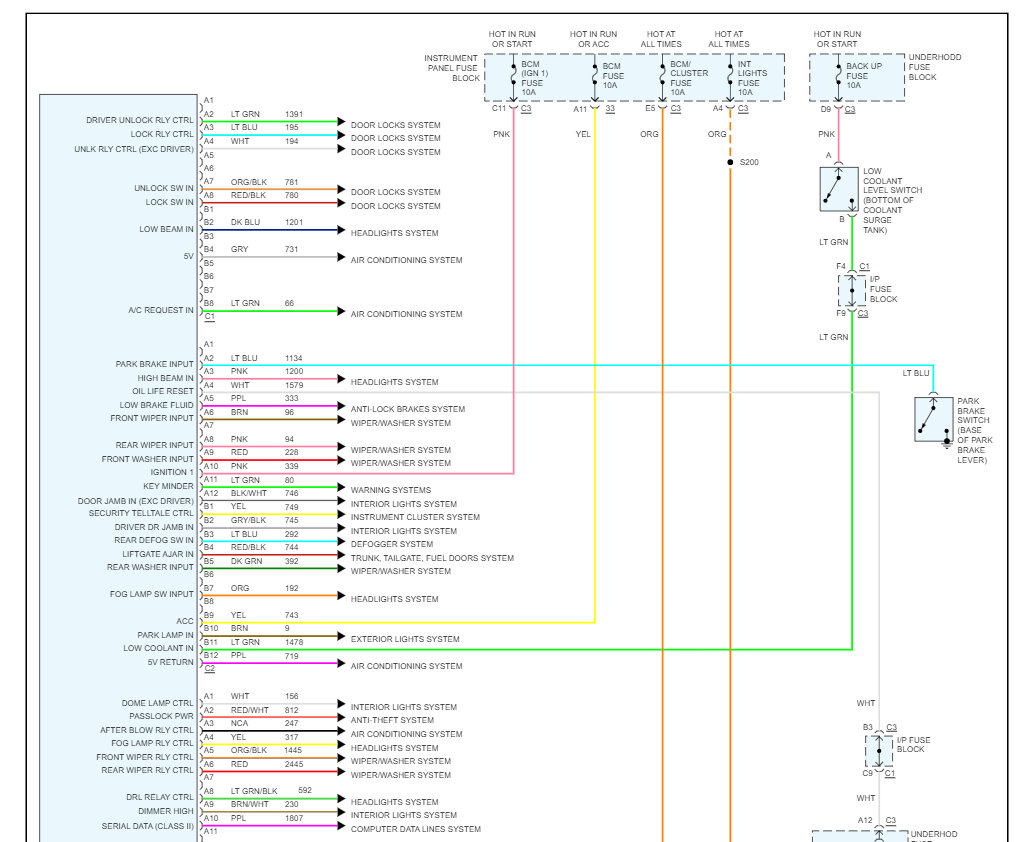

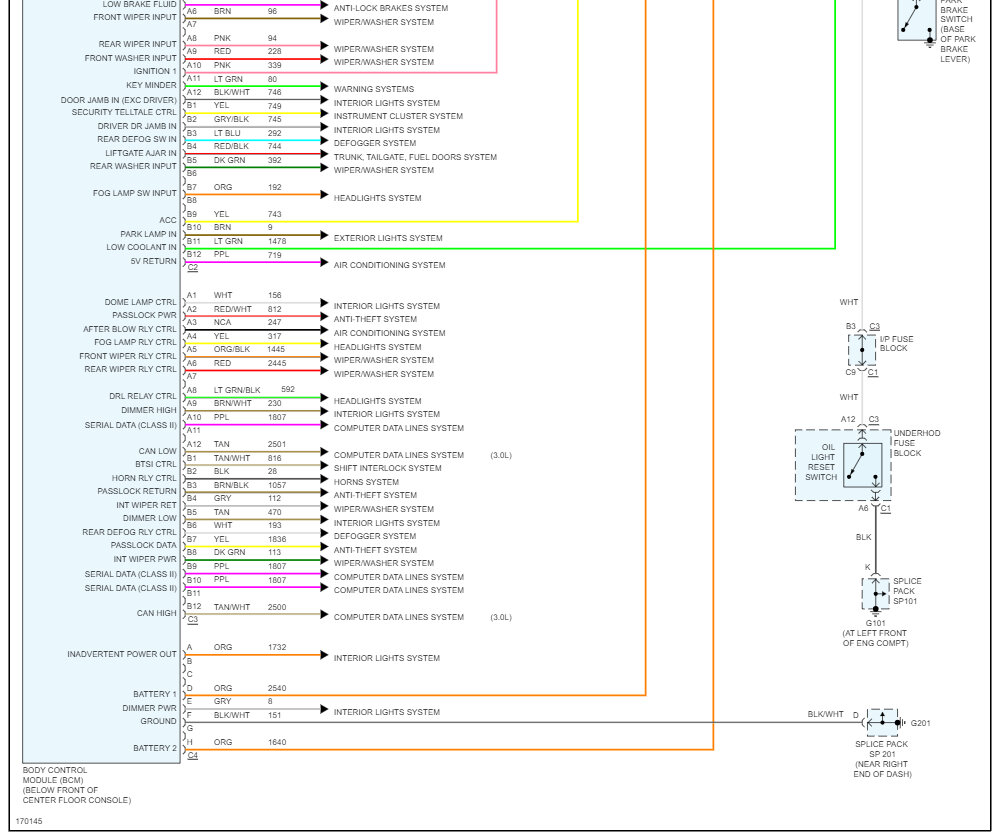

Sure, here is the BCM wiring diagrams as requested and I have included a guide to help you test the connections.

https://www.2carpros.com/articles/how-to-check-wiring


Check out the images (below). Please let us know if you need anything else to get the problem fixed.
