Just need to see how the belt should go and which pulleys are which.
Feb 28, 2023 at 7:30 AM
Belt routing diagram needed?
2013 HYUNDAI ELANTRA
ALLISON BEAU
- MEMBER
- 1 POST
Advertisement
Hi,

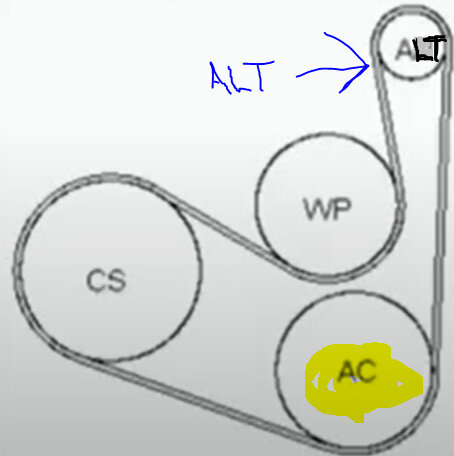

There are two different diagrams based on if the vehicle has AC or not. If you look below, pic 1 shows the belt routing for a vehicle without A/C.

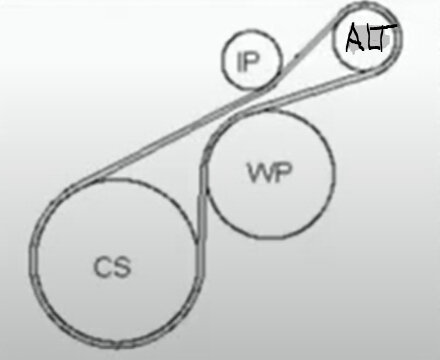

Pic 2 below shows routing for one with factory A/C.
Let me know if this helps. Also, here is a link that explains in general how one is replaced:
https://www.2carpros.com/articles/replace-serpentine-belt
Take care,
Joe
See pics below.
There are two different diagrams based on if the vehicle has AC or not. If you look below, pic 1 shows the belt routing for a vehicle without A/C.
Pic 2 below shows routing for one with factory A/C.
Let me know if this helps. Also, here is a link that explains in general how one is replaced:
https://www.2carpros.com/articles/replace-serpentine-belt
Take care,
Joe
See pics below.
