Belt Routing Diagram?

Tiny
QUEENPIN69
  • MEMBER
  • 1986 CHEVROLET VAN
  • 200,000 MILES
I am trying to find a diagram on your site for the Chevy G30 v8 350 engine for belts need to put on some that are missing, and serp belt broke, first off your site is the hardest to get around in, doing a search is does nothing, Your links on the left side do not work right, I click on belt routing diagrams it opens to car makes. Goto Chevrolet you have truck listed but it takes your to volkswagon, G30 is not listed anywhere in the lists, honestly in todays web present you really need to get someone to fix your site your searchs do not bring up what your looking for its giving your to much junk for years that having nothing to do with what I am looking for. I have spent over a hour trying to find what I need a plan old diagram for a 86 chevy 350 engine 5.7 lts 3 belt setup.
SPONSORED LINKS
Thursday, May 30th, 2013 AT 5:06 PM

6 Replies

Tiny
DOCFIXIT
  • MECHANIC
  • 18,828 POSTS
Your right I tried Chevy ended up in Mitsubishi then to Suzuki. I will notify site administrator. In mean time will try and find belt routing for you
Was this
answer
helpful?
Yes
No
+1
Friday, May 31st, 2013 AT 8:06 AM
Tiny
DOCFIXIT
  • MECHANIC
  • 18,828 POSTS

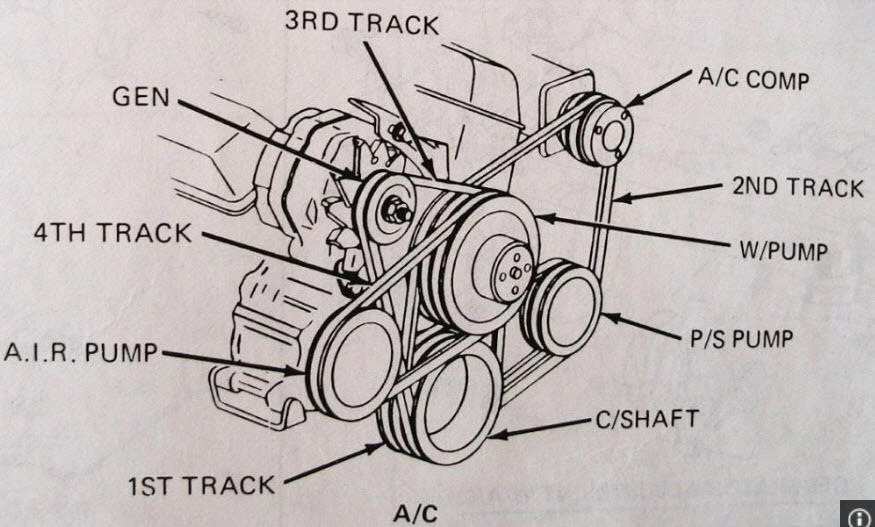

Found this
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
-2
Friday, May 31st, 2013 AT 8:14 AM
Tiny
QUEENPIN69
  • MEMBER
  • 2 POSTS
Im looking for the diagram for 3 belts (2 v belts and 1 Serp belt) past owner disconnected ac and heater so now trying to get it all going like it should be. Btw it does not have the air pumps either.

Thanks!
Was this
answer
helpful?
Yes
No
Friday, May 31st, 2013 AT 8:48 AM
Tiny
DOCFIXIT
  • MECHANIC
  • 18,828 POSTS
Sorry that was all could find
Was this
answer
helpful?
Yes
No
+1
Friday, May 31st, 2013 AT 8:54 AM
Tiny
REDMANT53
  • MEMBER
  • 1 POST
  • 1984 CHEVROLET VAN
  • 5.7L
  • V8
  • 2WD
  • AUTOMATIC
  • 58,000 MILES
Need diagram to v belt, w/ 3 belt system I need to change them can you help?
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, December 9th, 2019 AT 9:21 PM (Merged)
Tiny
HMAC300
  • MECHANIC
  • 48,601 POSTS

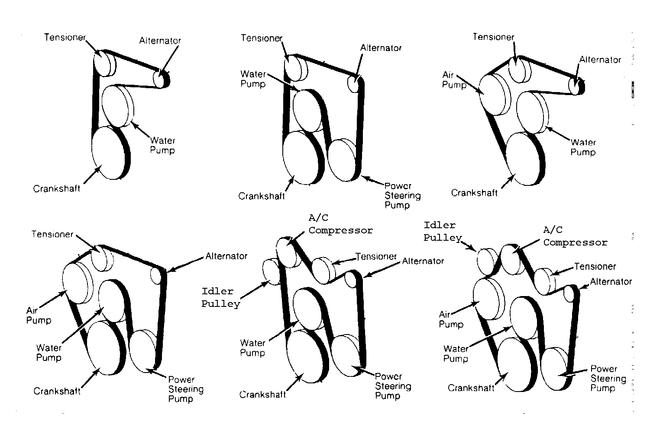

I'm sending is the only thing I can find with a 350 3 belt system. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+6
Monday, December 9th, 2019 AT 9:21 PM (Merged)

Please login or register to post a reply.
