I need the serpentine belt diagram?

Tiny
CRL8390
  • MEMBER
  • 1993 GEO TRACKER
  • 4 CYL
  • 2WD
  • MANUAL
  • 200,000 MILES
I need the belt diagram?
Tuesday, September 24th, 2024 AT 11:08 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,640 POSTS
Here you go!

https://www.2carpros.com/diagrams/geo/tracker/1992

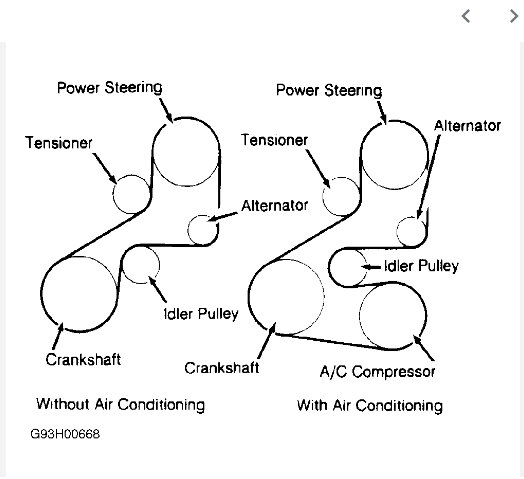

Check out the images (below). Let us know if you need anything else.
