Belt routing diagram needed

Tiny
KIM6753
  • MEMBER
  • 1996 GEO PRIZM
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 2,000,099 MILES
I removed three belts for replacement, but I don't remember where they go.
Tuesday, May 17th, 2022 AT 4:27 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,536 POSTS

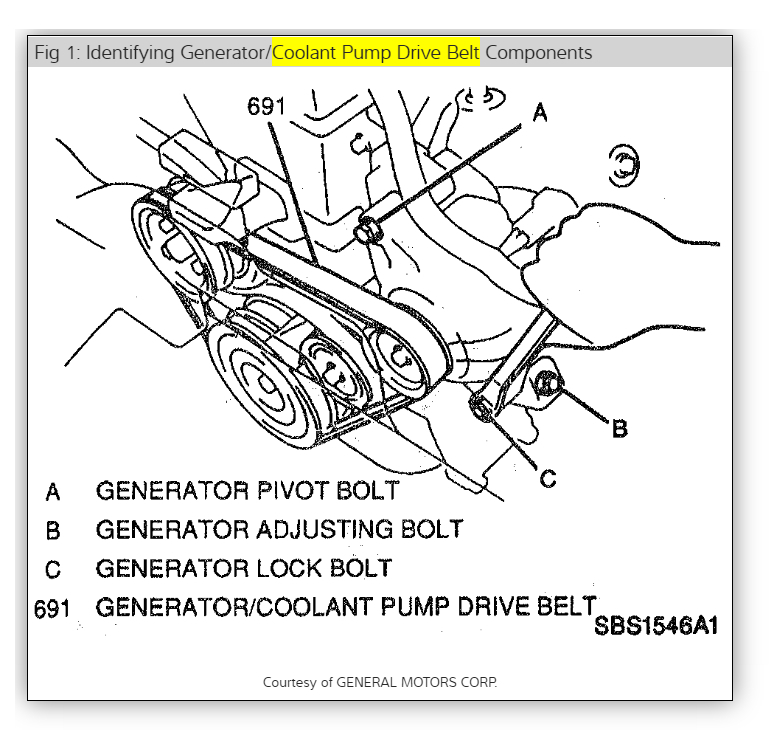

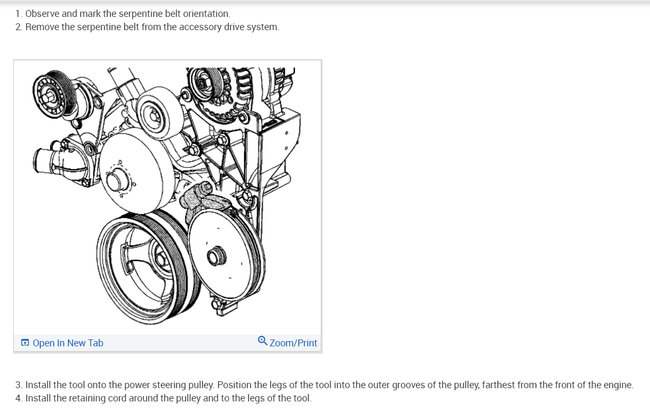

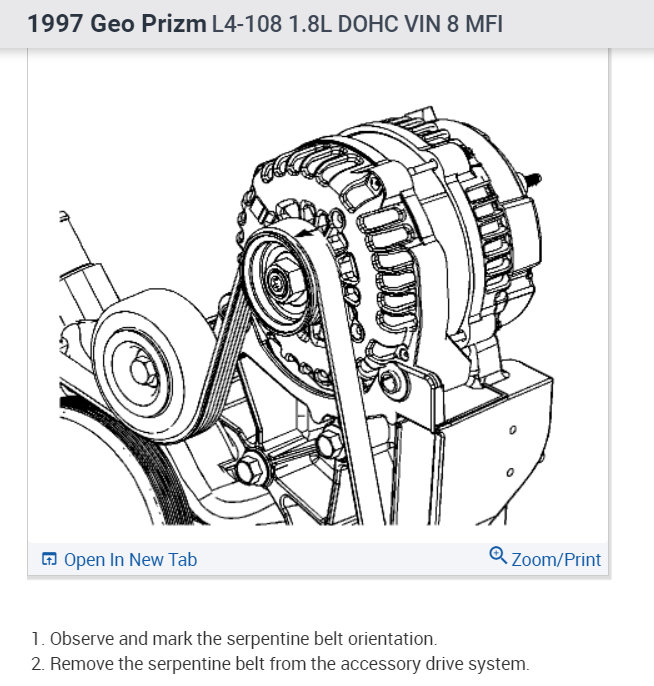

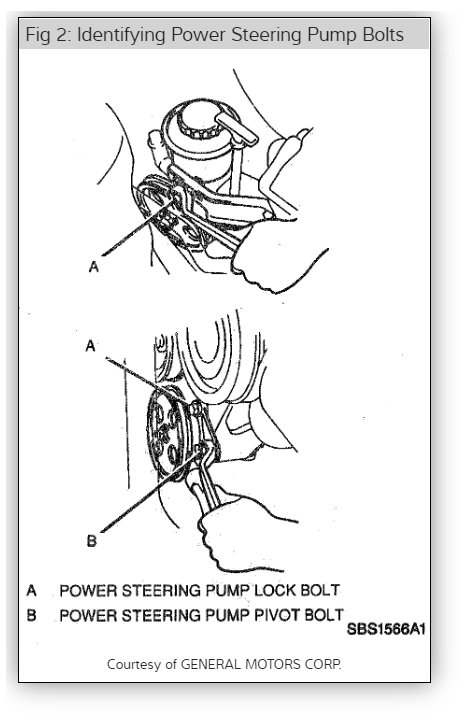

My manual only shows one or two belts, can you upload a picture, or the engine front also is it a 1.6 or 1.8 liter engine? I have added the only diagrams I can find for your car. Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
