belt diagram

2007 CHEVROLET CAPRICE
145,000 MILES • 5.0L • V8 • 2WD • AUTOMATIC
Avatar
TIMOTHY COSTIGAN
  • MEMBER
  • 1 POST
I am having a hard time finding a belt diagram for my car.
the belt that is loose is the very bottom belt. what is this belt called?
Aug 29, 2016 at 5:58 AM
Advertisement
Avatar
HMAC300
  • ✓ASE Certified Mechanic
  • 48,601 POSTS
  • ASE Certified Mechanic

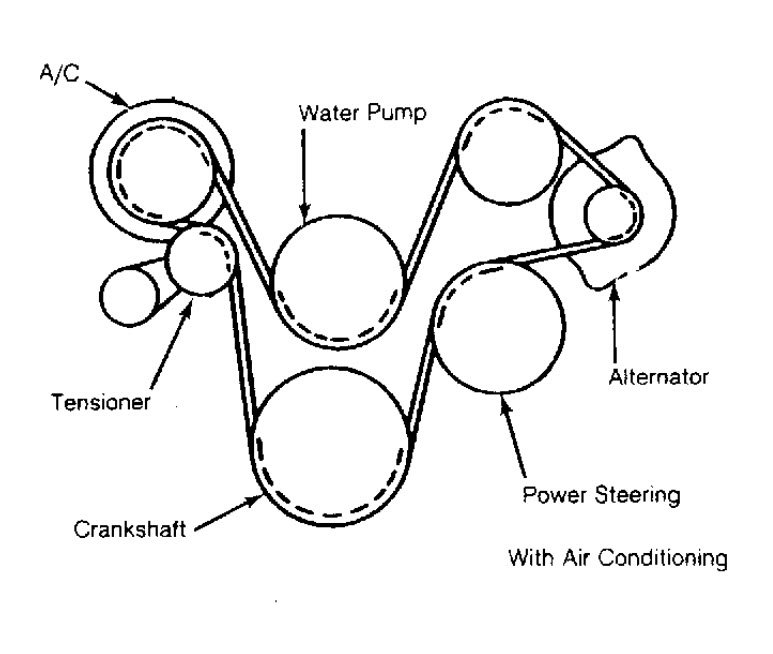

what you see in picture is all we have for your car. it may not be right because it is serpentine drive and i am not sure they had that then I cannot remember. try to find a manual in a library that is one year older or newer they may be similar.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Aug 29, 2016 at 6:45 AM
