beats audio diagram needed?

2021 VOLKSWAGEN JETTA
34,000 MILES • 1.4L • 4 CYL • TURBO • 2WD • AUTOMATIC
Avatar
CHEVY292
  • MEMBER
  • 2 POSTS
I'm trying to wire up some speakers and need the wiring diagram. The front door speakers have four wires connected to them instead of two. I'm also hoping to use the inputs to the factory amp (mounted under the driver seat) to send clean signal to a mono amp to run a better sub.

Thank you!
Sep 21, 2024 at 9:23 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

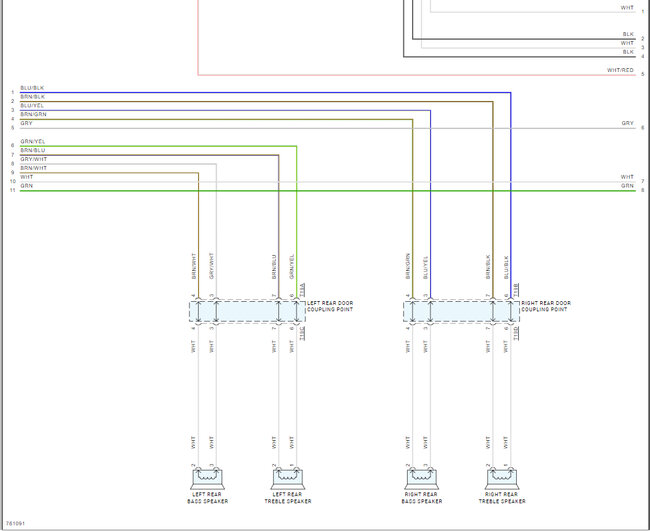

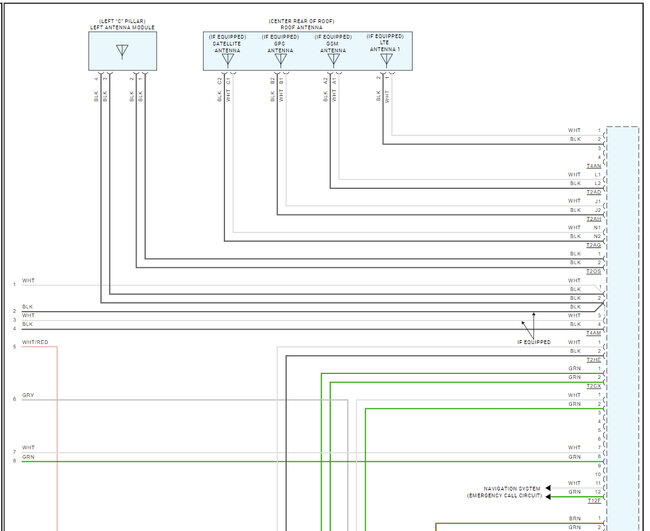

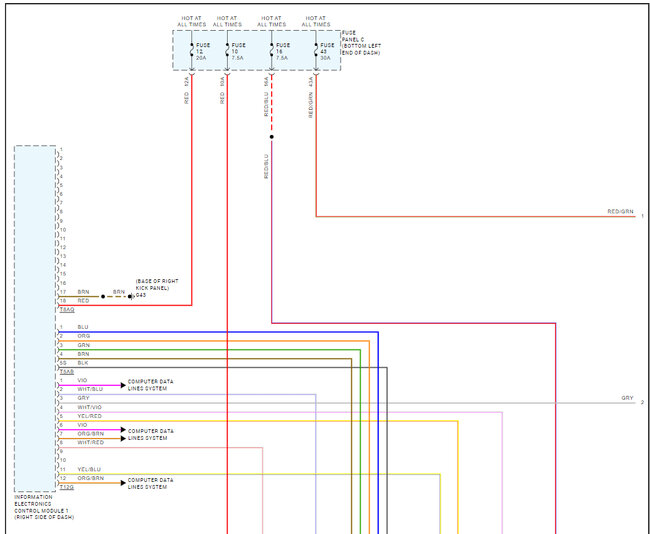

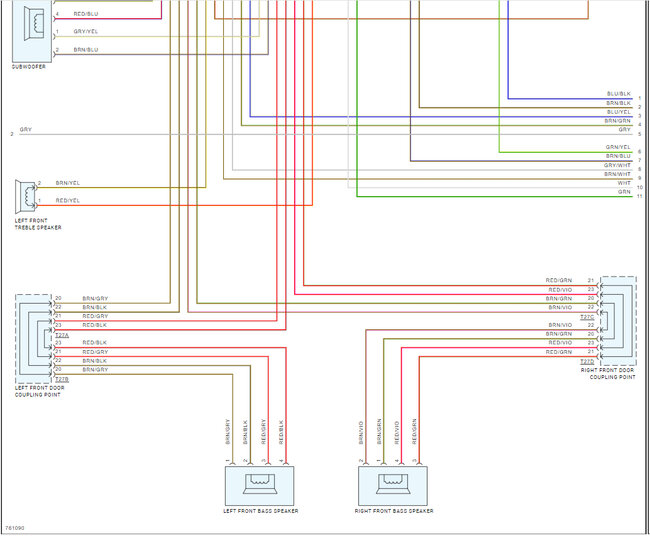

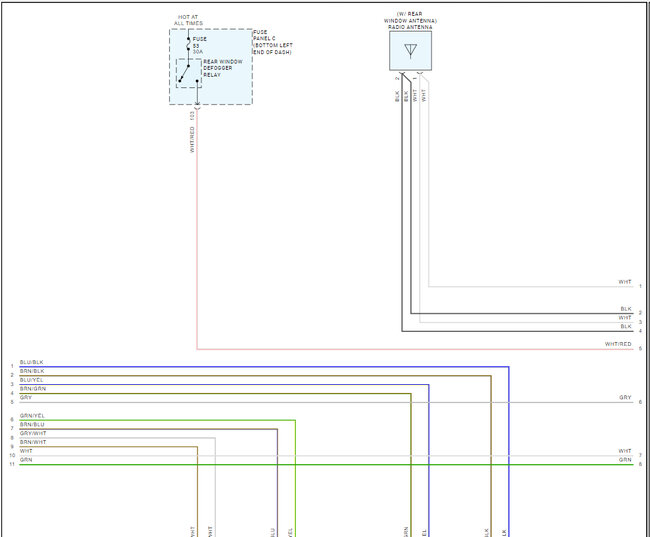

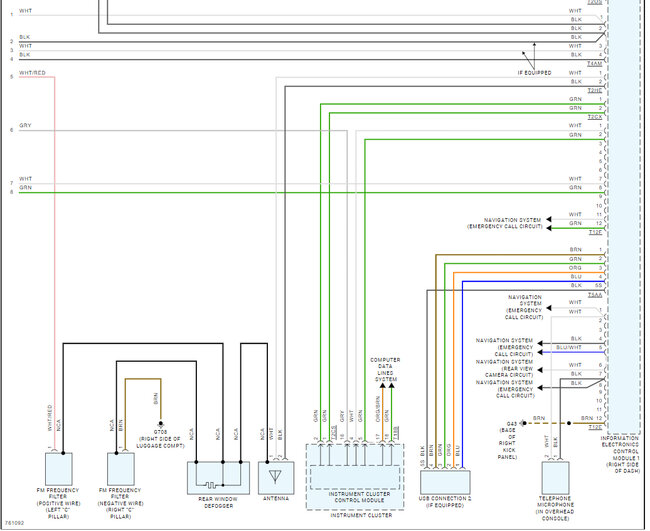

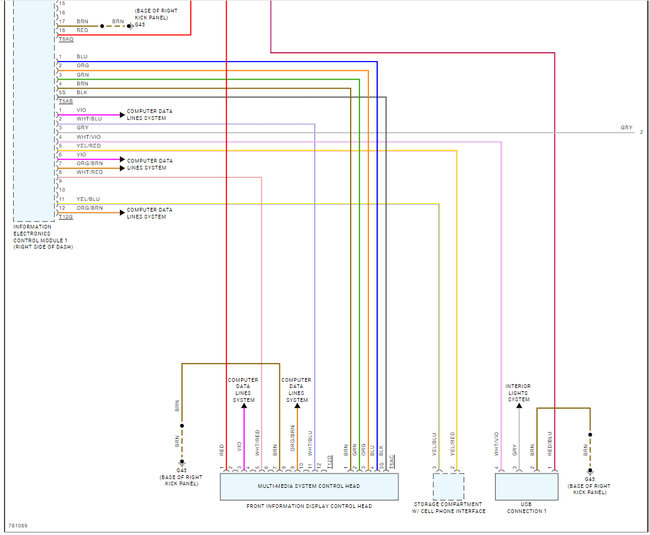

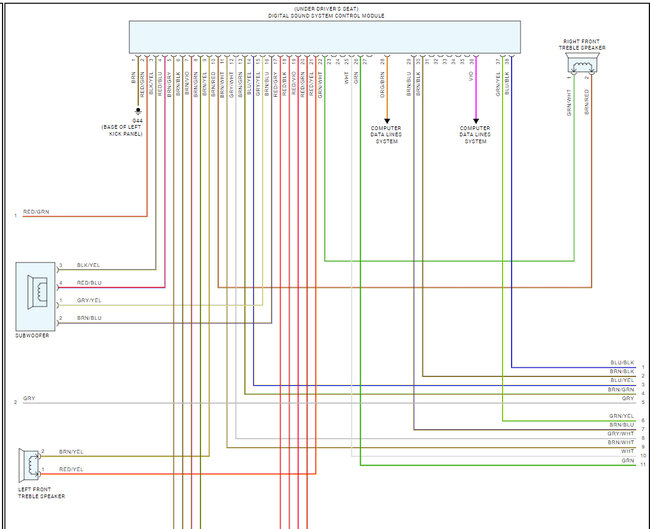

Yep, no problem, here are the radio and amplifier wiring diagrams. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Sep 21, 2024 at 11:33 AM
Avatar
CHEVY292
  • MEMBER
  • 2 POSTS
This is exactly what I needed. Thank you for the help!
Sep 21, 2024 at 12:57 PM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
Our pleasure, let us know how it goes or if you need anymore help.
