BCM wiring diagram?

2002 PONTIAC GRAND PRIX
200,000 MILES • 3.8L • 6 CYL • TURBO • 2WD • AUTOMATIC
Avatar
ISH1987
  • MEMBER
  • 2 POSTS
Need wiring diagram for the BCM
Mar 31, 2026 at 4:28 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

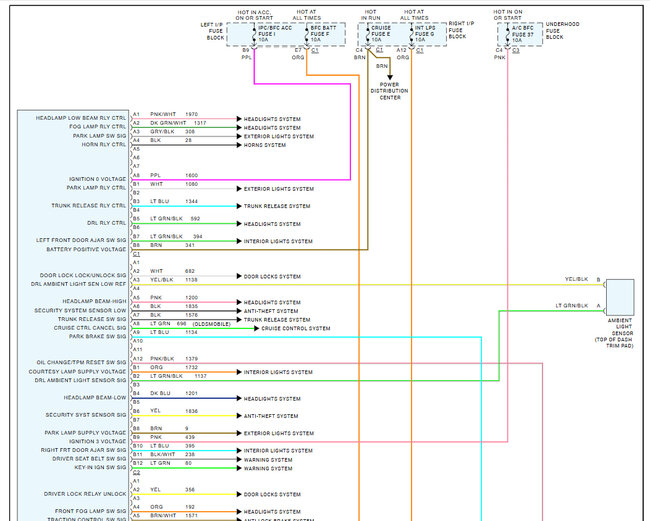

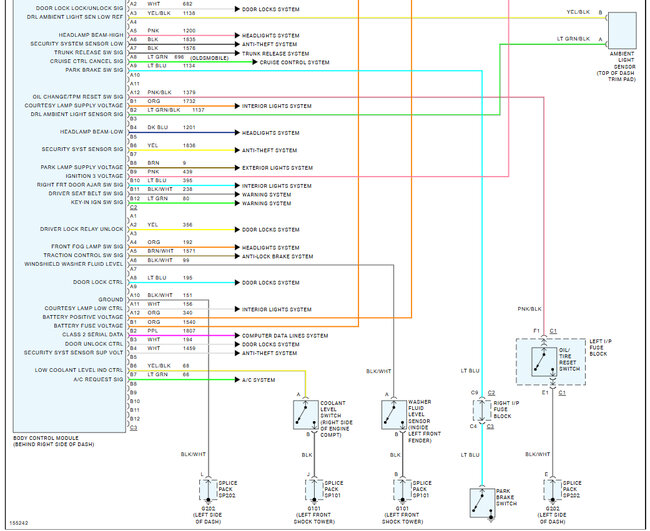

Sure, here is the wiring diagrams for the BCM and a guide to help you with the checking.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Let us know how it goes
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
