air conditioning stopped working; can I get a wiring schematic?

2007 HYUNDAI SONATA
115,000 MILES • 3.3L • 6 CYL • 2WD • AUTOMATIC
Avatar
LARRYPARADIS
  • MEMBER
  • 1 POST
Just in need of wiring schematic so I can trouble shoot.
Jun 16, 2022 at 11:43 PM
Advertisement
Avatar
SQM
  • ✓Experienced Mechanic
  • 6,383 POSTS
Hello,

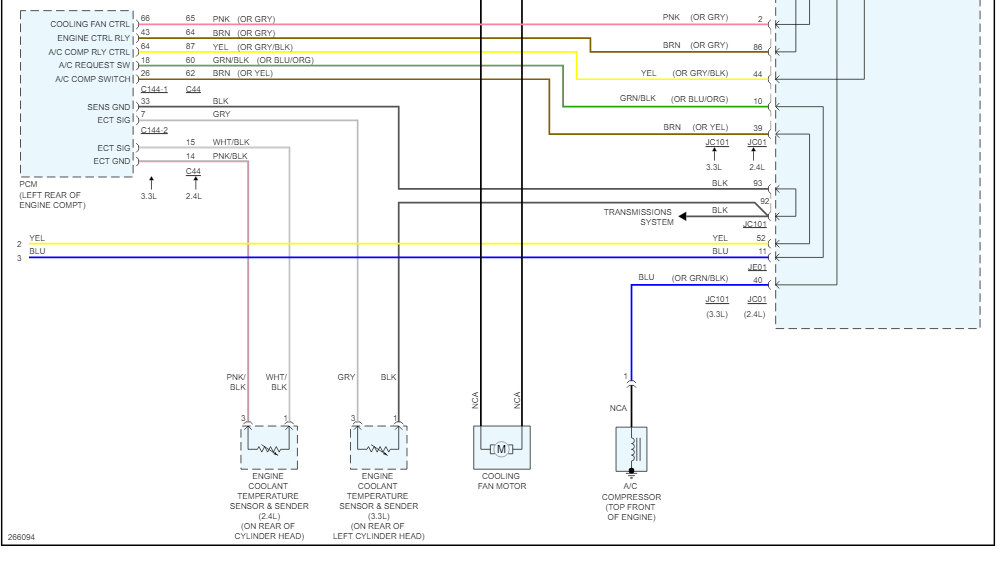

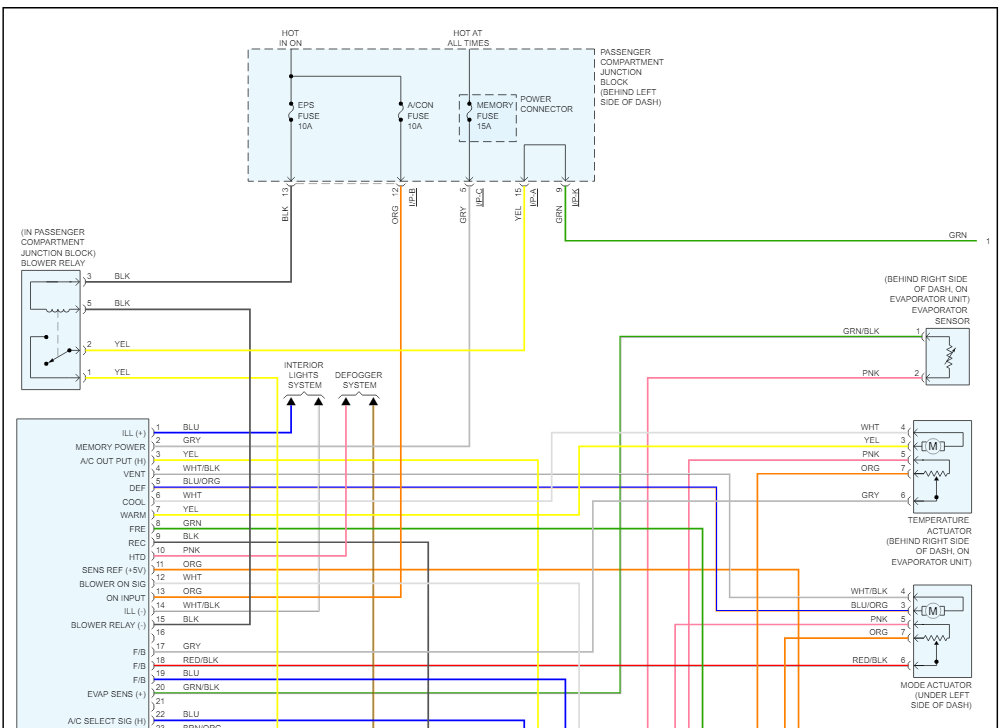

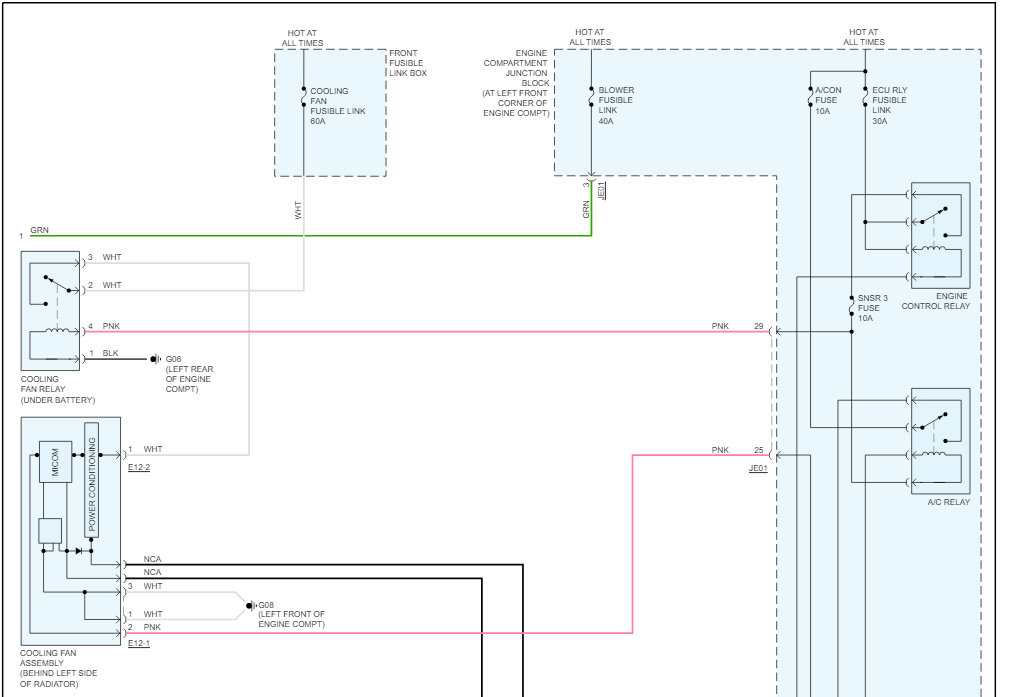

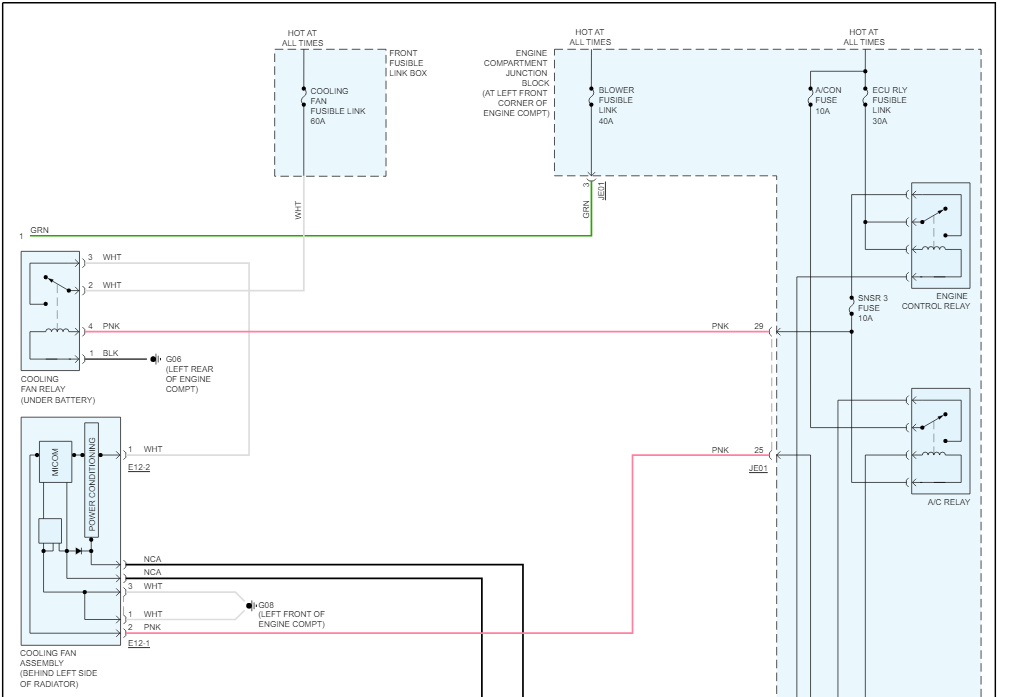

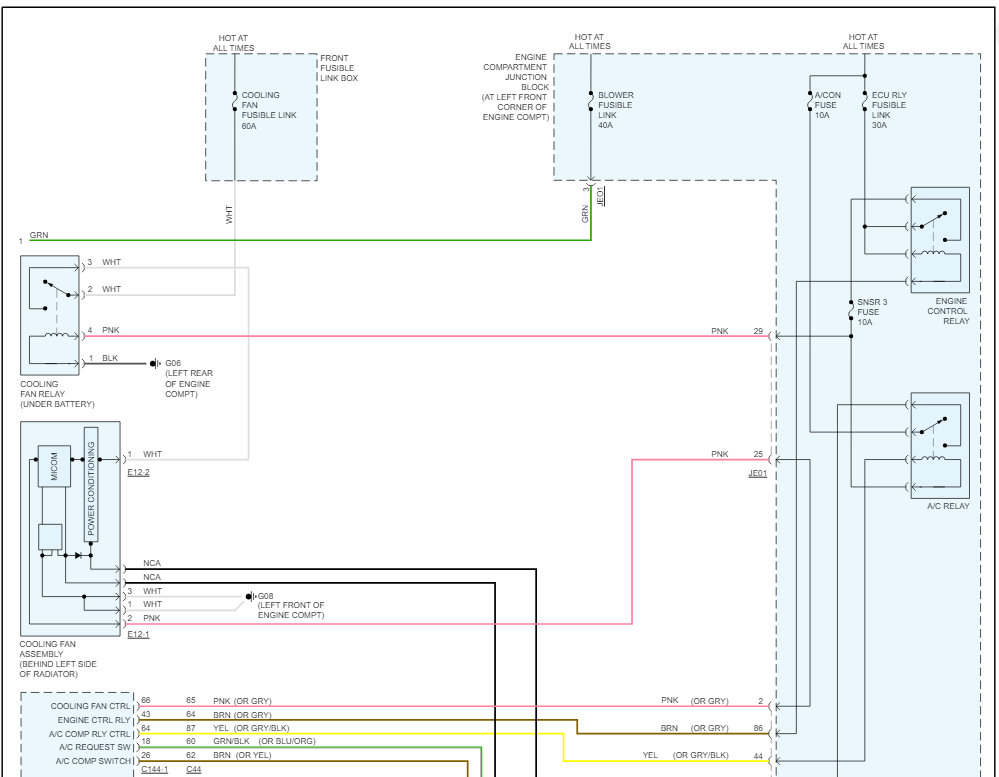

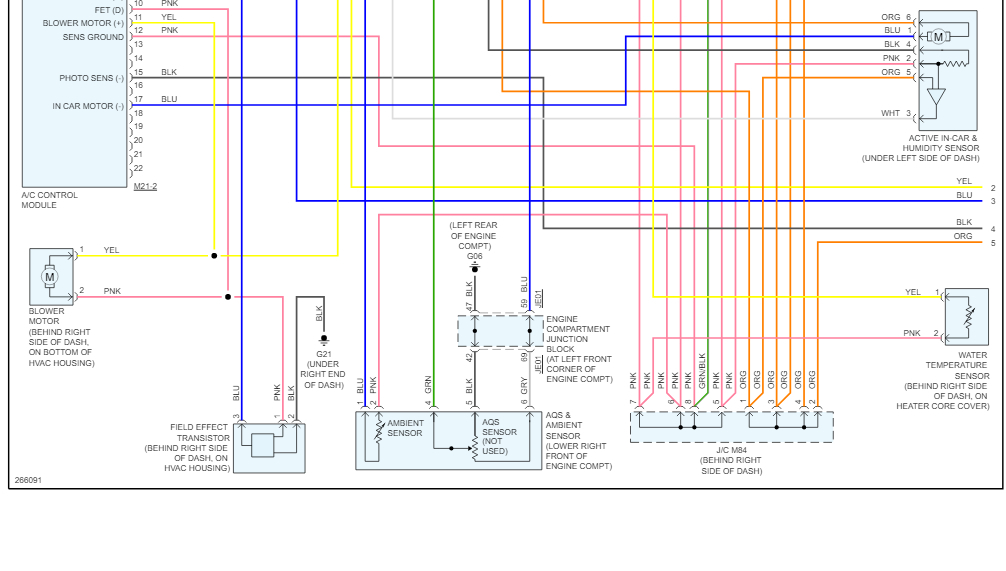

See attached for the wiring schematics for the AC system.

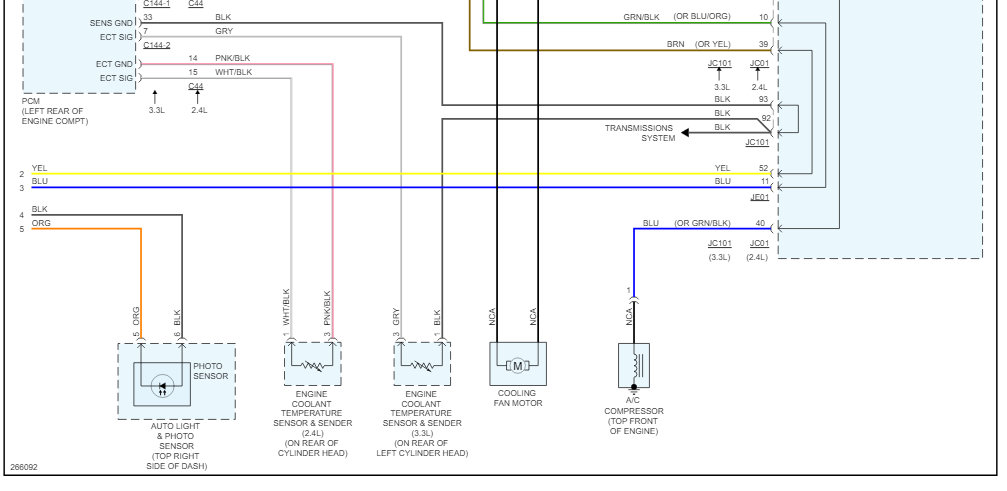

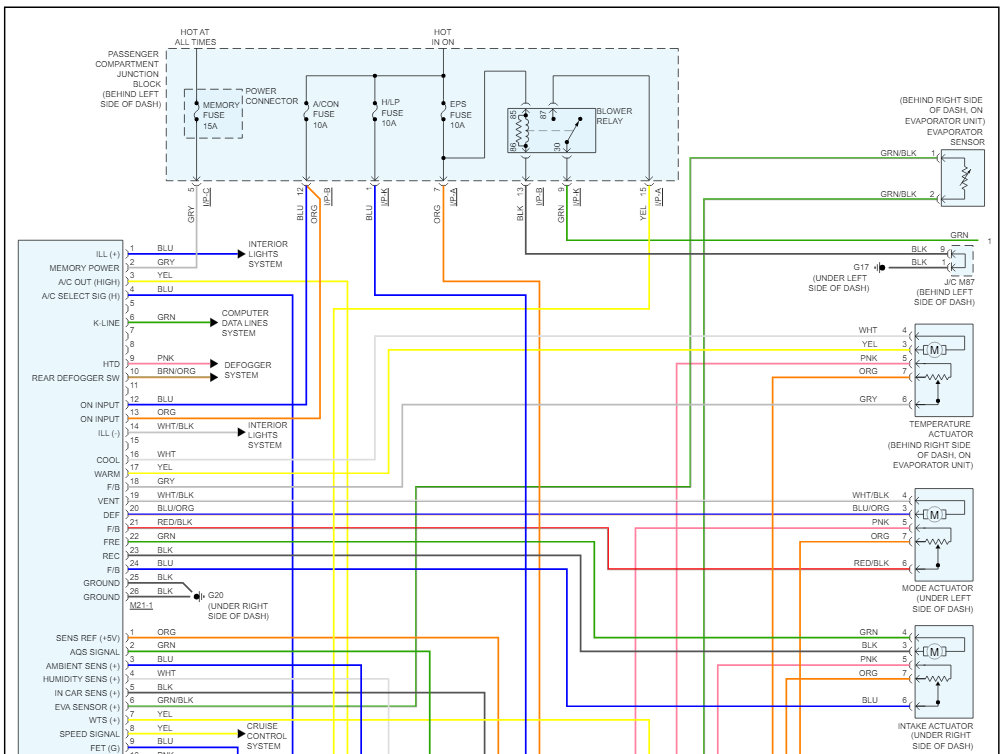

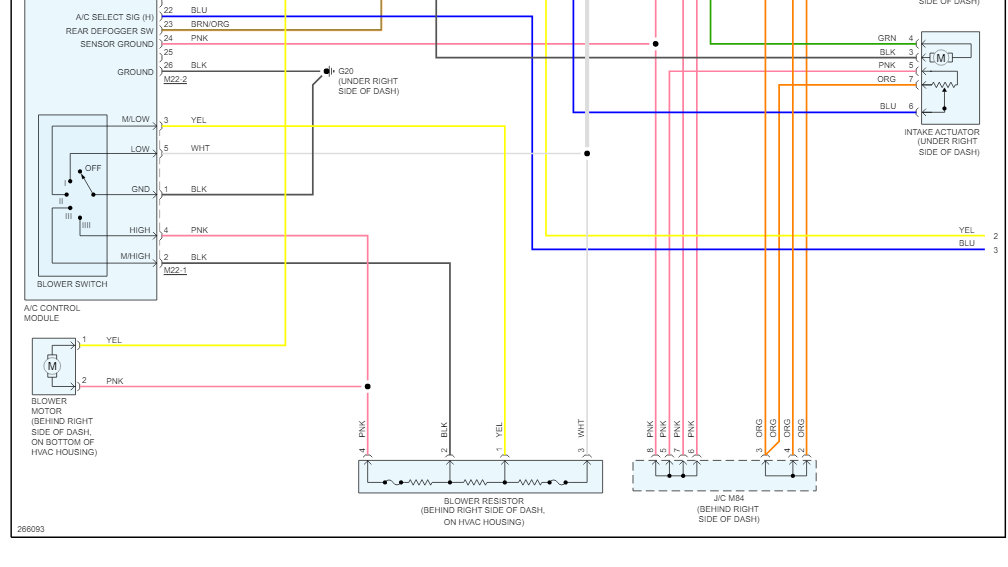

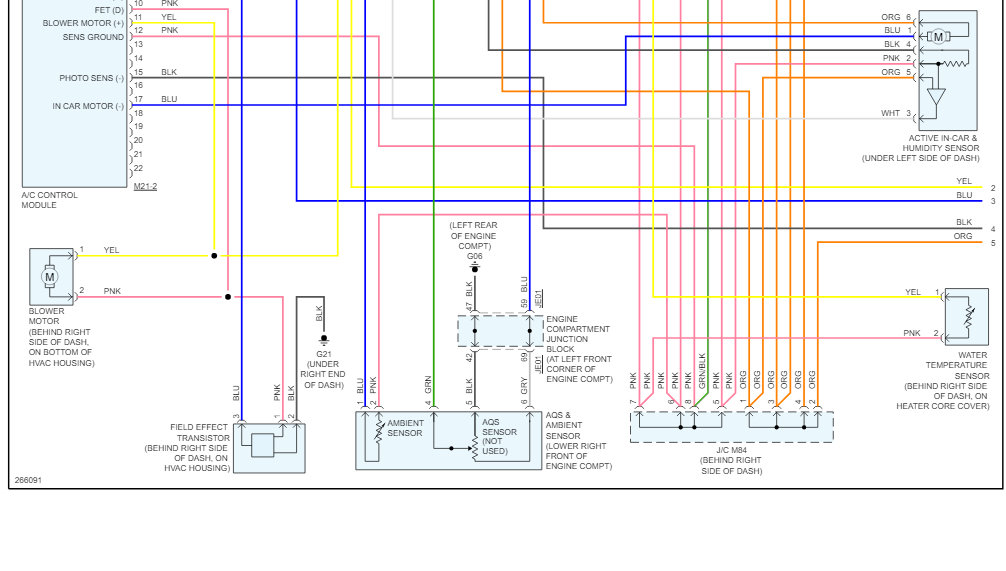

The first four images are for manual climate control and the last four images are for automatic climate control.

Let me know of any questions.
Thank you.

https://www.2carpros.com/articles/how-to-check-wiring
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
