AC compressor relay location needed

2001 MERCEDES BENZ E320
130,000 MILES • 6 CYL
Avatar
RICHARD SLATER
  • MEMBER
  • 3 POSTS
I have confirmed that the refrigerant pressure switch is grounded and receiving power. How do I check the compressor relays and which relay is the compressor relay?
Jun 11, 2018 at 10:50 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,240 POSTS
Hi and thanks for using 2CarPros.com.

The relay box is under the hood on the driver's side of the vehicle. As far as testing a relay, here is a link which describes how it is done and what you should find:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

I hope this helps. Let me know if you have other questions or need help.

Take care,
Joe

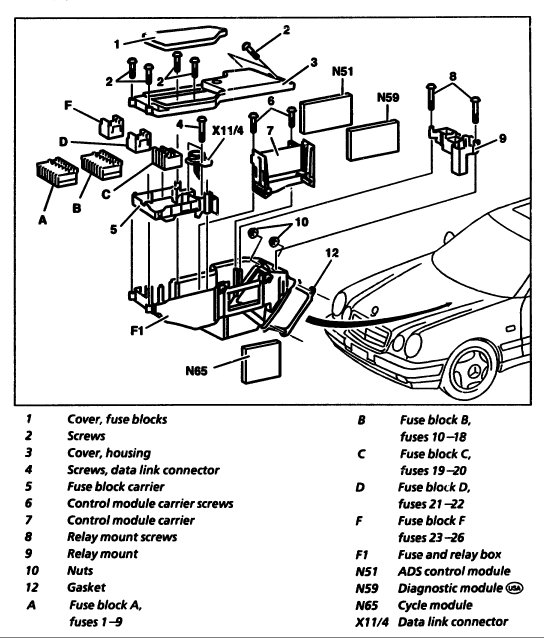

Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
