air-condition wiring diagrams?

2011 TOYOTA PRIUS C
150,000 MILES • 1.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
SHIWANTHA FERNANDO
  • MEMBER
  • 1 POST
Need a proper diagram for air-condition system from air-condition amplifier to the servo motors pin out and wire color code needed for the HVAC system.
Jul 24, 2025 at 8:33 PM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,214 POSTS

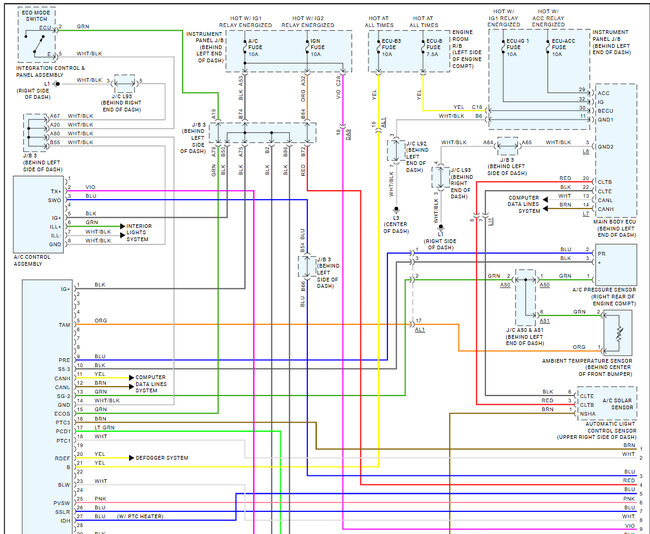

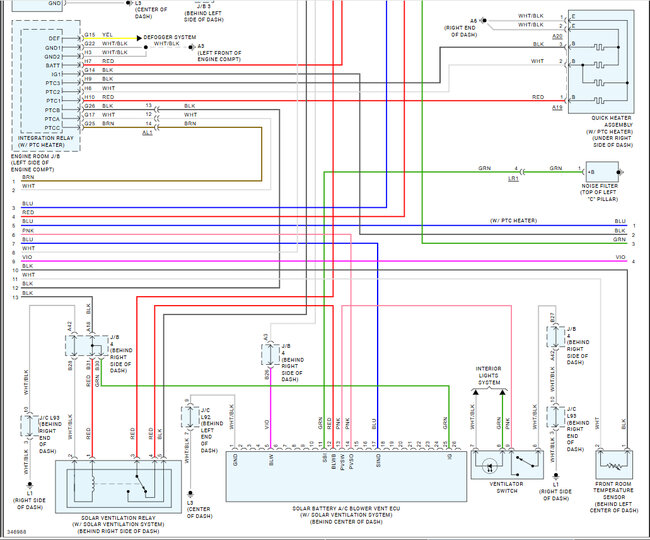

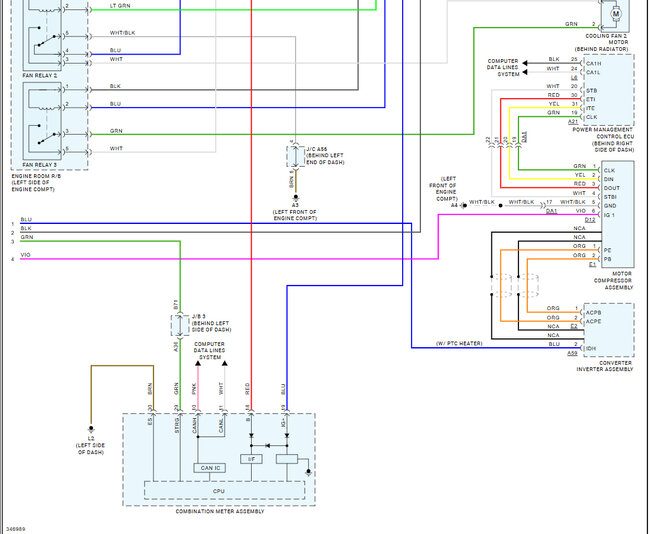

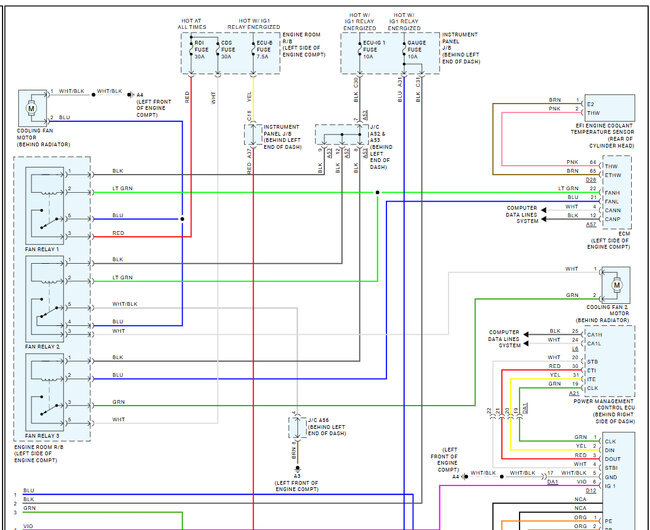

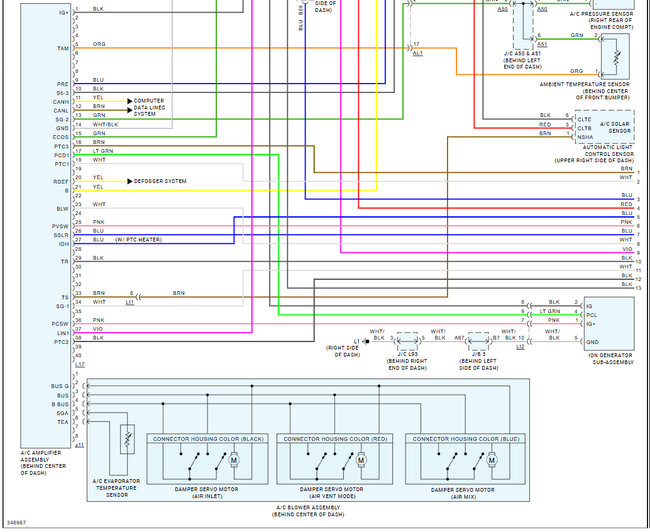

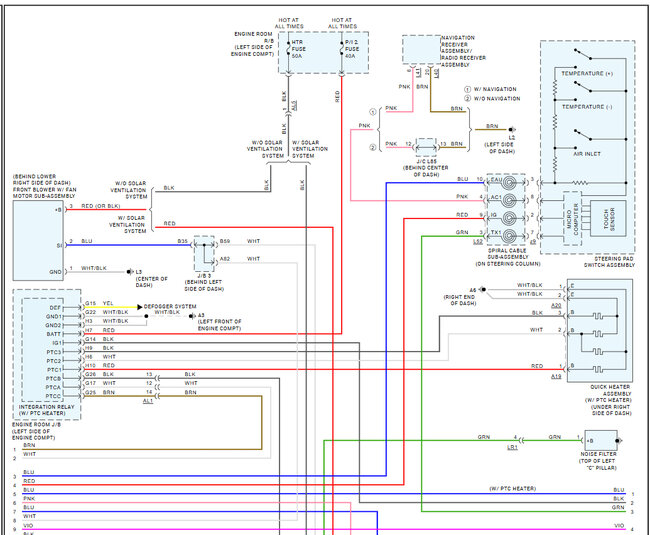

Sure, here are the wiring diagrams for the HVAC air conditioner/heater and a guide to help you will the testing.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jul 25, 2025 at 5:21 AM
