Tiny
THECHRISLAW
  • MEMBER
  • 2004 FORD EXPLORER SPORT TRAC
  • 4.0L
  • V6
  • 2WD
  • AUTOMATIC
  • 220,000 MILES
I have the vehicle listed above Adrenalin with a stock Pioneer head unit. It has the 6 disk CD changer and factory amplifier and sub-woofer. I’m connecting an aftermarket radio to it and trying to retain amp and sub. The wire harness kit I received has correct pins for main harness but I have a secondary 5 wire connector adapter for the amp and sub that is not correct for my Adrenalin. The connector adapter itself fits but the pin layout is incorrect and amp and sub is not working. I can’t find the correct wire diagram for my truck for those 5 wires. Every diagram I find has 4 wires and wire colors are incorrect. I’m hoping to find the correct diagram so I can re-pin the adapter I purchased.
SPONSORED LINKS
Sunday, May 3rd, 2020 AT 3:41 PM

5 Replies

Tiny
CJ MEDEVAC
  • MECHANIC
  • 11,004 POSTS

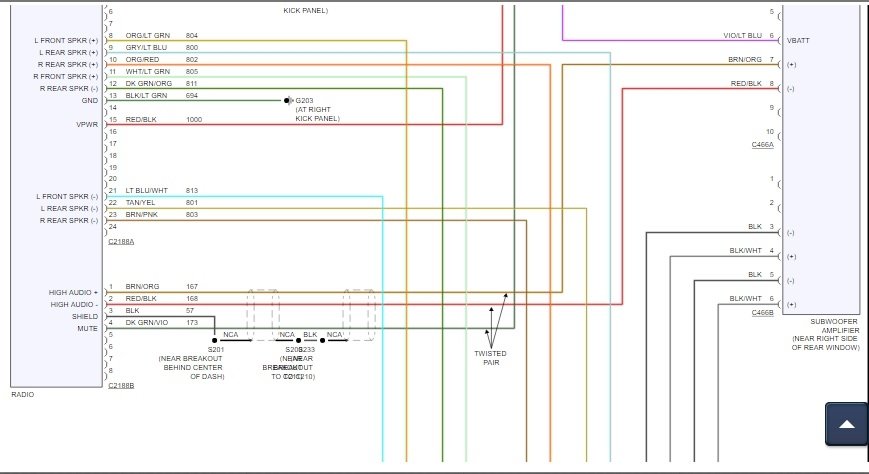

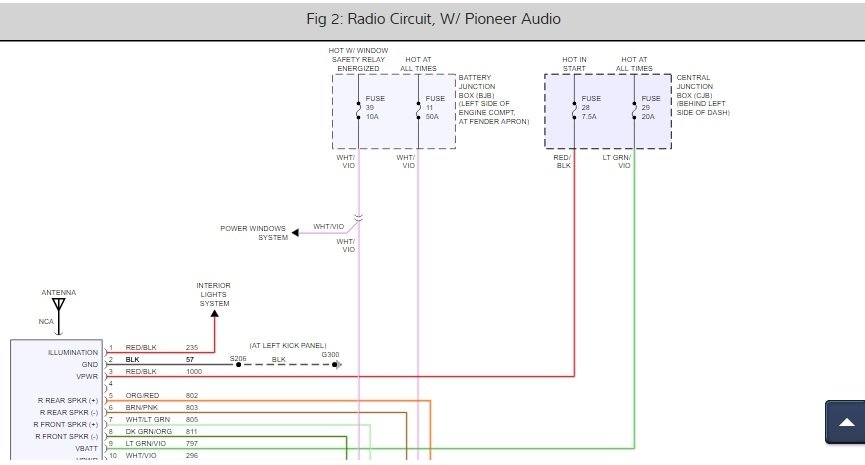

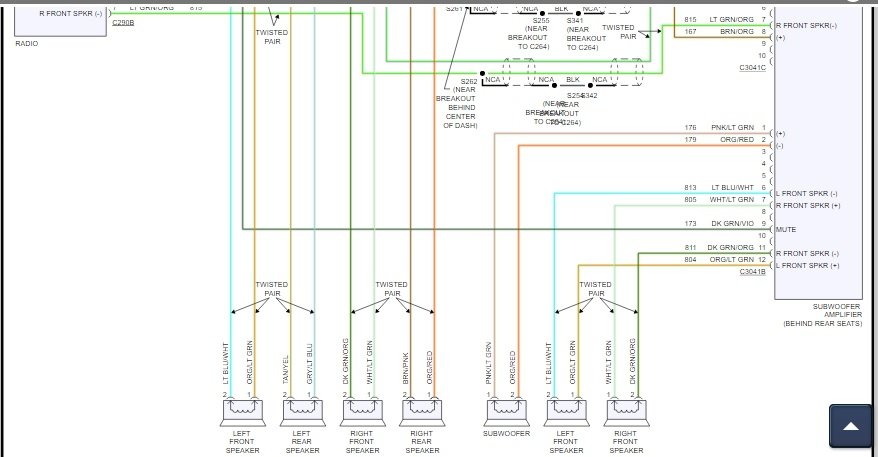

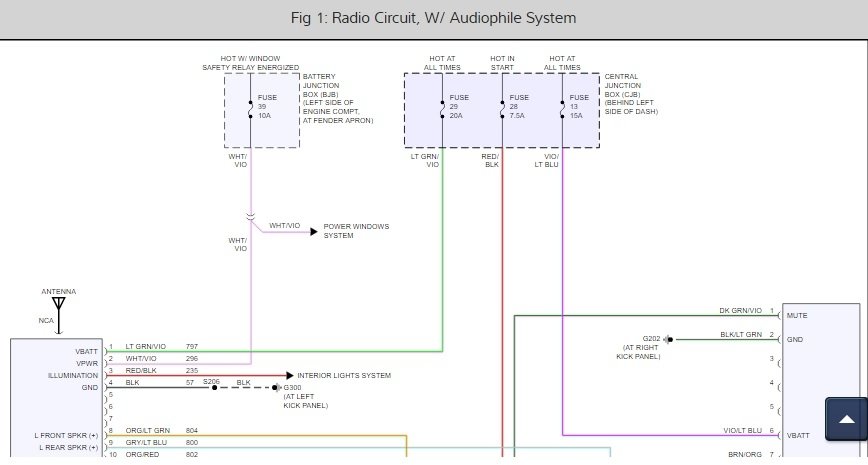

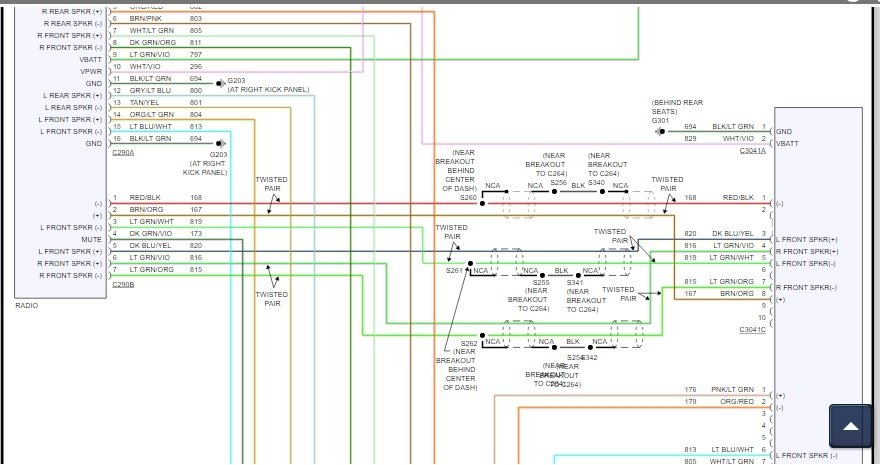

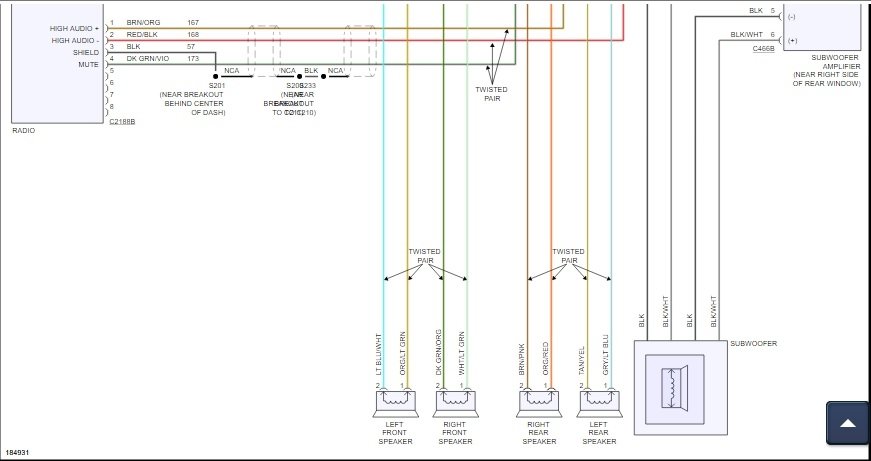

I had to screenshot these from "Prodemand"

2 diagrams.

3 shots for each one.

I think I have them overlapping!

Let me know if this helps.

The Medic
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Sunday, May 3rd, 2020 AT 4:17 PM
Tiny
THECHRISLAW
  • MEMBER
  • 3 POSTS
No, I appreciate it but the 5 wires going to the amp and sub connector from the head unit are black, green, green and black, black and yellow, and red and blue. I can’t find a diagram for it anywhere.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Sunday, May 3rd, 2020 AT 4:58 PM
Tiny
CJ MEDEVAC
  • MECHANIC
  • 11,004 POSTS
I could try to look it up using your VIN.

The Medic
Was this
answer
helpful?
Yes
No
Sunday, May 3rd, 2020 AT 5:58 PM
Tiny
THECHRISLAW
  • MEMBER
  • 3 POSTS
1FMZU67K14UB43331.
Was this
answer
helpful?
Yes
No
Sunday, May 3rd, 2020 AT 6:06 PM
Tiny
CJ MEDEVAC
  • MECHANIC
  • 11,004 POSTS
Sorry!

I tried "Prodemand" again and then I tried "Alldata" too.

I get the same exact diagrams that I sent the first time.

The Medic
