1991 Acura Integra belt routing diagram

1991 ACURA INTEGRA
20,000 MILES • 4 CYL • FWD • MANUAL
Avatar
ZANYCAT67
  • MEMBER
  • 3 POSTS
I just bought my integra. The ac is not working the obvious problem is no belt. It also looks like the idler pulley is missing. I am looking for a routing diagram.
Jun 27, 2009 at 8:24 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
RASMATAZ
  • CAR REPAIR CONTRIBUTOR
  • 75,992 POSTS

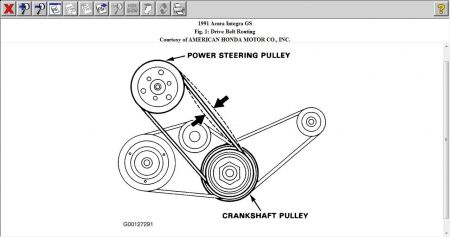

https://images.2carpros.com/forum/automotive_pictures/12900_ac_belt_routing_1.jpg

Jun 27, 2009 at 8:38 AM
Advertisement
Avatar
ZANYCAT67
  • MEMBER
  • 3 POSTS
Thank you very much. One more question. where is the adjustment on the ac belt? I know I need the idler pulley as it is not there on my integra.
Jun 27, 2009 at 9:13 AM
Avatar
RASMATAZ
  • CAR REPAIR CONTRIBUTOR
  • 75,992 POSTS

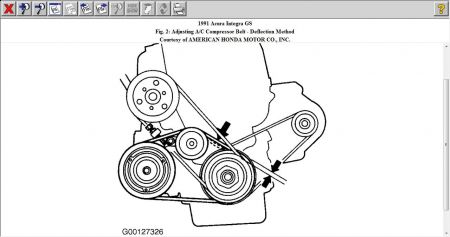

See below


https://images.2carpros.com/forum/automotive_pictures/12900_ac_adjustment_1.jpg

Jun 27, 2009 at 9:19 AM
