Accelerator cable installation diagram needed

Tiny
CHRISTOPHER IVAN ROEDER
  • MEMBER
  • 1996 HONDA ACCORD
  • 2.2L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 191,354 MILES
I am putting my accelerator cables back and I need a diagram to make sure I'm putting them back correctly. Can anyone help please?
Wednesday, September 11th, 2019 AT 12:16 AM

5 Replies

Tiny
MASTERWRENCH
  • MECHANIC
  • 258 POSTS
Hello Chris,

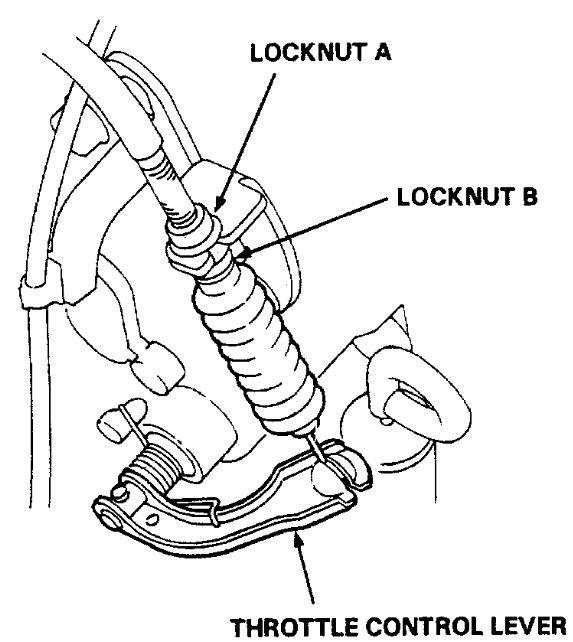

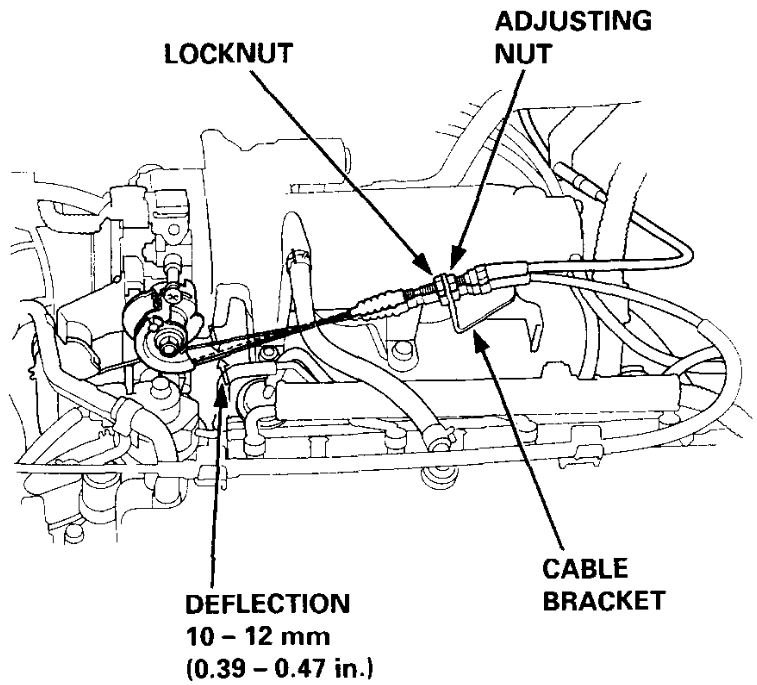

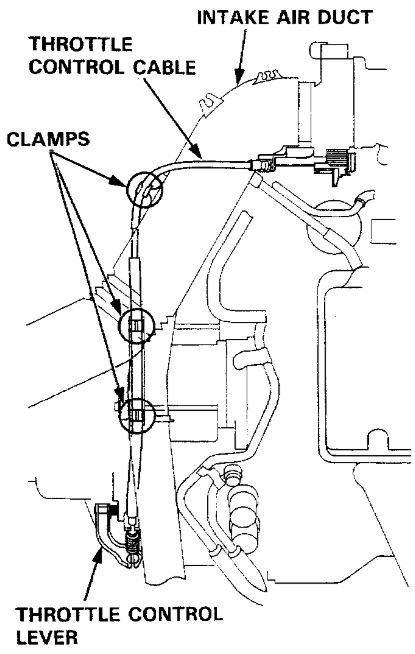

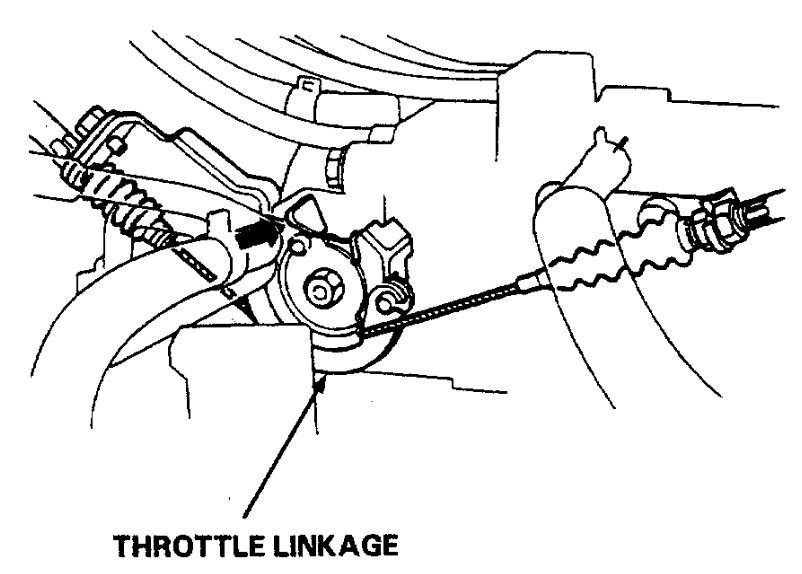

Please see the attached diagrams for throttle cable routing. I've attached one for the 2.2L and several for 2.7L.

Let me know if you need anything else!
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, September 11th, 2019 AT 5:06 AM
Tiny
CHRISTOPHER IVAN ROEDER
  • MEMBER
  • 113 POSTS

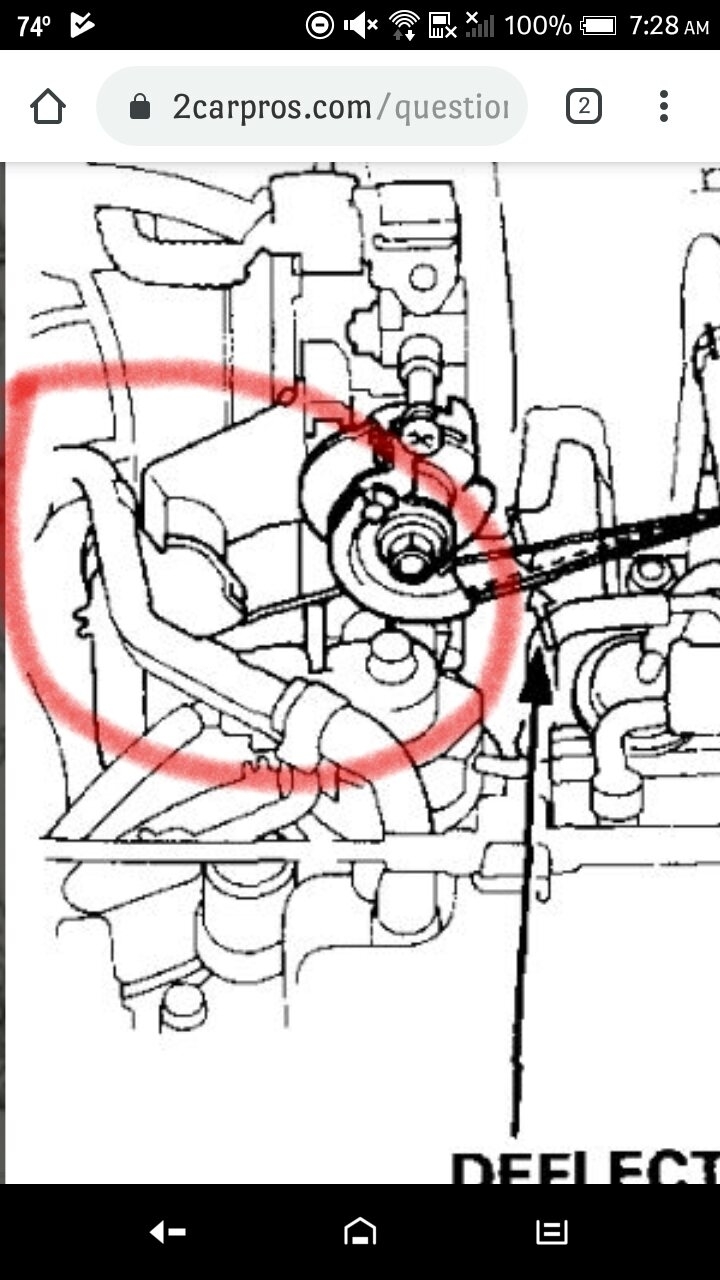

I'm trying to figure out how to get this cable back on track, if that makes sense.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+1
Wednesday, September 11th, 2019 AT 5:34 AM
Tiny
MASTERWRENCH
  • MECHANIC
  • 258 POSTS
Chris,

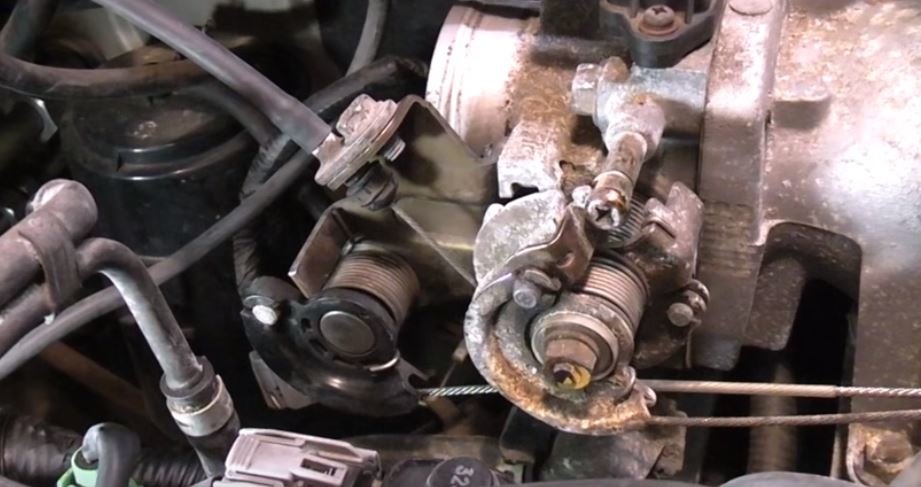

This picture may be a little more helpful. Sometimes the line-art pictures from the service manuals aren't the best.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Wednesday, September 11th, 2019 AT 6:55 AM
Tiny
CHRISTOPHER IVAN ROEDER
  • MEMBER
  • 113 POSTS
That's perfect, thank you. Mine must have had a plastic piece break off somewhere cause the cable doesn't go in like it's supposed to. Thank you very much.
Was this
answer
helpful?
Yes
No
Wednesday, September 11th, 2019 AT 7:36 AM
Tiny
MASTERWRENCH
  • MECHANIC
  • 258 POSTS
Perfect! Glad we could help!
