AC hose diagram

1999 DODGE DAKOTA
200,000 MILES • 3.9L • 6 CYL • MANUAL
Avatar
44MAGMAN
  • MEMBER
  • 1 POST
I am replacing everything except the evaporator coil and would like a shop diagram of complete system to make sure I put it back together the right way.
Jul 26, 2018 at 10:49 AM
Advertisement
Avatar
ASEMASTER6371
  • ✓ASE Certified Mechanic
  • 52,796 POSTS
  • ASE Certified Mechanic
Good morning.

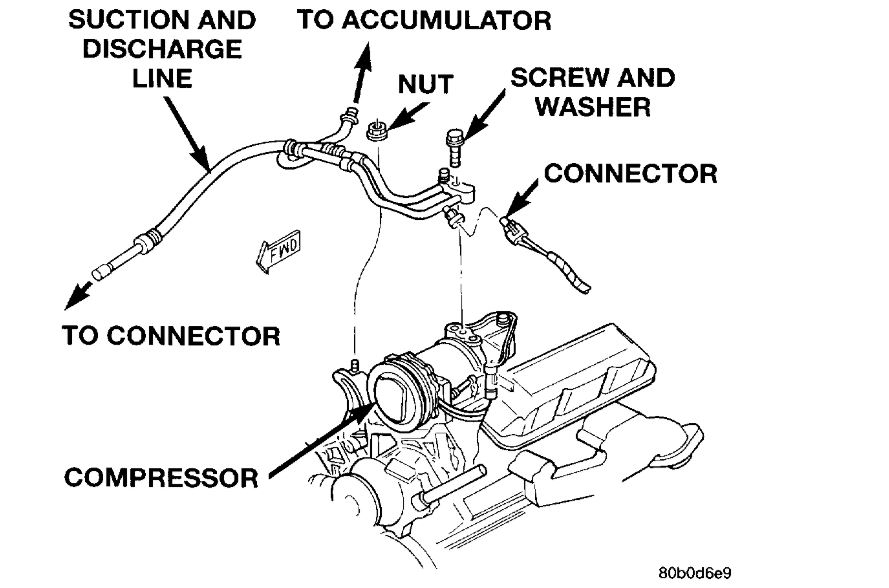

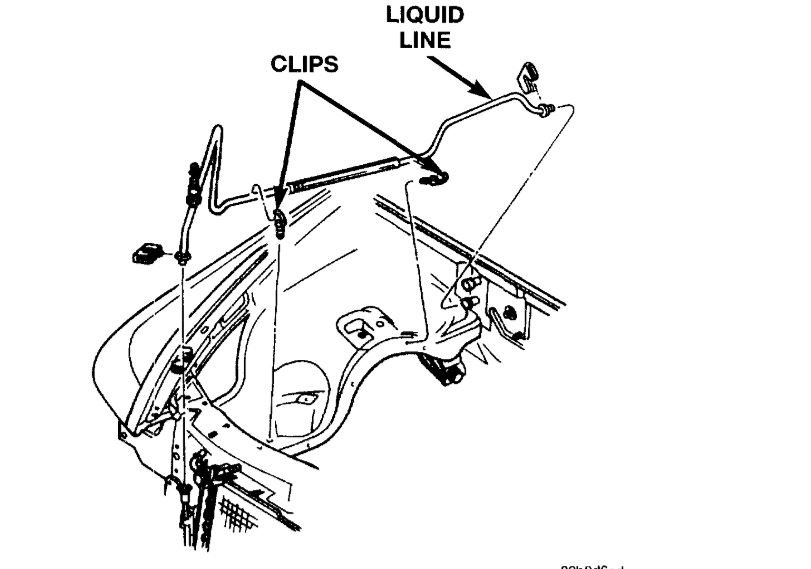

The lines will only go one way. You will not be able to install them wrong. I attached a couple of pictures for you for the system. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
