ABS module wire harness pinout needed?

2006 CHEVROLET SUBURBAN
357,896 MILES • 4.0L • V8 • 4WD • AUTOMATIC
Avatar
TBABST
  • MEMBER
  • 2 POSTS
ABS has a lost communication with scanning tools. And the ABS malfunction light is on steady. And I think this is the reason why the transmission is not changing while driving.
Image (Click to enlarge)
Attached Media
May 28, 2023 at 10:25 PM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,562 POSTS

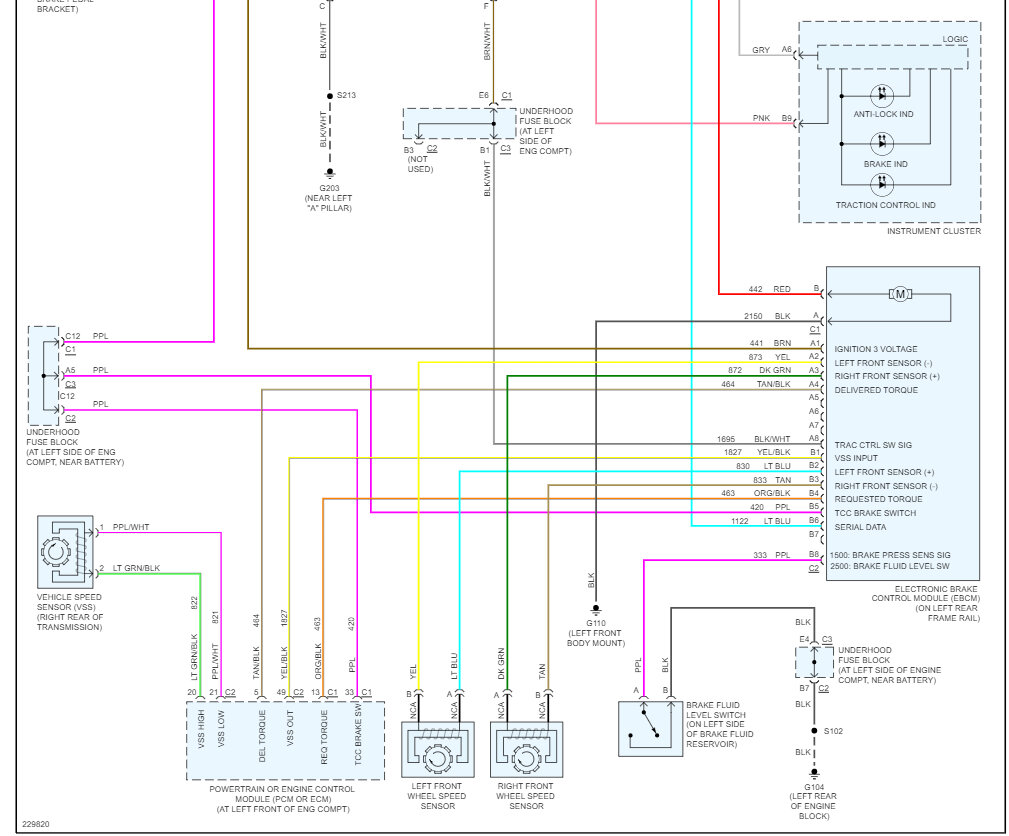

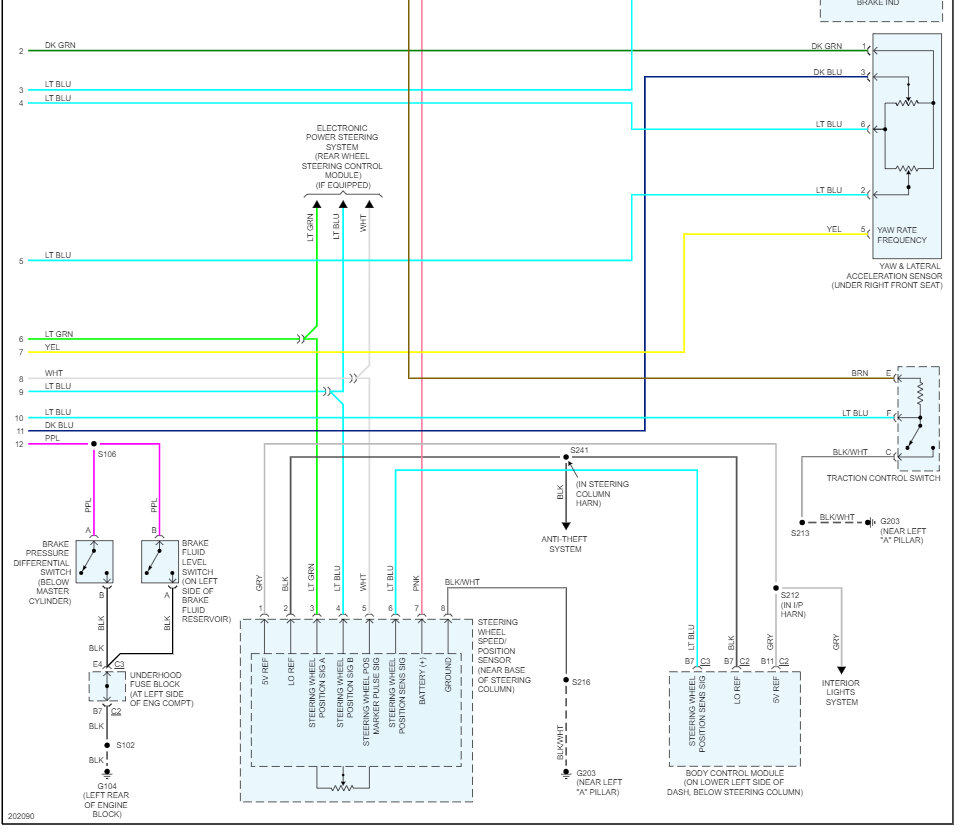

Here is a guide and the ABS wiring diagrams as requested with a guide to help you check the power and grounds before you replace the module:

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

Check out the images (below). Let us know what happens and please upload pictures or videos of the problem so we can see what's going on.
Images (Click to enlarge)
Attached Media
Attached Media
May 30, 2023 at 4:41 AM
Avatar
TBABST
  • MEMBER
  • 2 POSTS

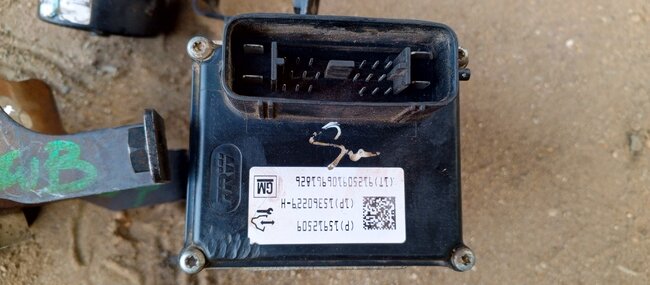

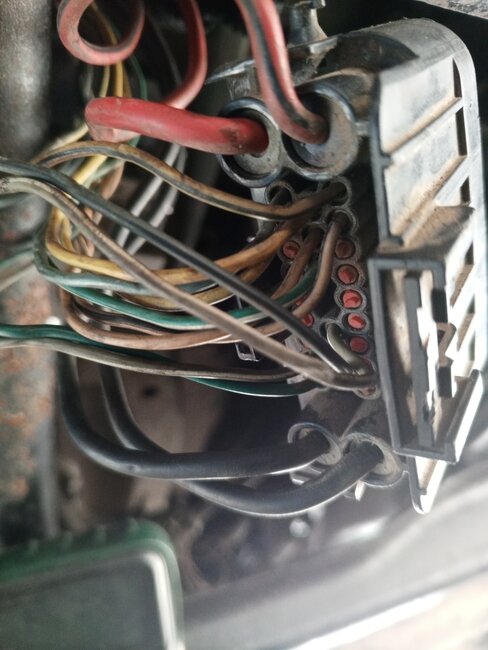

Please check, this pinout socket for my ABS. The wires are differ in color in the diagram you sent.
Image (Click to enlarge)
Attached Media
Jul 10, 2023 at 11:31 PM
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,562 POSTS

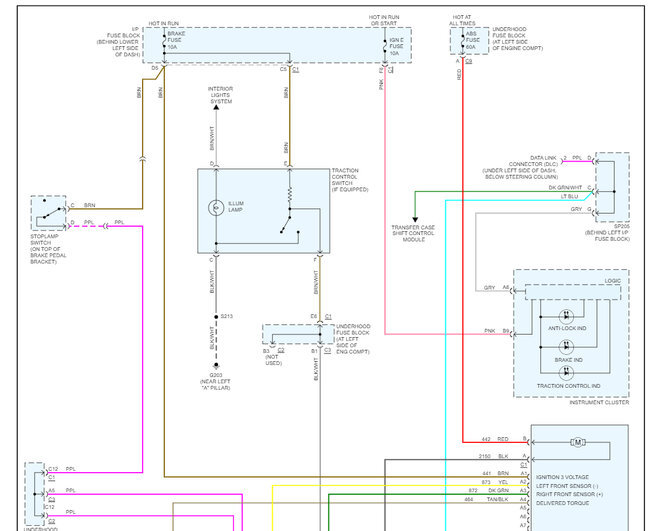

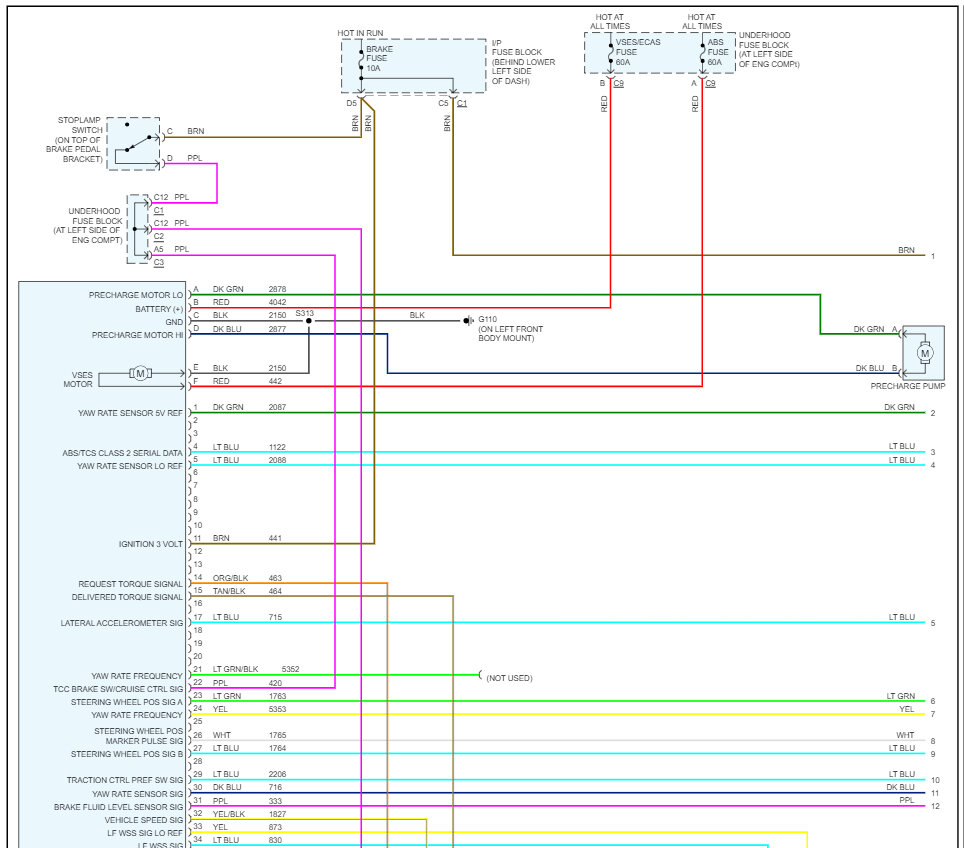

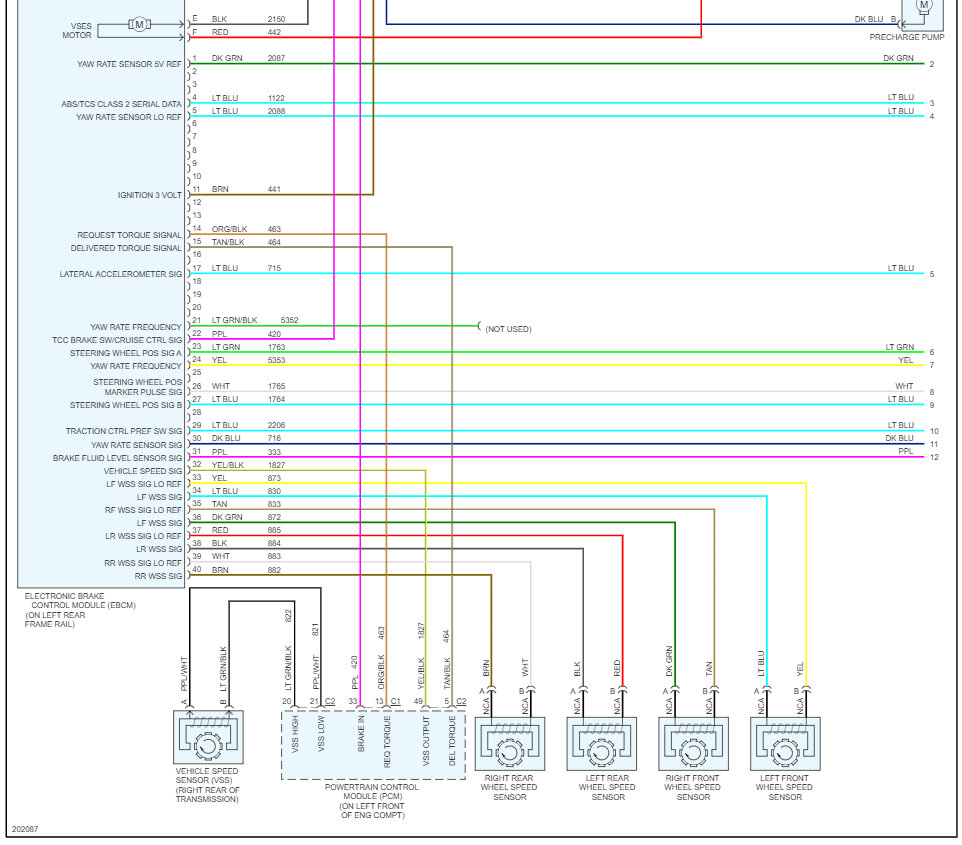

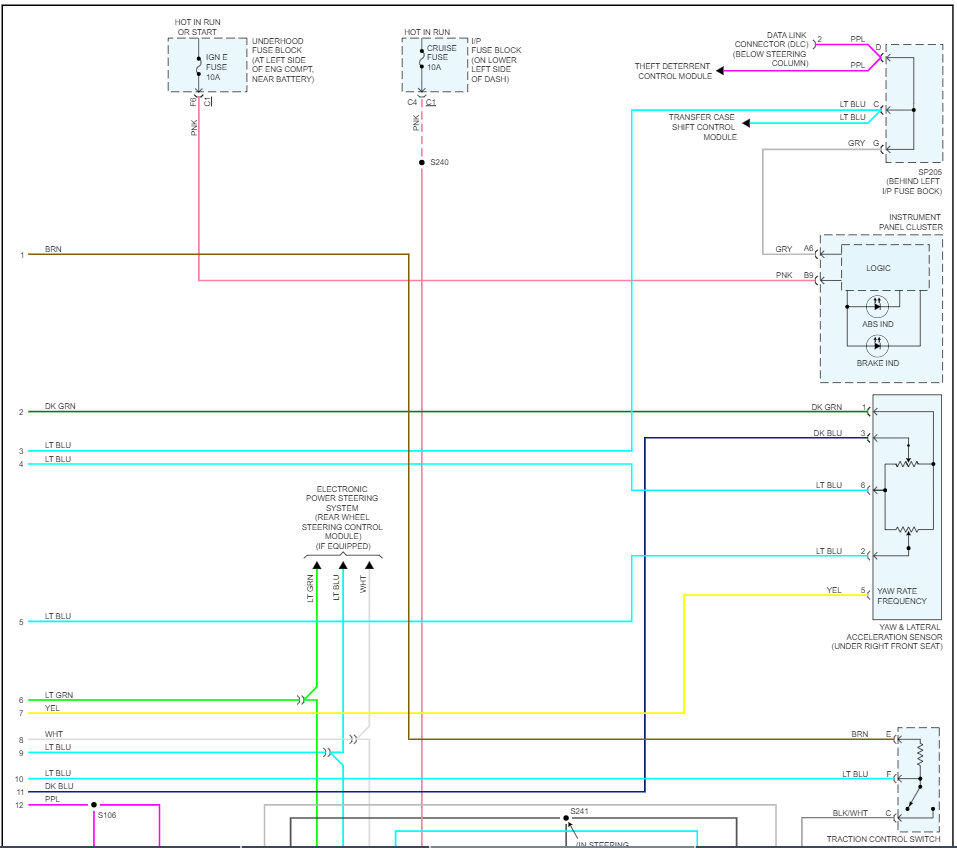

You say 4-liter engine but there is no engine of that size. Can you tell me if you have a 5.3? I found these ABS wiring diagrams I think they are the ones you need.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Jul 13, 2023 at 1:55 AM
