Where can i find a diagram of the ABS front wiring system?
Oct 29, 2019 at 1:56 PM
ABS wiring diagram?
2005 CHEVROLET EQUINOX
KAREN STEELE JESTER
- MEMBER
- 1 POST
- FOLLOW
Repair Safety Notice:
This information is for general instructional purposes only. Vehicle repair can be dangerous.
Verify all information, follow manufacturer service procedures, use proper tools and safety equipment,
and consult a qualified repair shop when needed.
Advertisement

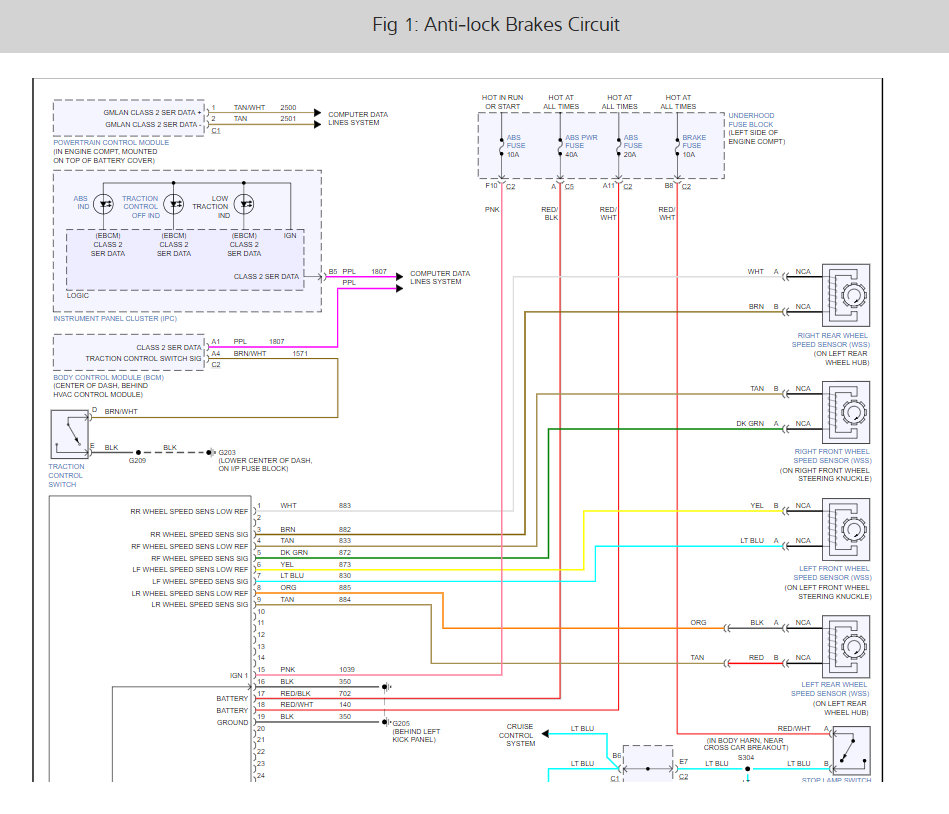

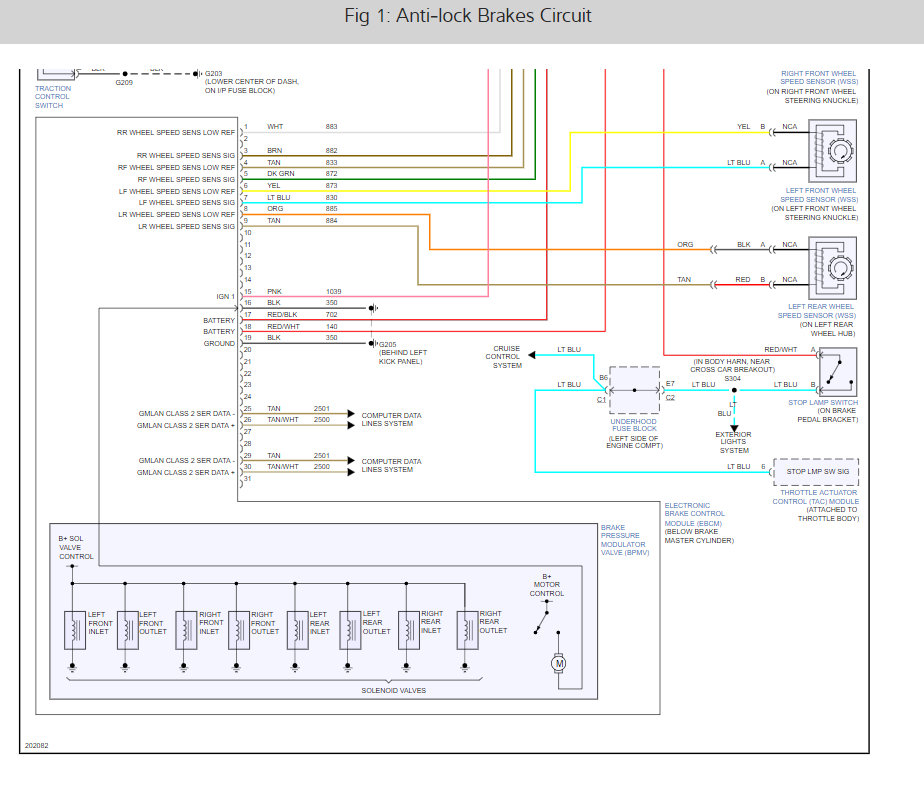

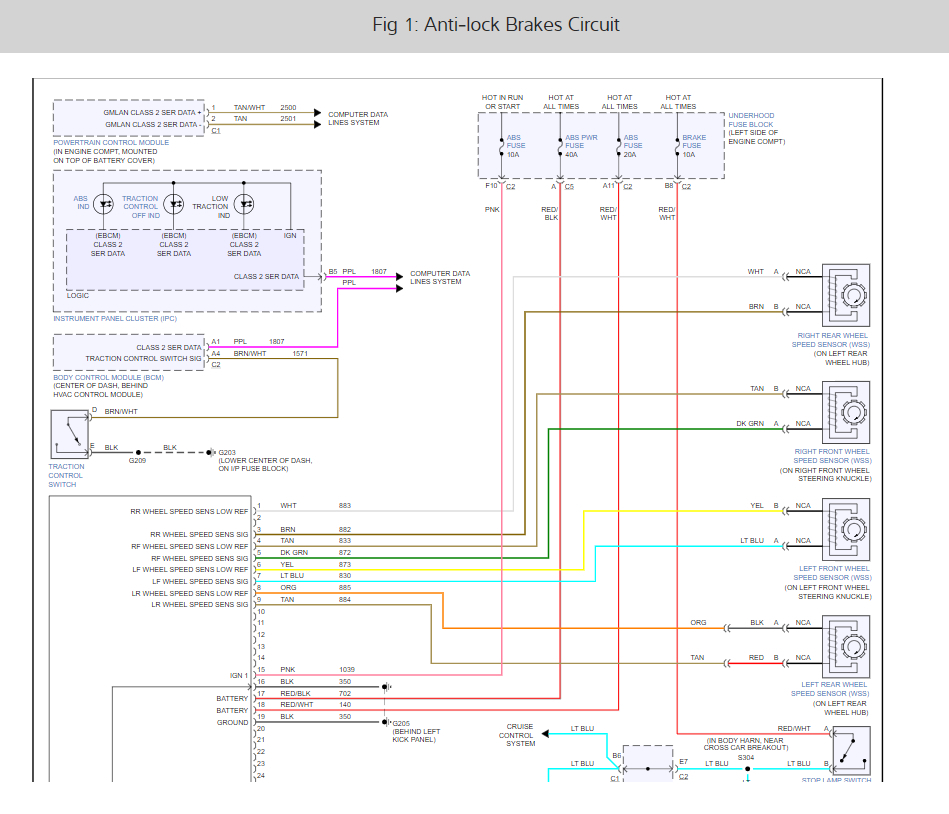

hello thanks for using 2carpros, Here is the ABS wiring diagrams below and a guide to help you test the connections.
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
