I just went to know the color sensor wire in the speedometer cluster?
Thank you for your help!
Thank you for your help!
Aug 31, 2019 at 9:22 PM
Identifying the sensor wire in the speedometer cluster
2019 TOYOTA REVO
DAWIT
- MEMBER
- 1 POST
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS
Hello,
Which sensor wire do you need? Here is a guide on how to check the wiring and the instruction cluster wiring diagrams below:
https://www.2carpros.com/articles/how-to-check-wiring

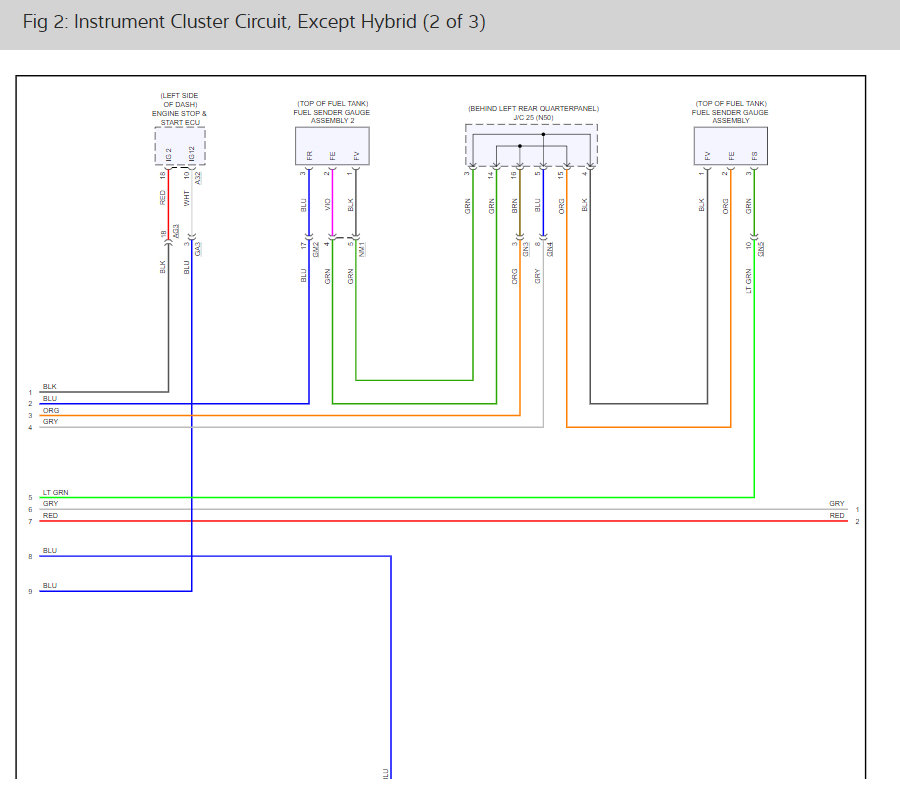

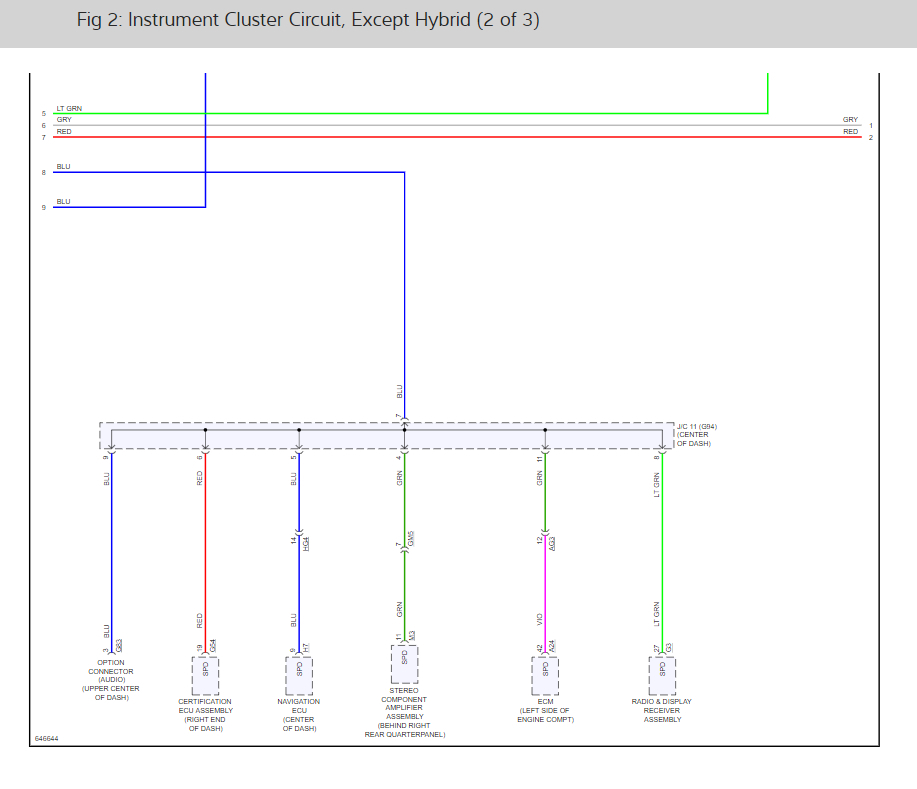

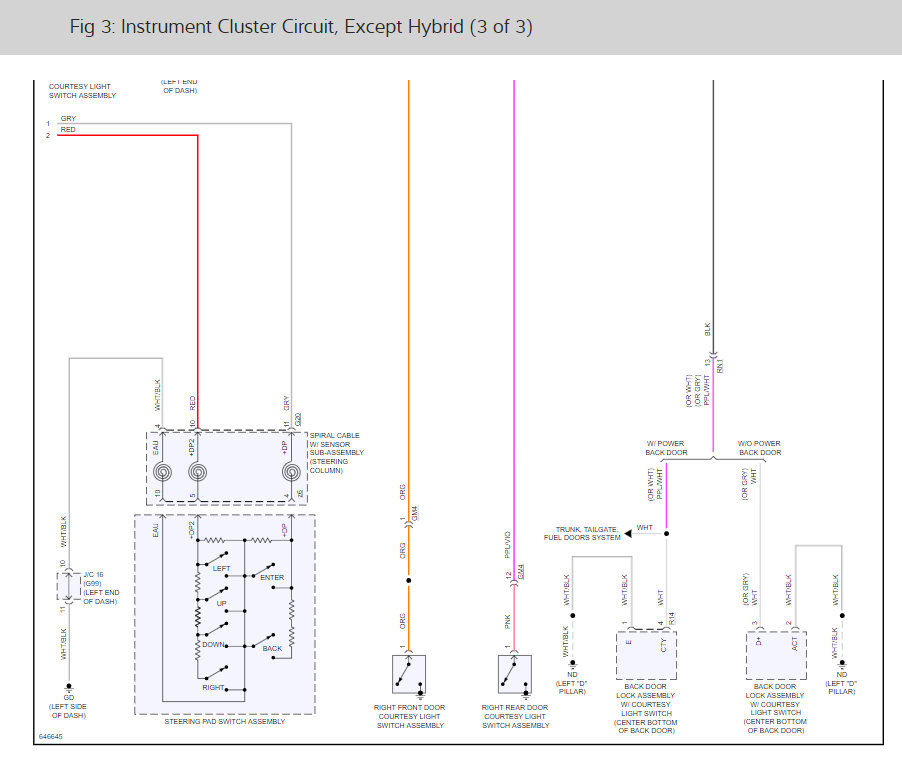

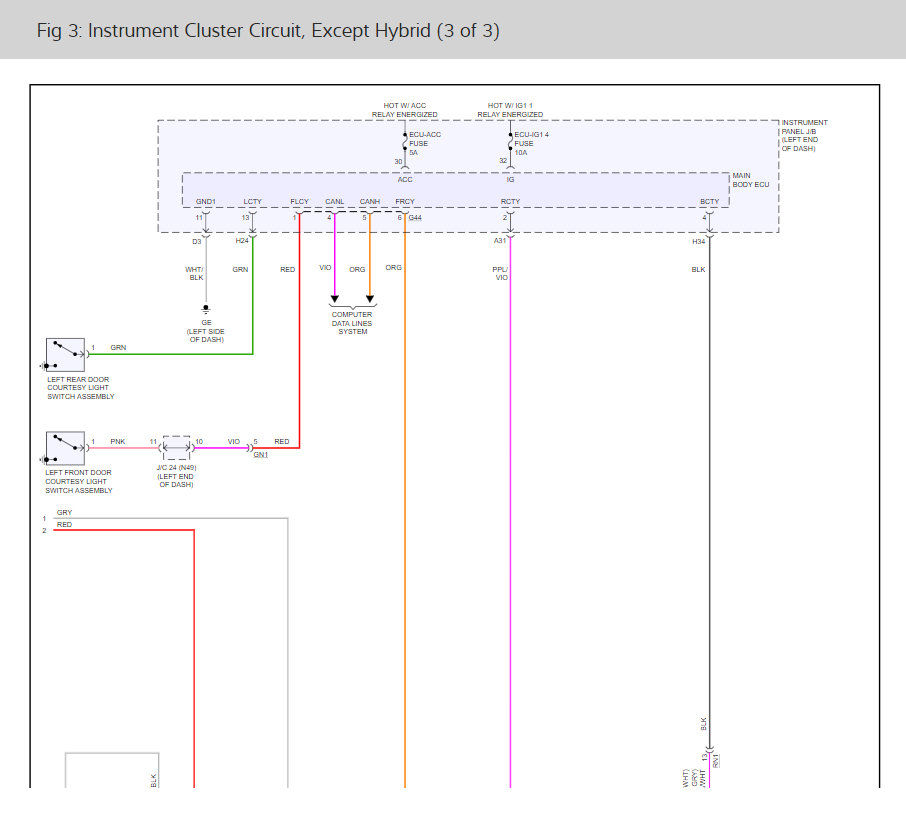

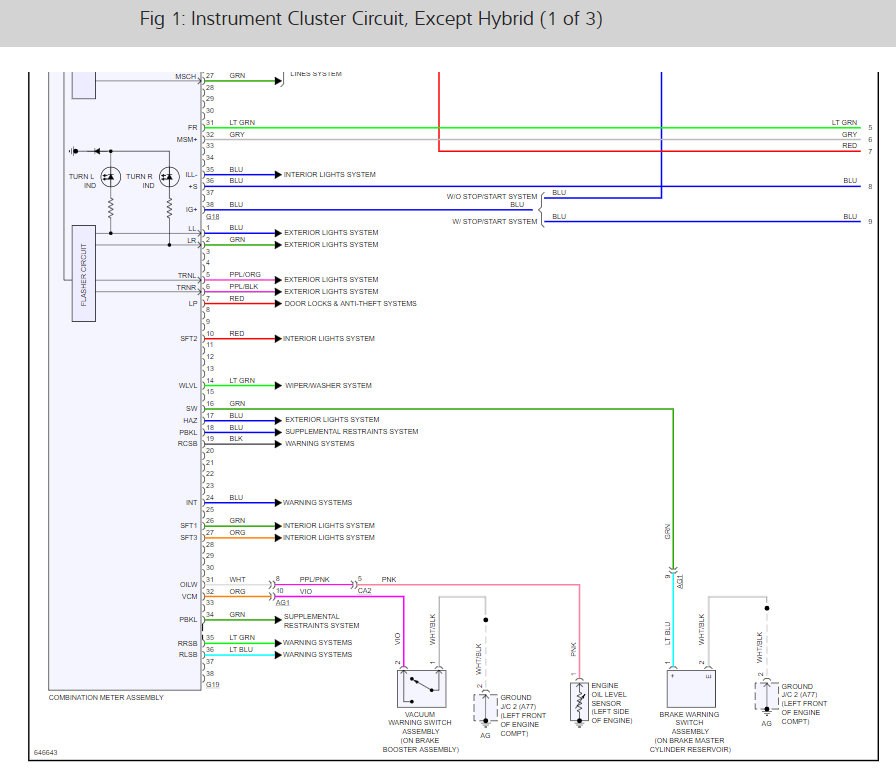

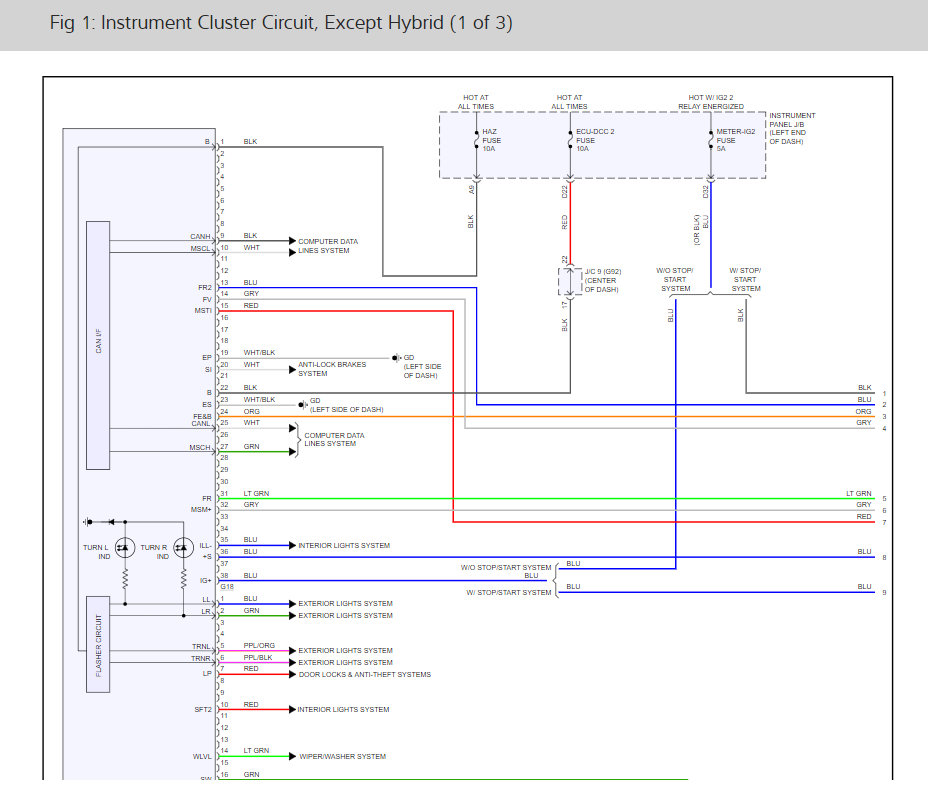

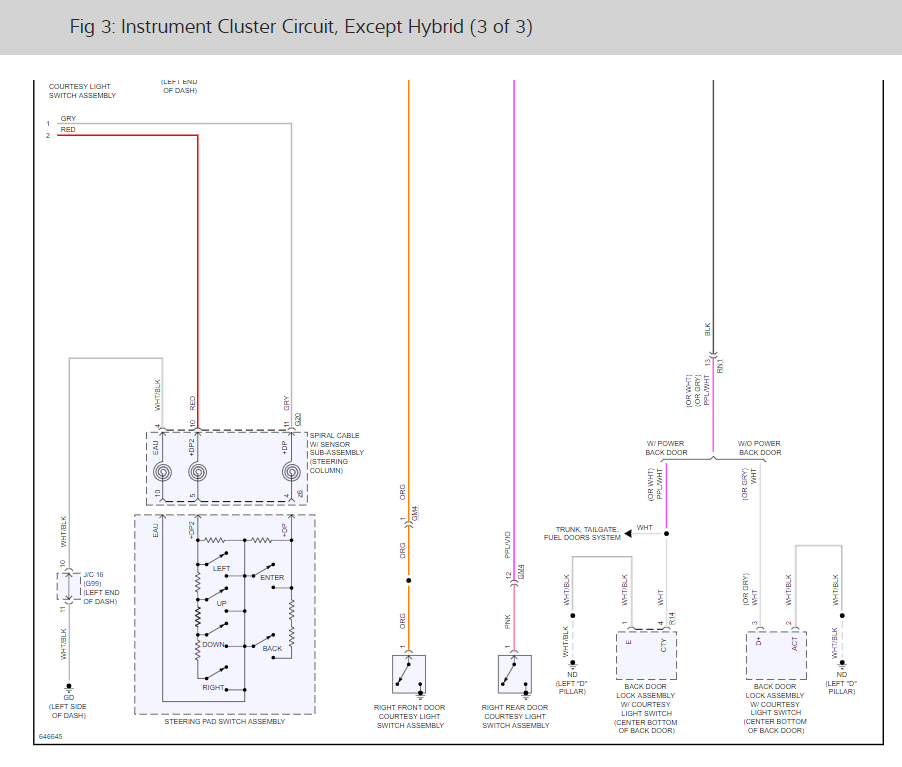

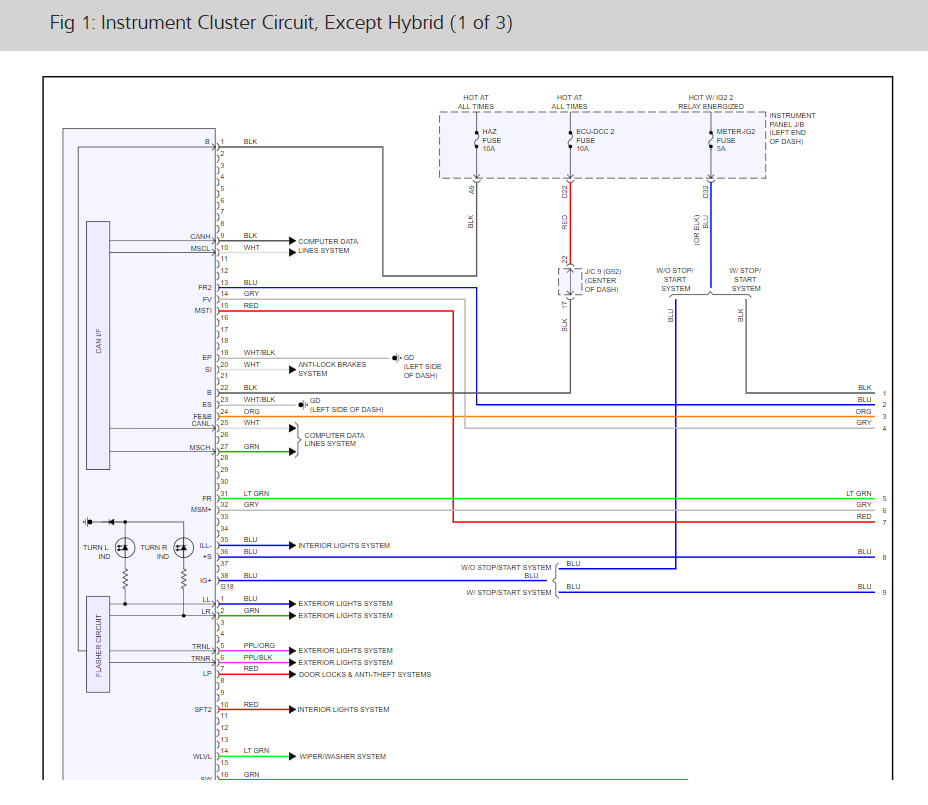

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Which sensor wire do you need? Here is a guide on how to check the wiring and the instruction cluster wiring diagrams below:
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
